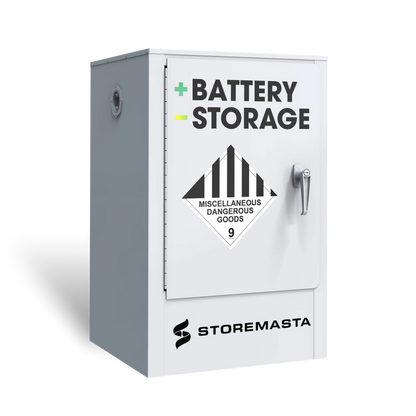

Battery Storage Cabinet - 30L
SC030BSStoremasta's Battery Storage Cabinet - 30L provides a fast and cost-effective solution to mitigate the risks associated with lithium-ion batteries. These Battery Storage Cabinets are specifically designed to store Li-ion batteries in a cool, dry, and secure environment, significantly reducing the potential for battery fires.
Each Australian made Battery Cabinet is constructed with a robust double-walled sheet steel structure and features a 40mm thermal air barrier, ensuring superior protection against thermal events. The patented Safe-T-Close® automatic sequential door closing system enhances safety and convenience, offering seamless operation while minimising exposure to potential hazards. For added peace of mind, the Battery Storage Cabinets can be equipped with optional fire suppression systems to further safeguard your batteries and facility.

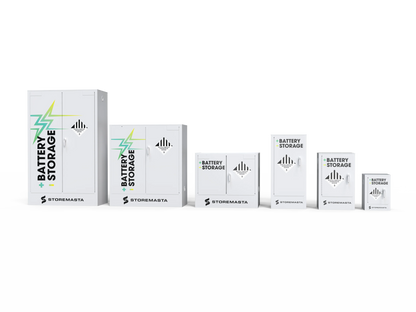

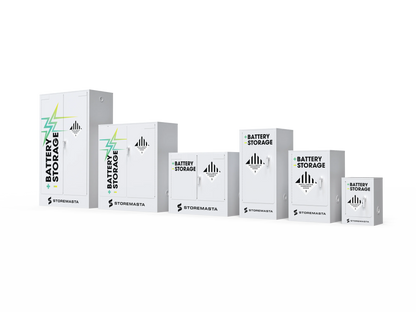

Available in a range of sizes, select your Battery Storage Cabinet today and reduce battery fire risk in your operations.
Features
- Double walled sheet steel construction with a 40mm thermic air barrier
- High capacity liquid tight sump to contain spills - 150mm deep
- Self-closing, close fitting doors that latch at 2 points
- Built in flash arrestors and vent openings [for mechanical ventilation systems]

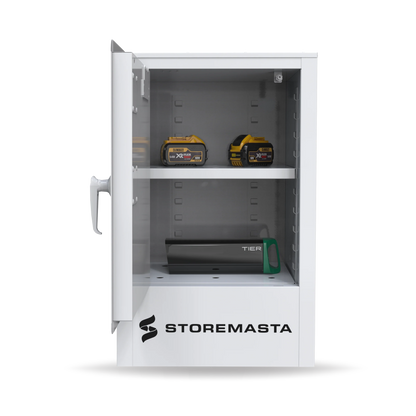

- Strong fully adjustable shelving perforated for free air movement, 100mm adjustment increments
- Sequential door closing system
- Stainless steel pin with continuous hinging for strength and reliability
- State of the art powder coat finish for high durability and performance
- Comfortable ergonomic handle design
- Distinct safety signs and directions that comply with AS 1216 and AS 1319
- Designed and Manufactured in full conformance to AS/NZS 4681:2000 The storage and handling of Class 9 (miscellaneous) dangerous goods and articles
Dimensions (mm)
External | H 800 | W 500 | D 450 |
Internal | H 553 | W 418 | D 370 |
Storage Capacity
Max Capacity | 30 |
Winchester Size | 0.5L - 65mmW | 2.5L - 135mmW | 5L - 190mmW |
Capacity | 30 | 6 | 2 |
Drum Size | 4L - 180mmW | 20L - 300mmW |
Capacity | 8 | 1 |
Dangerous Goods Compliance Specifications
Complies with | AS/NZS 4681:2000 |
Sump Capacity | 23 |
Other Specifications
Weight | 33.0 kg |
Shelf Levels | 2 |
