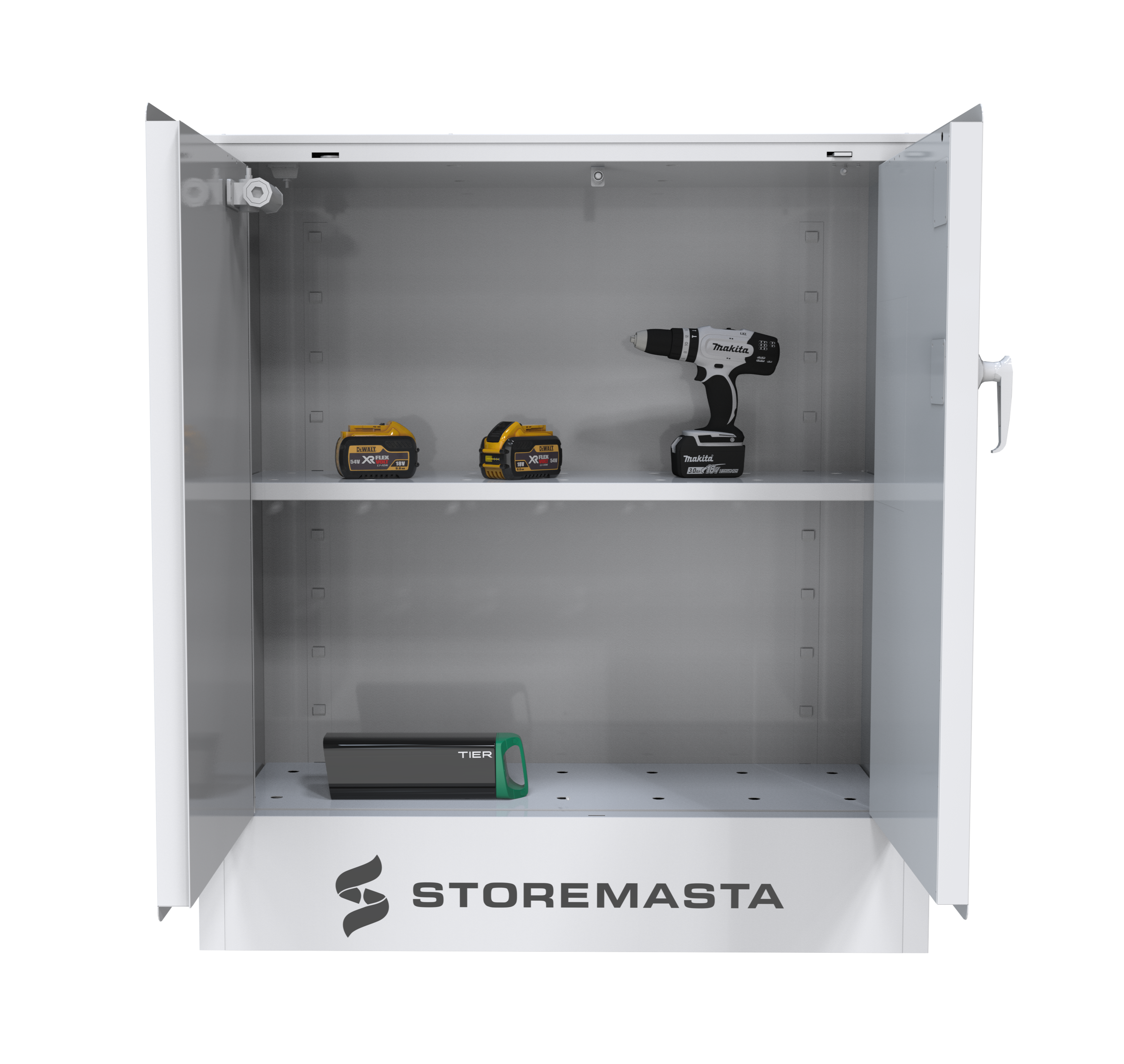

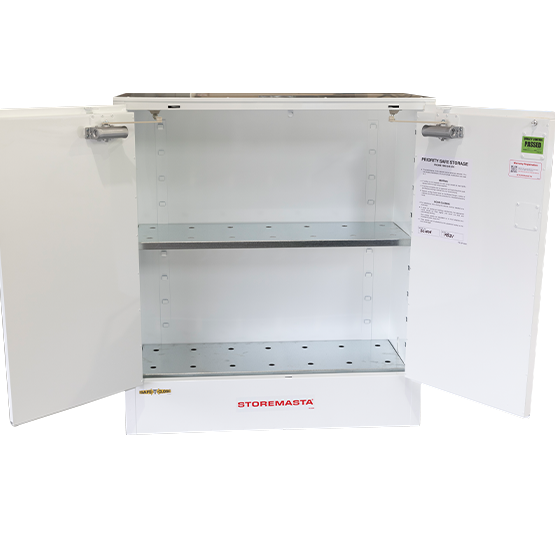

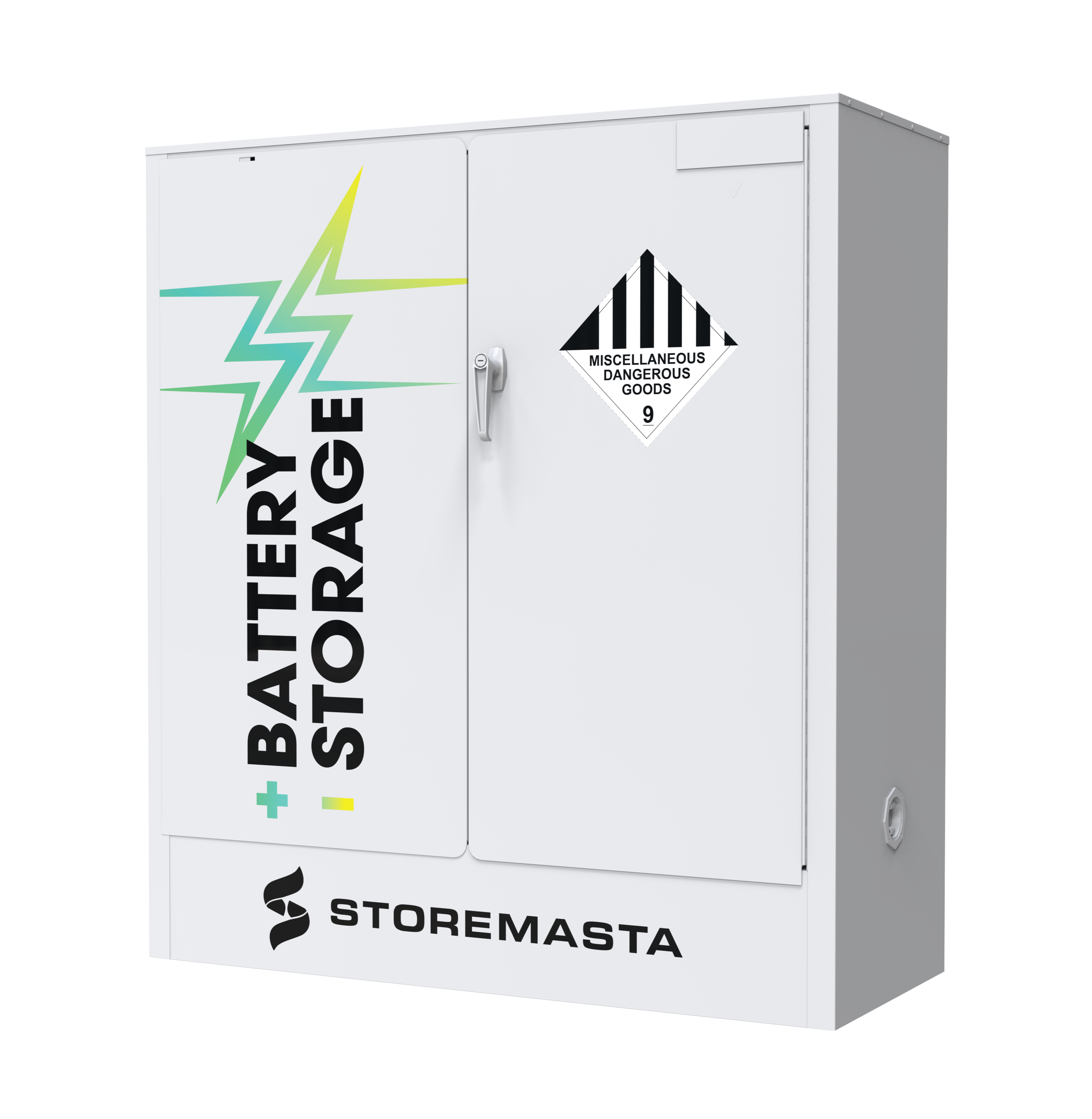

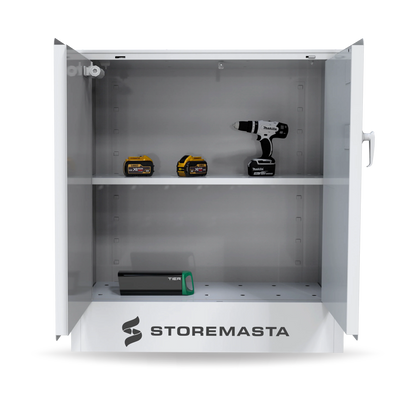

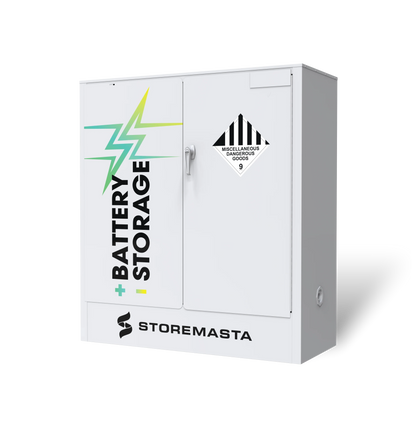

Battery Storage Cabinet - 160L

SC160BS
Description

Storemasta's Australian made Battery Storage Cabinets deliver a fast, cost-effective solution to mitigate the risks associated with lithium-ion batteries. The Battery Storage Cabinet - 160L is designed to store Li-ion batteries in a cool, dry, and secure environment, significantly reducing the potential for battery fires.

Each Battery Storage Cabinet is constructed with a robust double-walled sheet steel structure and features a 40mm thermal air barrier, ensuring superior protection against thermal events. The patented Safe-T-Close® automatic sequential door closing system enhances safety and convenience, offering seamless operation while minimising exposure to potential hazards. For added peace of mind, Storemasta Battery Cabinets can be equipped with optional fire suppression systems to further safeguard your batteries and facility.

Features

  • Double walled sheet steel construction with a 40mm thermic air barrier
  • High capacity liquid tight sump to contain spills - 150mm deep
  • Self-closing, close fitting doors that latch at 2 points
  • Built in flash arrestors and vent openings [for mechanical ventilation systems]
  • Strong fully adjustable shelving perforated for free air movement, 100mm adjustment increments
  • Sequential door closing system
  • Stainless steel pin with continuous hinging for strength and reliability
  • State of the art powder coat finish for high durability and performance
  • Comfortable ergonomic handle design
  • Distinct safety signs and directions that comply with AS 1216 and AS 1319
  • Designed and Manufactured in full conformance to AS 1940:2017 - The storage and handling of flammable and combustible liquids

Dimensions (mm)

ExternalH 1220W 1100D 450
InternalH 973W 1018D 370

Storage Capacity

Max Capacity 160
Winchester Size0.5L - 65mmW2.5L - 135mmW5L - 190mmW
Capacity225* - 3 Storage levels2810
Drum Size4L - 180mmW20L - 300mmW
Capacity30*6
3 storage levels

Dangerous Goods Compliance Specifications

Complies with AS/NZS 4681:2000
Sump Capacity 56

Other Specifications

Weight 78.0 kg
Shelf Levels 2
