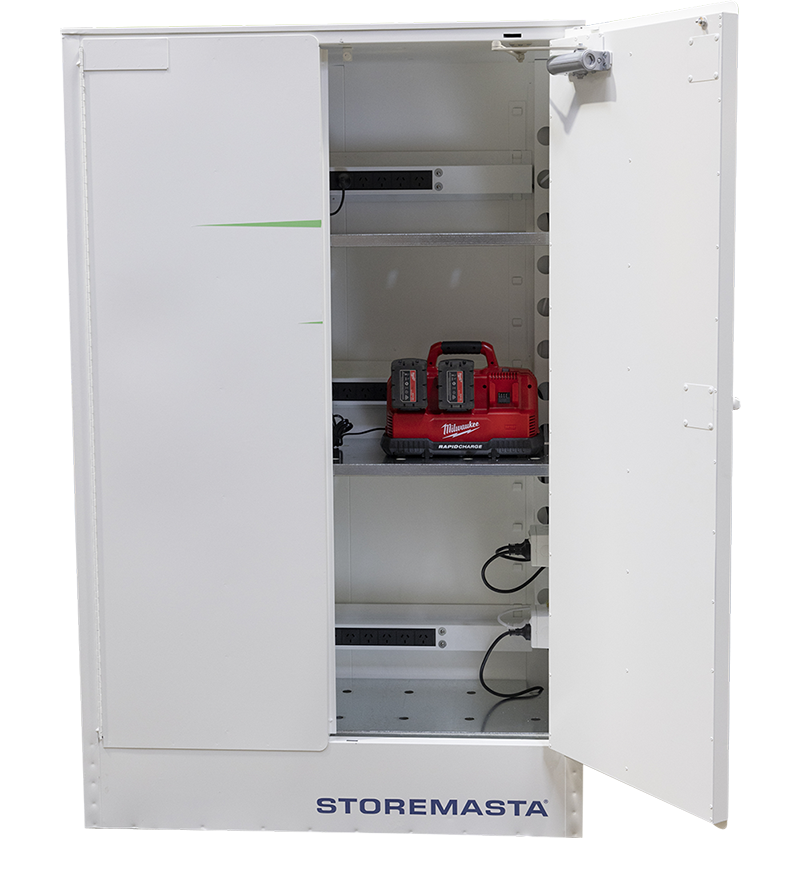

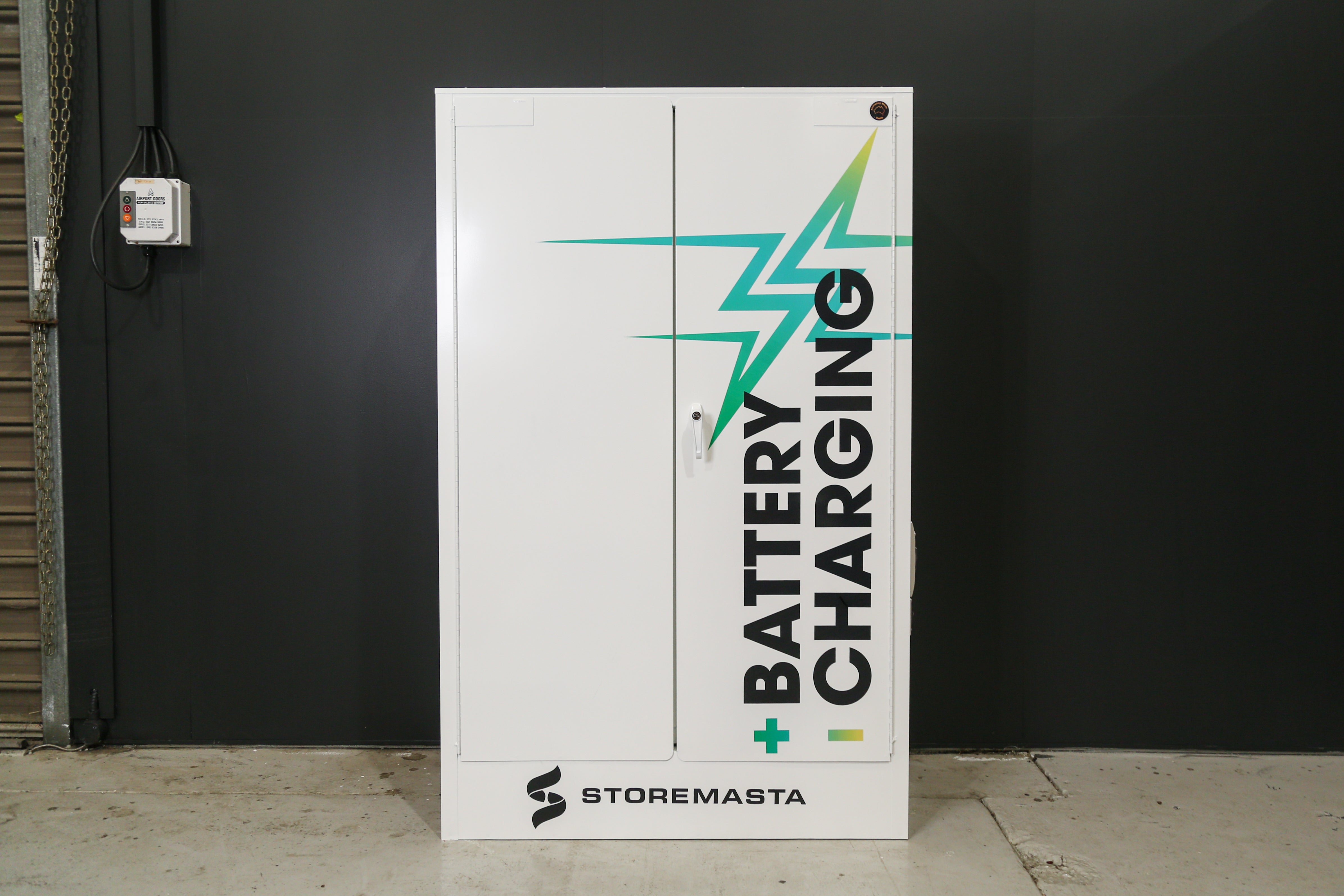

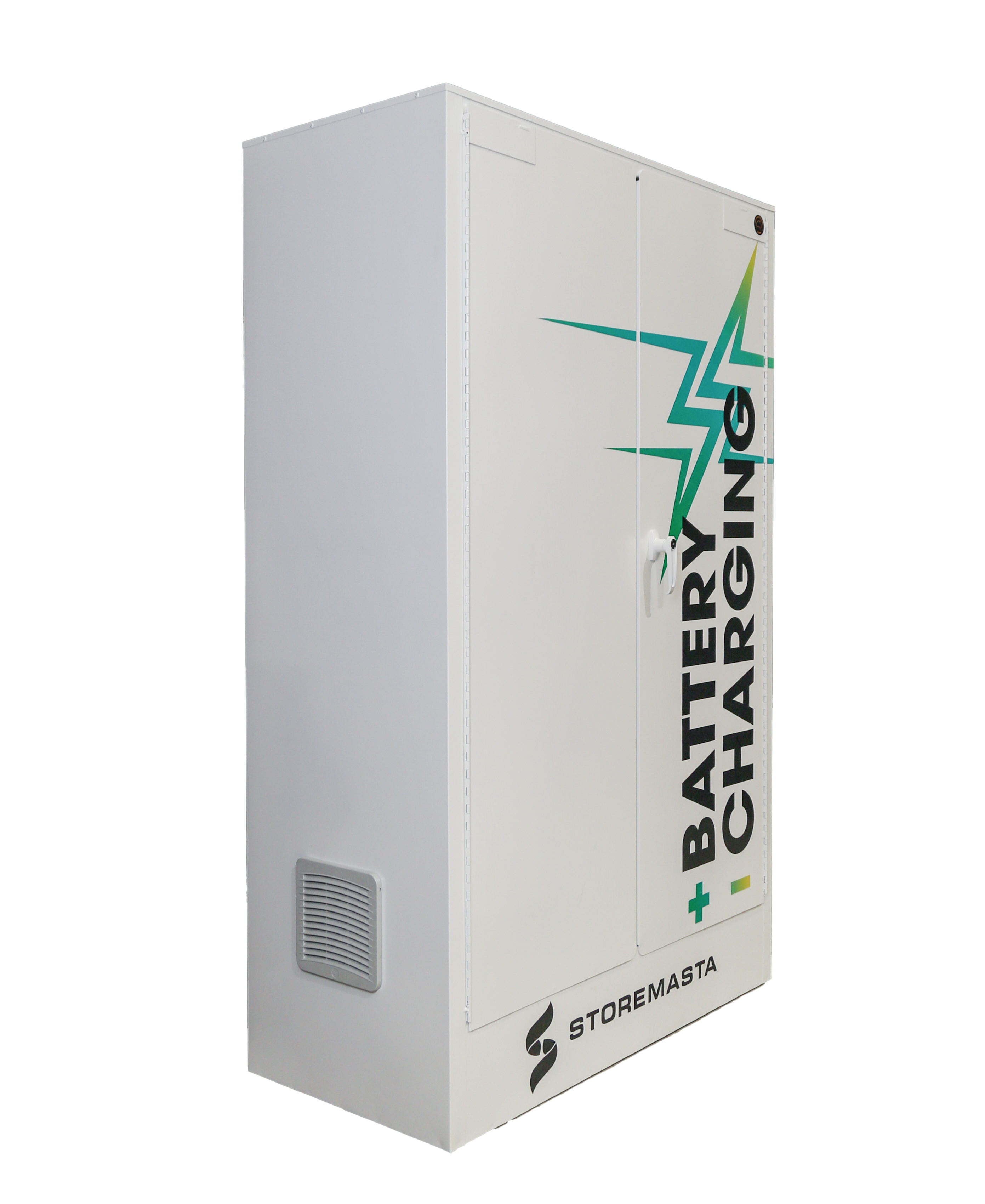

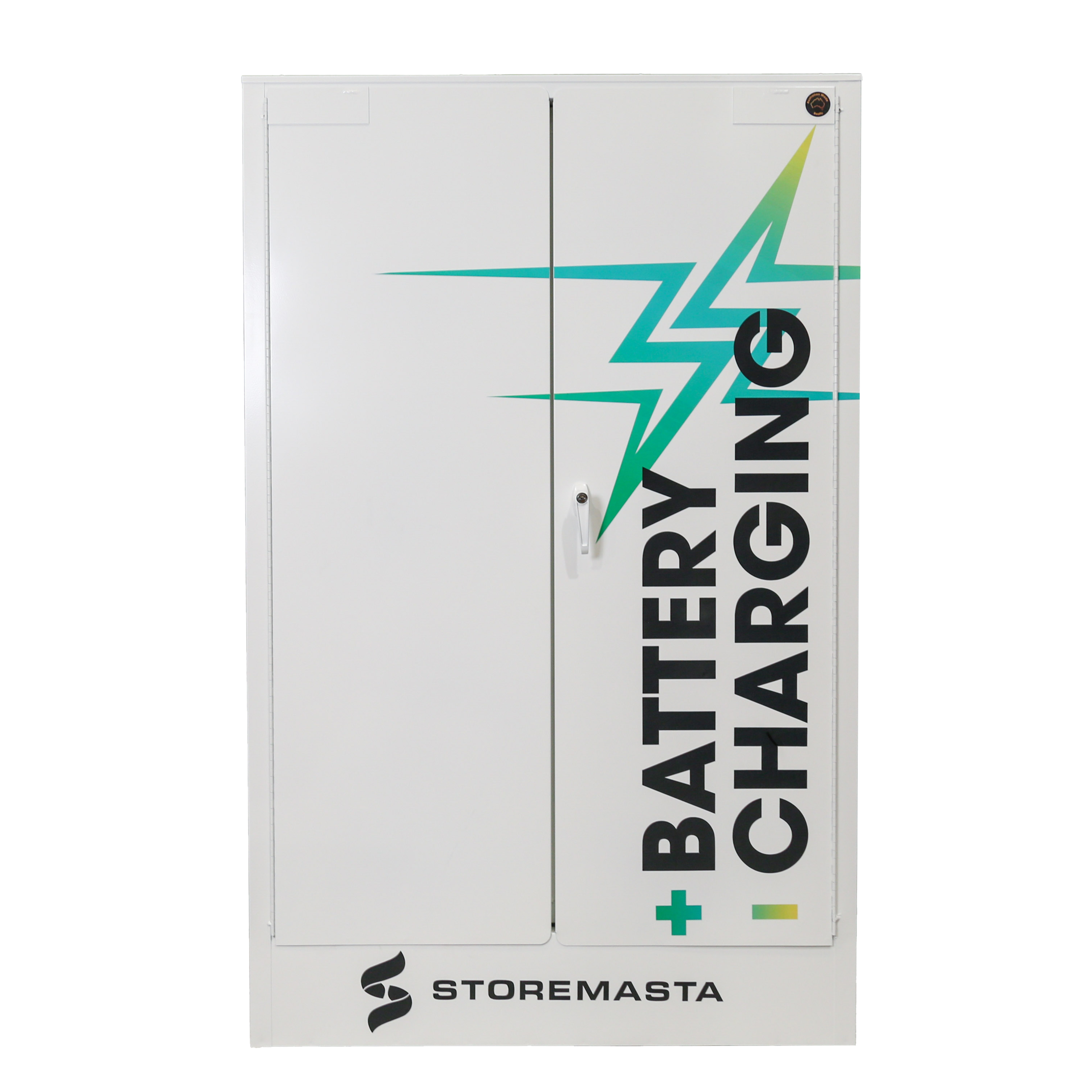

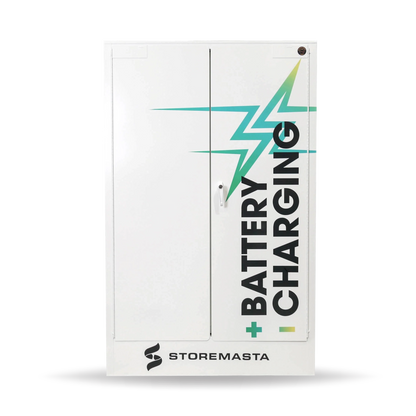

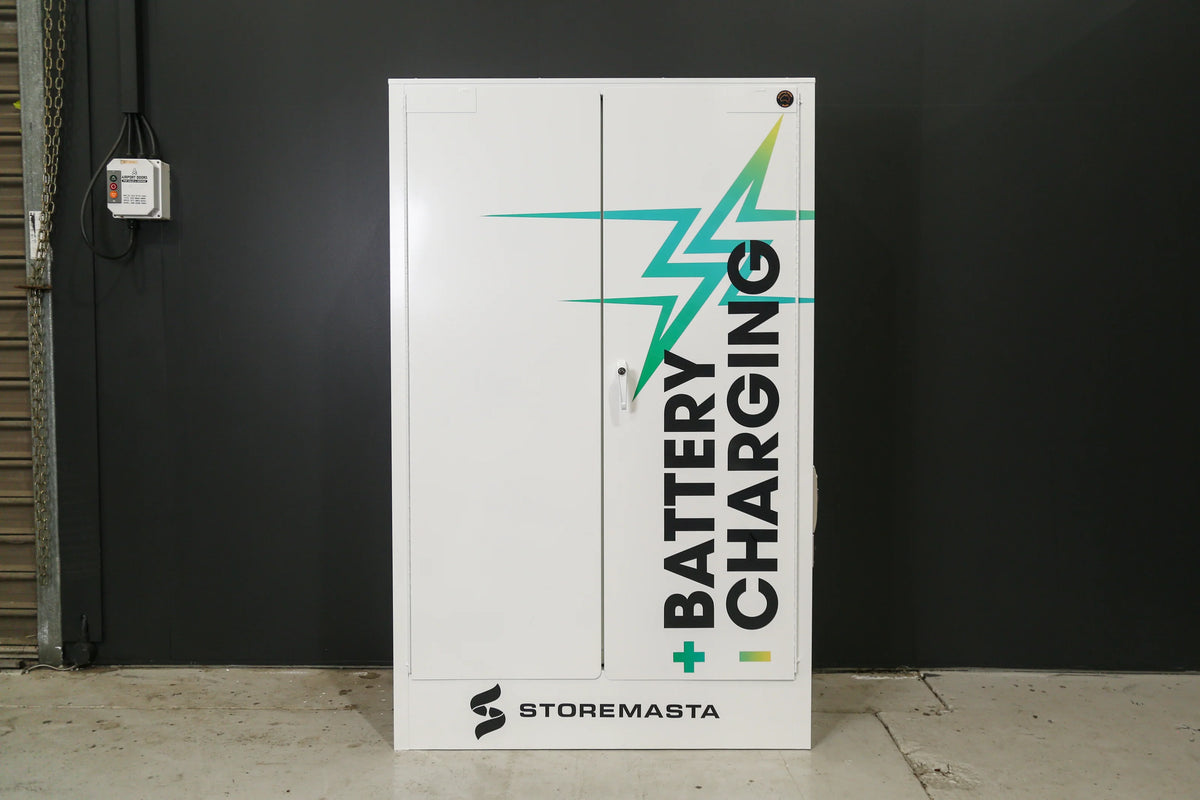

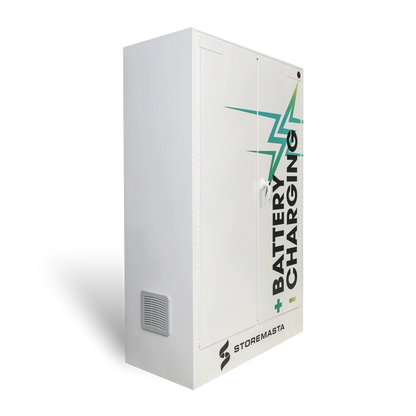

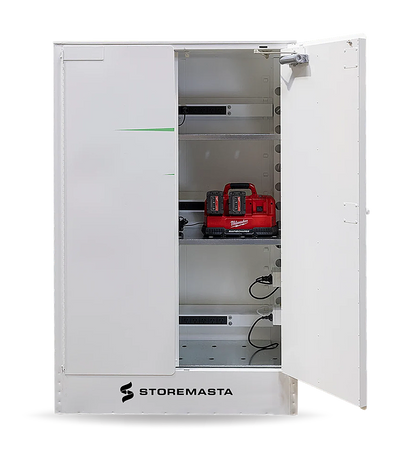

18 Outlet Battery Charging Cabinet


Our 18 outlet battery charging cabinet is an innovative storage solution for workplaces that rely on lithium-ion batteries. Specifically designed to keep Li-ion batteries in a cool, dry and secure environment, the battery cabinet is equipped with a 150mm fan, liquid-tight spill containment sump, and double-walled sheet steel construction with 40mm thermal air barrier. The STOREMASTA battery cabinet also features our patented Safe-T-Close sequential door close system, which offers superior security for your battery store.

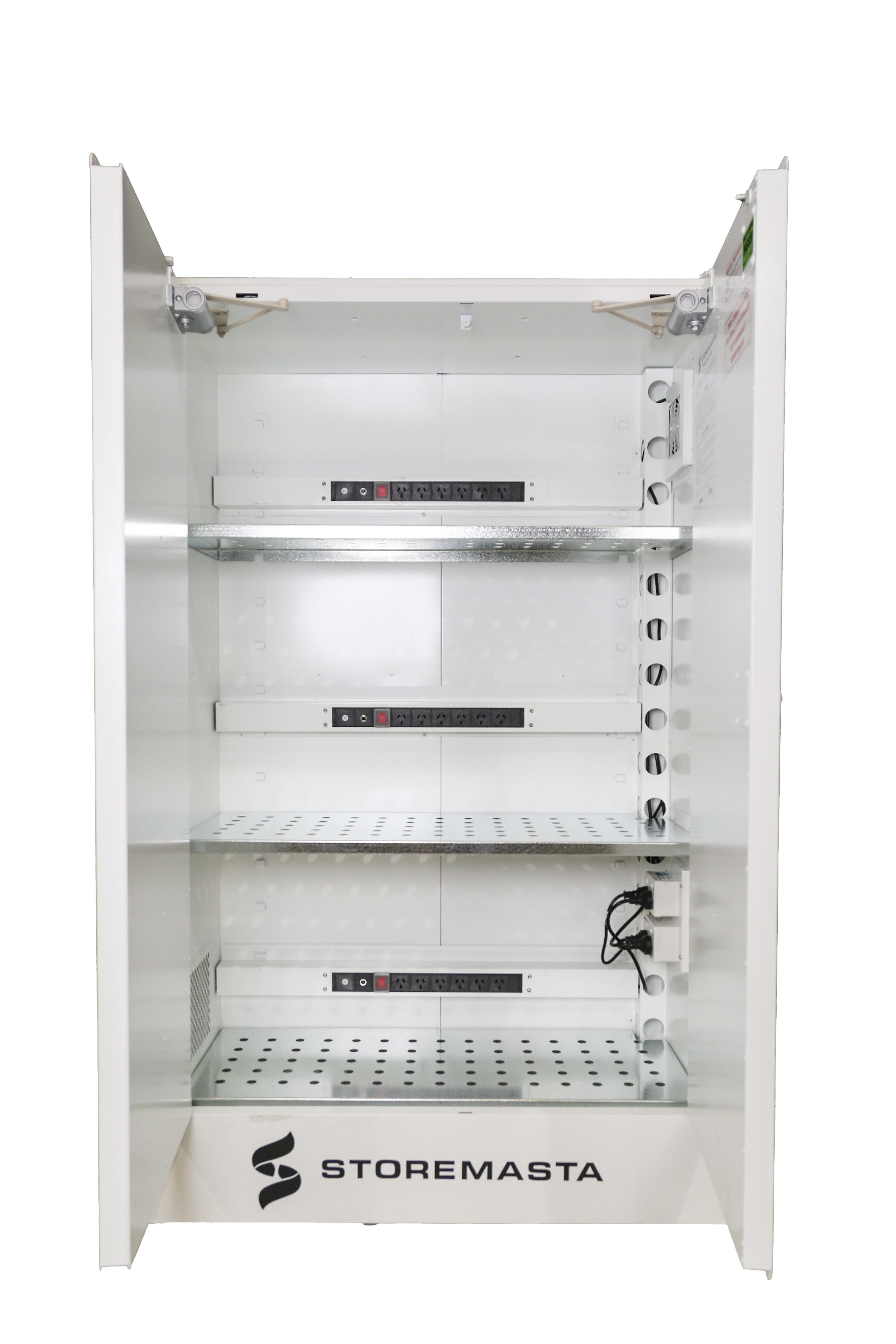

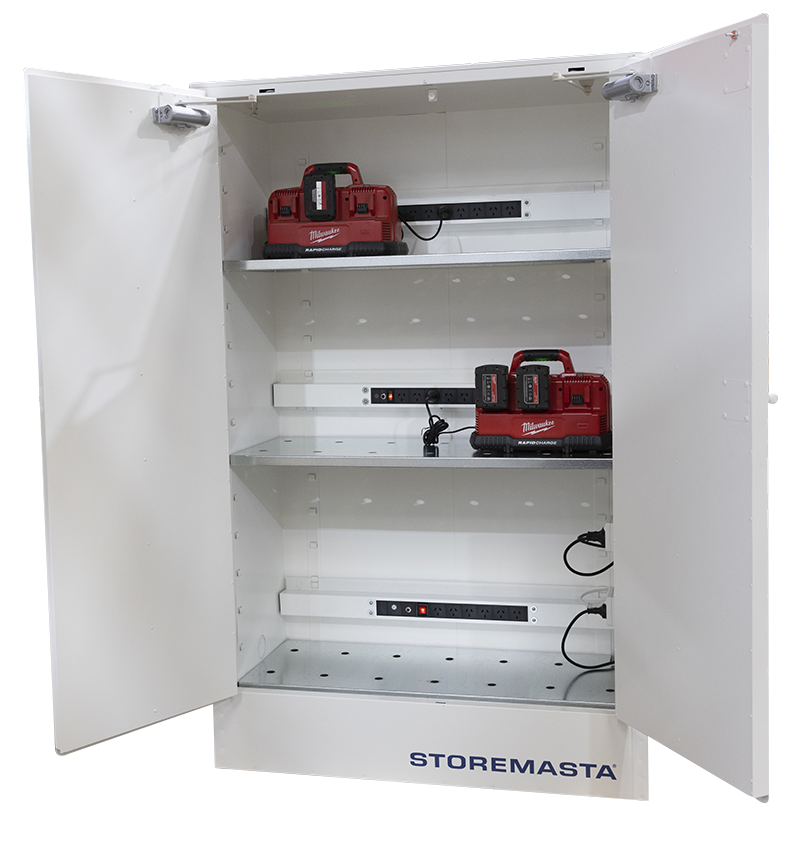

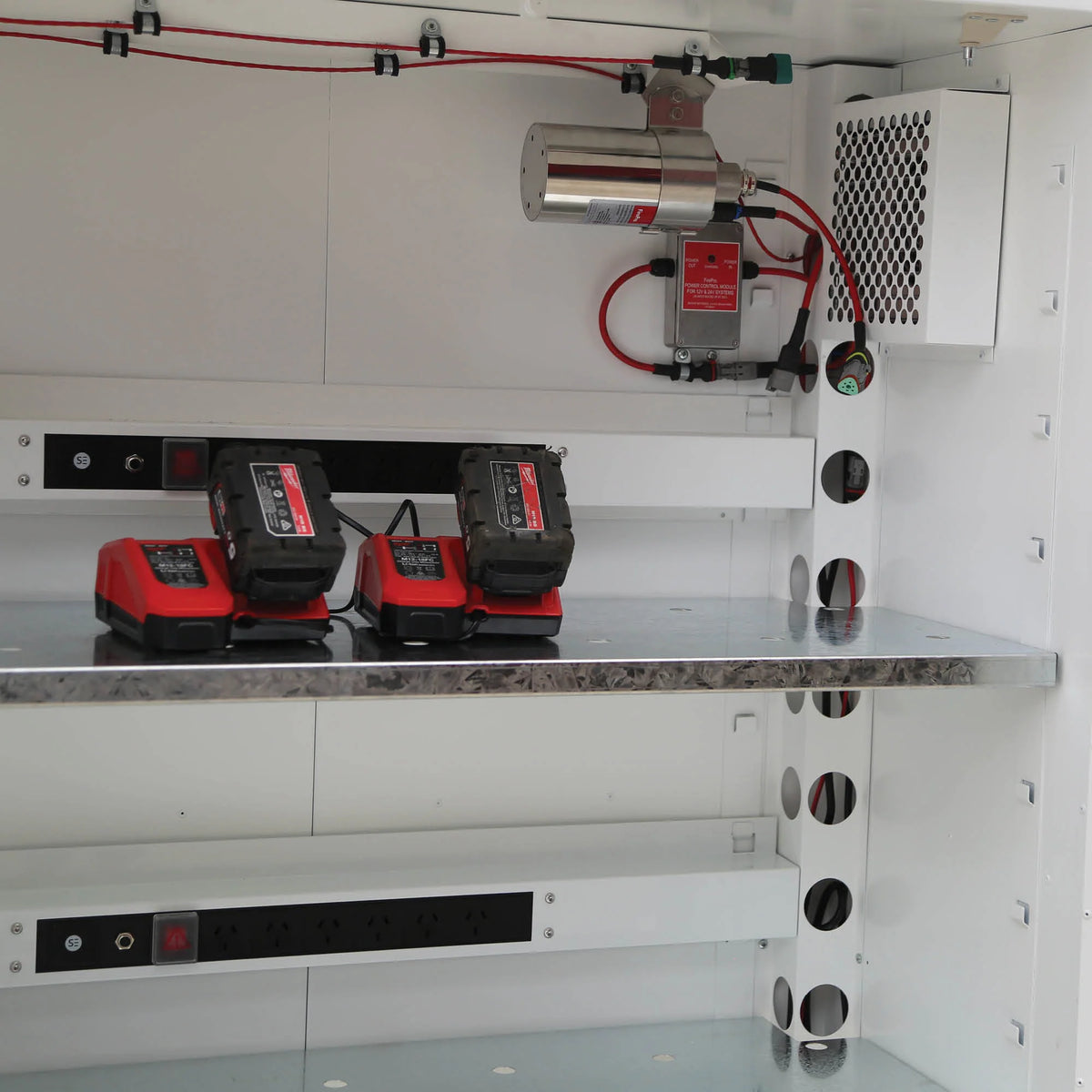

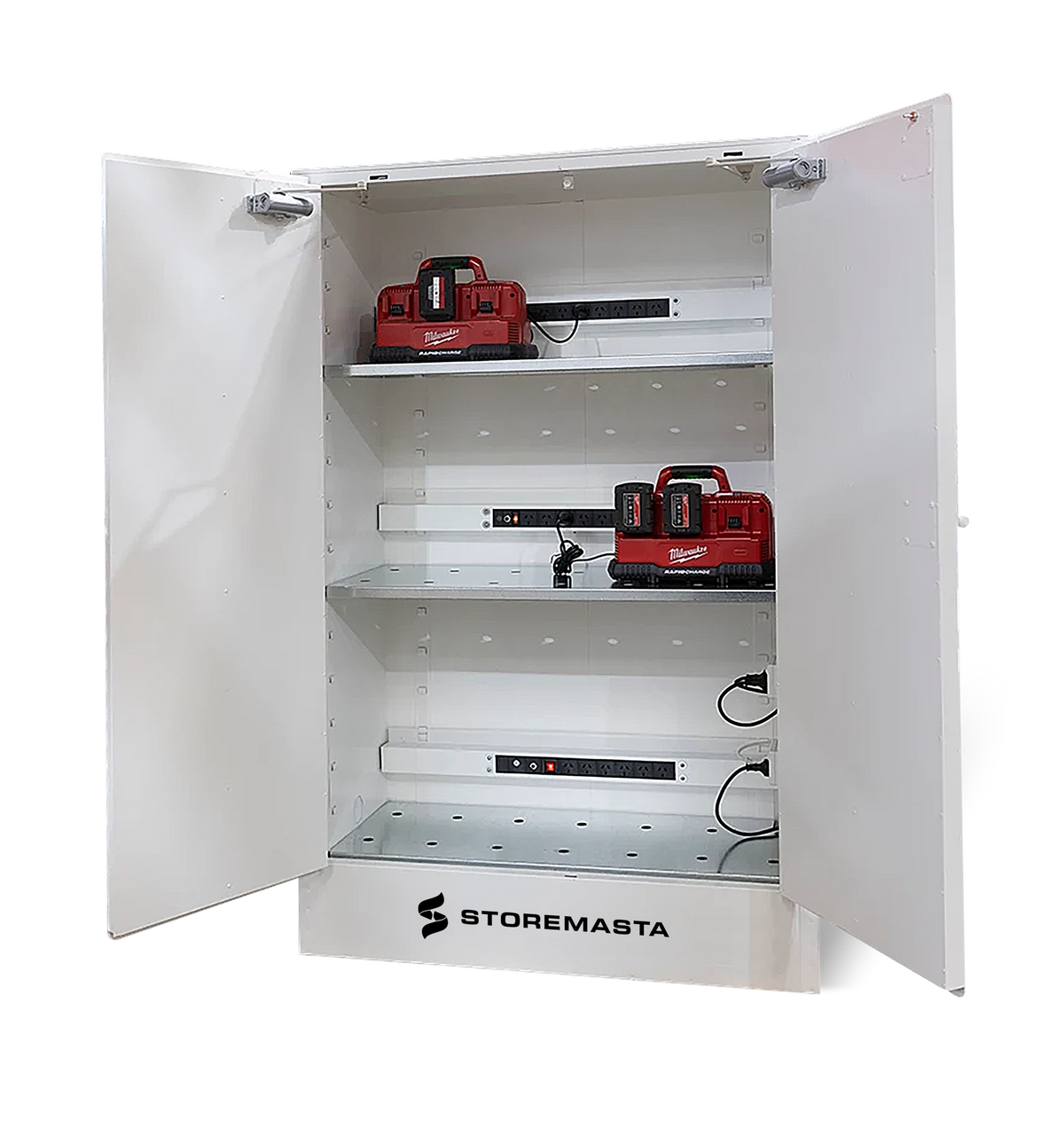

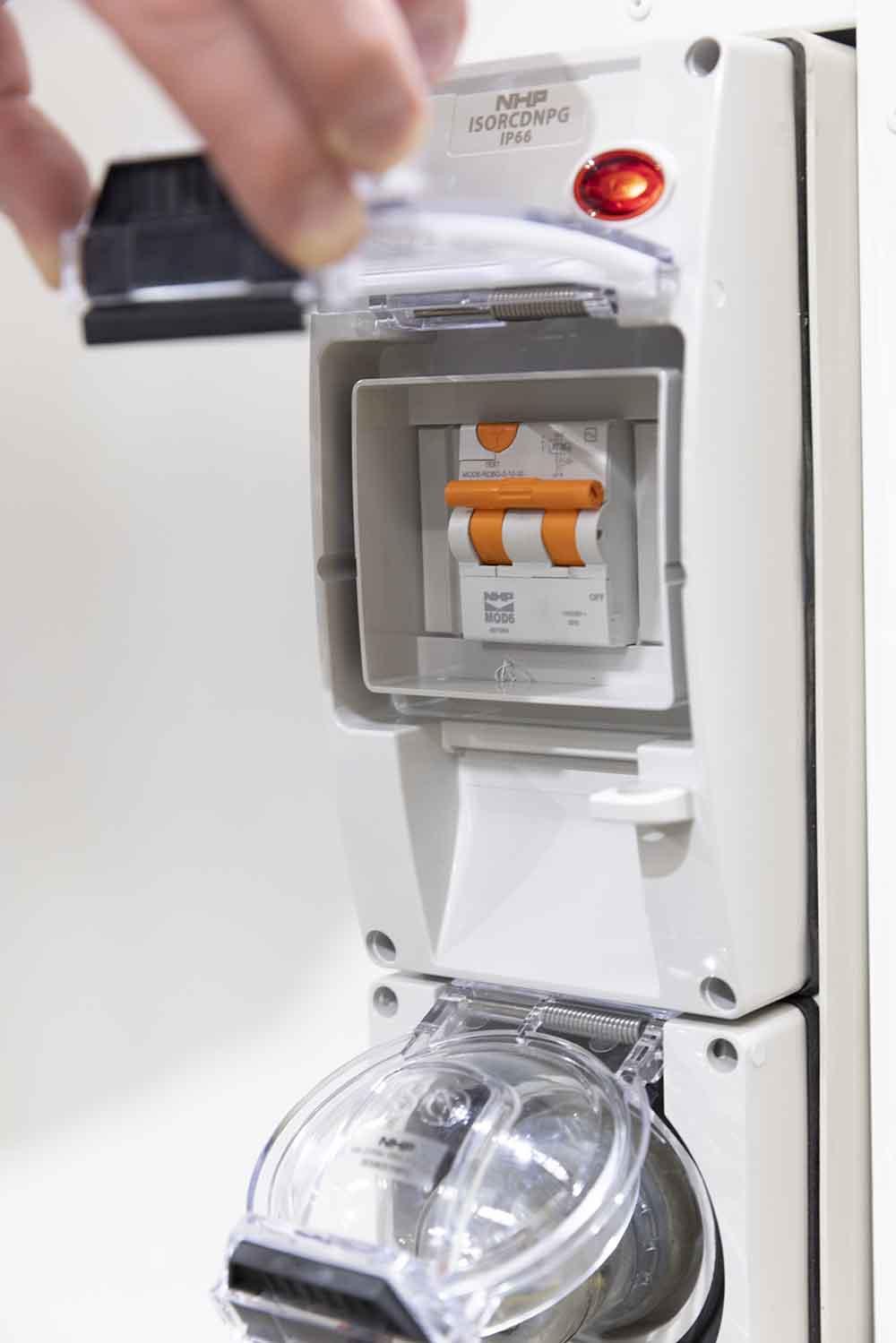

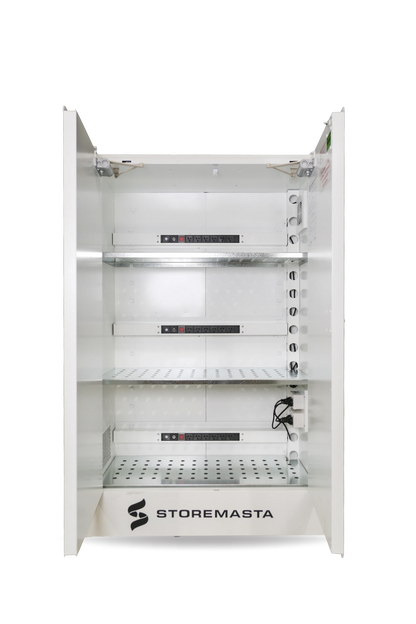

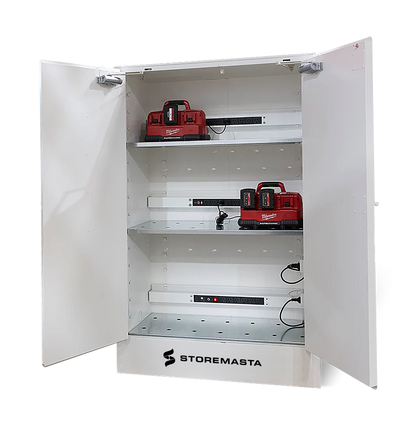

Each of our STOREMASTA lithium-ion battery cabinets is electrically certified, with IP54 rated fittings and a 10AMP power inlet. Featuring 18 outlets, 2 adjustable pole power points and 3 adjustable, perforated shelves, this larger battery cabinet provides a convenient and flexible way to charge and store your Li-ion batteries.


  • 18 charging points
  • 6 outlets on each shelf
  • Fully certified electrical
  • 2 pole power points

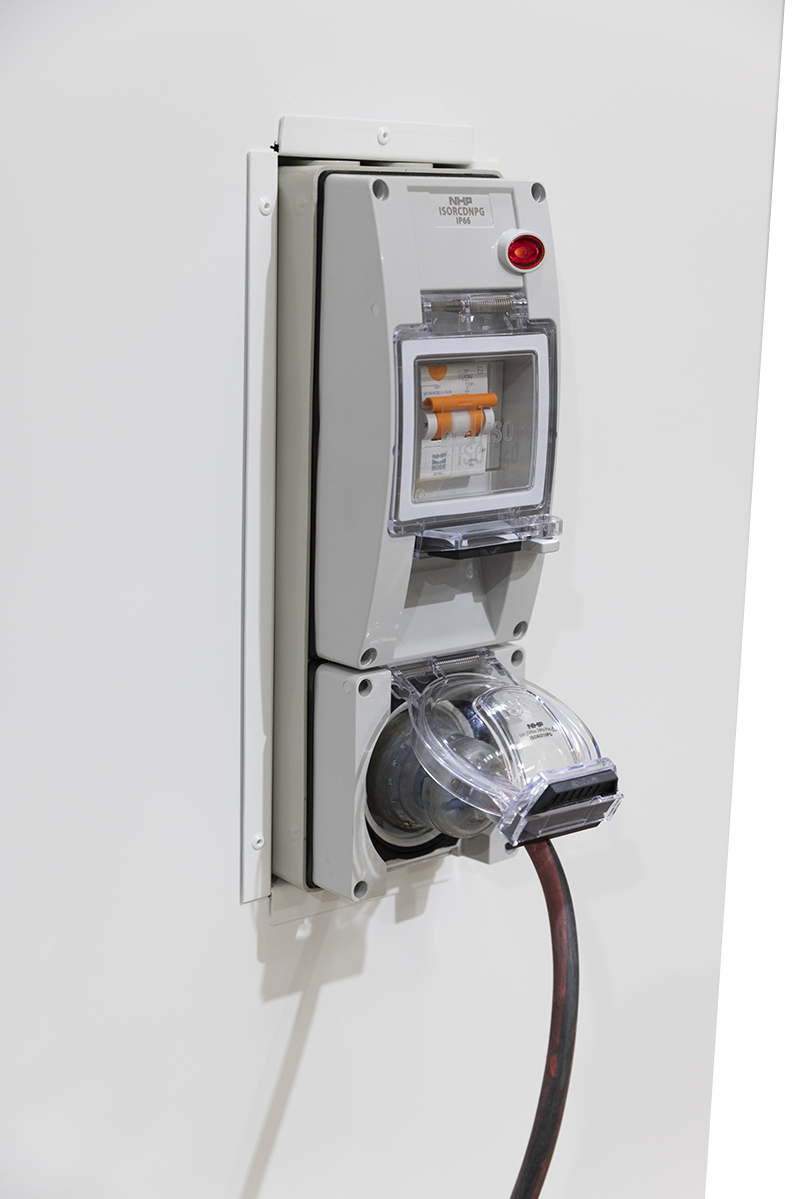

  • 10AMP power inlet
  • IP54 rated fittings

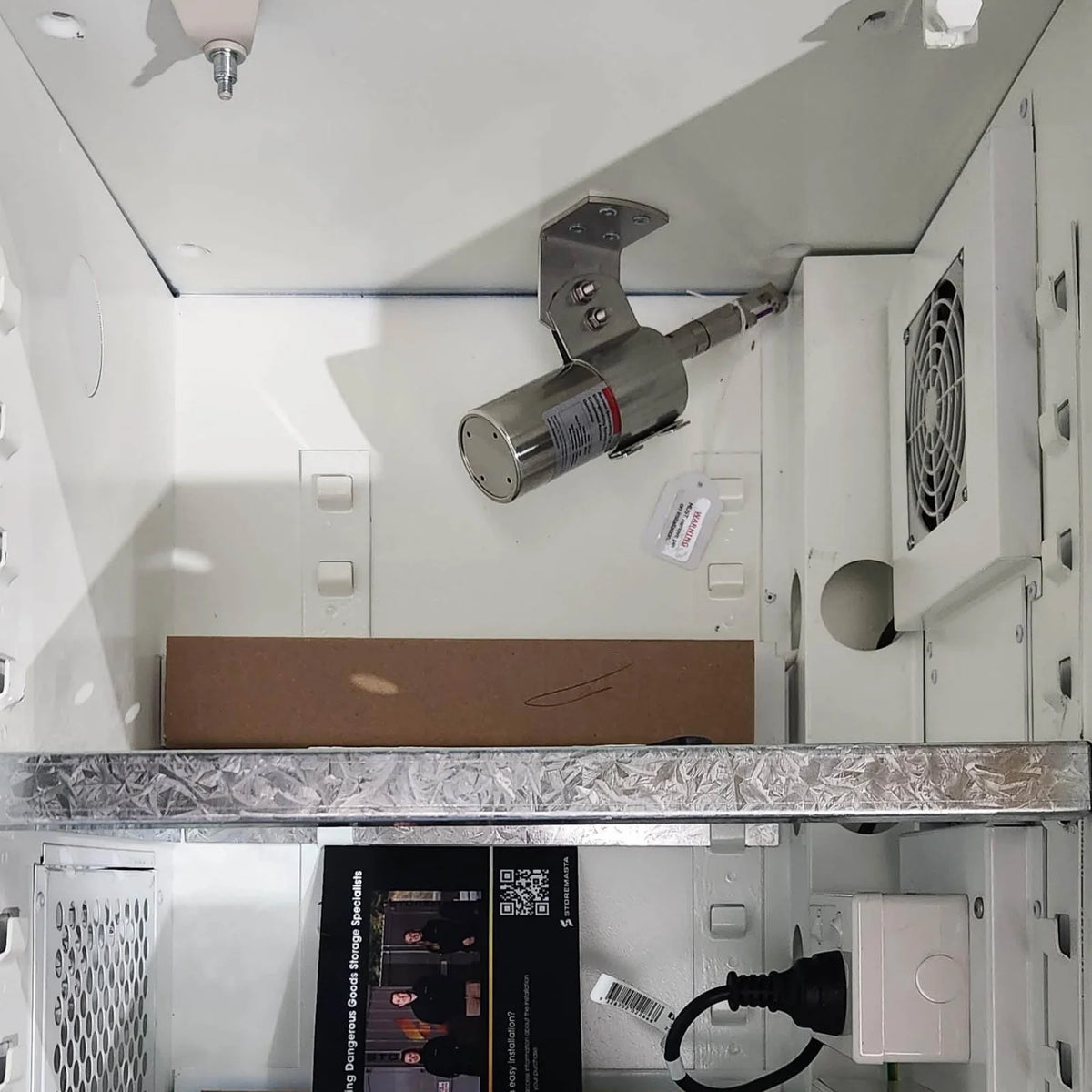

  • 150MM Fans with grill and flex pushing through 67 cubic meters of air/hour

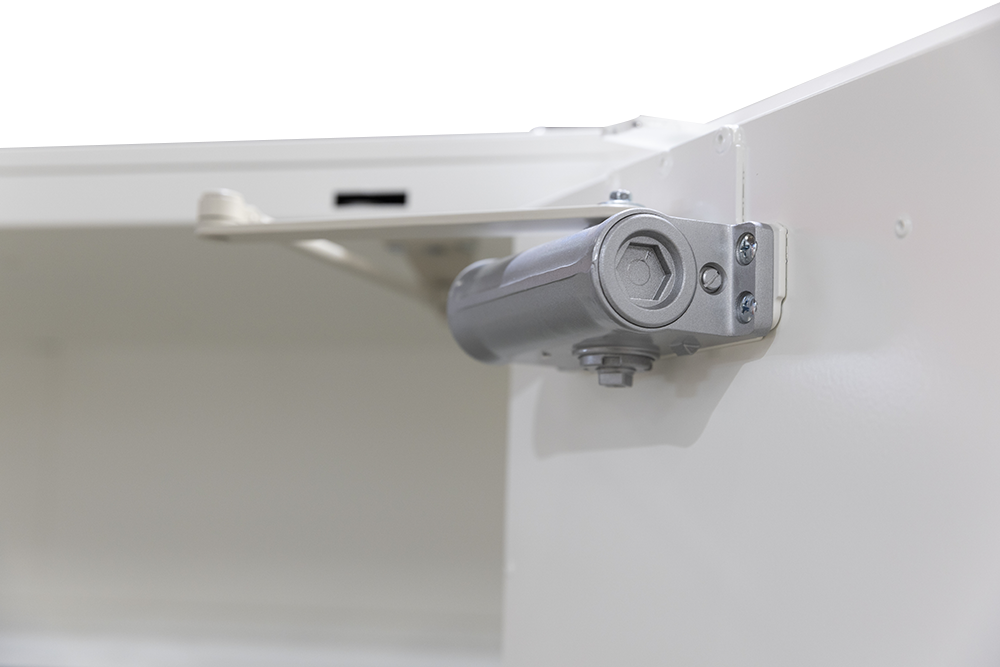

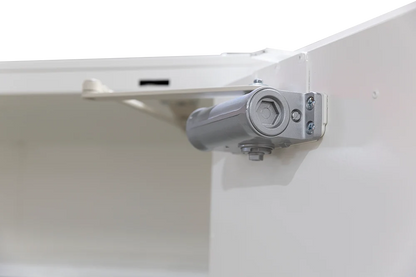

  • Self closing, close fitting doors
  • Self contained sump
  • Any gaps around the doors and into the space between the walls are sealed as far as is necessary to prevent the spread of flame or heat radiation
  • The walls, floor, door and roof are double-walled sheet steel construction, with a space of at least 40 mm between the walls

Dimensions (mm)

ExternalH 1750W 1100D 500
InternalH 1503W 1018D 450

Dangerous Goods Compliance Specifications

Sump Capacity 64L

Other Specifications

Weight 123.0 kg
Shelf Levels 3
