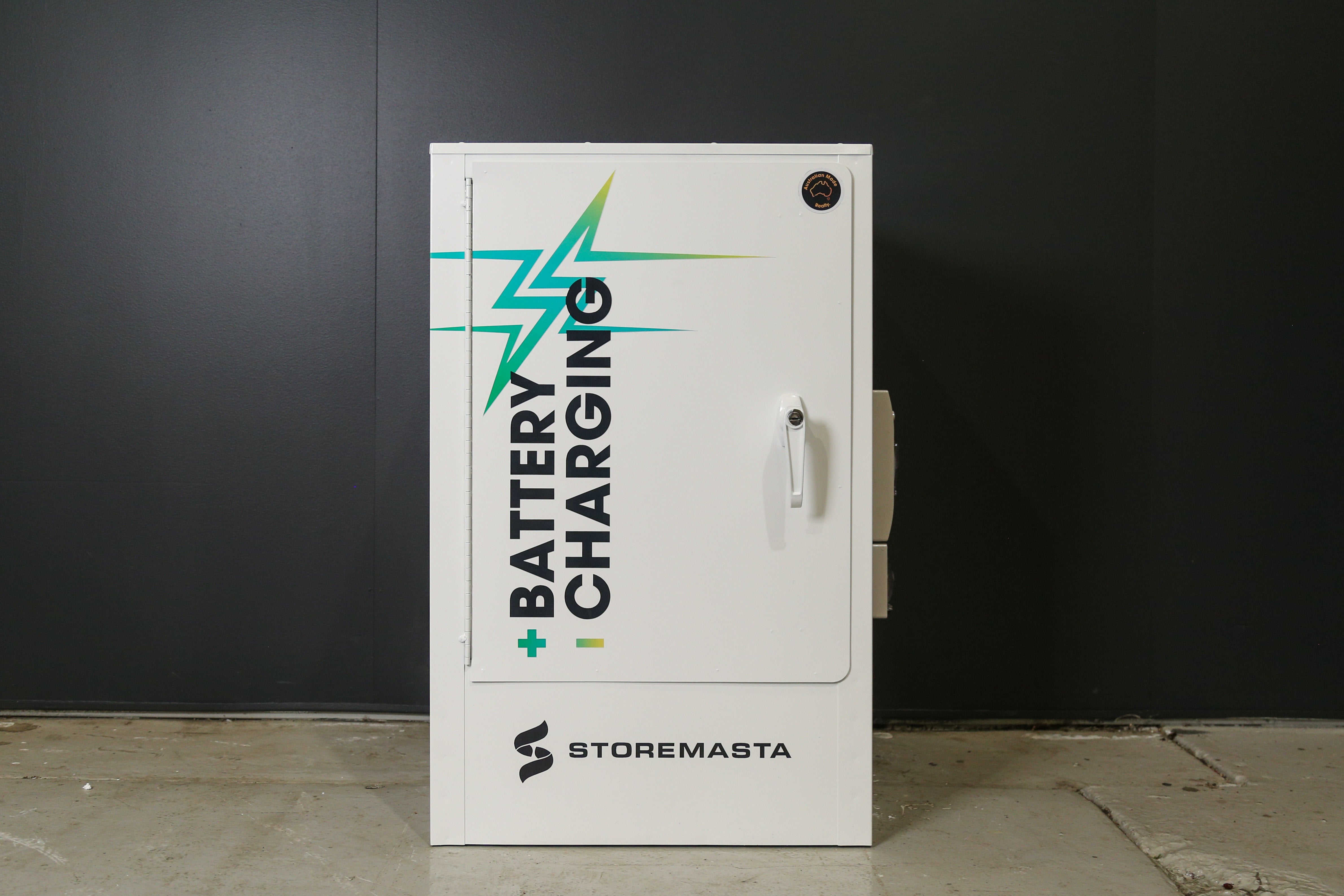

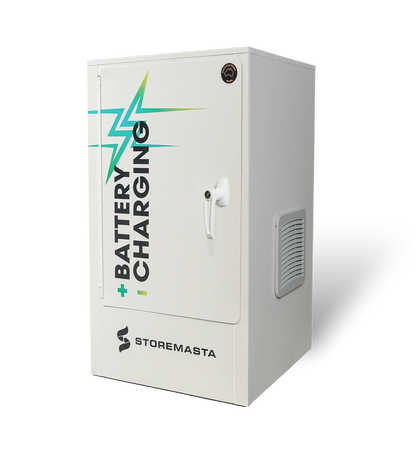

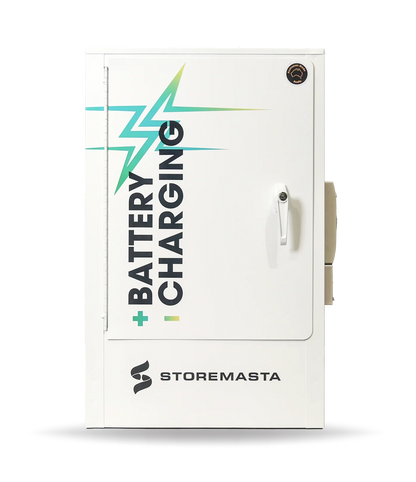

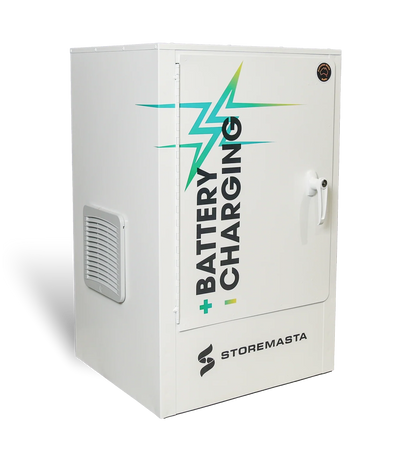

8 Outlet Battery Charging Cabinet

500430
Description

The Storemasta 8 Outlet Lithium-ion Battery Charging Cabinet is an innovative solution to reduce battery fire risk. Li-ion batteries require a cool, dry, secure and non-combustible environment for safe charging and storage.

This Australian designed and made Battery Cabinet is constructed with double-walled sheet steel and 40mm thermal air barrier, spill containment sump and 150mm fan to offer optimum charging and storage conditions.

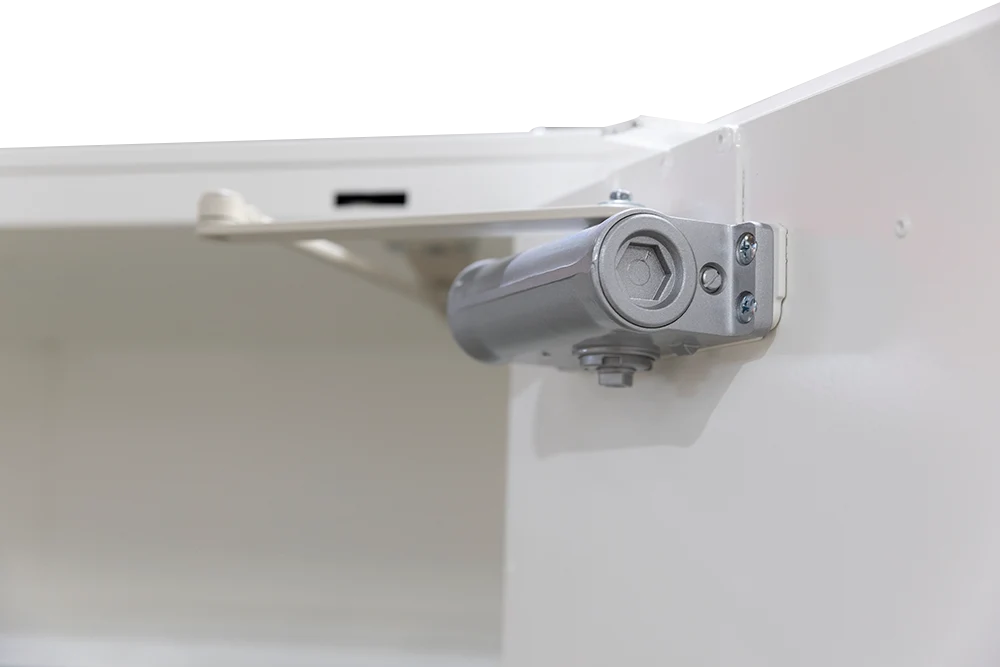

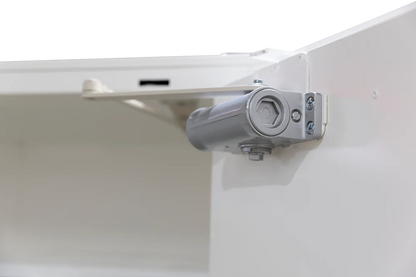

Storemasta Battery Cabinets feature our patented Safe-T-Close® door close system, which automatically closes doors smoothly and in sequence, offering convenience, safety and fire containment.

The Lithium-ion Battery Charging Cabinets are electrically certified, with IP56 rated fittings and a 10AMP power inlet.

Storemasta LIB Cabinets are manufactured to comply with the Australian Standard AS NZS 4681 - the storage and handling of Class 9 (miscellaneous) dangerous goods. They also meet the standards of AS 1940 - the storage and handling of flammable and combustible liquids for fire protection, with cabinet componentry withstanding temperatures up to 850°C.

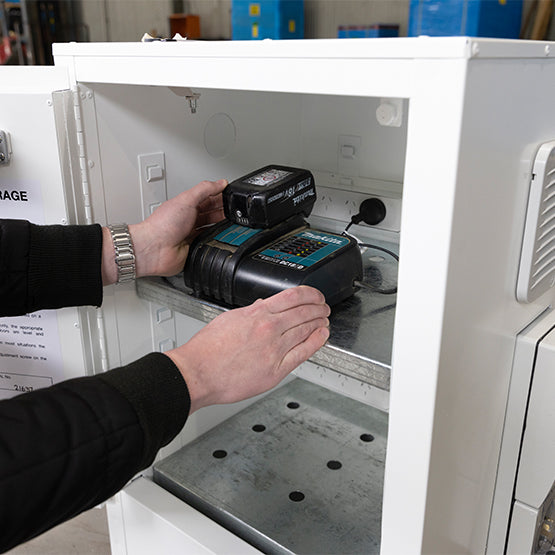

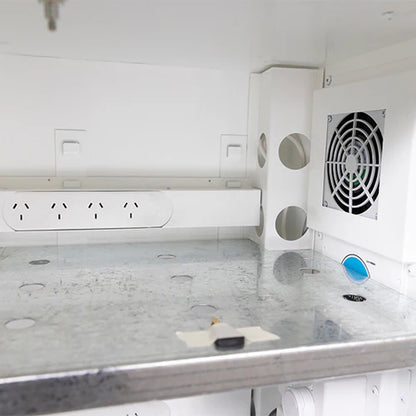

Featuring 8 outlets, 2 adjustable pole power points and 2 adjustable perforated shelves, this Lithium-ion Battery Charging Cabinet provides a convenient and flexible way to charge and store your LiB batteries.

Features

  • 8 charging points

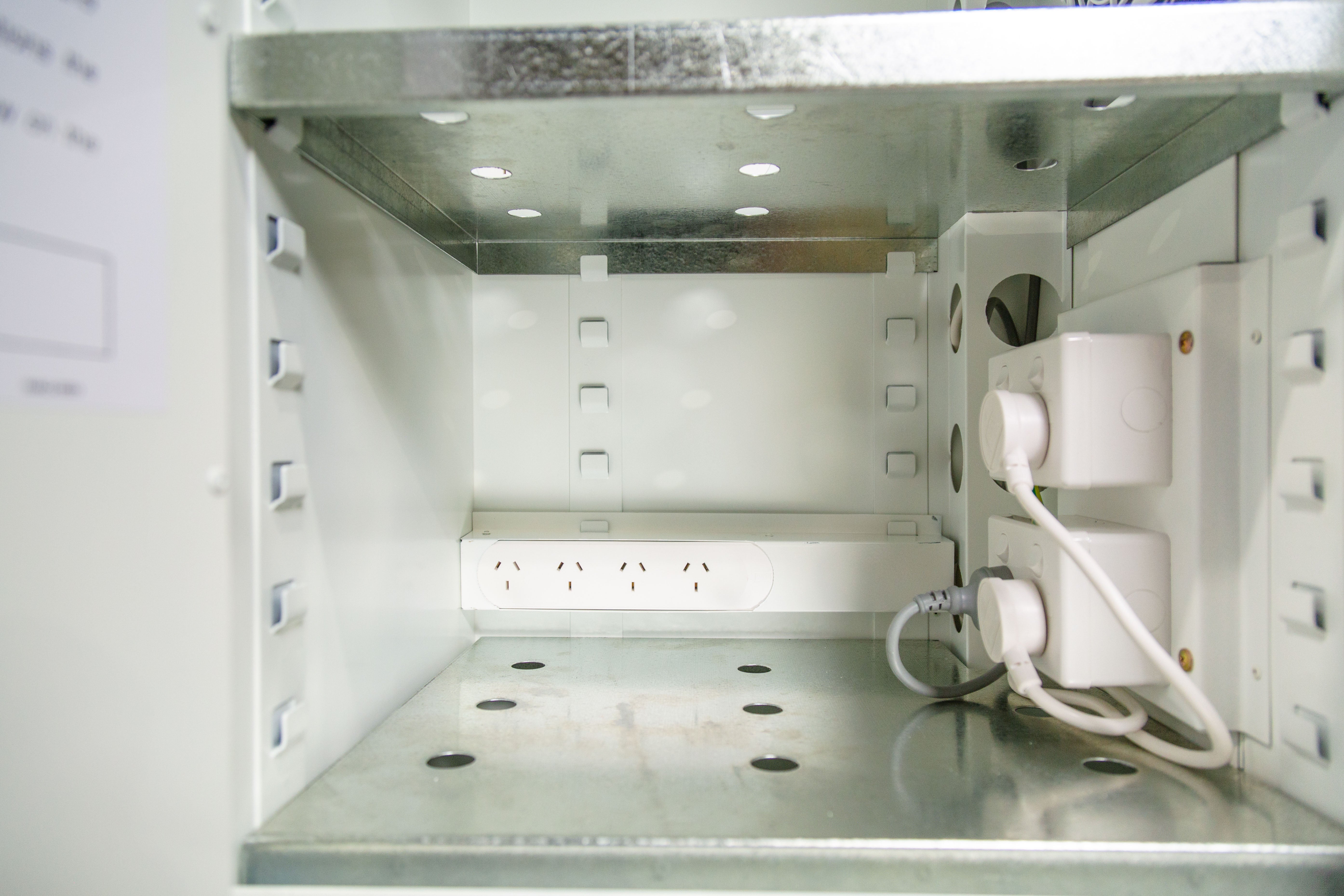

  • 4 outlets on each shelf
  • Fully certified electrical
  • 2 pole power points
  • 10AMP power inlet

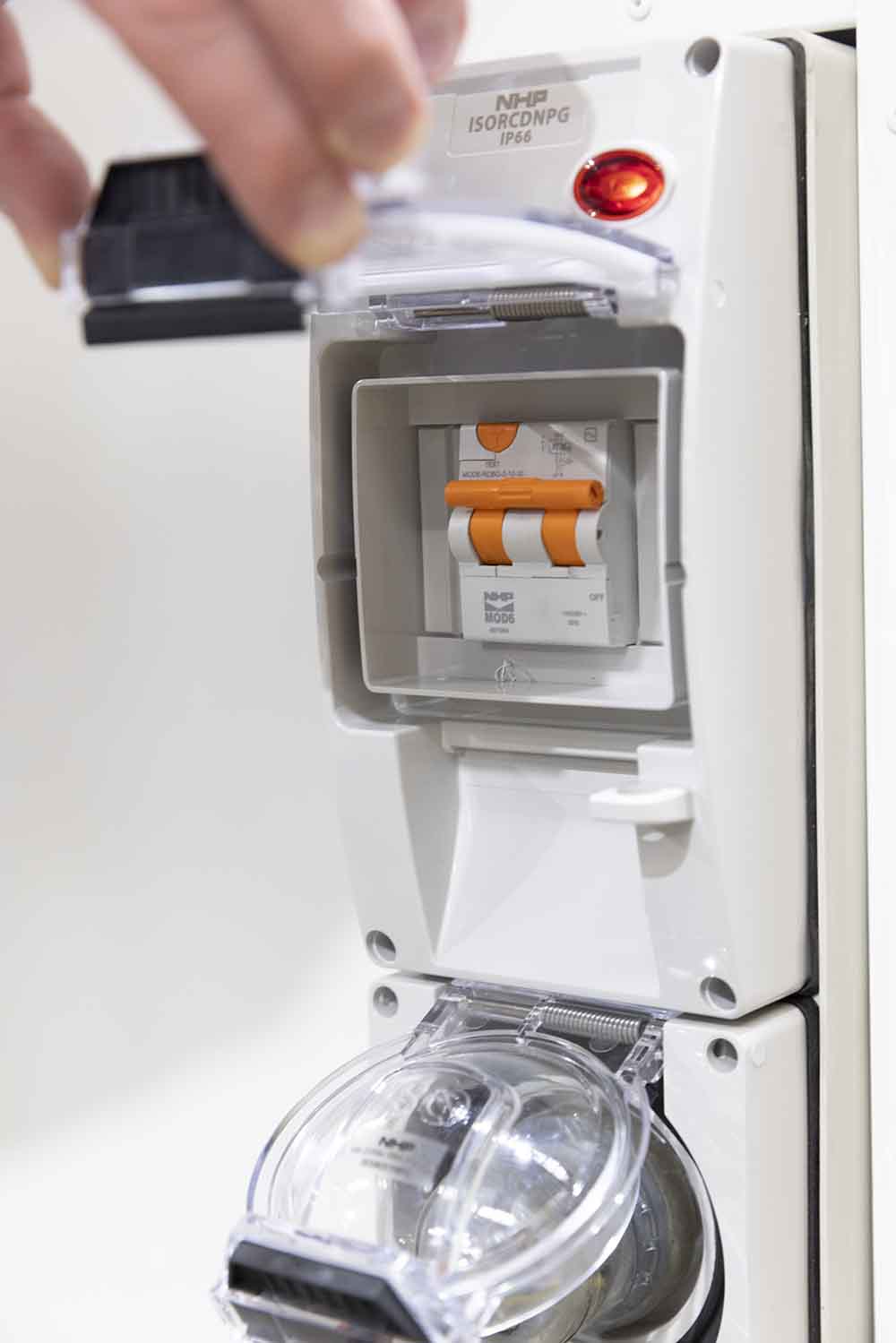

  • IP56 rated fittings

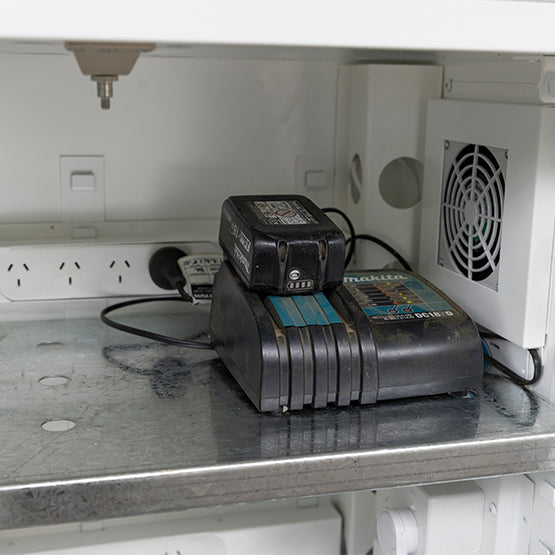

  • 150MM fans with grill and flex pushing through 67 cubic meters of air/hour
  • Self closing, close fitting doors
  • Self contained sump
  • Any gaps around the doors and into the space between the walls are sealed as far as is necessary to prevent the spread of flame or heat radiation
  • The walls, floor, door and roof are double-walled sheet steel construction, with a space of at least 40 mm between the walls

Dimensions (mm)

ExternalH 800W 500D 450
InternalH 553W 418D 370

Dangerous Goods Compliance Specifications

Sump Capacity 23L

Other Specifications

Weight 33.0 kg
Shelf Levels 2
