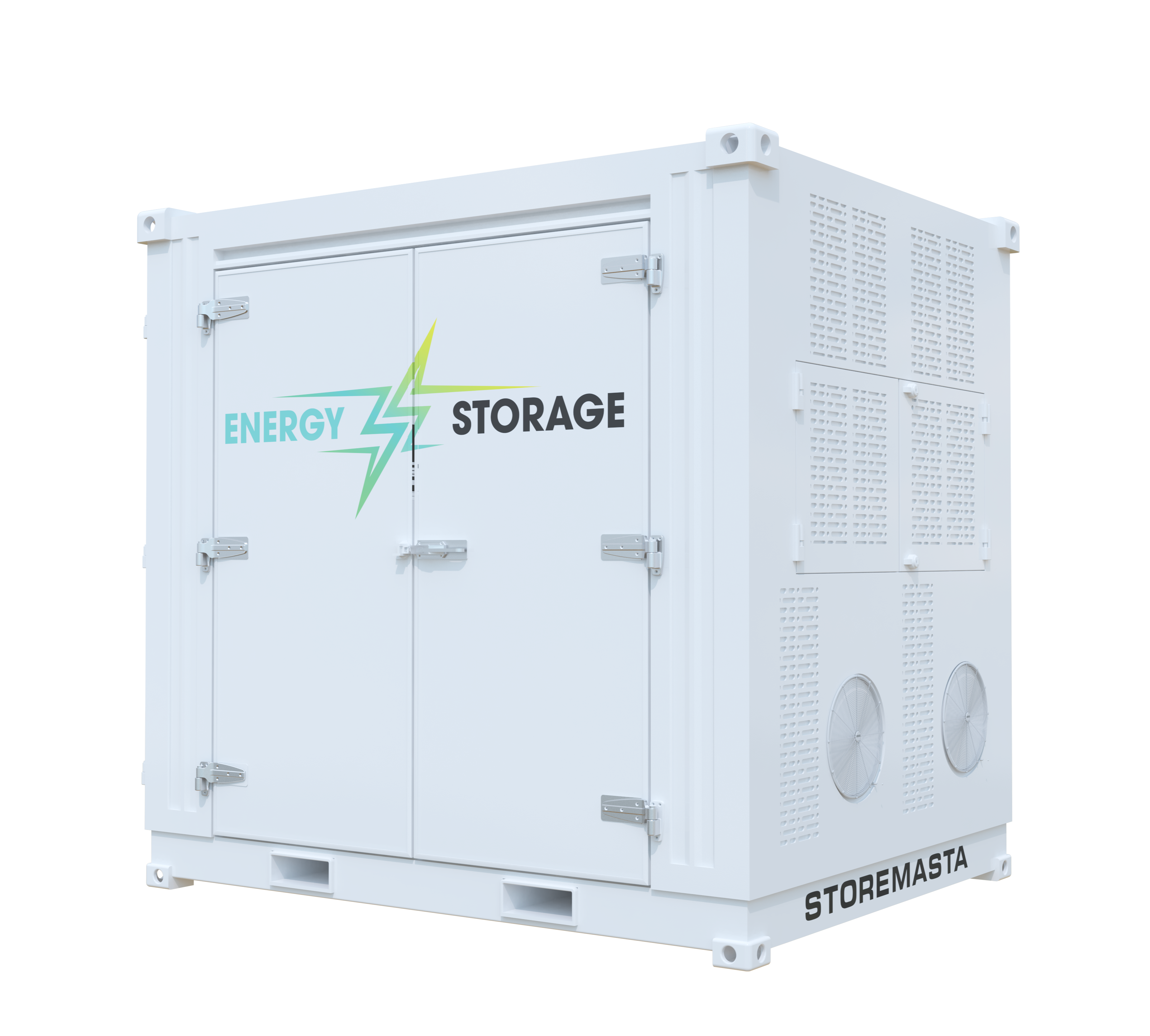

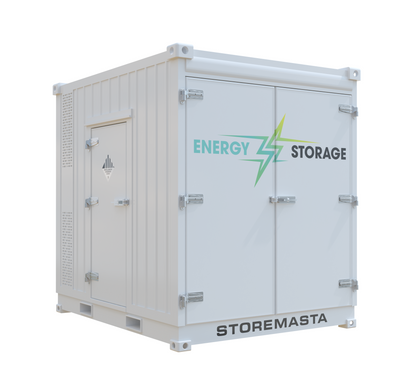

Battery Energy Storage Container - 10ft

BESC10
Description

This Battery Energy Storage Container (BESC) is constructed with robust steel materials, based on a sturdy 10ft frame.

Tailored for renewable energy farms seeking a plug-and-play solution, the Storemasta Battery Storage Container is engineered with industry-leading safety features, including air release valves, fire-resistant paneling, and a negative air pressure system. Dual air conditioning units ensure 100% redundancy, while explosive pressure release vents provide an extra layer of protection. Purpose-built for BESS storage, this innovative container is designed to reduce battery fire risk.

Storemasta's Battery Energy Storage Container - 10ft is proudly designed and made in Australia to meet the requirements of the Australian Standard AS/NZS 4681 - The storage and handling of Class 9 (miscellaneous) dangerous goods and articles. A larger 20ft Battery Energy Storage Container is also available for organisations requiring a greater storage capacity.

To further tailor this unit to your specific requirements, we offer a range of optional features. Speak with one of our knowledgeable Dangerous Goods Storage Consultants to customise a battery management solution that perfectly matches your operational needs.

Features

  • A robust all-steel 10ft container construction
  • Temperature controlled environment - Dual air conditioning for 100% redundancy- For the event of failure or maintenance
  • Explosion proof hazardous area rated HVAC systems
  • Explosive pressure control vents on ceiling
  • Flame-guard fire retardant paneling
  • Negative air unit to minimise the spread of dust
  • Air pressure release valves
  • Side and end wide access opening doors with additional PA door for easy access
  • Forklift pockets for handling and mobility
  • Weatherproof design
  • Bunded spill containment sump
  • Non-slip grated flooring
  • Certified 12T Lifting Capacity
  • Over temperature indicator

Dimensions (mm)

ExternalH 2896W 3050D 2438
InternalH 2570W 2850D 2280

Dangerous Goods Compliance Specifications

Sump Capacity 1410

Other Specifications

Full Weight 2200 Kg
