Battery Storage Cabinet - 250L

SC250BS
Description

Storemasta's large Battery Storage Cabinet - 250L provide a fast and cost-effective solution to mitigate the risks associated with lithium-ion batteries. This range of Battery Storage Cabinets are specifically designed to store Li-ion batteries in a cool, dry, and secure environment, significantly reducing the potential for battery fires.

Each Battery Storage Cabinet is constructed with a robust double-walled sheet steel structure and features a 40mm thermal air barrier, ensuring superior protection against thermal events. The patented Safe-T-Close® automatic sequential door closing system enhances safety and convenience, offering seamless operation while minimising exposure to potential hazards. For added peace of mind, Storemasta Battery Cabinets can be equipped with optional fire suppression systems to further safeguard your batteries and facility.

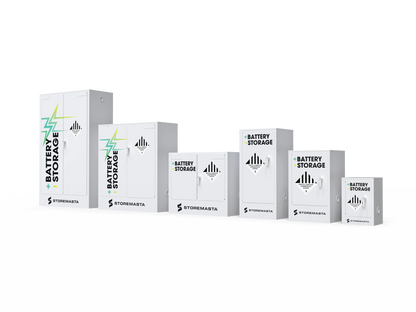

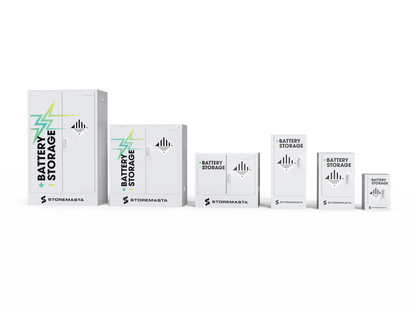

Available in a range of sizes, choose your Storemasta Battery Storage Cabinet and reduce the risk of lithium-ion battery fires in your organisation.

Features

  • Double walled sheet steel construction with a 40mm thermic air barrier
  • High capacity liquid tight sump to contain spills - 150mm deep
  • Self-closing, close fitting doors that latch at 2 points
  • Built in flash arrestors and vent openings [for mechanical ventilation systems]
  • Strong fully adjustable shelving perforated for free air movement, 100mm adjustment increments
  • Sequential door closing system
  • Stainless steel pin with continuous hinging for strength and reliability
  • State of the art powder coat finish for high durability and performance
  • Comfortable ergonomic handle design
  • Distinct safety signs and directions that comply with AS 1216 and AS 1319
  • Designed and Manufactured in full conformance to AS/NZS 4681:2000 The storage and handling of Class 9 (miscellaneous) dangerous goods and articles

Dimensions (mm)

ExternalH 1750W 1100D 500
InternalH 1503W 1018D 420

Storage Capacity

Max Capacity 250
Winchester Size0.5L - 65mmW2.5L - 135mmW5L - 190mmW
Capacity450* - 5 storage levels6330
Drum Size4L - 180mmW20L - 300mmW60L - 400mmW
Capacity50*94
5 storage levels

Dangerous Goods Compliance Specifications

Complies with AS/NZS 4681:2000
Sump Capacity 64

Other Specifications

Weight 123.0 kg
Shelf Levels 3
