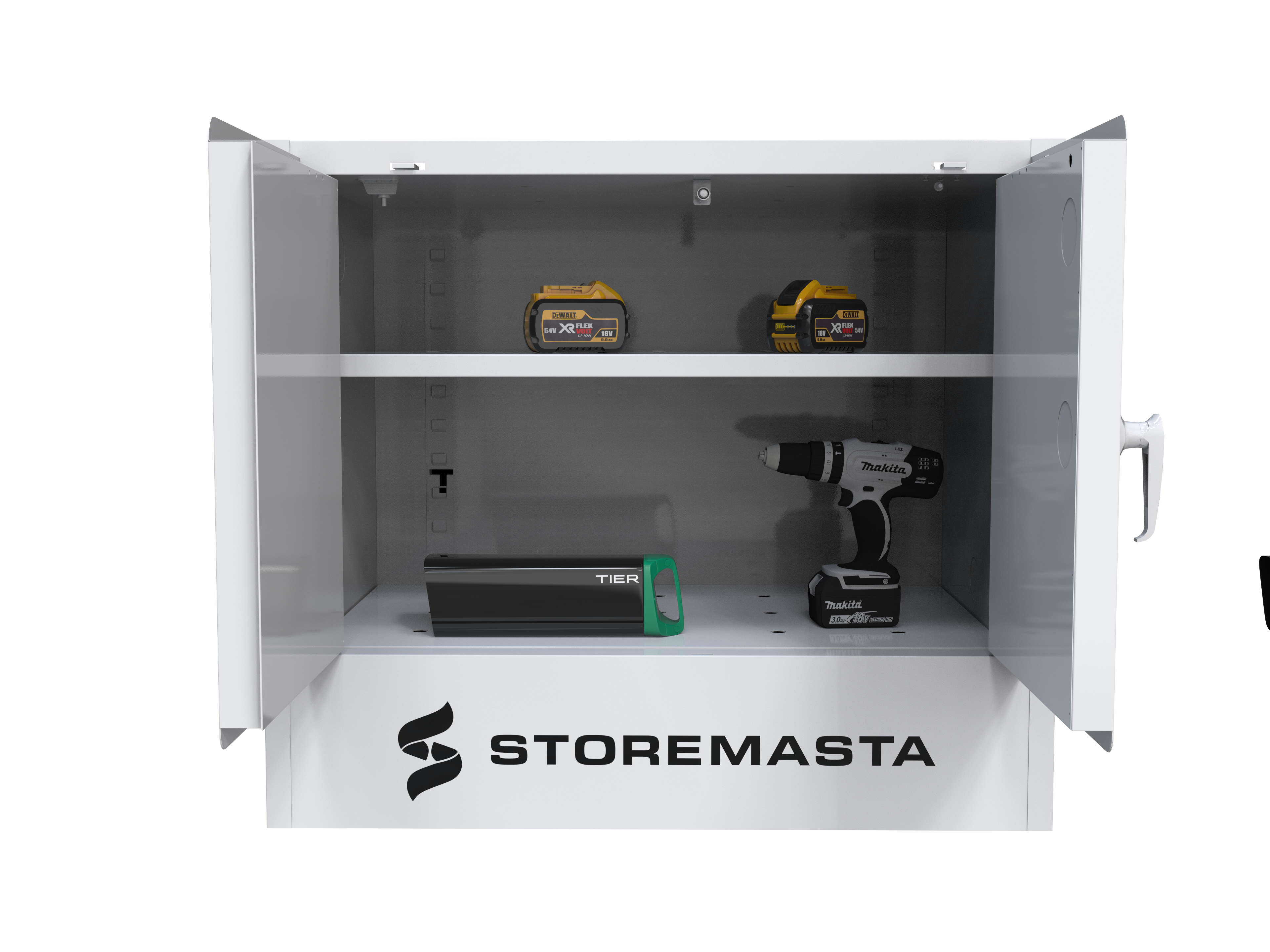

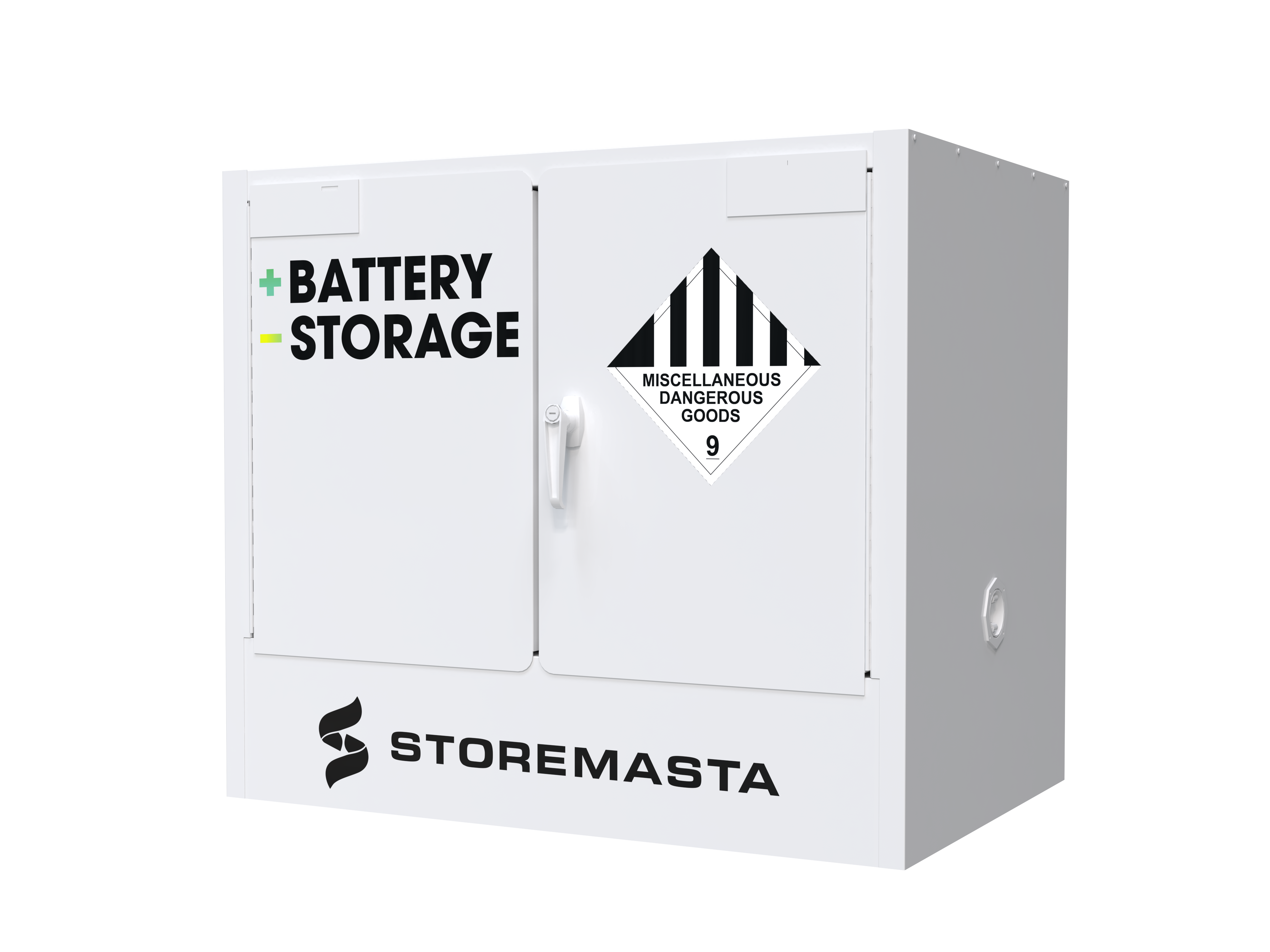

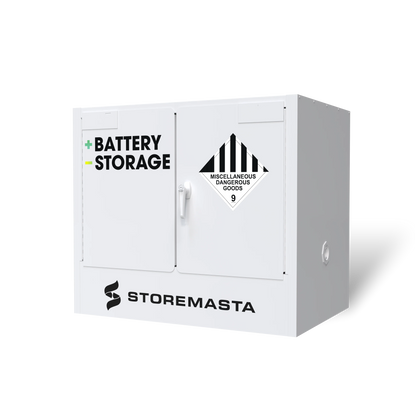

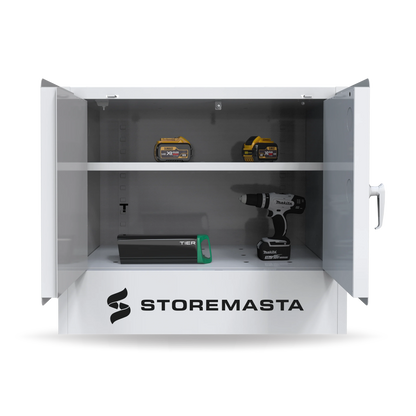

Battery Storage Cabinet - 100L

SC100BS
Description

Storemasta's Battery Charging Storage Cabinets provide a fast and cost-effective solution to mitigate the risks associated with lithium-ion batteries. These cabinets are specifically designed to store Li-ion batteries in a cool, dry, and secure environment, significantly reducing the potential for battery fires.

Each cabinet is constructed with a robust double-walled sheet steel structure and features a 40mm thermal air barrier, ensuring superior protection against thermal events. The patented Safe-T-Close® automatic sequential door closing system enhances safety and convenience, offering seamless operation while minimising exposure to potential hazards. For added peace of mind, the cabinets can be equipped with optional fire suppression systems to further safeguard your batteries and facility.

Features

  • Double walled sheet steel construction with a 40mm thermic air barrier
  • High capacity liquid tight sump to contain spills - 150mm deep
  • Self-closing, close fitting doors that latch at 2 points
  • Built in flash arrestors and vent openings [for mechanical ventilation systems]
  • Strong fully adjustable shelving perforated for free air movement, 100mm adjustment increments
  • Sequential door closing system
  • Stainless steel pin with continuous hinging for strength and reliability
  • State of the art powder coat finish for high durability and performance
  • Comfortable ergonomic handle design
  • Distinct safety signs and directions that comply with AS 1216 and AS 1319
  • Designed and Manufactured in full conformance to AS 1940:2017 - The storage and handling of flammable and combustible liquids

Dimensions (mm)

ExternalH 800W 920D 615
InternalH 553W 838D 535

Storage Capacity

Max Capacity 100
Winchester Size0.5L - 65mmW2.5L - 135mmW5L - 190mmW
Capacity96188
Drum Size4L - 180mmW20L - 300mmW
Capacity164

Dangerous Goods Compliance Specifications

Complies with AS/NZS 4681:2000
Sump Capacity 67

Other Specifications

Weight 65.0 kg
Shelf Levels 2
