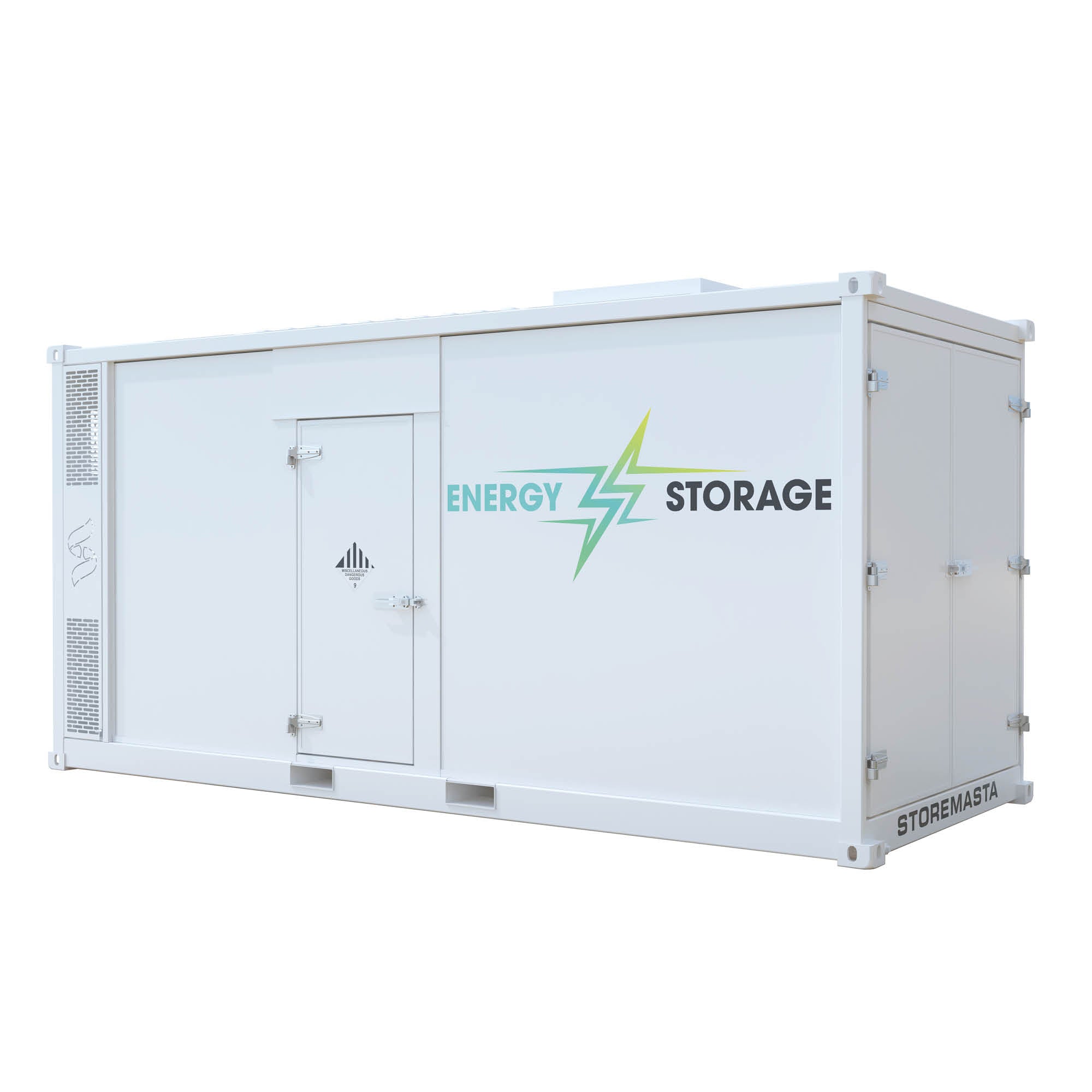

Battery Energy Storage Container - 20ft

BESC20
Description

This Battery Energy Storage Container - 20ft (BESC) is constructed with robust steel materials, based on a sturdy 20ft frame.

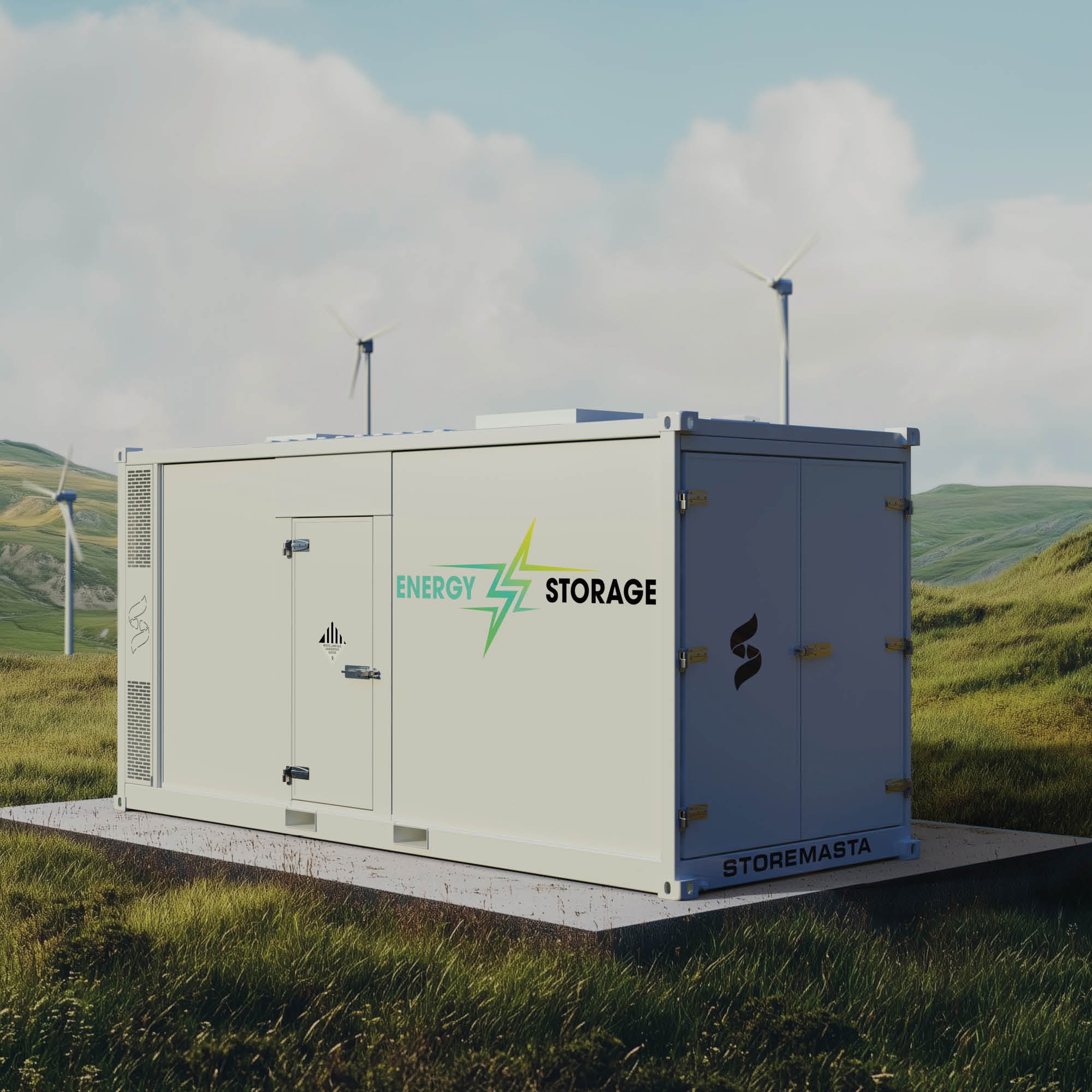

Tailored for renewable energy farms seeking a plug-and-play solution, this large Battery Storage Container is engineered with industry-leading safety features, including air release valves, fire-resistant paneling, and a negative air pressure system. Purpose-built for BESS storage, this container is designed to reduce battery fire risk.

Dual air conditioning units ensure 100% redundancy, while explosive pressure release vents provide an extra layer of protection.

This Australian designed and made Battery Energy Storage Container (BESC) is constructed to meet the requirements of AS/NZS 4681 - The storage and handling of Class 9 (miscellanous) dangerous goods and articles. A smaller 10ft Battery Energy Storage Container is also available for organisations requiring a lesser storage capacity.

To further tailor this unit to your specific requirements, we offer a range of optional features. Speak with one of our knowledgeable Dangerous Goods Storage Consultants to customise a battery management storage solution that perfectly matches your operational needs.

Features

  • A robust all-steel 10ft container construction
  • Temperature controlled environment - Dual air conditioning for 100% redundancy- For the event of failure or maintenance

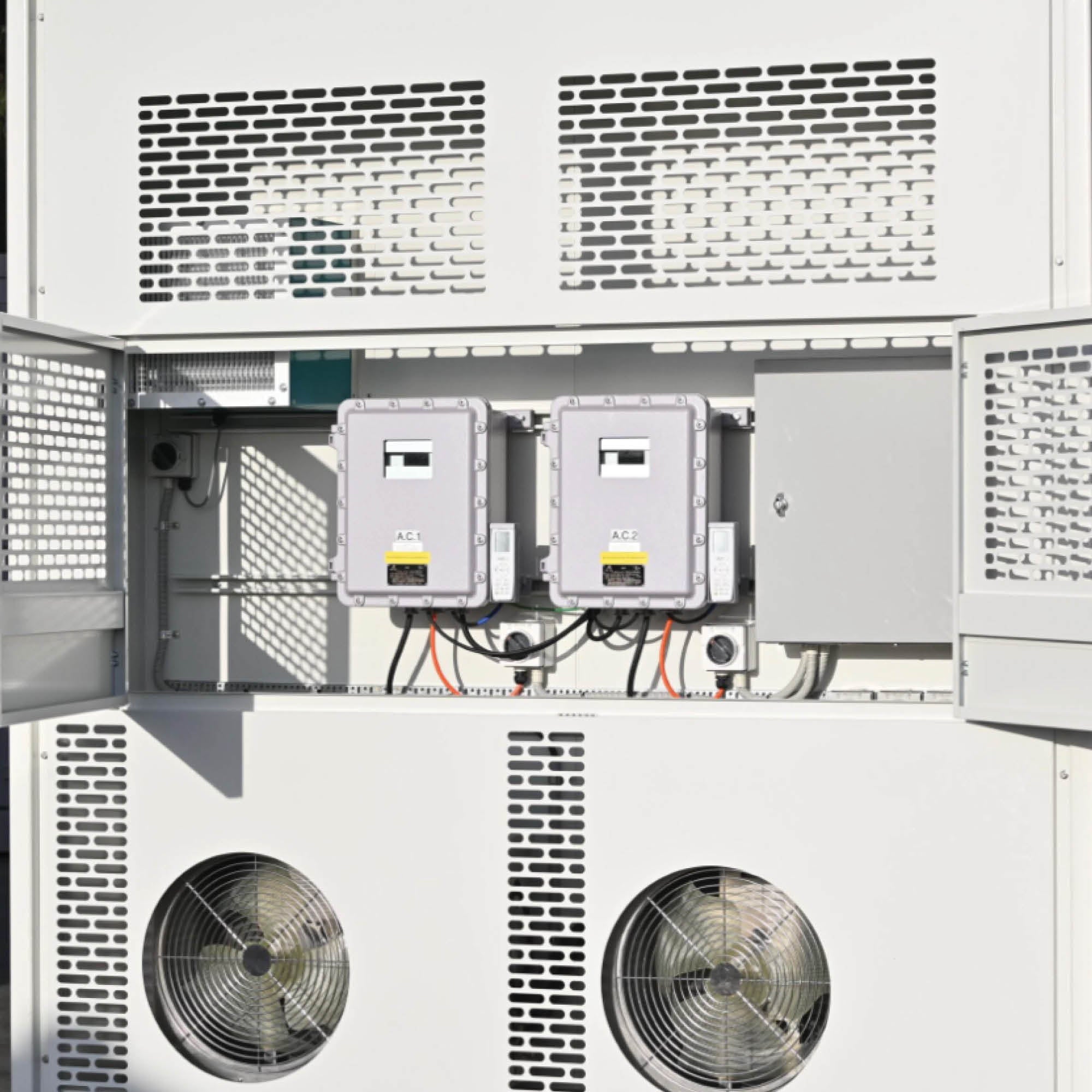

  • Explosion proof hazardous area rated HVAC systems
  • Explosive pressure control vents on ceiling
  • Flame-guard fire retardant paneling
  • Negative air unit to minimise the spread of dust
  • Air pressure release valves

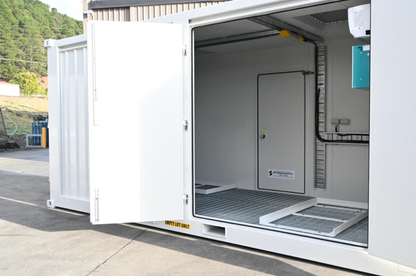

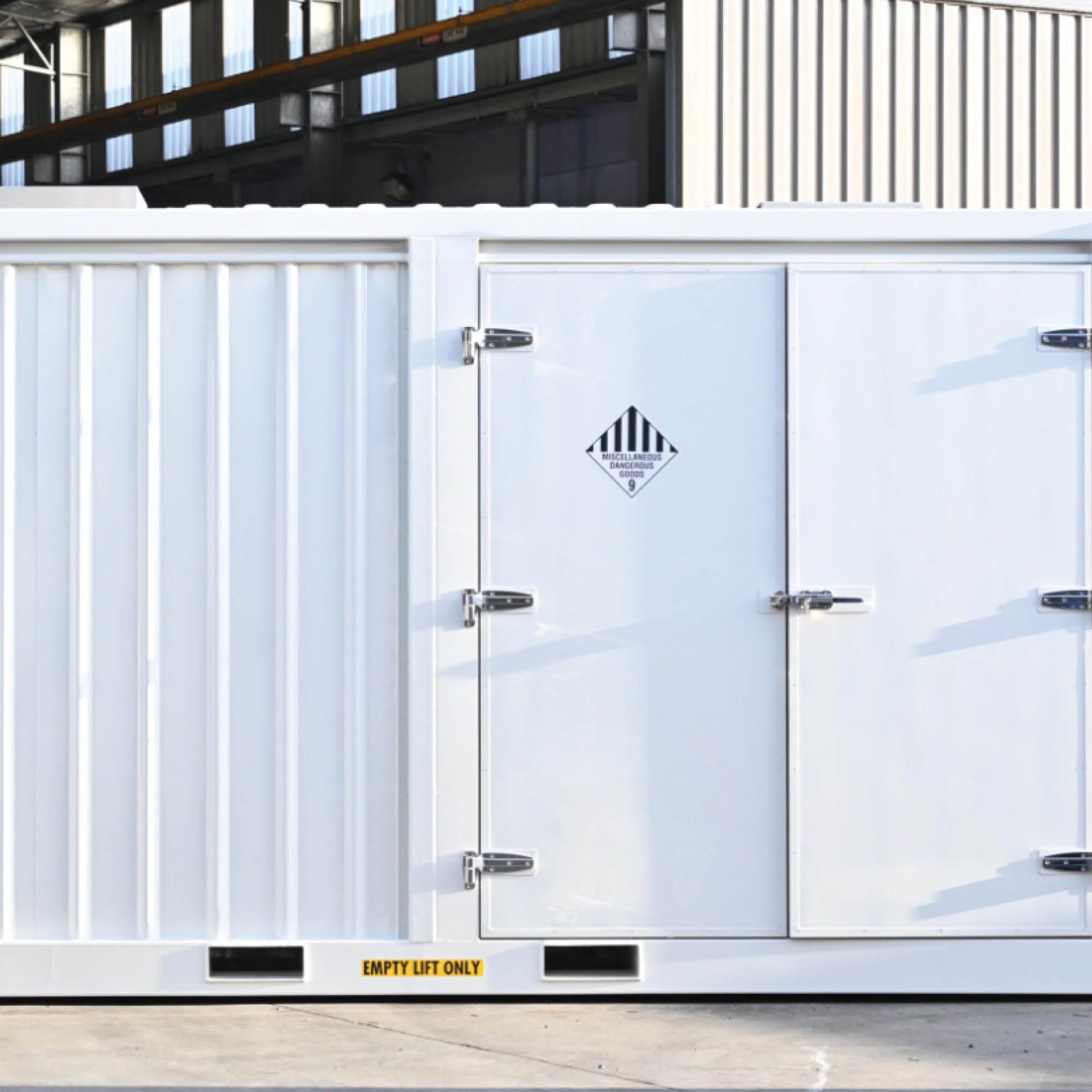

  • Side and end wide access opening doors with additional PA door for easy access
  • Forklift pockets for handling and mobility
  • Weatherproof design
  • Bunded spill containment sump

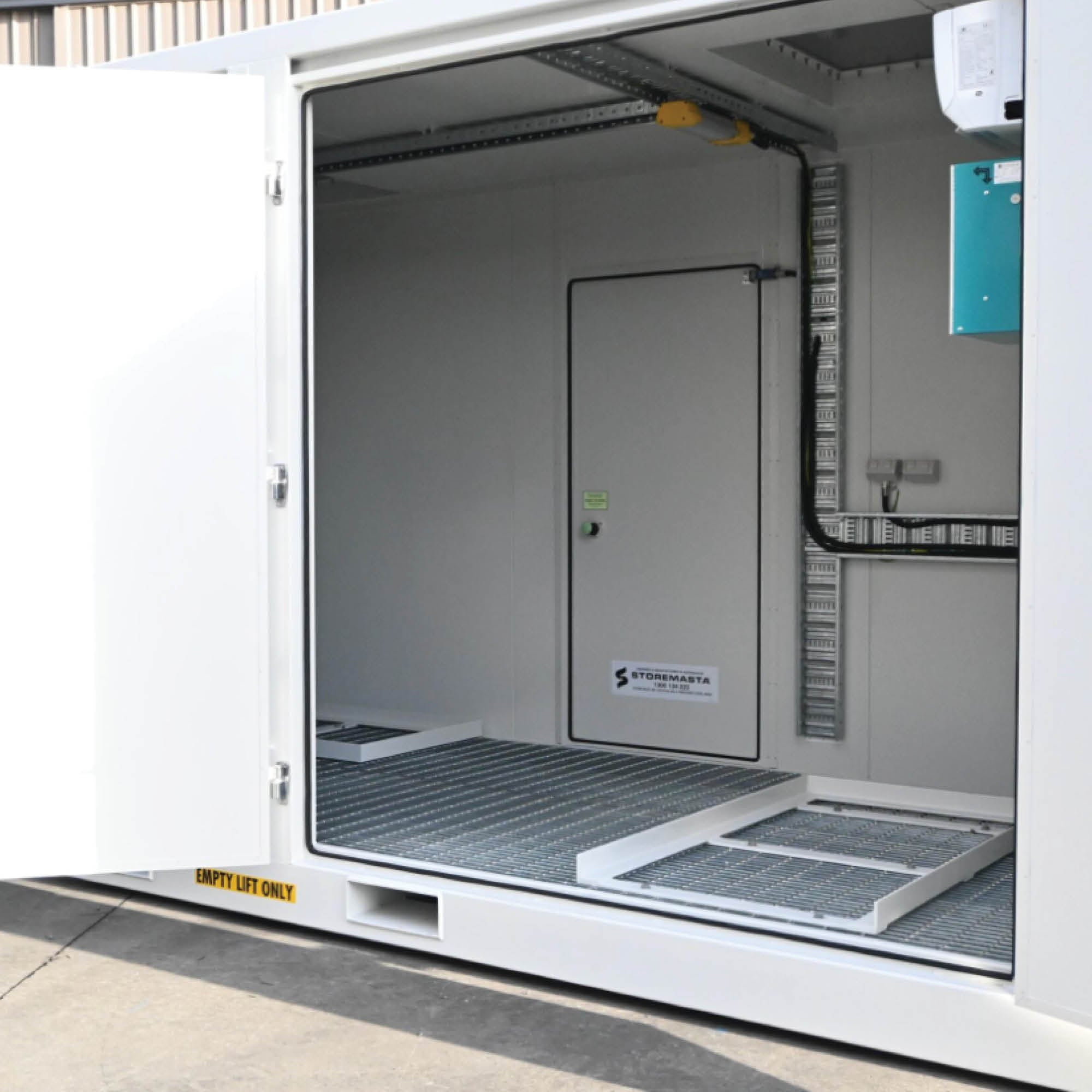

  • Non-slip grated flooring
  • Certified 12T Lifting Capacity
  • Over temperature indicator

Dimensions (mm)

ExternalH 2970W 6058D 2438
InternalH 2480W 5350D 2180

Dangerous Goods Compliance Specifications

Complies with AS1940-2016
Sump Capacity 3025

Other Specifications

Full Weight 4100 Kg
