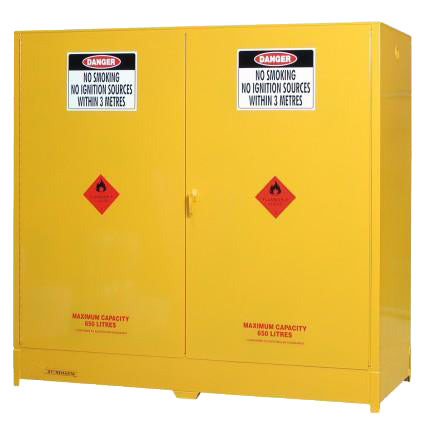

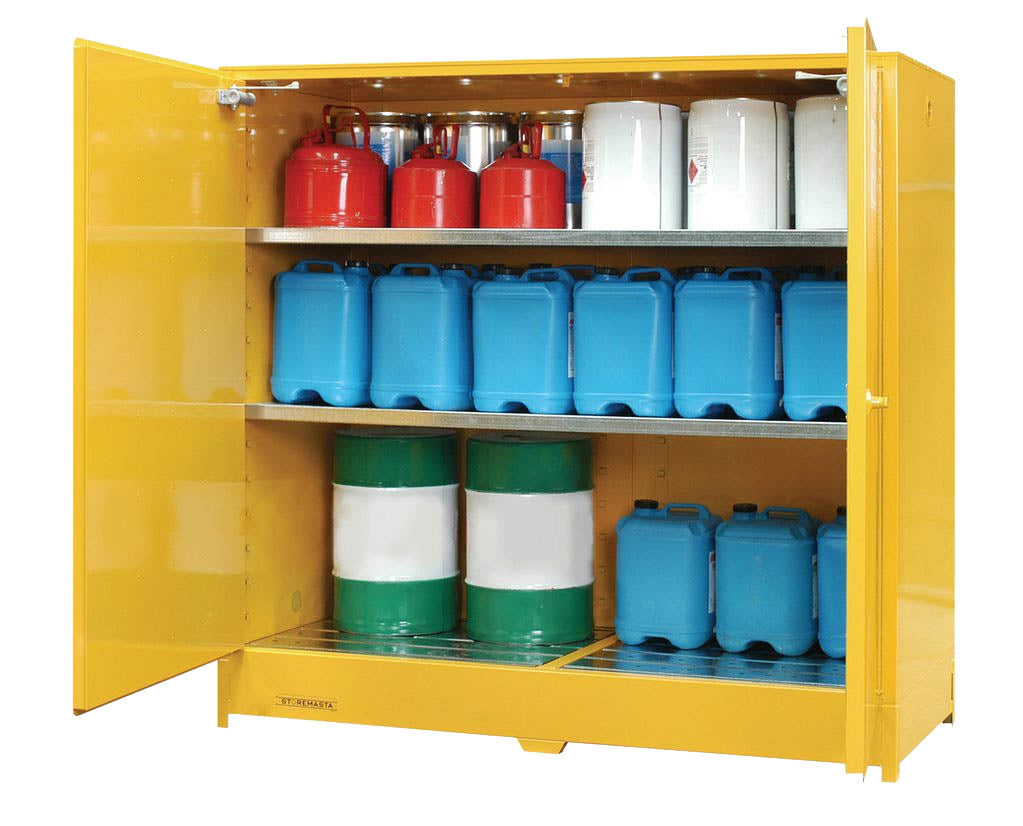

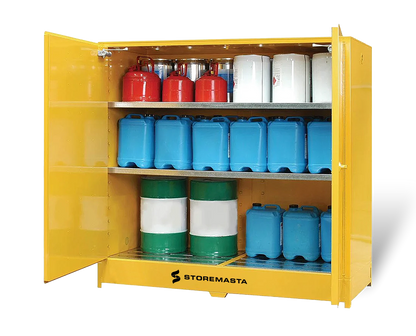

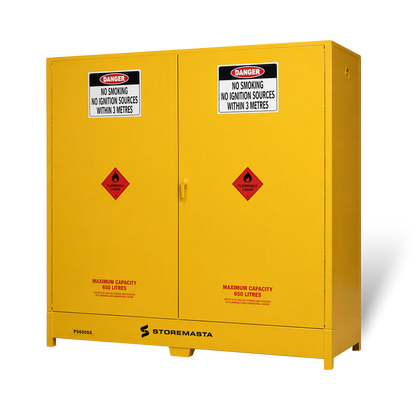

650L - Large Capacity Flammable Liquids Storage Cabinet

PS650SS
Description

The PS650SS is a heavy duty safety cabinet purpose-built for holding up to 650 litres of Class 3 Flammable Liquids. Safely store flammable liquids such as fuel, solvents or lubricants in this hard-wearing chemical cabinet that is 25% stronger than standard models.

Features of the PS650SS include 205 litre spill containment sump, self-closing doors which close in sequence without jamming or generating sparks, lockable L-handle door fastener, vent openings and built-in flash arrestors that fit your mechanical ventilation system.

Order your Large Capacity Flammable Liquids Storage Cabinet from Storemasta today.

Features

  • Manufactured from 25% heavier materials than minimum requirement
  • Double walled sheet steel construction with a 40mm thermic air barrier
  • High capacity liquid tight sump to contain spills with a fixed suspended perforated floor - 150mm deep. The sump has the capacity to contain 25% of the aggregate capacity of the cabinet
  • Self-closing close-fitting doors that latch at 2 points
  • Unique spark-proof, self latching locking system with lockable handle
  • Vent openings with built-in flash arrestors [for mechanical ventilation systems]
  • Continuous stainless steel pin hinging for maximum strength and reliability
  • State of the art powder coat finish for high durability and performance
  • Forkliftable
  • Safety signs and directions that comply with AS1216 and AS1319
  • Designed and manufactured in full conformance to AS1940-2017 - The storage and handling of flammable and combustible liquids

Dimensions (mm)
ExternalH 1880W 1986D 804
InternalH 1608W 1902D 718

Storage Capacity
Max Capacity 650L
Winchester Size0.5L2.5L 5L
Capacity1595*****280****120****
Drum Size4L20L60L205L
Capacity150*****3683
****4 Storage levels *****5 storage levels
Calculations based on these package size

Dangerous Goods Compliance Specifications
Complies with AS1940 - 2017
Sump Capacity 205L

Other Specifications
Weight 295.0 kg
Shelf Levels 3
Storage Levels 3
Shelf Thickness (mm) 28
Shelf spacing (mm) 100
No. of Shelf Lugs 16
