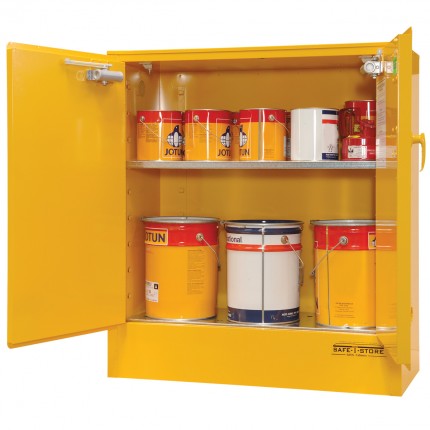

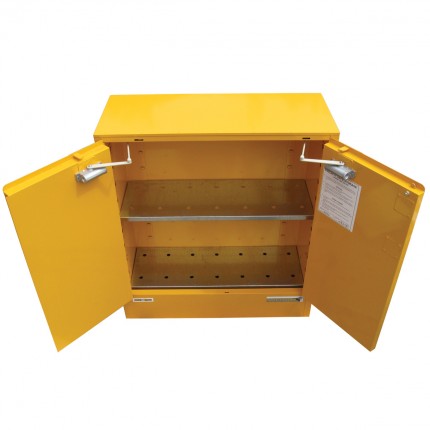

160L - Flammable Liquid Storage Cabinet

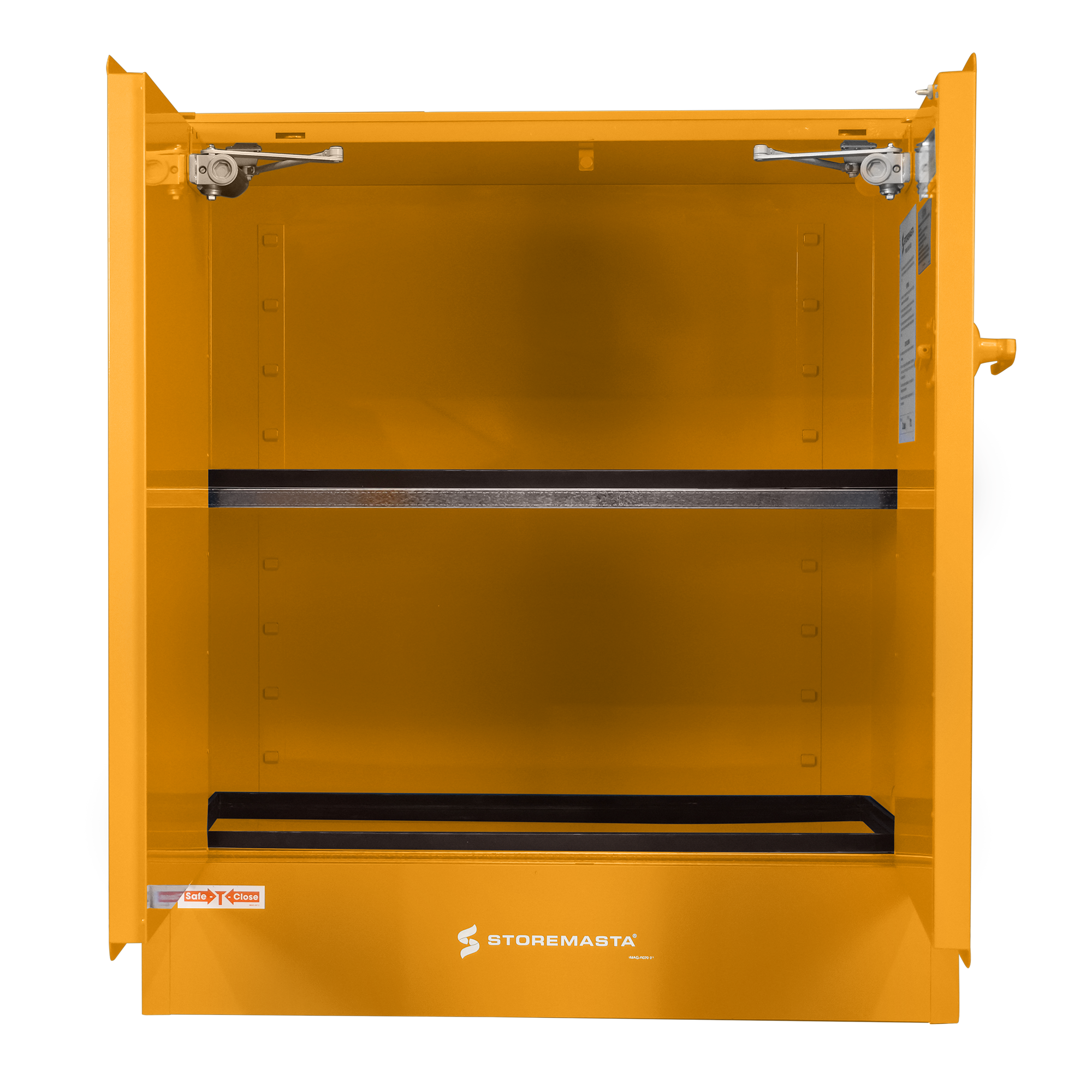

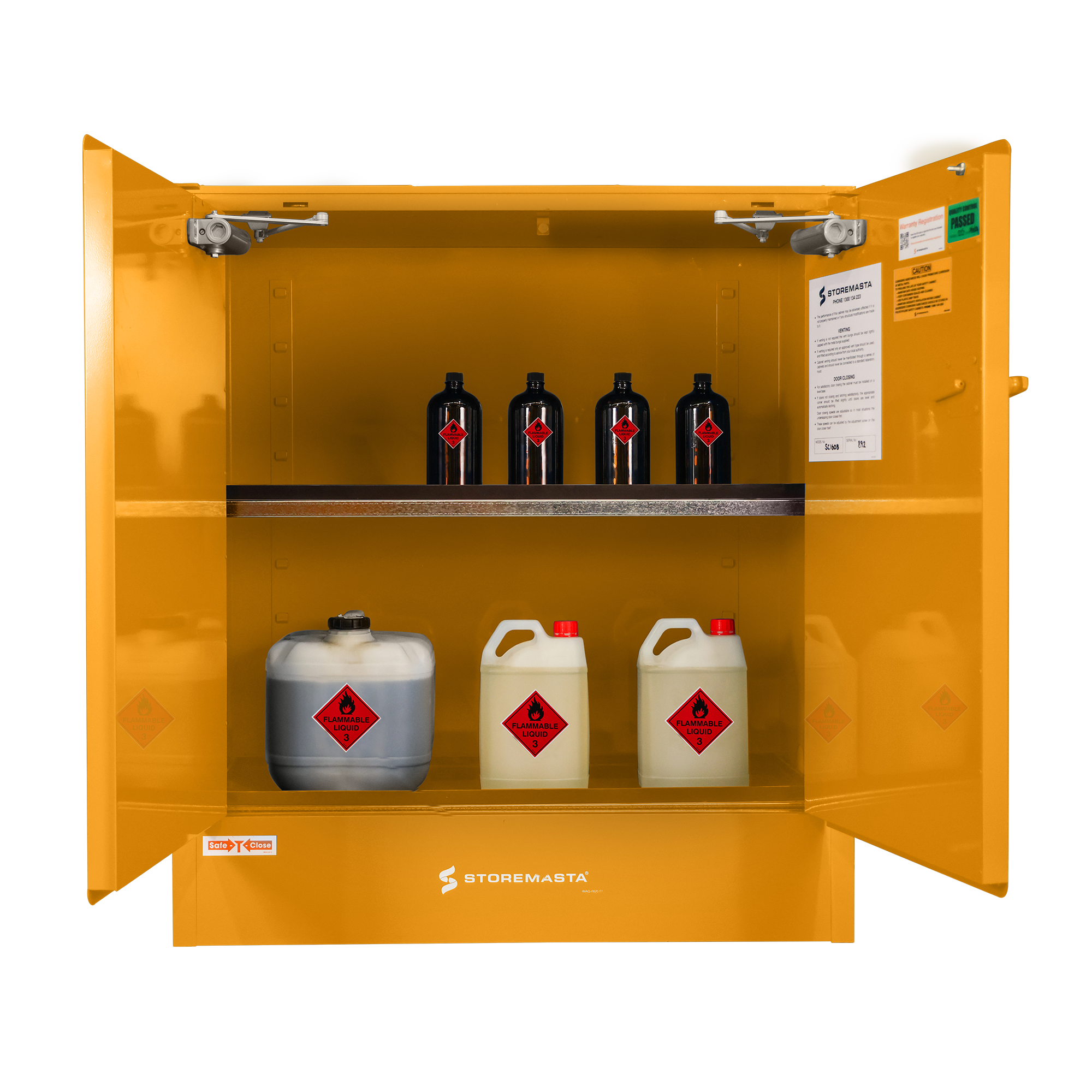

SC160The SC160 is an indoor safety cabinet storing up to 160 litres of Class 3 Flammable Liquids. Features perforated shelving (to maximise airflow); flash arrestors and vent openings (that fit your mechanical ventilation system); and a 57 litre spill containment sump (that’s liquid tight) — your flammables are secured against combustibles and sparks.
Outside the SC160, you’ll appreciate the high-tech powder coat finish, plus the compliant warning placards and cautionary signs. The SAFE-T-CLOSE® sequential closing system keeps the doors closed at all times without creating sparks.
The SC160 is part of the advanced SAFE-T-STORE® range of indoor Safety Cabinets for Hazardous Chemicals and Dangerous Goods. Designed and manufactured in Australia to the highest safety standards includingAS1940-2017. Order your flammable liquid storage cabinet from STOREMASTA today.
Features
- Double walled sheet steel construction with a 40mm thermic air barrier
- High capacity liquid tight sump to contain spills - 150mm deep
- Self-closing, close fitting doors that latch at 2 points

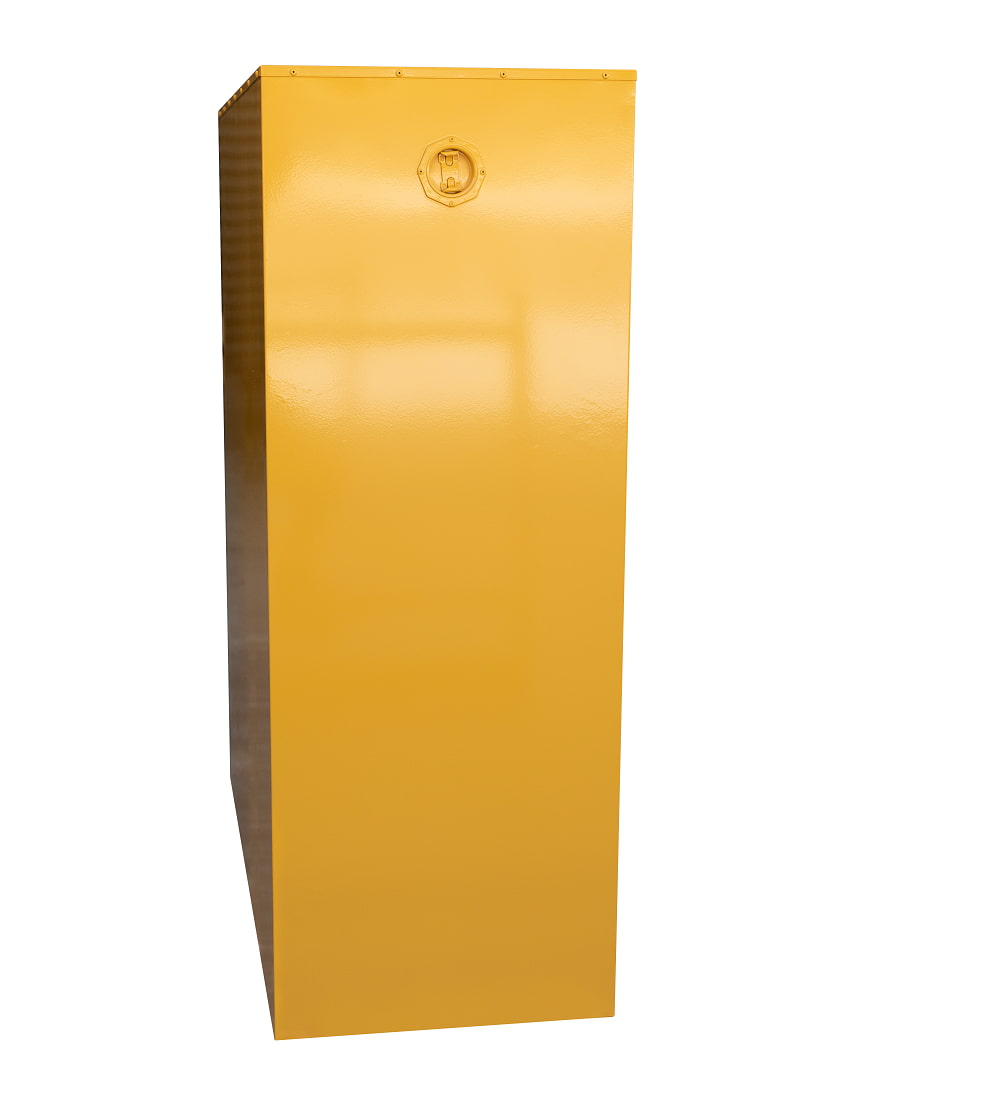

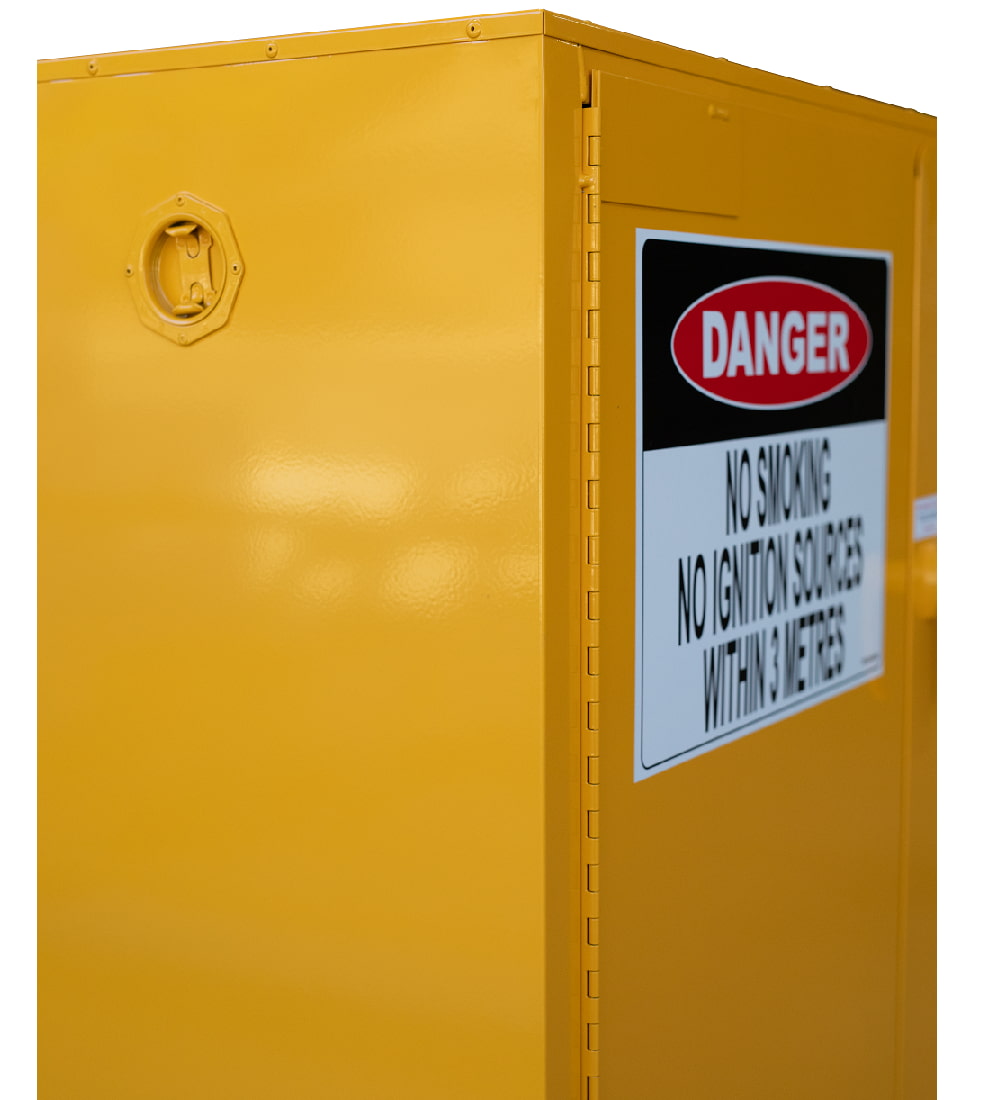

- Built in flash arrestors and vent openings [for mechanical ventilation systems]

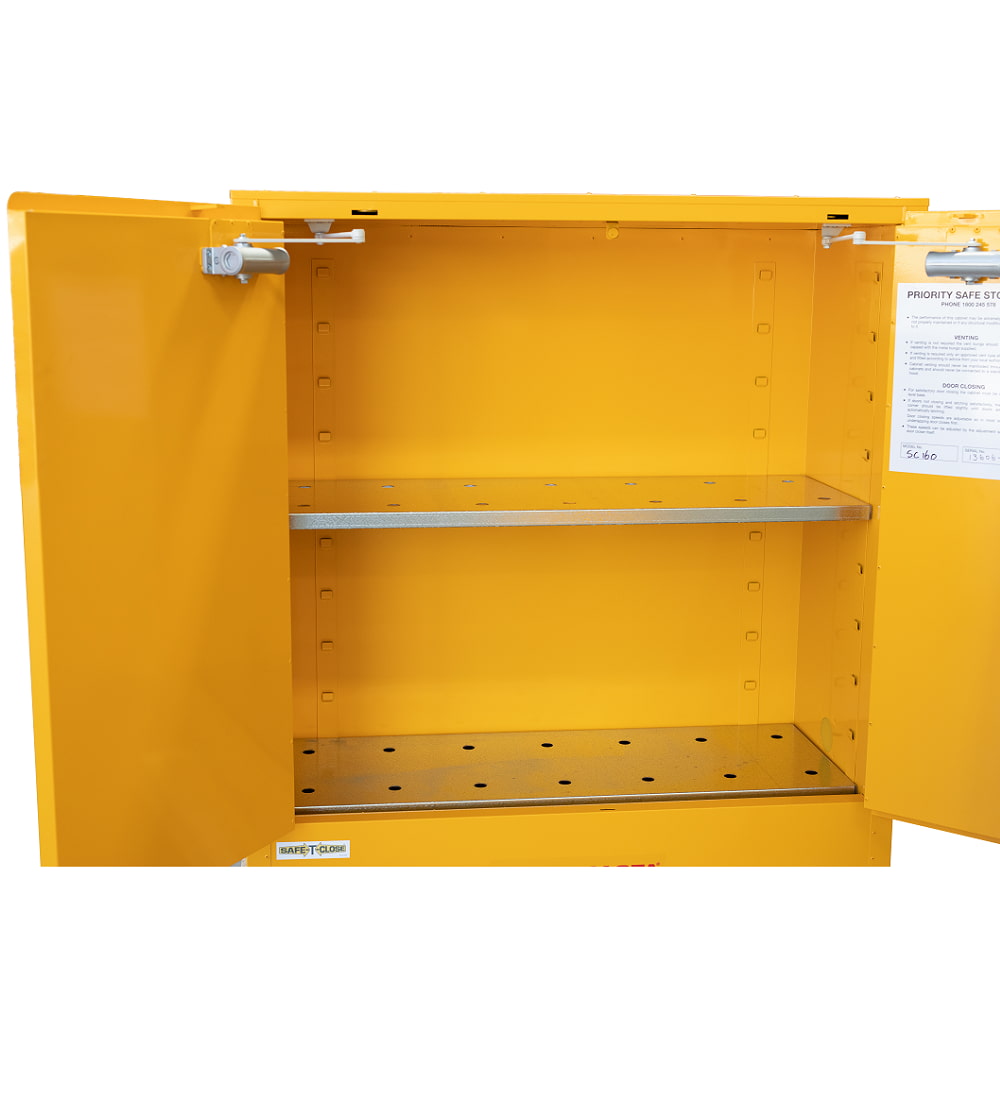

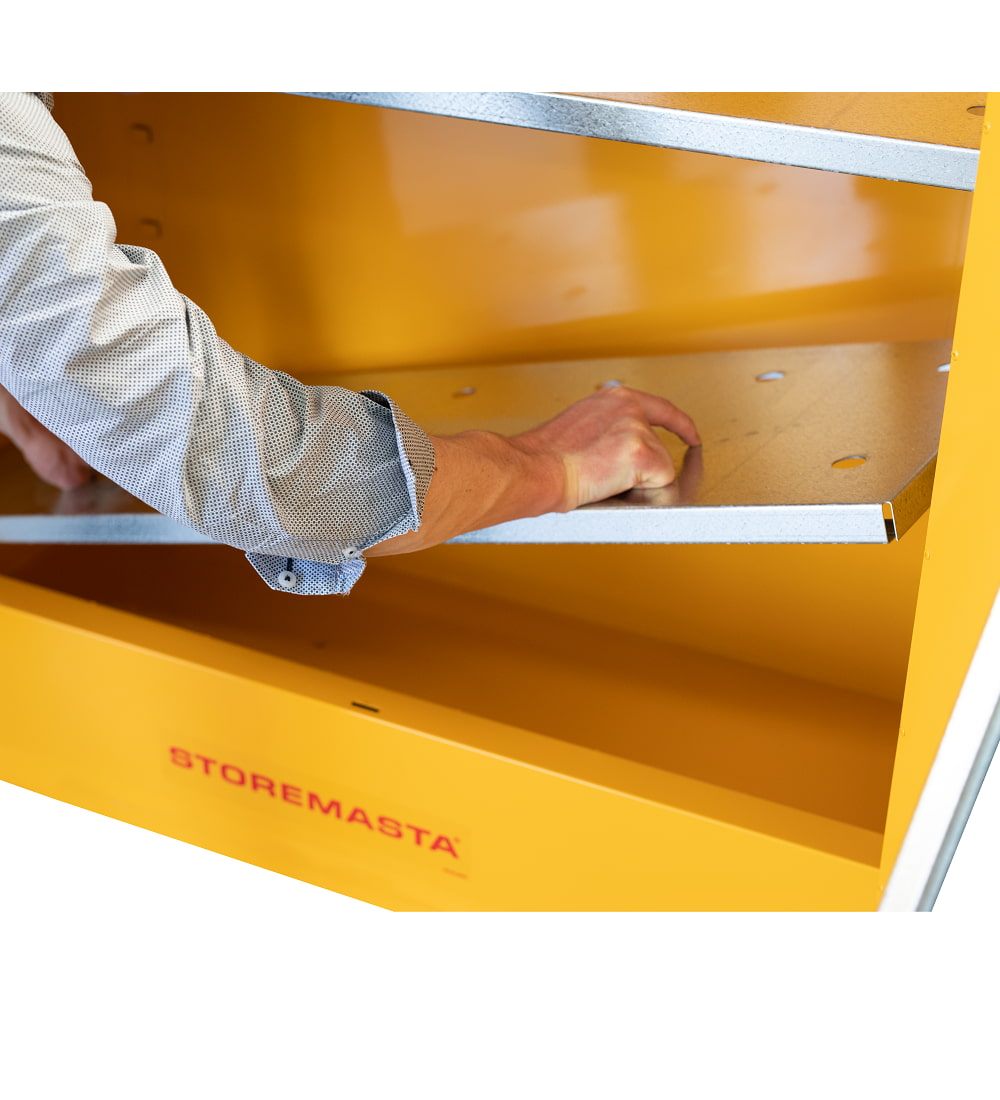

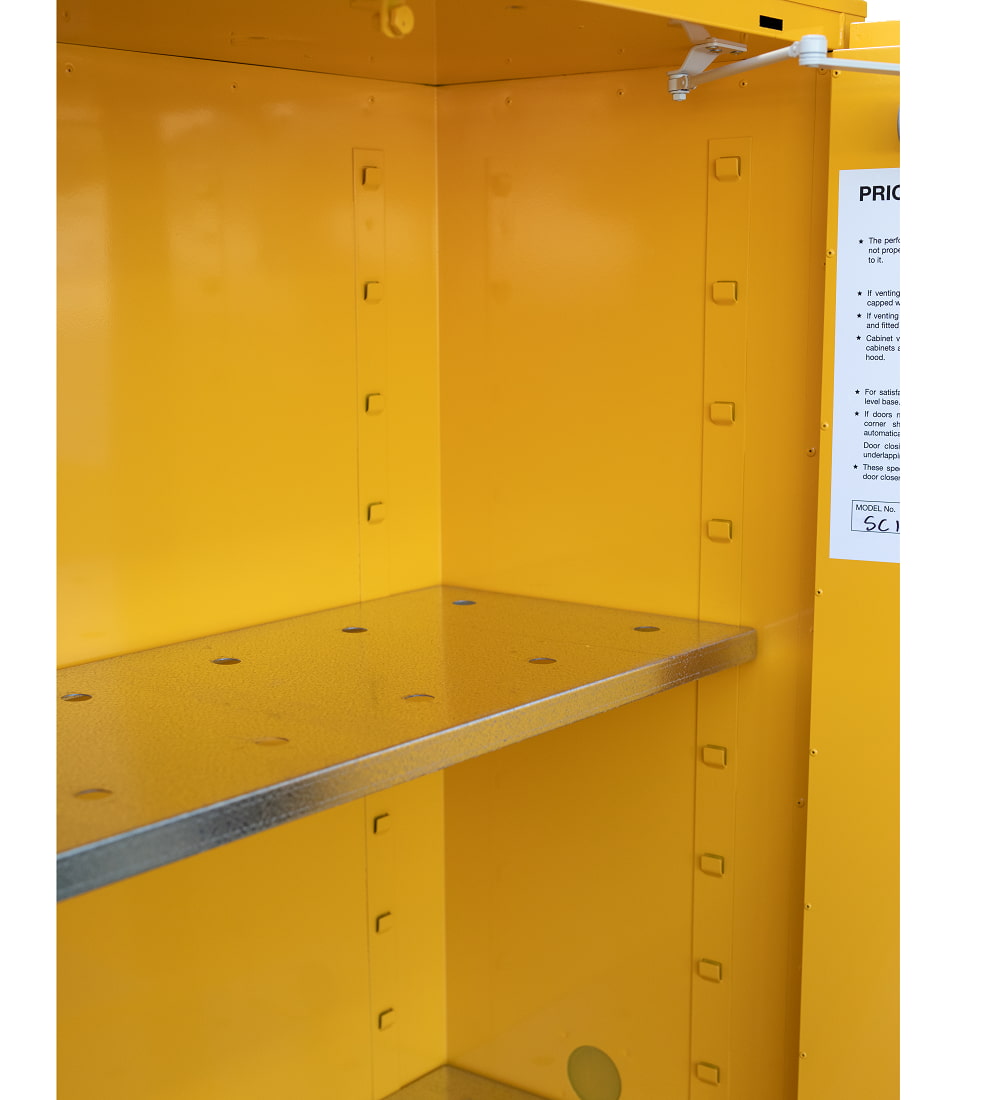

- Strong fully adjustable shelving perforated for free air movement, 100mm adjustment increments

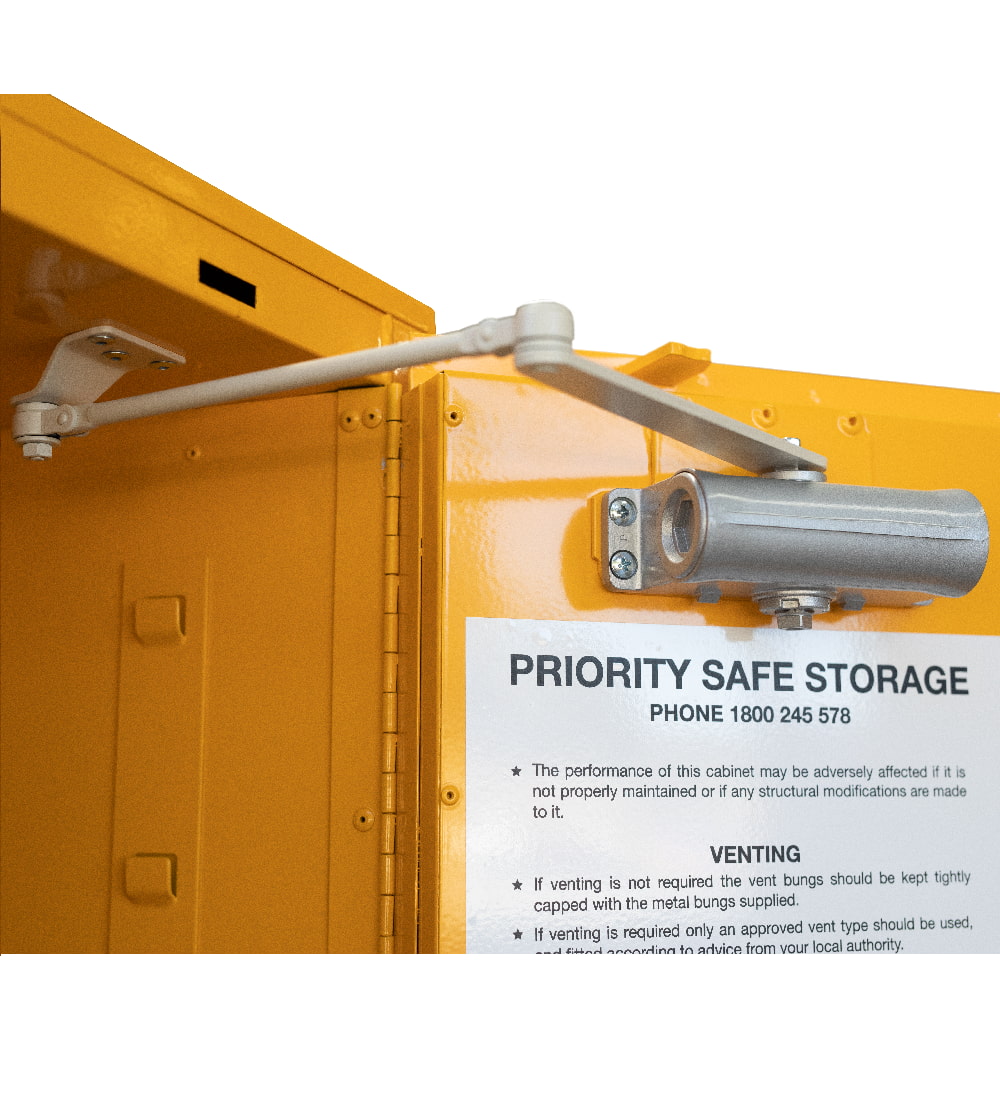

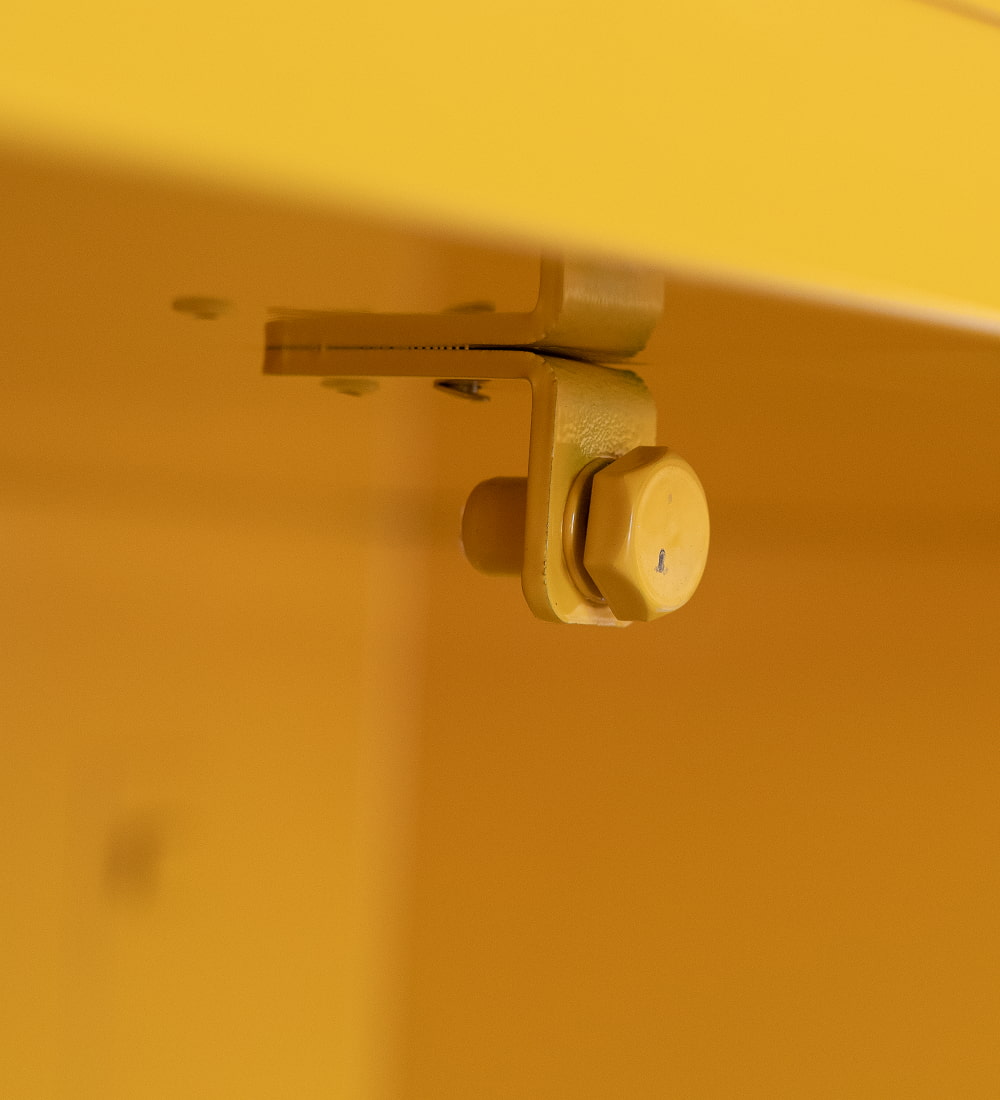

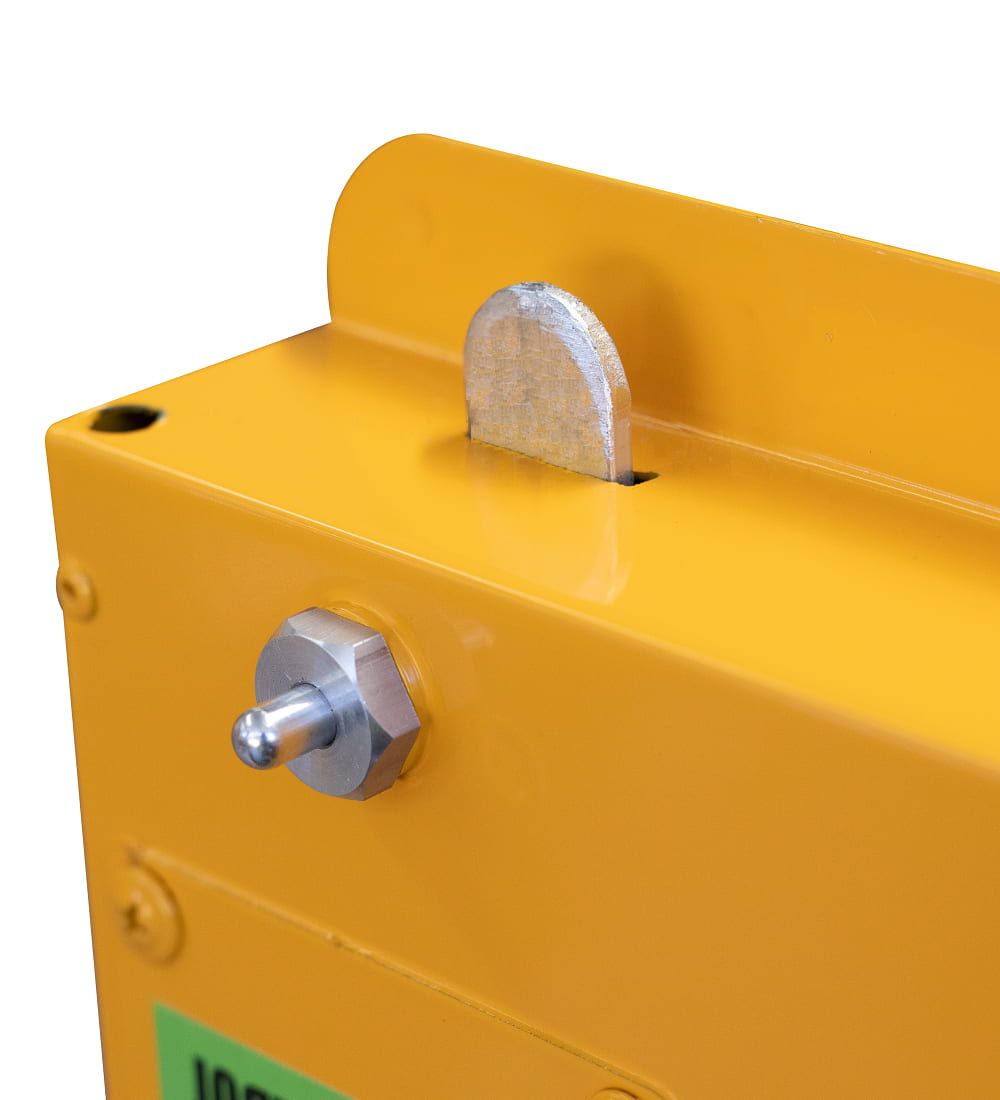

- Sequential door closing system
- Stainless steel pin with continuous hinging for strength and reliability
- State of the art powder coat finish for high durability and performance

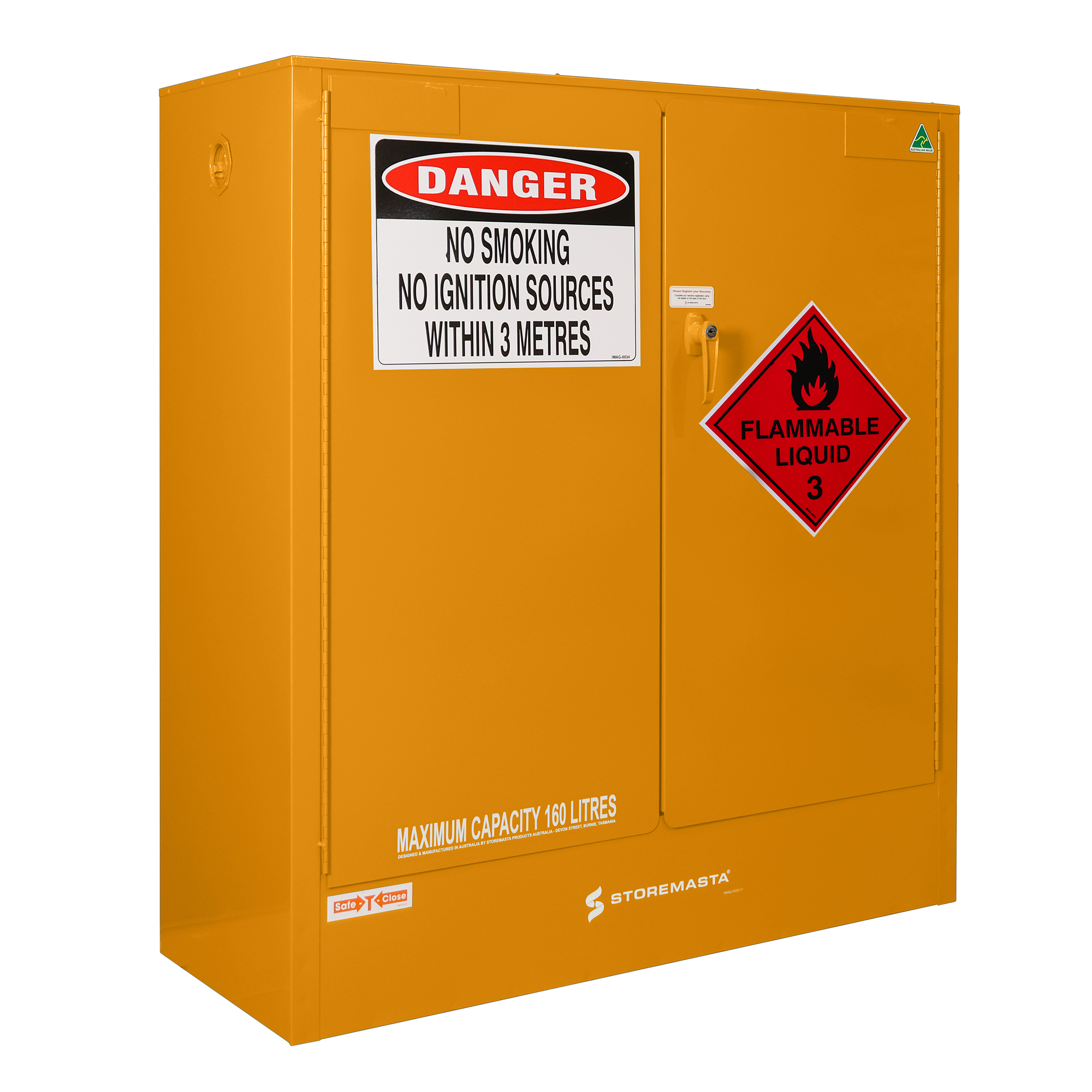

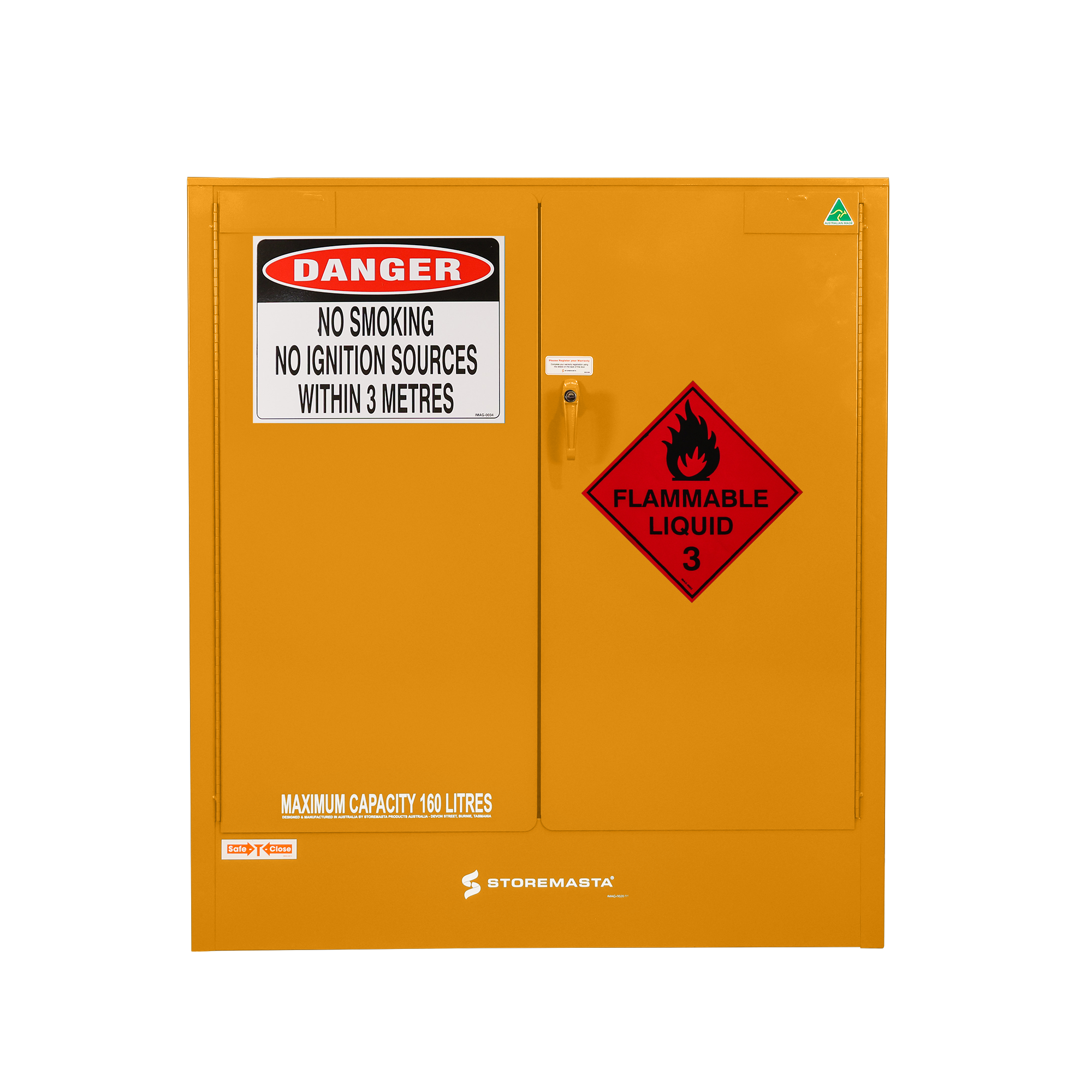

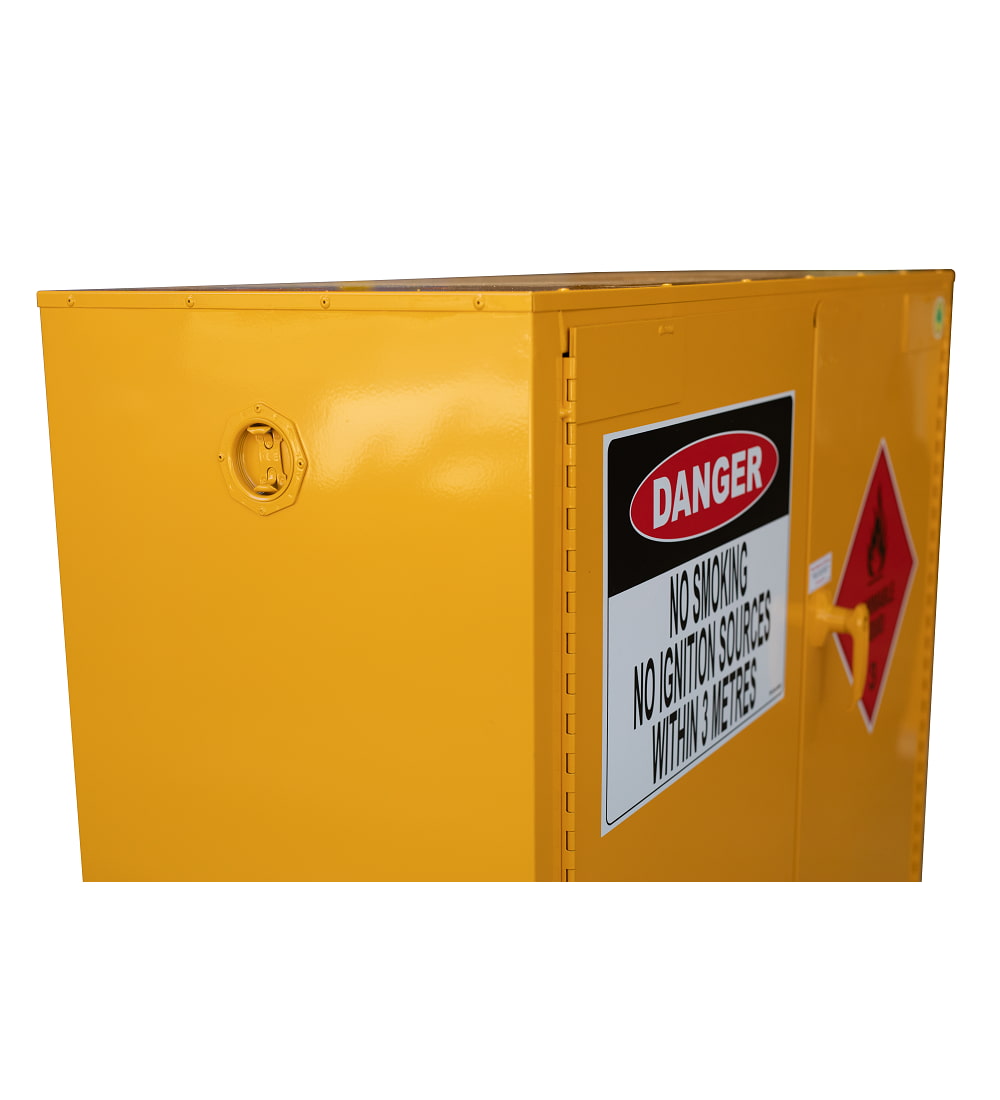

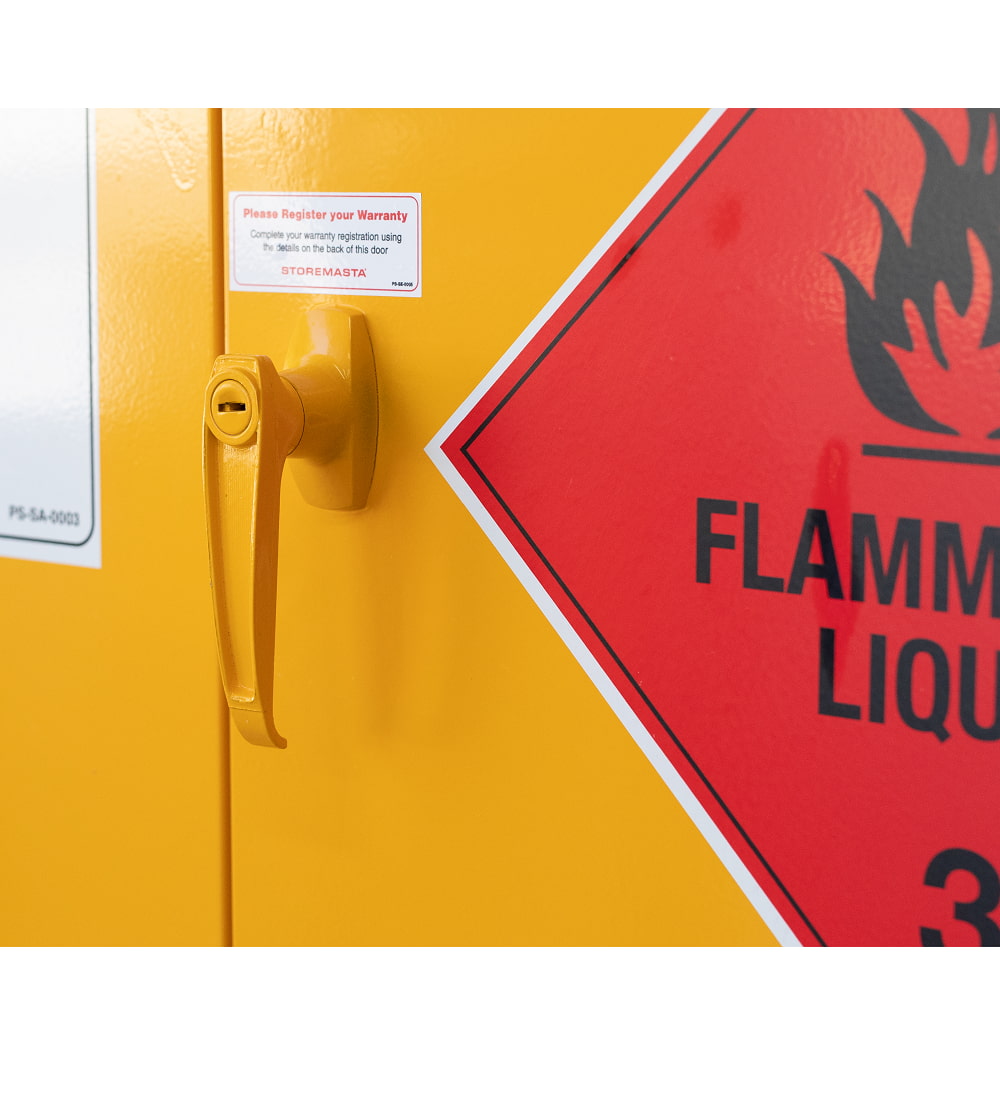

- Distinct safety signs and directions that comply with AS 1216 and AS 1319
- Designed and Manufactured in full conformance to AS 1940:2017 - The storage and handling of flammable and combustible liquids
Dimensions (mm)
External | H 1220 | W 1100 | D 450 |
Internal | H 973 | W 1018 | D 370 |
Storage Capacity
Max Capacity | 160L |
Winchester Size | 0.5L | 2.5L | 5L |
Capacity | 225*** | 28 | 10 |
Drum Size | 4L | 20L | 60L | 205L |
Capacity | 30*** | 6 | - | - |
Dangerous Goods Compliance Specifications
Complies with | AS1940 - 2017 |
Sump Capacity | 56L |
Other Specifications
Weight | 78.0 kg |
Shelf Levels | 2 |
Storage Levels | 2 |
Shelf Thickness (mm) | 28 |
Shelf spacing (mm) | 100 |
No. of Shelf Lugs | 10 |
