  • Class 8 - Corrosive Substances

Large Capacity Corrosive Substance Storage Cabinet - 650L

ps6508ss

Download the product spec sheet by filling the form below.

Description

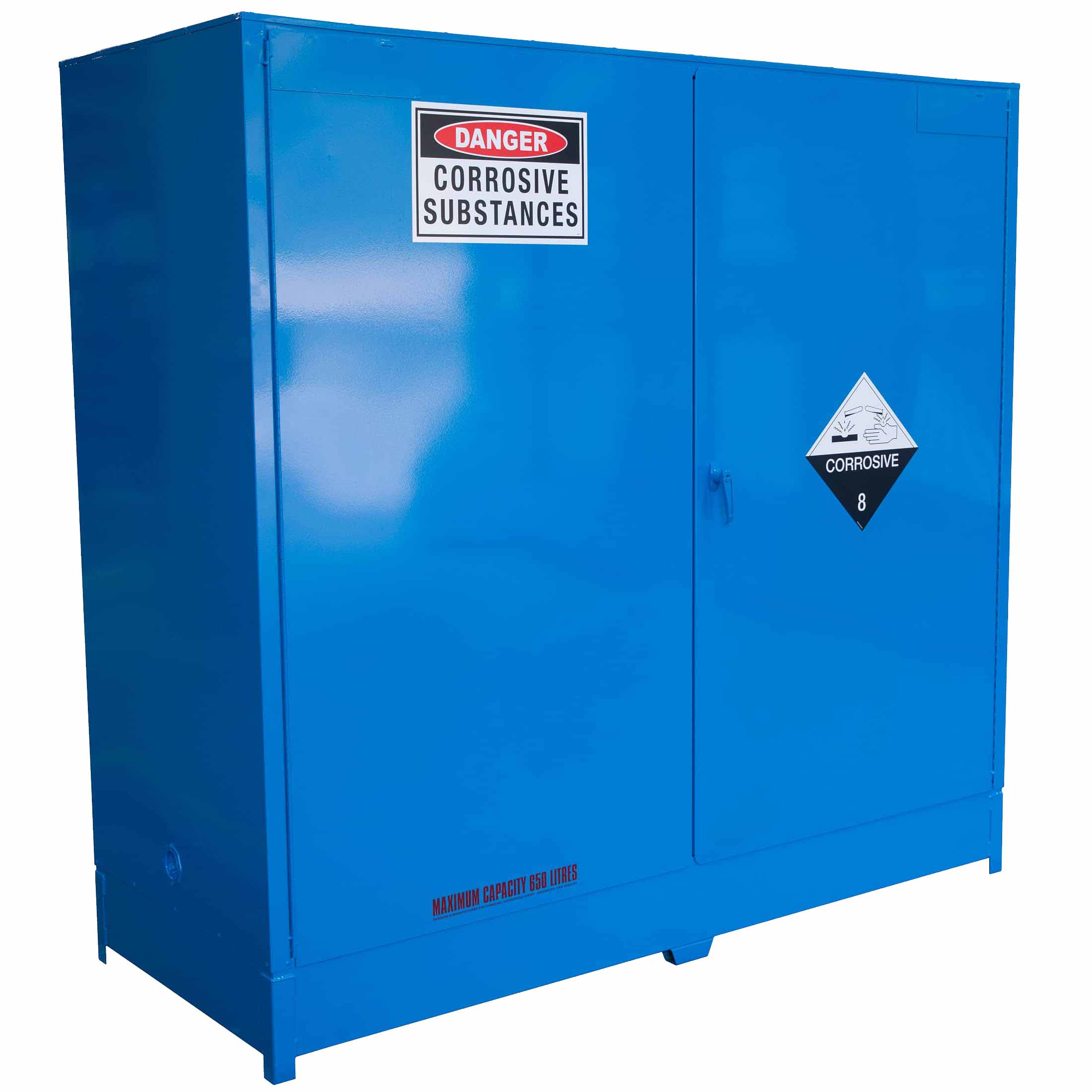

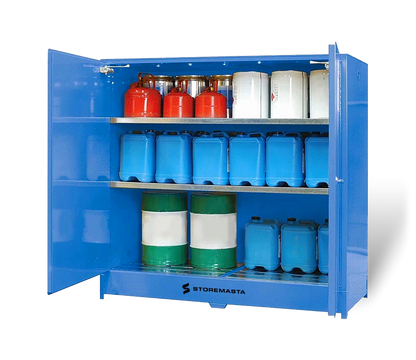

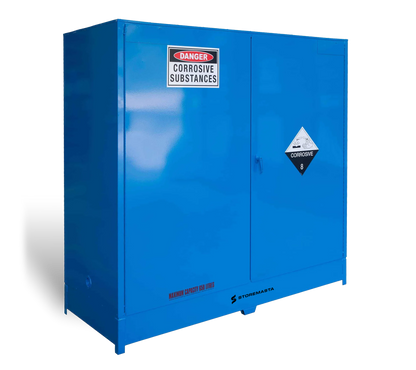

The PS6508SS is a heavy duty safety cabinet purpose-built for holding larger quantities of Class 8 corrosive substances (650 litre capacity). Safely isolate your corrosives from incompatible chemicals and Dangerous Goods in this hard-wearing chemical cabinet — 25% stronger than standard.

Features of the PS6508SS include: 205 litre spill containment sump, twin hydraulic-action doors which automatically close in sequence; lockable L-handle door fastener, vent openings and built-in flash arrestors that integrate with your mechanical ventilation system.

The PS6508SS is part of STOREMASTA’s robust SUPER SERIES, a range of chemical storage cabinets for larger quantities of corrosives and flammables. Order your Large Capacity Corrosive Substance Storage Cabinet from STOREMASTA today.

Features
  • Manufactured from 25% heavier materials than minimum requirement
  • Double walled sheet steel construction with a 40mm thermic air barrier
  • High capacity liquid tight sump to contain spills with a fixed suspended perforated floor - 150mm deep
  • The sump has the capacity to contain 25% of the aggregate capacity of the cabinet
  • Drain plug to spill containment sump for safe disposal of spills
  • Self-closing, close fitting doors held shut by catches at 2 points. The doors do not open inwards and are capable of being opened from within the cabinet
  • Unique spark-proof, self latching locking system with lockable handle
  • Vent openings with built-in flash arrestors [for mechanical ventilation systems]
  • Continuous stainless steel pin hinging for maximum strength and reliability
  • State of the art powder coat finish for high durability and performance
  • PVC spill trays on shelves for corrosion protection
  • Safety signs and directions that comply with AS 1216 and AS 1319
  • Designed and manufactured in full conformance to AS 3780:2008 - The storage and handling of corrosive substances
Dimensions (mm)
External H 1880 W 1986 D 804
Internal H 1608 W 1902 D 718
Storage Capacity
Max Capacity 650L
Winchester Size 0.5L 2.5L 5L
Capacity 1595***** 280**** 120****
Drum Size 4L 20L 60L
Capacity 150***** 36 8
Drum Size 205L
Capacity 3
****4 Storage levels *****5 storage levels
Calculations based on these package size
Dangerous Goods Compliance Specifications
Complies with AS3780 - 2008
Sump Capacity 205L
Other Specifications
Weight 295.0 kg
Shelf Levels 3
Storage Levels 3
