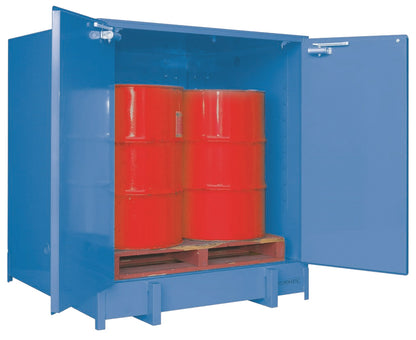

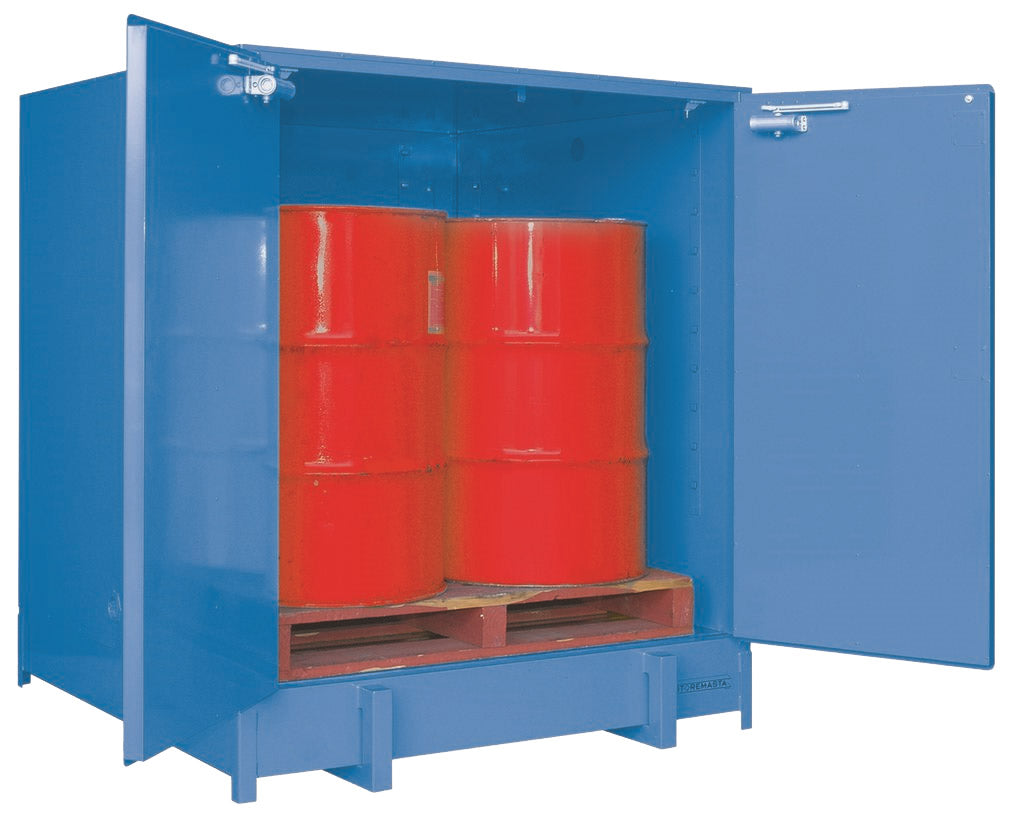

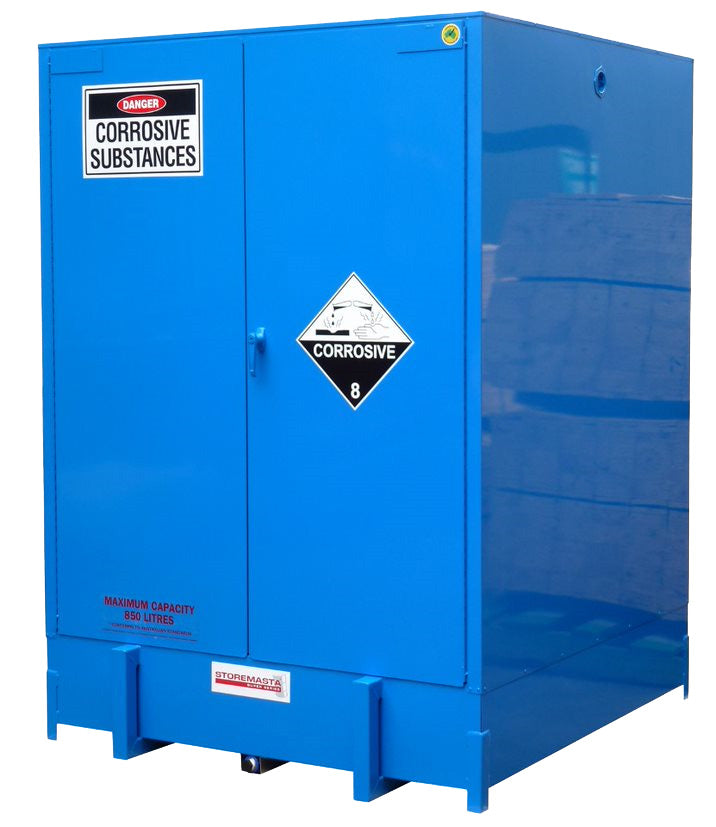

850L - Large Capacity Corrosive Substance Storage Cabinet - Pallet Store


Do you need a compliant chemical safety cabinet, purpose built for holding a pallet of Class 8 corrosive chemical drums? The PS10008SS is a heavy duty safety cabinet (25% stronger than standard corrosive cabinets) and can safely hold up to 850 litres.

Features of the PS10008SS include: 255 litre spill containment sump (with drain plug), twin hydraulic-action doors that close automatically without generating sparks; compliant warning placards; and a hight-tech 2-PACK corrosion-free finish.

The PS10008SS is part of the range of large volume safety cabinets for corrosives and flammables. 100% designed and manufactured in Australia by Storemasta, order your Large Capacity Corrosive Substance Storage Cabinet today.


  • Manufactured from 25% heavier materials than minimum requirement
  • Double walled sheet steel construction with a 40mm thermic air barrier
  • High capacity liquid tight sump to contain spills with a fixed suspended perforated floor - 150mm deep
  • The sump has the capacity to contain 25% of the aggregate capacity of the cabinet
  • Self-closing, close fitting doors held shut by catches at 2 points. The doors do not open inwards and are capable of being opened from within the cabinet
  • Unique spark-proof, self latching locking system with lockable handle
  • Vent openings with built-in flash arrestors [for mechanical ventilation systems]
  • Continuous stainless steel pin hinging for maximum strength and reliability
  • State of the art powder coat finish for high durability and performance
  • PVC spill trays on shelves for corrosion protection
  • Safety signs and directions that comply with AS 1216 and AS 1319
  • Designed and manufactured in full conformance to AS 3780:2023 - The storage and handling of corrosive substances

Dimensions (mm)

ExternalH 1610W 1384D 1386
InternalH 1330W 1300D 1300

Storage Capacity

Max Capacity 850L
Pallets 1
Winchester Size0.5L2.5L 5L
Drum Size4L20L60L205L
Capacity196**** 48***184
***3 Storage levels ****4 storage levels
Calculations based on these package size

Dangerous Goods Compliance Specifications

Complies with AS3780 - 2023
Sump Capacity 254L

Other Specifications

Weight 255.0 kg
Shelf Levels 2
Storage Levels 2
Shelf Thickness (mm) 28
Shelf spacing (mm) 100
No. of Shelf Lugs 13
