Outdoor Corrosive Substance Store - 850L

PR850-8
Description

The PR850-8 is a hard-wearing Outdoor Chemical Store designed to hold up to 850 litres of Class 8 Corrosive Substances. This Miniseries store is purpose-built to withstand a harsh outdoor environment and features a cambered roof for maximum rainwater run-off, cyclone proof construction, and ISO locking bars for maximum protection.

Safety features of the 850L - Small Outdoor Corrosive Substance Store include fully adjustable shelves that are perforated to maximise air flow, a 238 litre capacity spill containment sump (liquid tight), and ventilators.

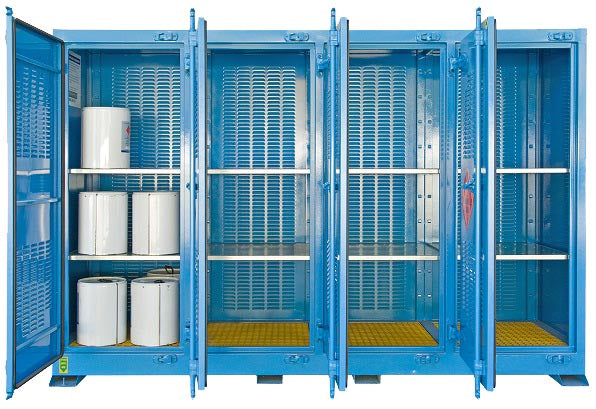

This Australian made 850L - Small Outdoor Corrosive Substance Store is built with 4 x heavy-duty doors that fold back 270° for ease of operation. It also comes complete with all relevant dangerous goods and hazard signage.

Reduce your DG risk today with this Miniseries storage solution.

Features

  • Doors with 270° hinging to provide easy access
  • ISO locking bars for high security
  • Natural ventilation that complies with AS 3780:2008
  • Forklift channels for easy relocation
  • Heavy duty adjustable perforated shelving
  • Cambered roof for rainwater run off
  • Earthing stake and mounting
  • PVC spill trays on shelves for corrosion protection
  • Appropriate safety signage that complies with AS 1216 and AS 1319
  • Designed and manufactured in full conformance to AS 3780:2023 - The storage and handling of corrosive substances

Dimensions (mm)

ExternalH 1995W 2990D 900
InternalH 1690W 2825D 755

Storage Capacity

Max Capacity 850L
Drum Size0.5L 2.5L 5L 4L
Capacity2000*****500*****108180*****
Drum Size20L 60L 205L
Capacity4884
*****5 Storage levels
Calculations based on these package size

Dangerous Goods Compliance Specifications

Complies with AS3780 - 2023
Sump Capacity 340.8L

Other Specifications

Weight 513.8 kg
Shelf Levels 2
Storage Levels 3
Shelf Thickness (mm) 28
Shelf spacing (mm) 165
No. of Shelf Lugs 10
