Gas Bottle Storage - Premium Range G10
GSC10PRE-ORDER NOW

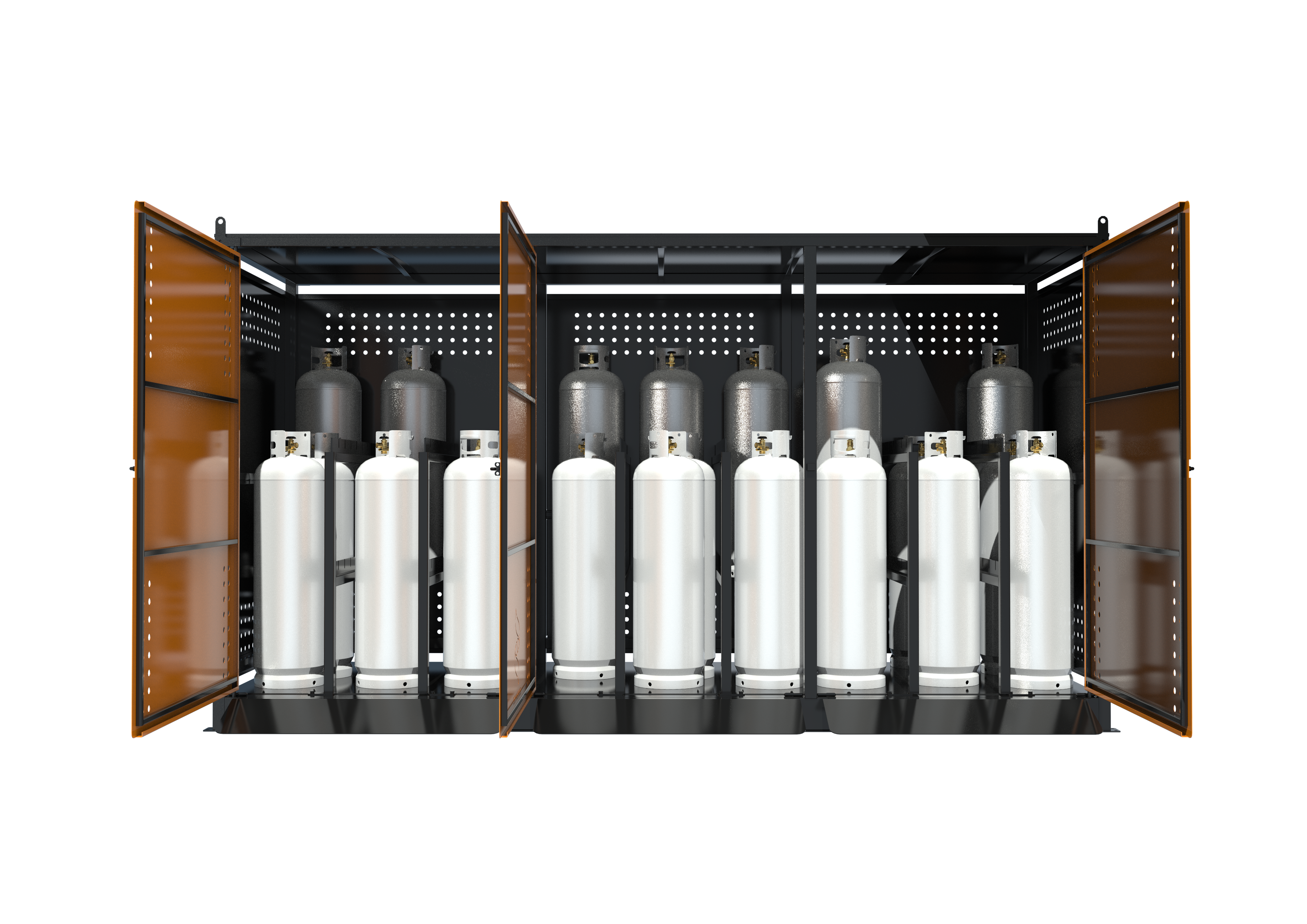

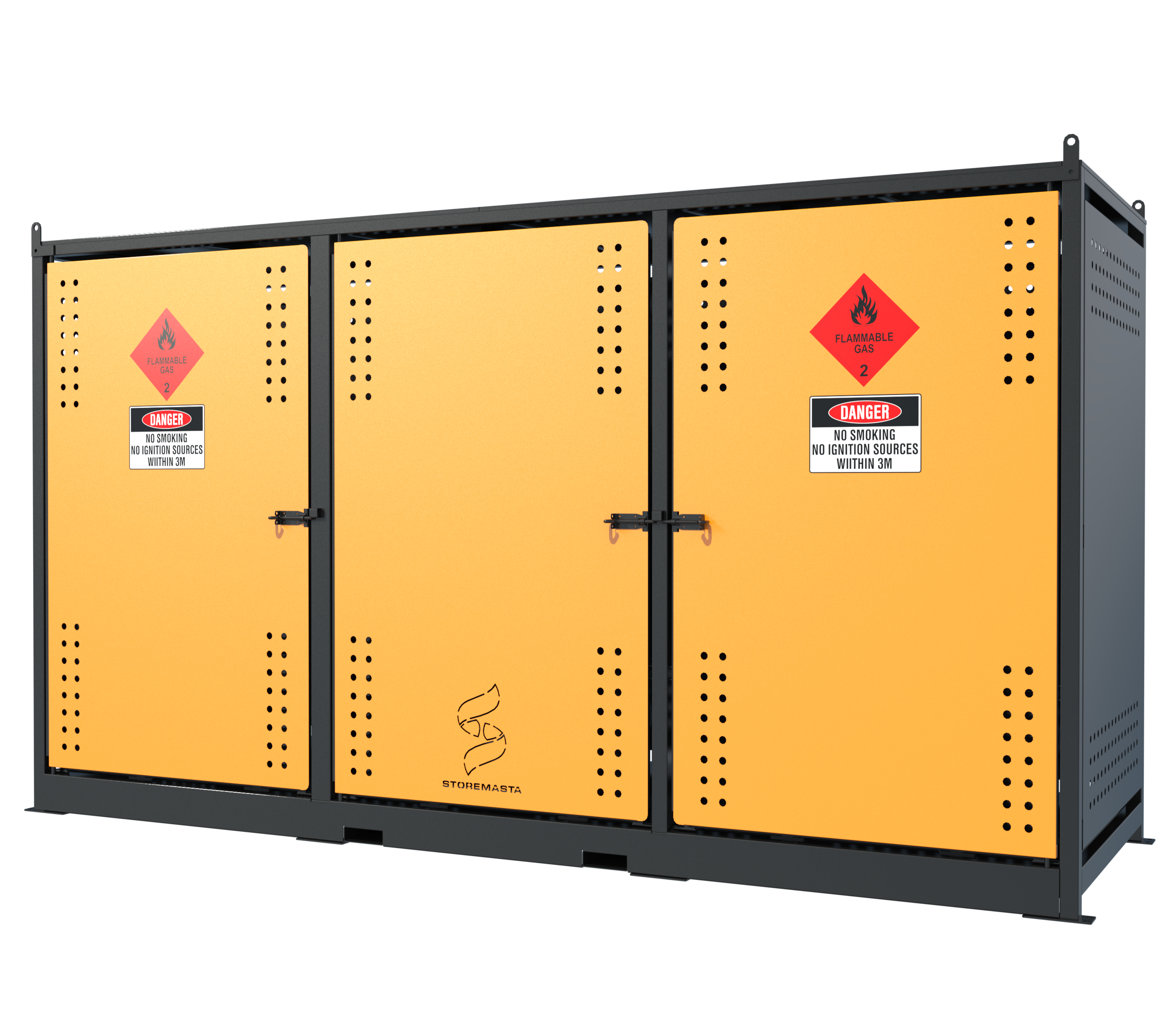

With advanced gas storage to suit the unique needs of your workplace, the Gas Bottle Storage - Premium Range offers quality, compliance, choice and flexibility. Compliant with Australian Standards, the extra large G10 solution provides a range of storage options, with a huge capacity of up to 206 industrial cylinders, 36 LPG or 79 acetylene cylinders.

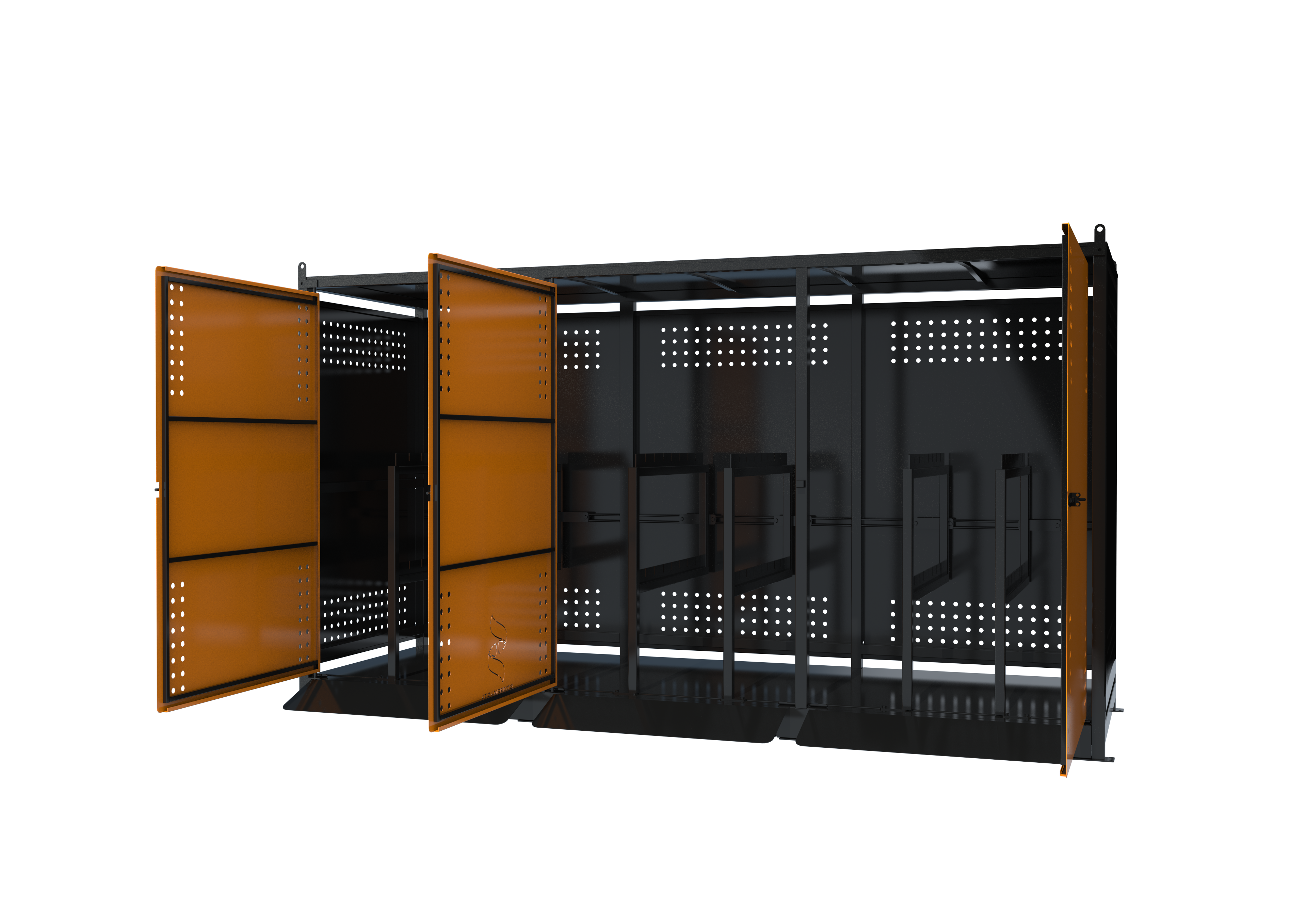

Simply adjust the restraint bars and chains to suit your bottles or cylinders. For easy access, the Storemasta Premium Range G10 also features a fold down ramp so staff can wheel gas bottle trolleys up to the Gas Premium Range store.
Proudly designed and made in Australia by Storemasta, the Premium Range is the most advanced gas store on the market.
Features
PRE-ORDER NOW
- Heavy duty construction and surface protection for outdoor use
- Adjustable restraint bars to suit all cylinder sizes
- Crane lifting points - empty lift only
- Chain restraints to allow each gas cylinder to be individually restrained
- State of the art powder coat finish for high durability and performance
- Bolt down plates for added security and stability
- Concealed heavy duty hinge pins
- Projectile proof construction
- Fold down ramp allowing easy loading and unloading of gas cylinders
- Natural ventilation that complies with AS 4332
- Appropriate warning and safety signage that complies with AS 1216 and AS 1319
- Designed and manufactured in full conformance to AS 4332
Dimensions (mm)
| External | H 2068 | W 3670 | D 1195 |
| Internal | H 1855 | W 3600 | D 1100 |
Storage Capacity
| Industrial Cylinder | C size | D size | E size - F size | G/K size |
| Capacity | 206 | 89 | 59 - 59 | 51 |
| LPG Cylinder | N size | P size | T size - R size - S size | 90kg |
| Capacity | 36 | 30 | 18 - 18 - 18 | 12 |
| Acelylene Cylinder | D size - E size - G size |
| Capacity | 79 - 59 - 33 |
Dangerous Goods Compliance Specifications
| Complies with | AS 4332:2004 |
Other Specifications
| Full Weight | 715 Kg |
| Storage Levels | 1 |
