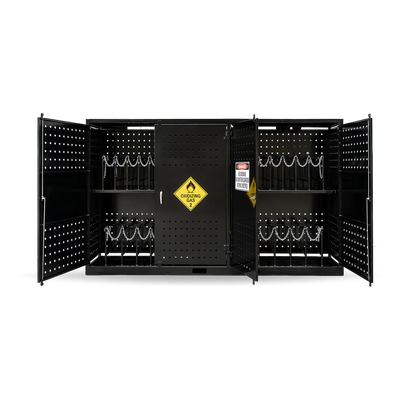

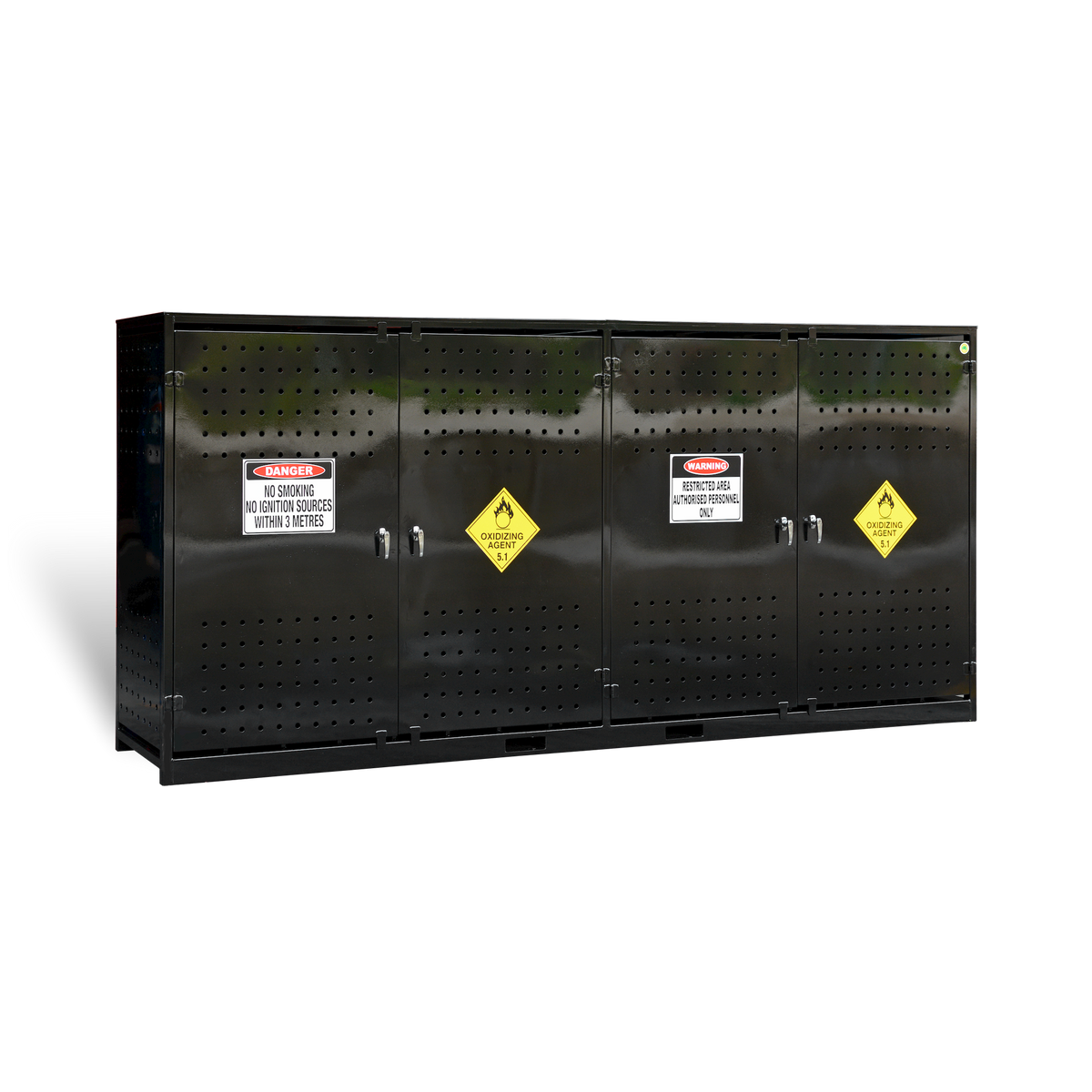

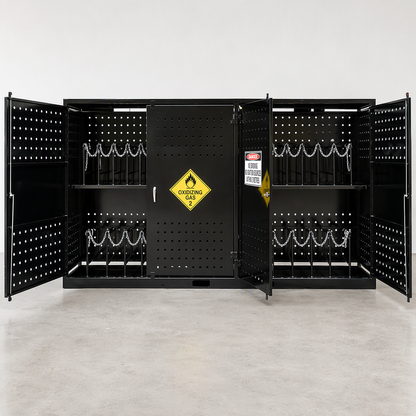

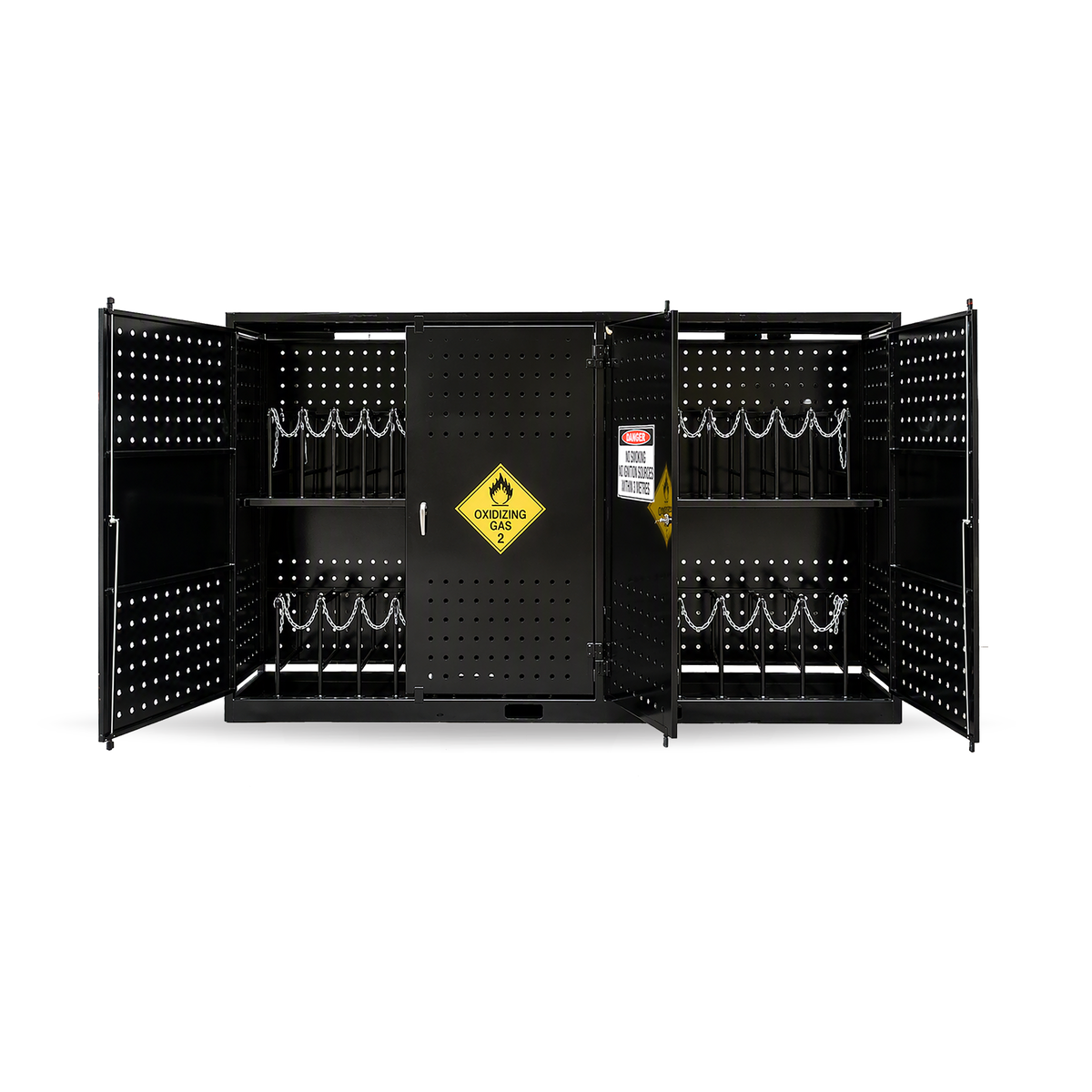

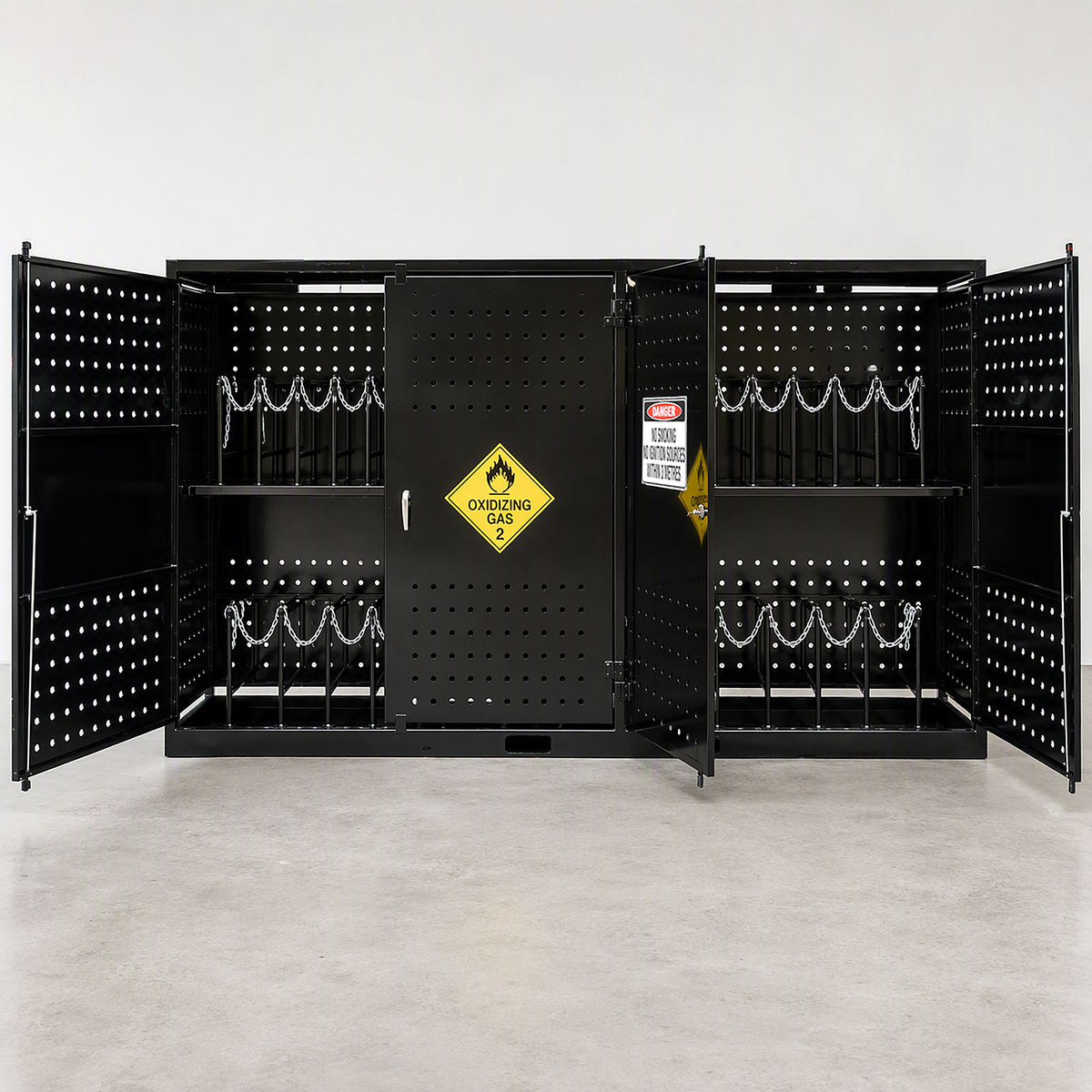

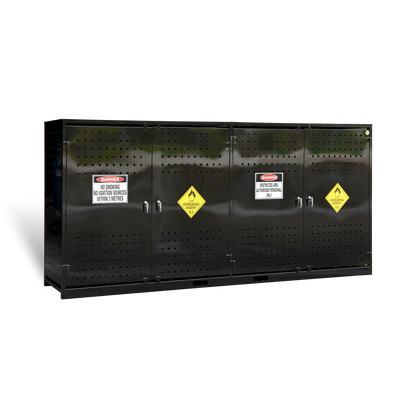

Medical Gas Cylinder Storage - Large


Storemasta Medical Gas Cylinder Store is a perfect solution to store C size, CD Size, and ND size medical gas cylinders. The Medical Gas Cylinder Storage is durable and compliant with the stringent dangerous goods storage regulations.

Designed and made in Australia, the Medical Gas Cylinder Storage - Large is suitable for hospitals, medical practices and other healthcare applications.


  • Chain restraints to allow each gas cylinder to be individually restrained
  • Heavy duty construction and surface protection for outdoor use
  • Natural ventilation that complies with AS 4332:2004

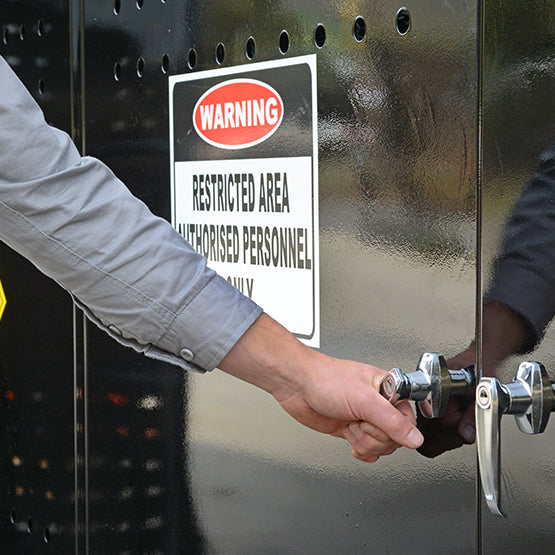

  • Key lockable L handle for added security
  • Forklift Channels for easy relocation
  • Appropriate warning and safety signage that complies with AS 1216 and AS 1319
  • Suitable for the storage of Class 2.1, 2.2 and 2.3 dangerous gases
  • Designed and manufactured in full conformance to AS 4332:2004 - The storage and handling of gases in cylinders

Dimensions (mm)

ExternalH 1840W 4040D 650

810 (upper)

900 ( Lower)


160 x 22 (upper)

227 x 16( Lower)


610 (upper)

610 ( Lower)

Storage Capacity

Calculations based on these package size

Dangerous Goods Compliance Specifications

Complies with AS 4332:2004

Top Storage Maximum Capacity

C-Size Cylinders 88
D-Size Cylinders 88

Bottom Storage Maximum Capacity

E -Size Cylinders 48

Other Specifications

Weight 900.0 kg
