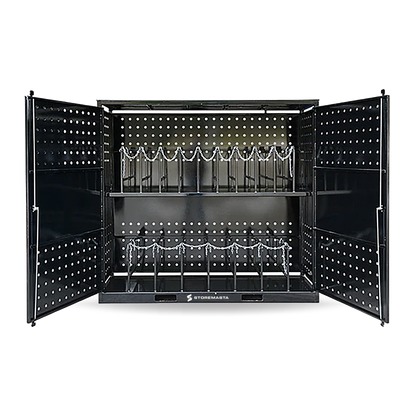

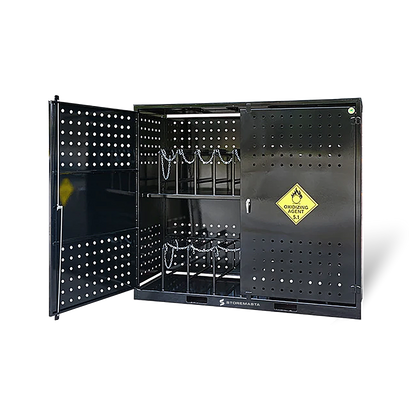

Medical Gas Cylinder Storage - Medium
500142
Description
Storemasta's Medical Gas Cylinder Storage is a perfect solution to store C size, CD Size, and ND size medical gas cylinders. The Medical Gas Cylinder Storage - Medium is durable, efficient and compliant with Australian Standards, suitable for a range of applications including hospitals, surgeries and healthcare facilities.
Features
- Chain restraints to allow each gas cylinder to be individually restrained
- Heavy duty construction and surface protection for outdoor use
- Natural ventilation that complies with AS 4332:2004

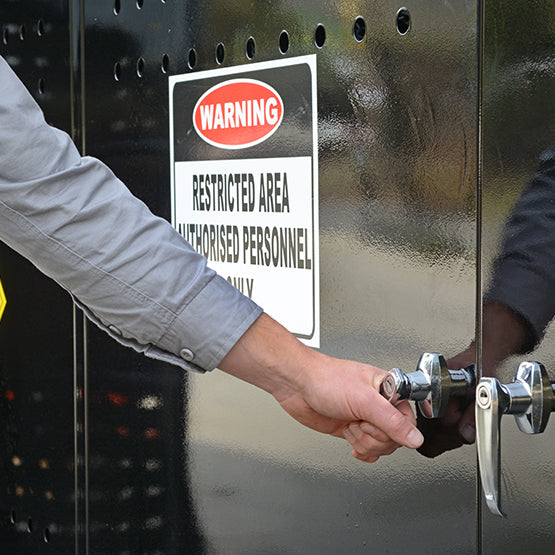

- Key lockable L handle for added security
- Forklift Channels for easy relocation
- Appropriate warning and safety signage that complies with AS 1216 and AS 1319
- Suitable for the storage of Class 2.1, 2.2 and 2.3 dangerous gases
- Designed and manufactured in full conformance to AS 4332:2004 - The storage and handling of gases in cylinders
Dimensions (mm)
Dimensions (mm)
| External | H 1840 | W 2040 | D 650 | Internal | H 810 (upper) 900 ( Lower) | W 160 x 11(upper) 227 x 8( Lower) | D 610 (upper) 610 ( Lower) |
Storage Capacity
Storage Capacity
Calculations based on these package size
Dangerous Goods Compliance Specifications
Dangerous Goods Compliance Specifications
| Complies with | AS 4332:2004 |
Top Storage Maximum Capacity
Top Storage Maximum Capacity
| C-Size Cylinders | 44 |
| D-Size Cylinders | 44 |
Bottom Storage Maximum Capacity
Bottom Storage Maximum Capacity
| E -Size Cylinders | 24 |
Other Specifications
Other Specifications
| Weight | 440.0 kg |
