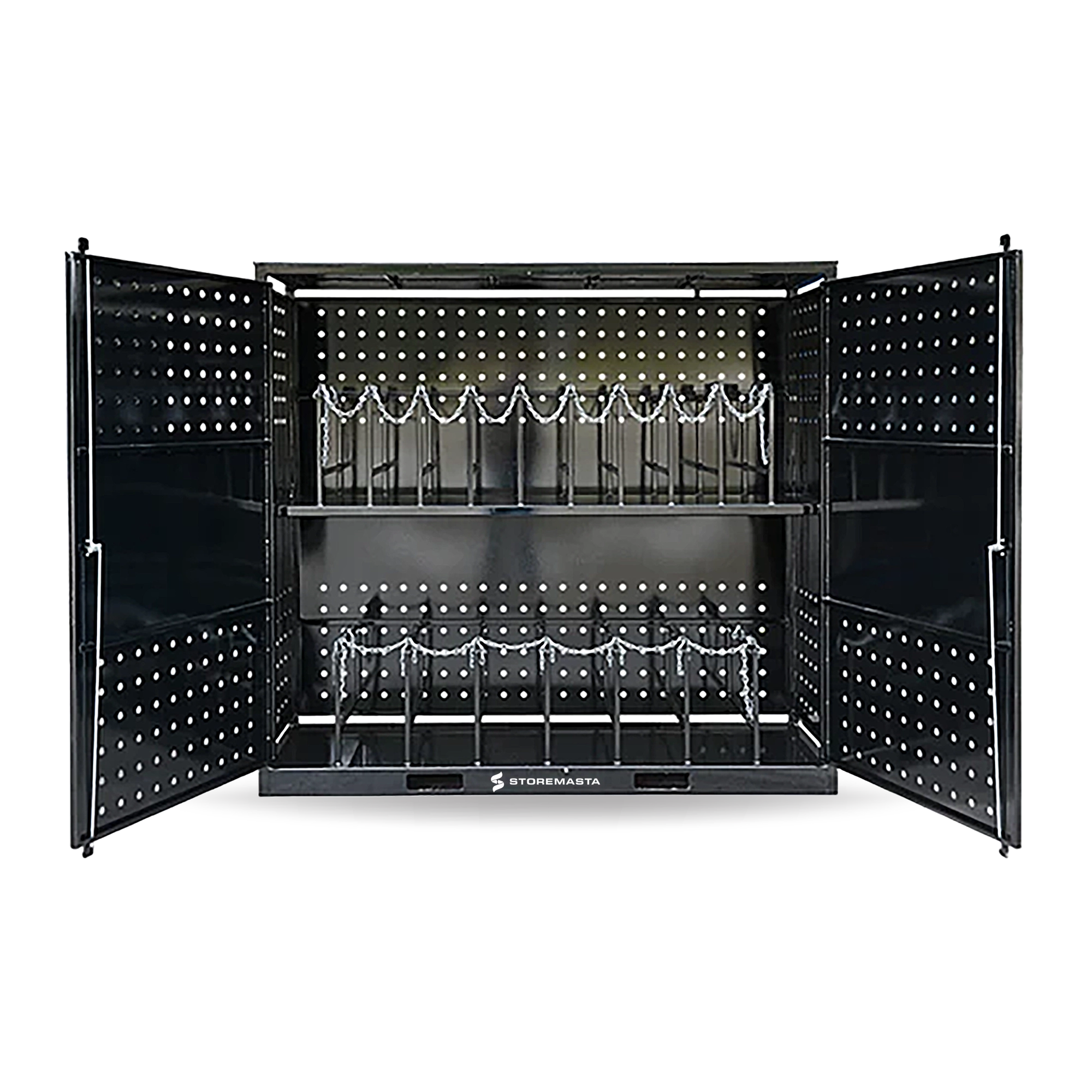

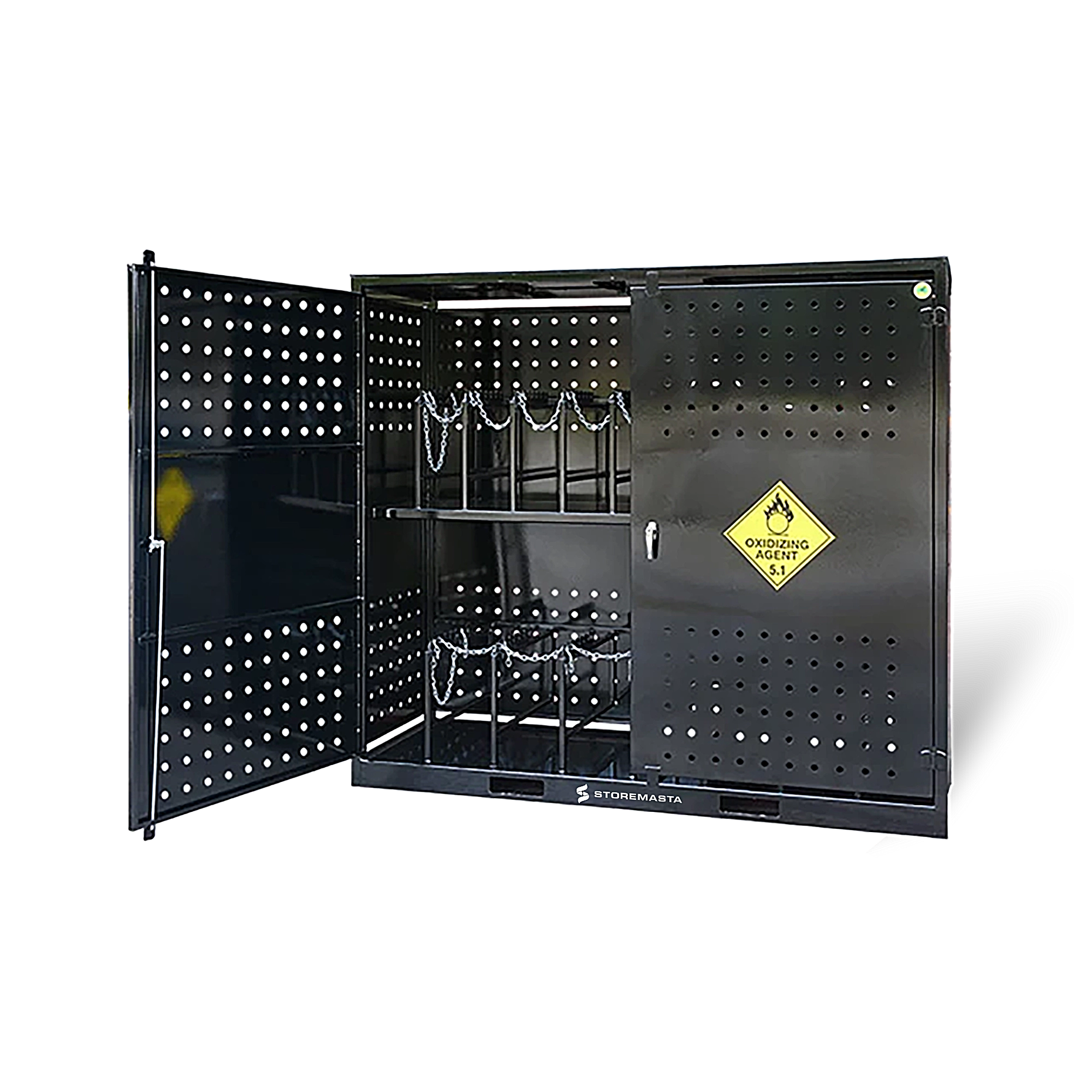

Gas Bottle Storage - Premium Range G9
GSC9
Description
Choose the most advanced gas storage on the market with our Premium Range. This extra large G9 models provides incredible versatility with the option to store up to 94 industrial cylinders, 18 LPG or 35 acetylene cylinders, with fixed restraint bars and fully adjustable restraint chains. The sturdy fold down ramp allows for the fast and safe loading and unloading of gas cylinders by trolley, minimising handling incidents and increasing efficiency.
This Australian designed and made gas store will ensure greater choice and flexibility for your operations. Please note that the rules of Class 2 segregation still apply.
Features
- Heavy duty construction and surface protection for outdoor use
- Crane lifting point - empty lift only
- Chain restraints to allow each gas cylinder to be individually restrained
- Adjustable restraint bars to suit all cylinder sizes
- State of the art powder coat finish for high durability and performance

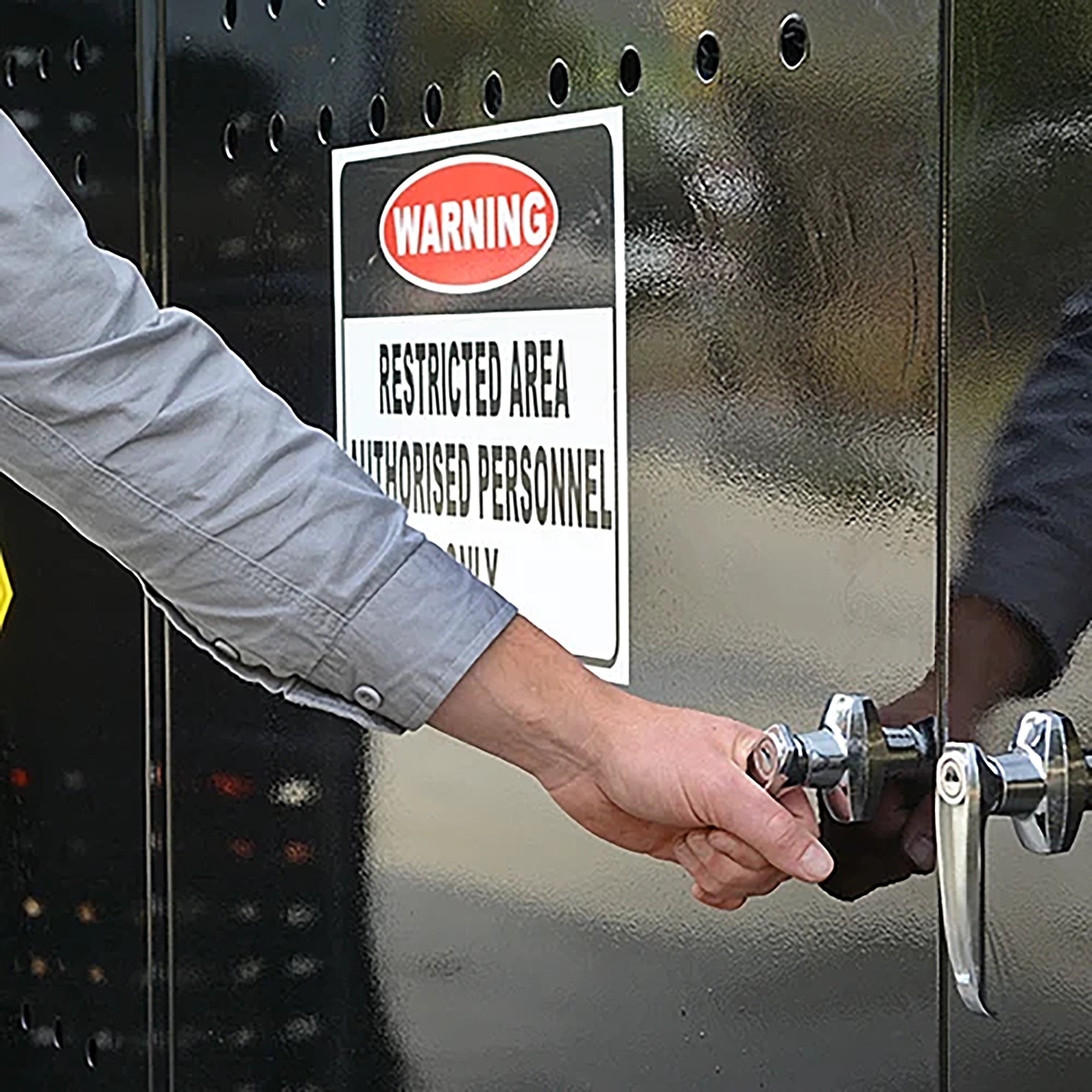

- Padlockable door for high security
- Concealed heavy duty hinge pins
- Bolt down plates for added security and stability
- Projectile proof construction
- Fold down ramp allowing easy loading and unloading of gas cylinders
- Natural ventilation that complies with AS 4332
- Appropriate warning and safety signage that complies with AS 1216 and AS 1319
- Designed and manufactured in full conformance to AS 4332
Dimensions (mm)
Dimensions (mm)
| External | H 2045 | W 1755 | D 1165 |
| Internal | H 1890 | W 1730 | D 1050 |
Storage Capacity
Storage Capacity
| Industrial Cylinder | C size | D size | E size - F size | G/K size |
| Capacity | 94 | 40 | 27 - 27 | 23 |
| LPG Cylinder | N size | P size | T size - R size - S size | 90kg |
| Capacity | 18 | 15 | 8 - 8 - 8 | 6 |
| Acelylene Cylinder | D size - E size - G size |
| Capacity | 35 - 27 - 15 |
Calculations based on these package size
Dangerous Goods Compliance Specifications
Dangerous Goods Compliance Specifications
| Complies with | AS 4332:2004 |
Other Specifications
Other Specifications
| Full Weight | 370 Kg |
| Storage Levels | 1 |
