Gas Bottle Storage - Premium Range G6
GSC6
Description

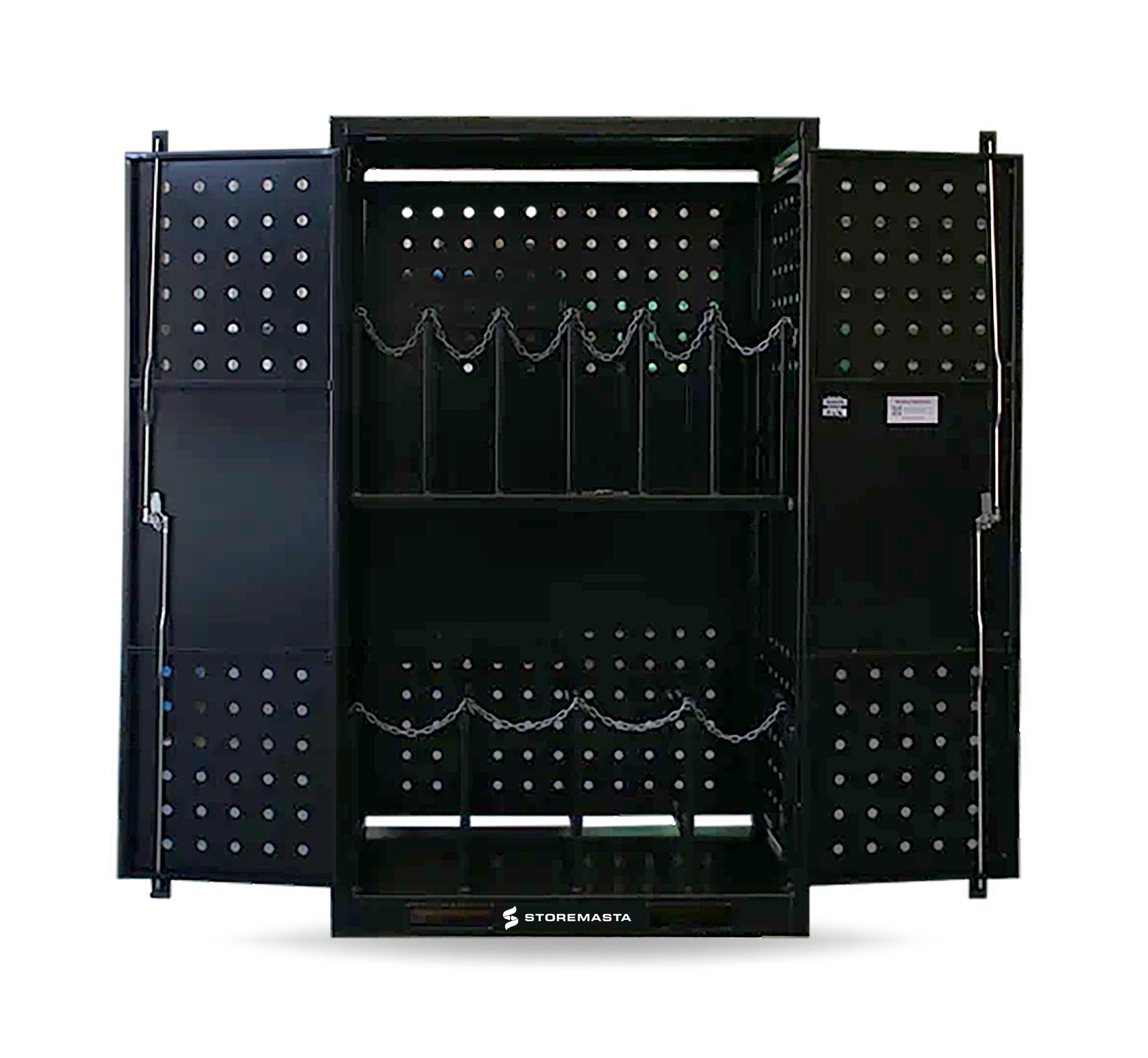

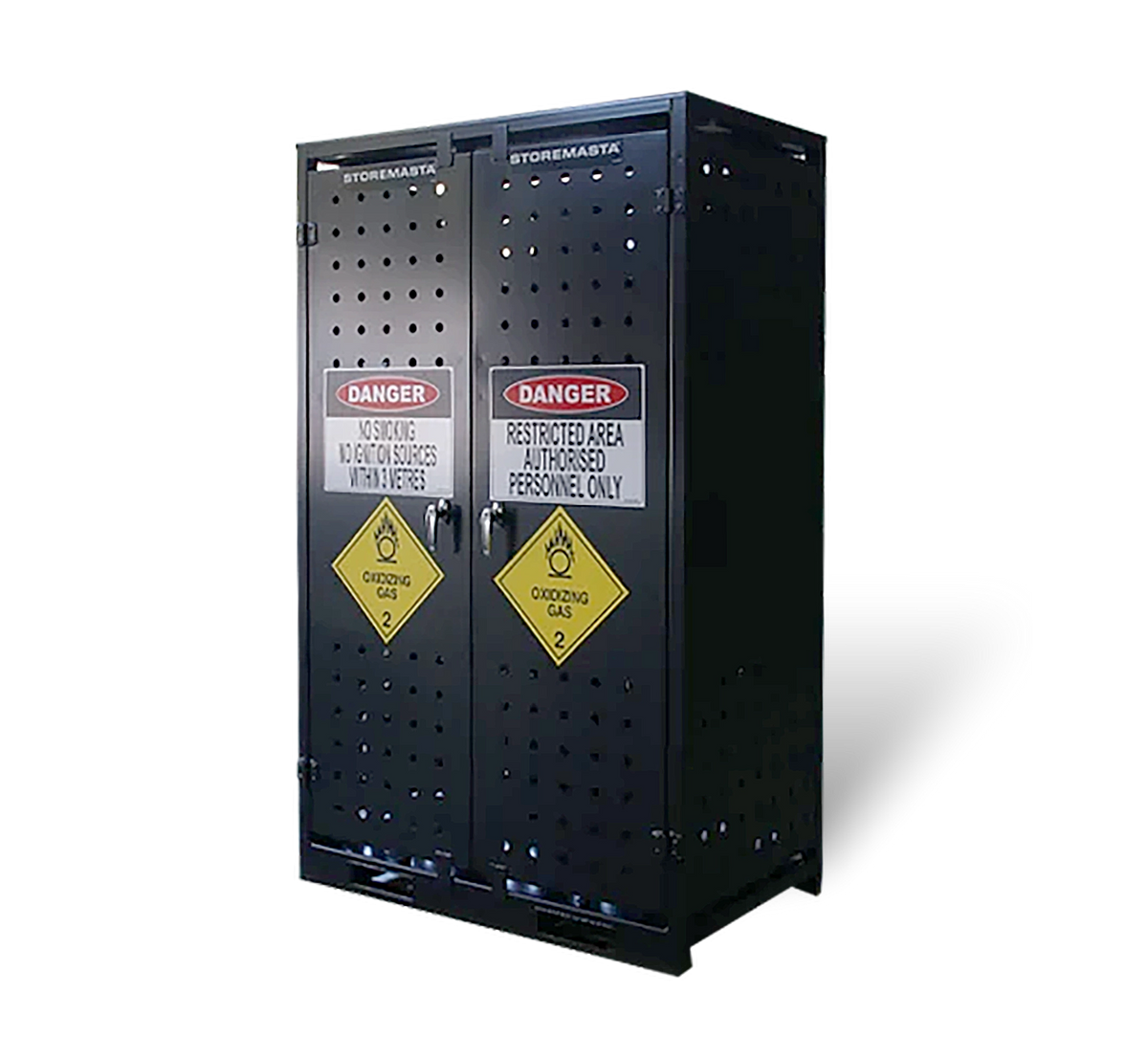

One gas store, endless options. When you’re looking for Class 2 storage, the Gas Bottle Storage – Premium Range provides choice, flexibility, quality and compliance.
Made to store up to 330 aerosols, 54 industrial cylinders, 12 LPG or 24 acetylene cylinders, the G6 premium gas store is adjustable so you can store cans, bottles or cylinders.
Features
- Heavy duty construction and surface protection for outdoor use
- State of the art powder coat finish for high durability and performance

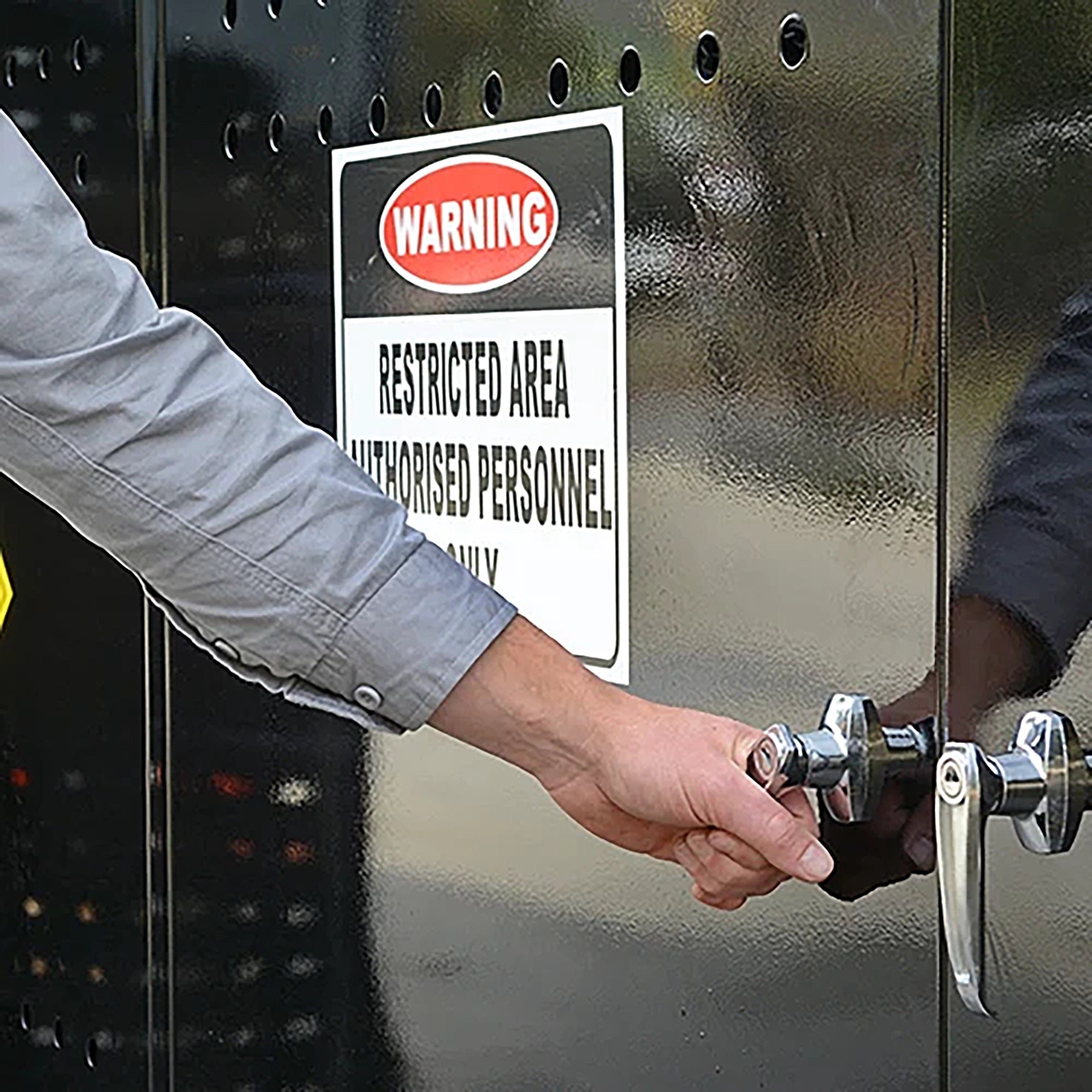

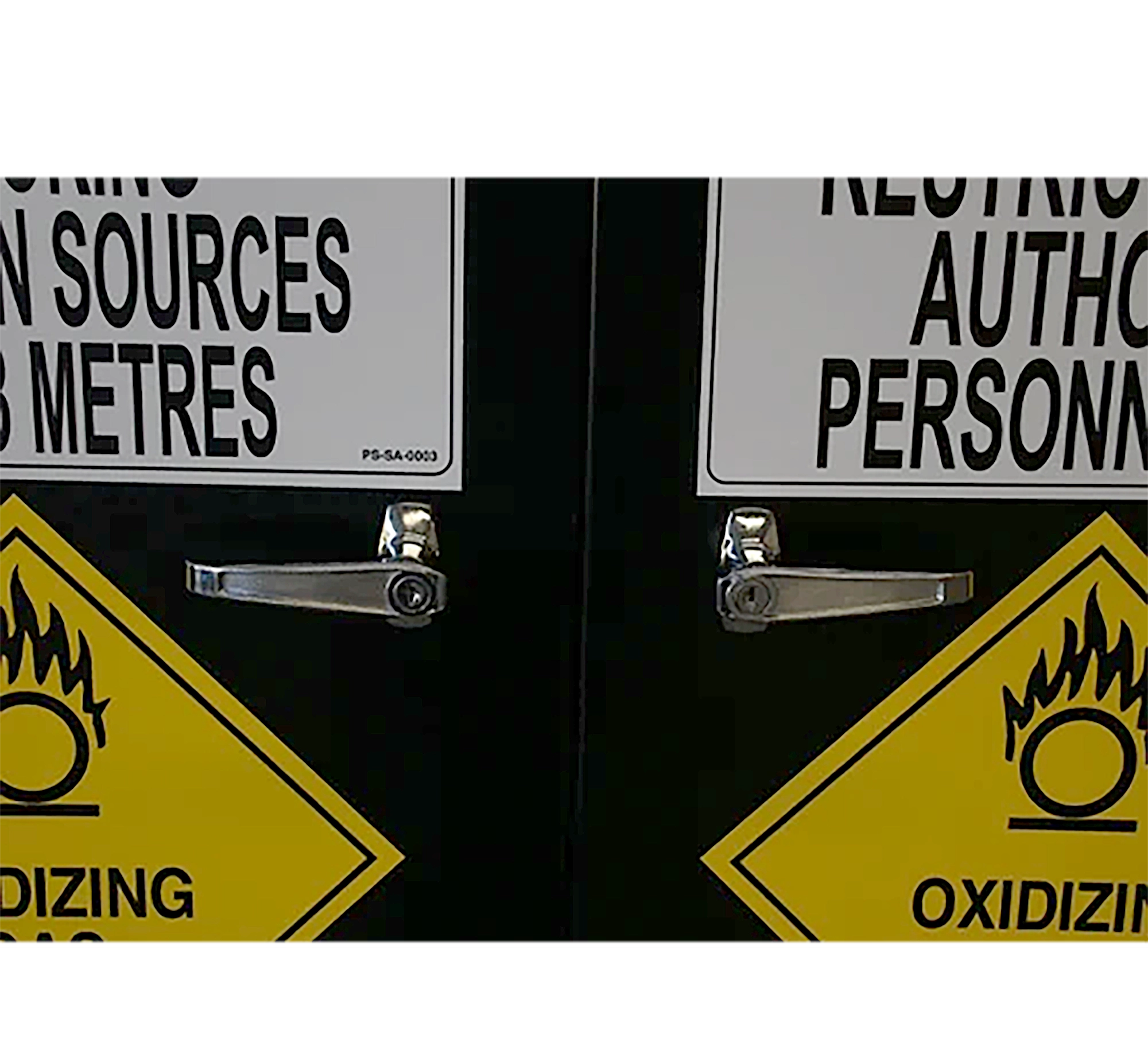

- Padlockable door for high security
- Concealed heavy duty hinge pins
- Bolt down plates for added security and stability
- Projectile proof construction
- Fold down ramp allowing easy loading and unloading of gas cylinders
- Natural ventilation that complies with AS 4332
- Appropriate warning and safety signage that complies with AS 1216 and AS 1319
- Designed and manufactured in full conformance to AS 4332
Dimensions (mm)
Dimensions (mm)
External | H 1800 | W 808 | D 425 |
Internal | H 1700 | W 800 | D 380 |
Storage Capacity
Storage Capacity
Aerosol Can | 330 (6) *number in brackets equals storage levels required |
Industrial Cylinder | C size | D size | E size | F size - G/K size |
Capacity | 54 (3) | 16 (2) | 6 (1) | 3 (1) - 3 (1) |
LPG Cylinder | N size | P size (9kg) | T size - R size - S size | 90kg |
Capacity | 12 (4) | 6 (3) | 4 (2) - 4 (2) - 2 (1) | 0 |
Acelylene Cylinder | D size - E size - G size |
Capacity | 24 (3) - 6 (1) - 3 (1) |
Calculations based on these package size
Other Specifications
Other Specifications
Full Weight | 110 Kg |
Storage Levels | 5 |
