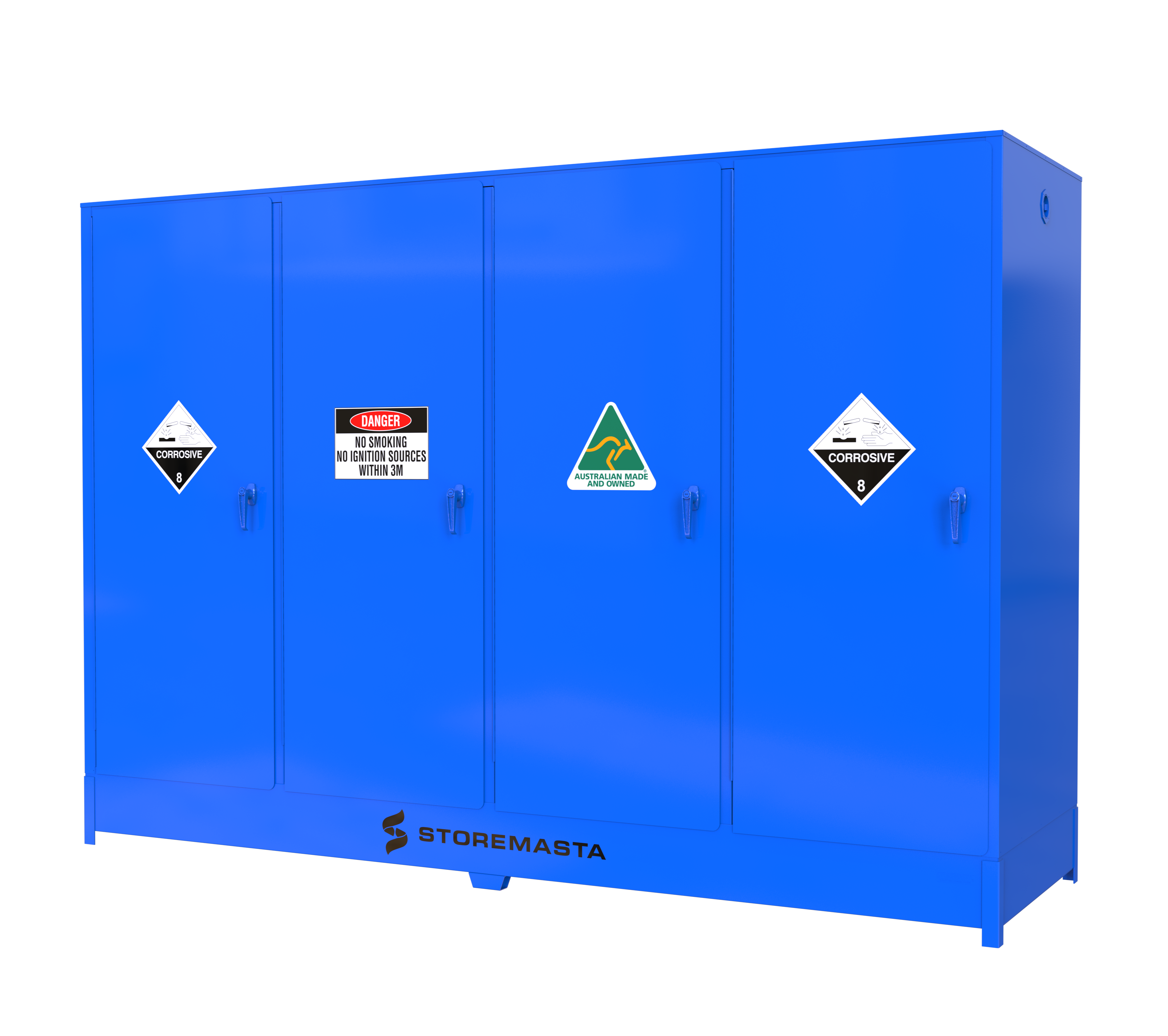

850L - Large Capacity Corrosive Substance Storage Cabinet
PS8508SSDo you need a compliant chemical safety cabinet, purpose built for larger volumes of Class 8 Corrosive Substances? The PS8508SS is a heavy duty Corrosive Substance Safety Cabinet, designed to store up to 850L of Class 8 Corrosive chemicals.
Storemasta's large capacity Chemical Cabinets are 25% stronger than standard models, providing excellent isolation and storage for your corrosive substances.

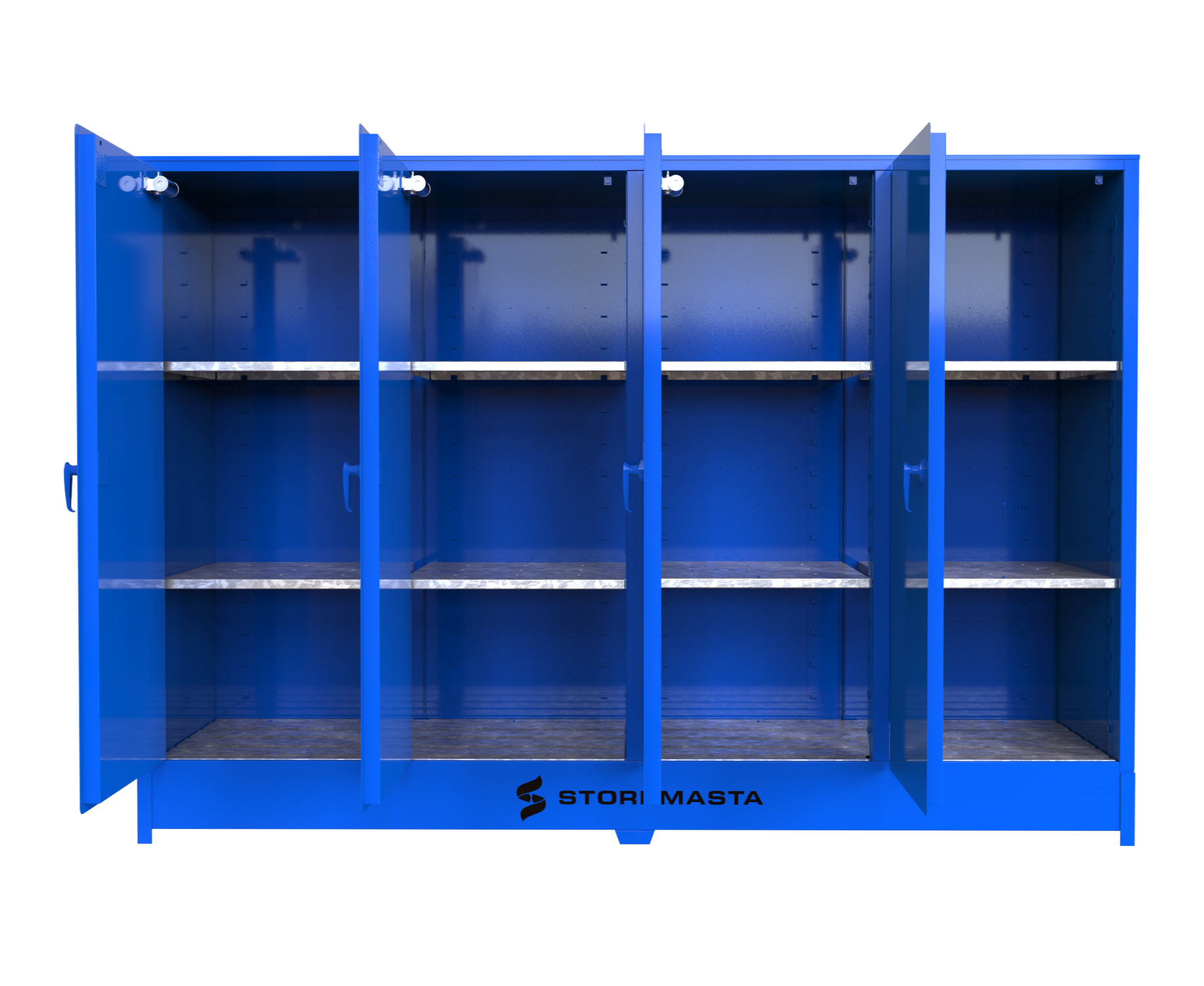

This Corrosive Substance Storage Cabinet features 270 litre spill containment sump with drain plug, twin hydraulic-action doors which close in sequence, 6 adjustable layers of shelving, vent openings and flash arrestors that fit your mechanical ventilation system.
Order your Large Capacity Corrosive Substance Storage Cabinet from Storemasta today.
Features
- Manufactured from 25% heavier materials than minimum requirement
- Double walled sheet steel construction with a 40mm thermic air barrier
- High capacity liquid tight sump to contain spills with a fixed suspended perforated floor - 150mm deep
- The sump has the capacity to contain 25% of the aggregate capacity of the cabinet
- Self-closing, close fitting doors held shut by catches at 2 points. The doors do not open inwards and are capable of being opened from within the cabinet
- Unique spark-proof, self latching locking system with lockable handle
- Vent openings with built-in flash arrestors [for mechanical ventilation systems]
- Continuous stainless steel pin hinging for maximum strength and reliability
- State of the art powder coat finish for high durability and performance
- PVC spill trays on shelves for corrosion protection
- Safety signs and directions that comply with AS 1216 and AS 1319
- Designed and manufactured in full conformance to AS 3780:2023 - The storage and handling of corrosive substances
Dimensions (mm)
| External | H 1880 | W 2588 | D 804 |
| Internal | H 1608 | W 2500 | D 718 |
Storage Capacity
| Max Capacity | 850L |
| Winchester Size | 0.5L | 2.5L | 5L |
| Capacity | 1980**** | 360**** | 144**** |

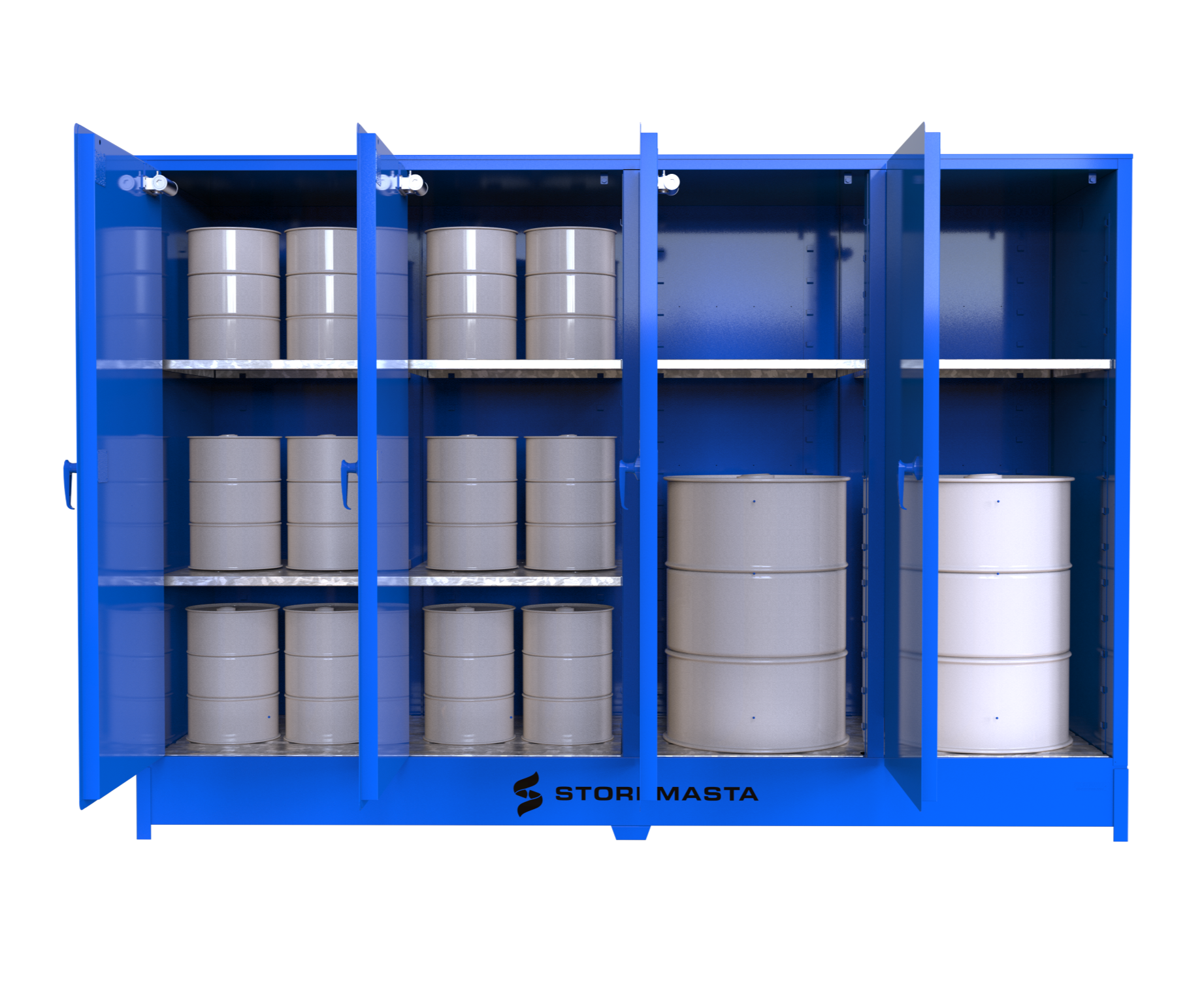

| Drum Size | 4L | 20L | 60L | 205L |
| Capacity | 180***** | 48 | 12 | 4 |
Dangerous Goods Compliance Specifications
| Complies with | AS3780 - 2023 |
| Sump Capacity | 269L |
Other Specifications
| Weight | 375.0 kg |
| Shelf Levels | 6 |
| Storage Levels | 3 |
| Shelf Thickness (mm) | 28 |
| Shelf spacing (mm) | 100 |
| No. of Shelf Lugs | 16 |
