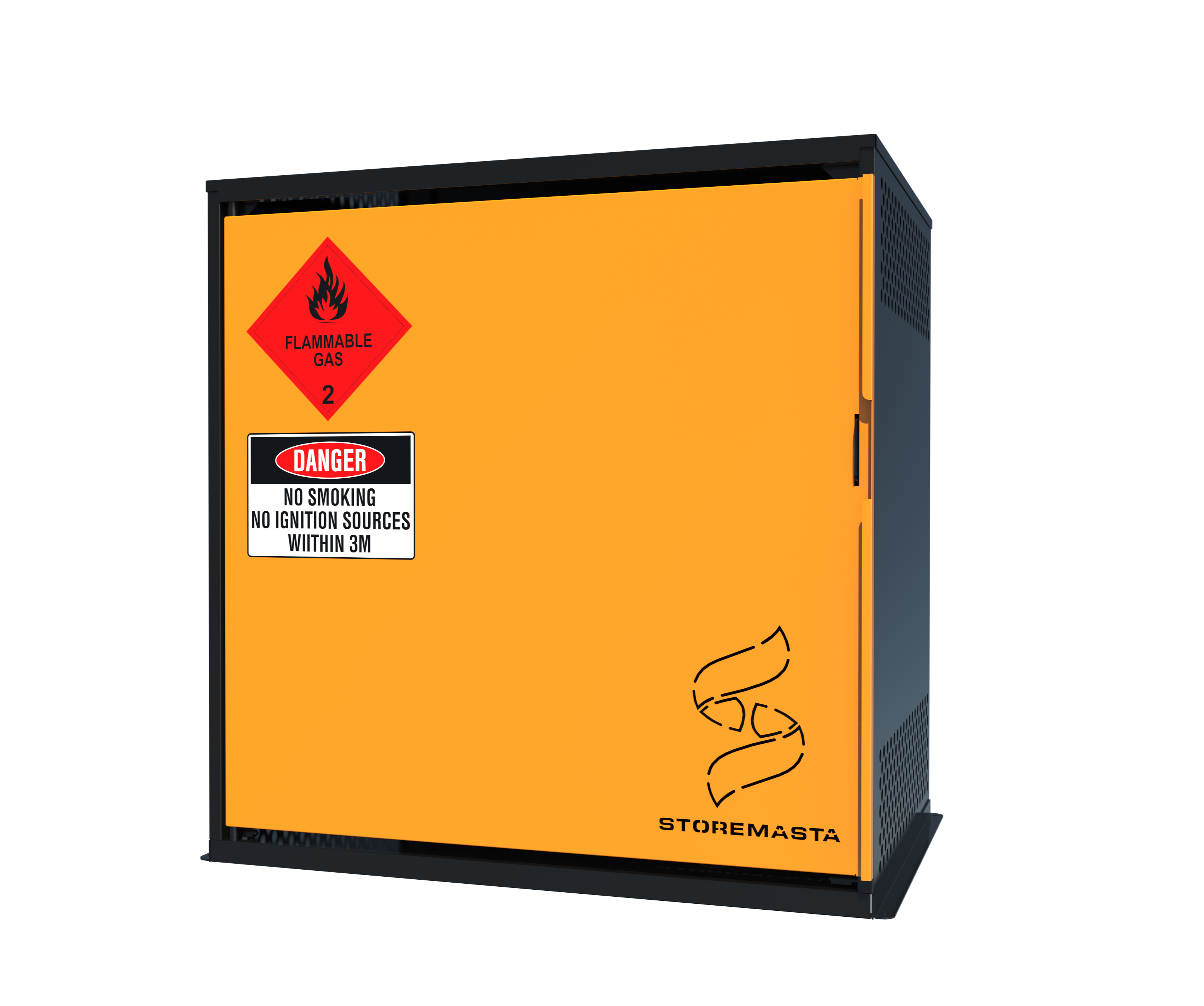

Gas Bottle Storage - Premium Range G5

GSC5

Description

If you want a larger gas storage option, the G5 in our Premium Range offers optimum flexibility, convenience and efficiency. The Gas Bottle Storage – Premium Range provides the option for workplaces to store either aerosol cans, LPG bottles or gas cylinders in this advanced storage system.

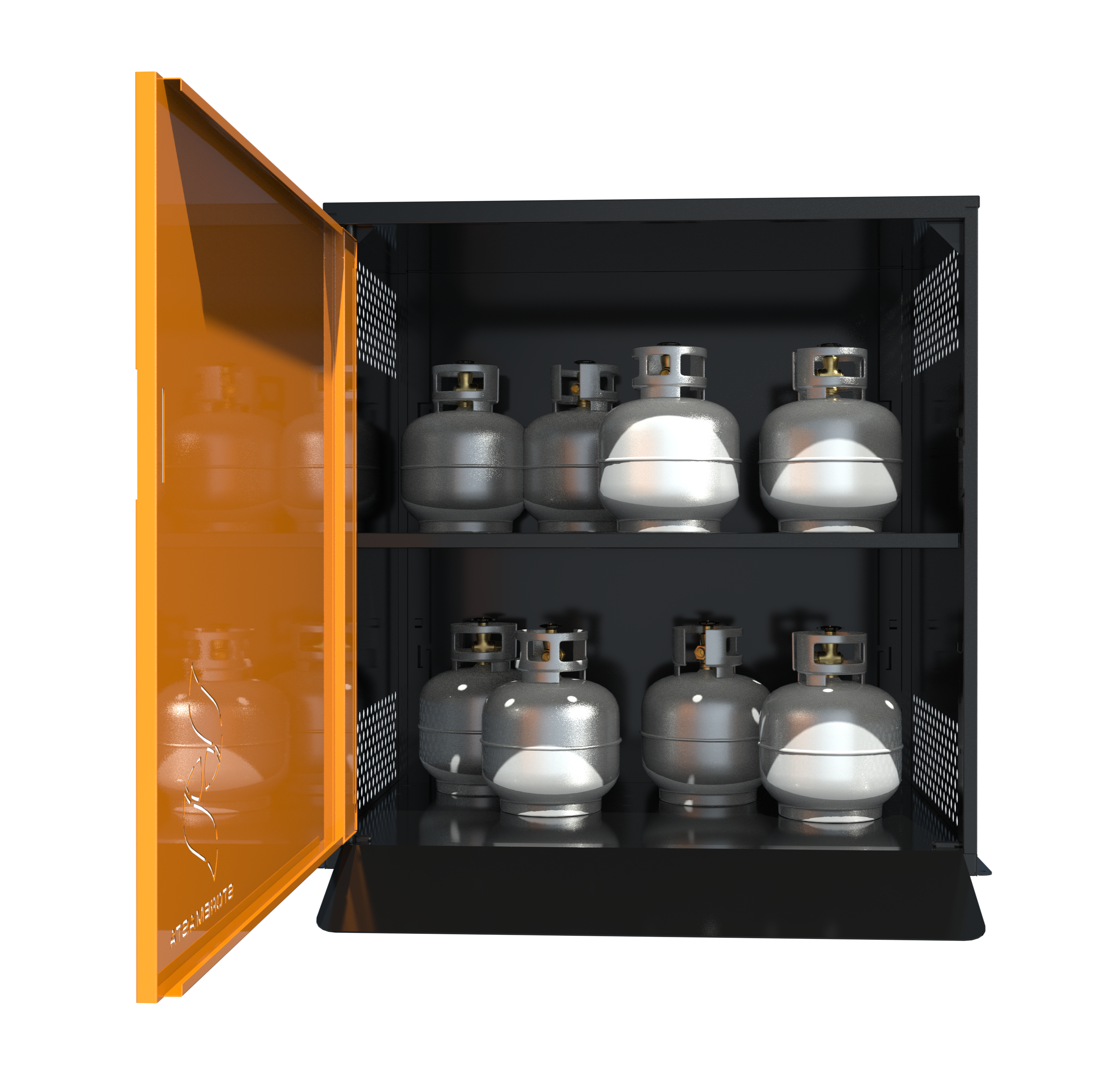

With a capacity for up to 528 aerosols, 154 industrial cylinders, 24 LPG or 70 acetylene cylinders, simply adjust shelving and chains to suit your gas types. This gas store also is equipped with a handy fold-down ramp so you can easily load your gas bottles or cylinders.

Remember, the rules of Class 2 segregation still apply, so store your Class 2 gases safely with this Premium store.

Features

Heavy duty construction and surface protection for outdoor use
State of the art powder coat finish for high durability and performance
Padlockable door for high security
Concealed heavy duty hinge pins
Bolt down plates for added security and stability

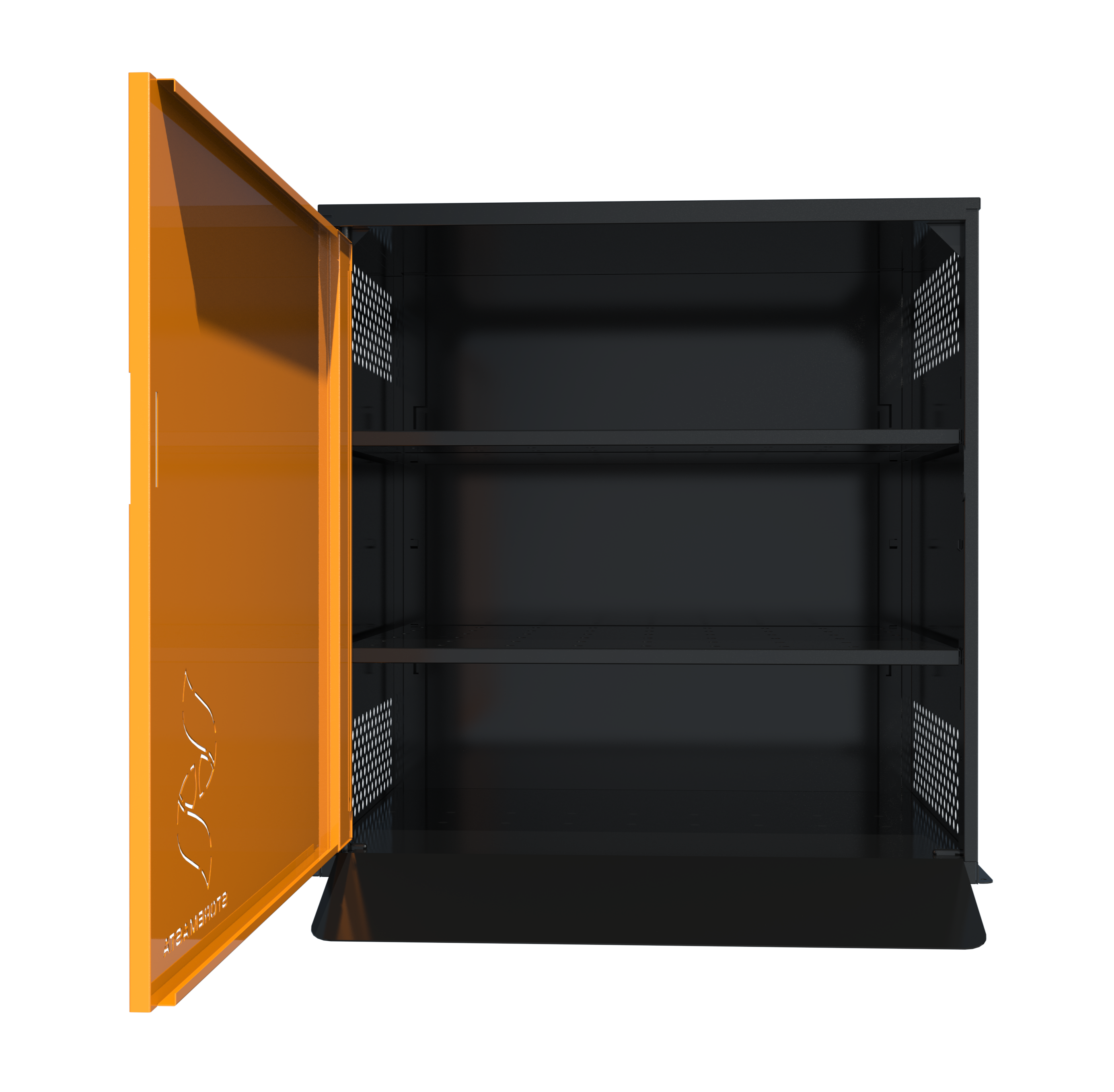

Fold down ramp allowing easy loading and unloading of gas cylinders
Projectile proof construction
Natural ventilation that complies with AS 4332
Appropriate warning and safety signage that complies with AS 1216 and AS 1319
Designed and manufactured in full conformance to AS 4332

Dimensions (mm)

External	H 1200	W 1225	D 828
Internal	H 1160	W 1160	D 800

Storage Capacity

Aerosol Can

528 (3) *number in brackets equals storage levels required

Industrial Cylinder	C size	D size	E size	F size - G/K size
Capacity	154 (2)	35 (1)	15 (1)	0 - 0

LPG Cylinder	N size	P size	T size - R size	S size - 90kg
Capacity	24 (2)	12 (2)	6 (1) - 6 (1)	0 - 0

Acelylene Cylinder	D size - E size - G size
Capacity	70 (2)- 15 (1) - 9 (1)

Calculations based on these package size

Other Specifications

Full Weight	115 Kg
Storage Levels	3
