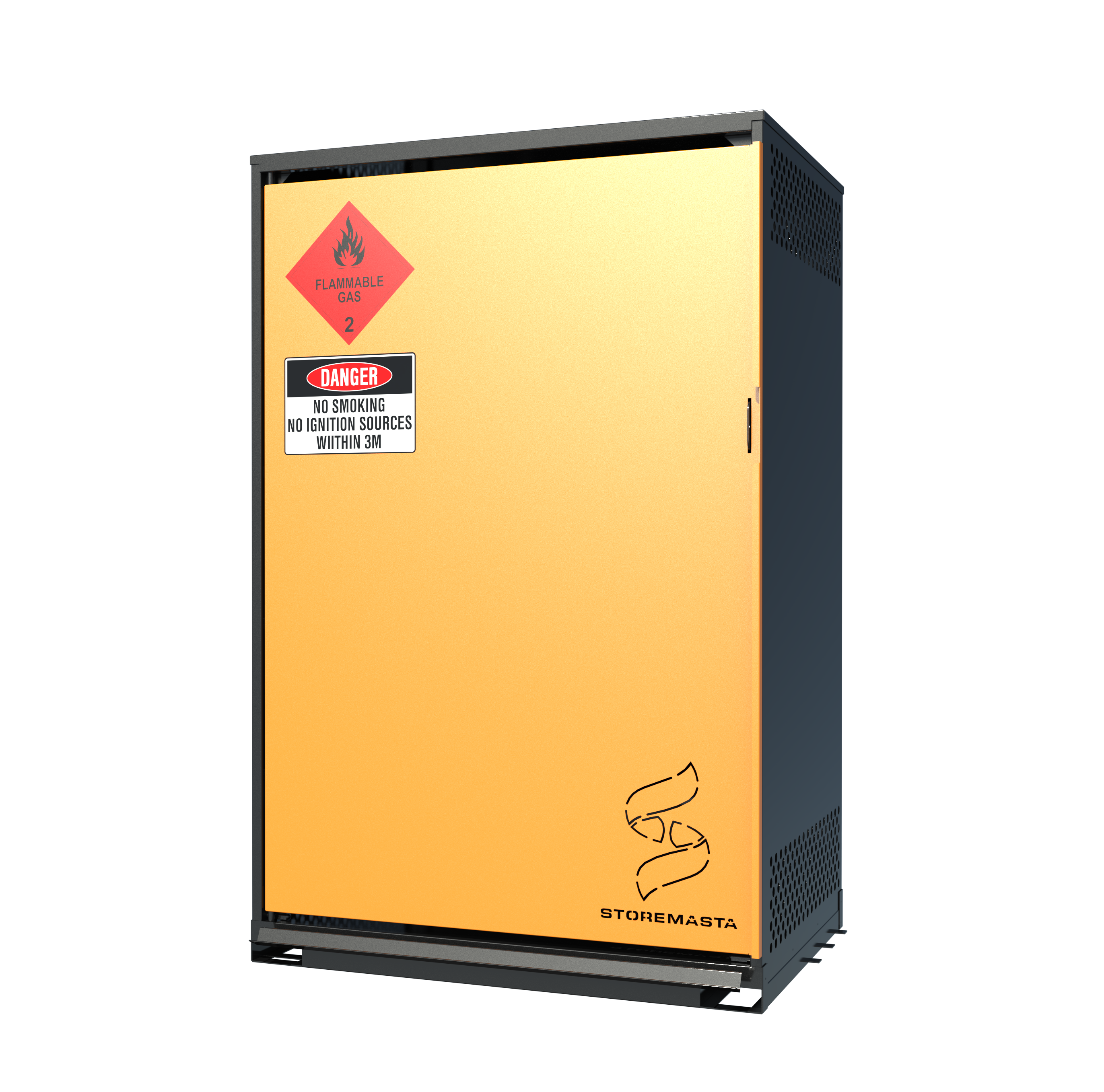

Gas Bottle Storage - Premium Range G8

GSC8
Description

One gas store, endless options. The Gas Bottle Storage – Premium Range delivers an advanced design that takes the gas-work out of Class 2 storage.

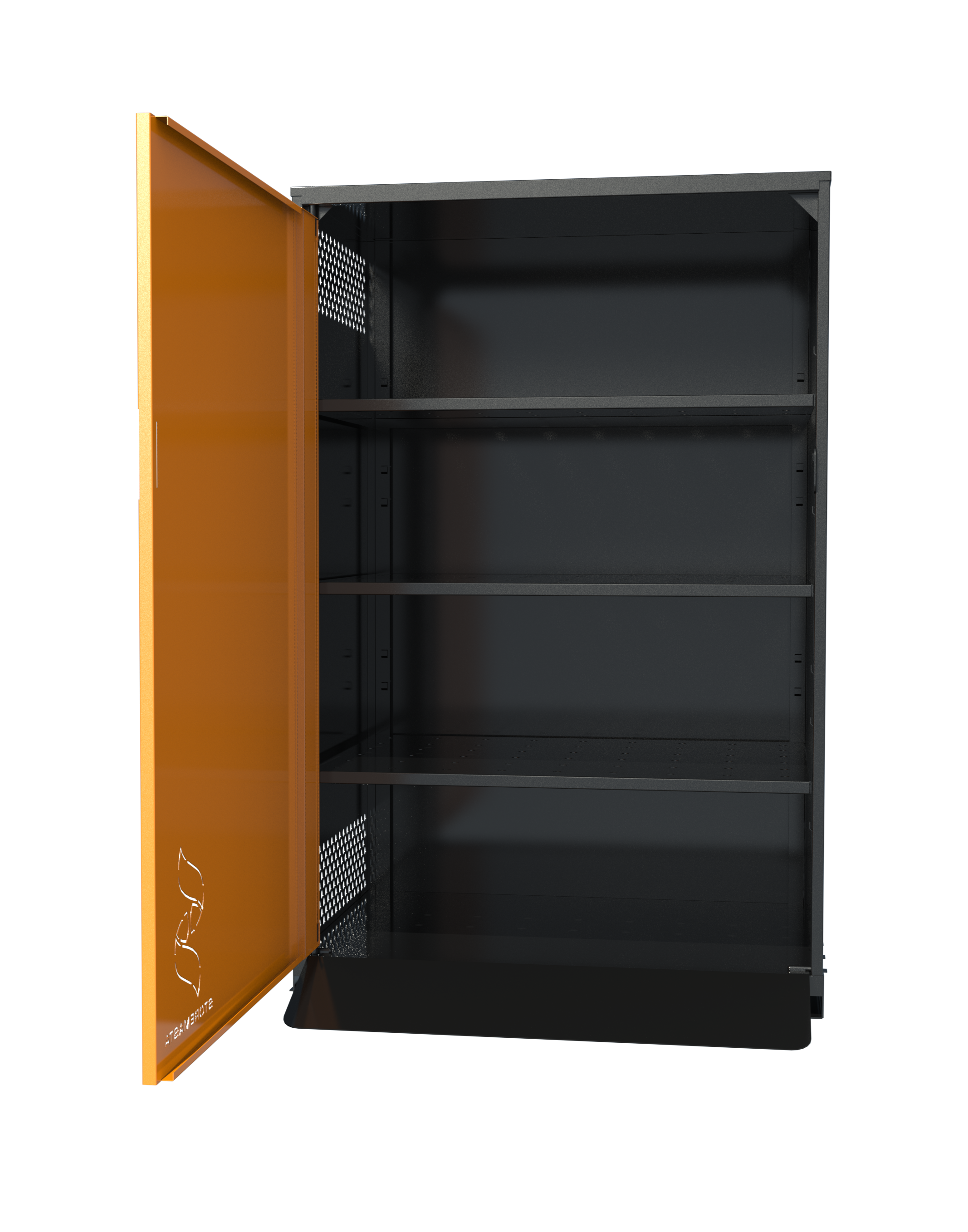

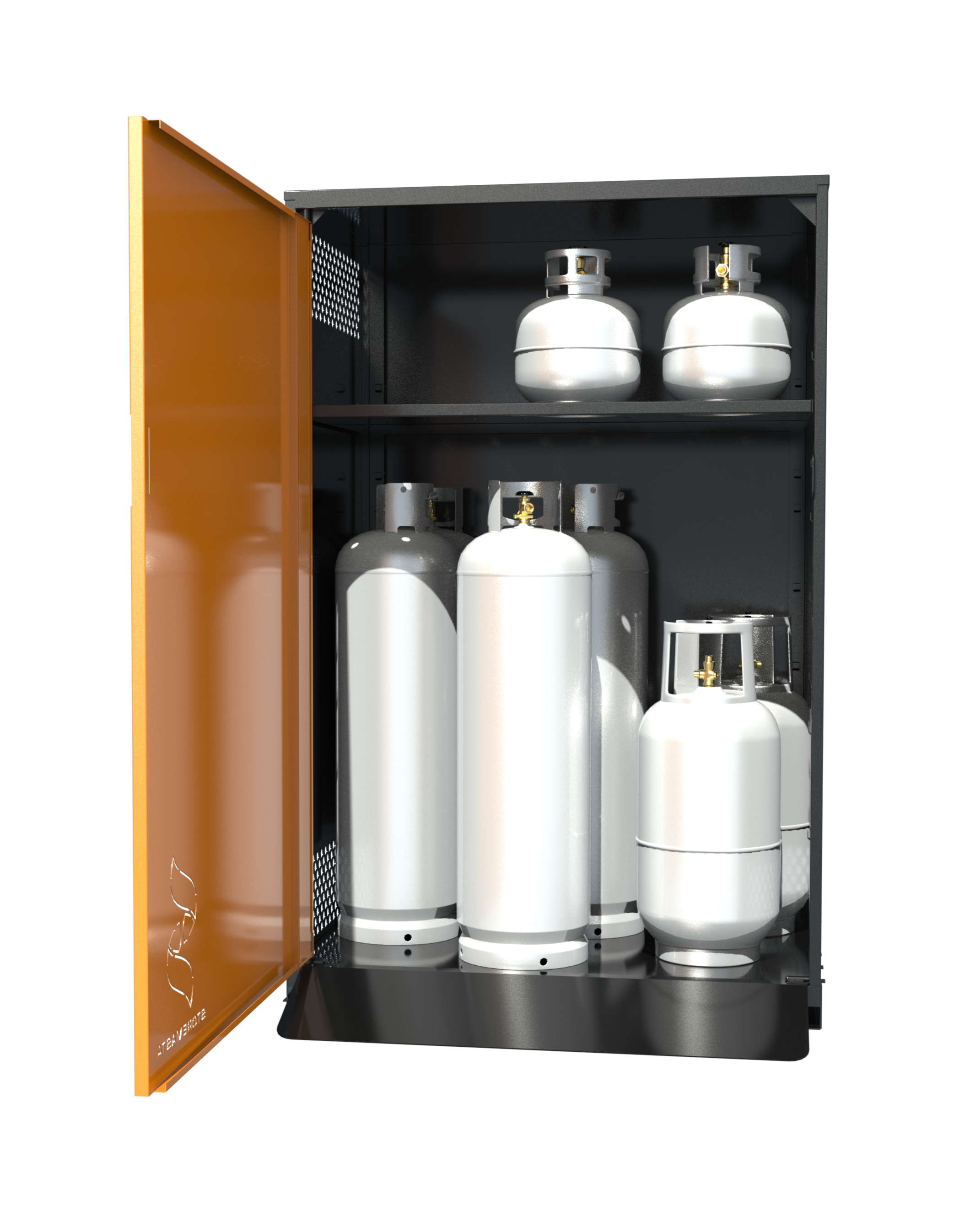

This large G8 model stores up to 1056 aerosols, 231 industrial cylinders, 48 LPG or 105 acetylene cylinders, with fully adjustable shelving and restraint chains. Proudly designed and manufactured in Australia to meet strict quality and safety standards.

Features

  • Heavy duty construction and surface protection for outdoor use
  • State of the art powder coat finish for high durability and performance
  • Padlockable door for high security
  • Concealed heavy duty hinge pins
  • Bolt down plates for added security and stability
  • Projectile proof construction
  • Fold down ramp allowing easy loading and unloading of gas cylinders
  • Natural ventilation that complies with AS 4332
  • Appropriate warning and safety signage that complies with AS 1216 and AS 1319
  • Designed and manufactured in full conformance to AS 4332

Dimensions (mm)

ExternalH 1800W 1170D 825
InternalH 1700W 1160D 790

Storage Capacity

Aerosol Can 1056 (6) *number in brackets equals storage levels required
Industrial CylinderC size D size - E size - F size G/K size
Capacity231 (3)70 (2)15 (1) - 15 (1) - 15 (1)
LPG CylinderN sizeP size T size - R size - S size 90kg
Capacity48 (4)18 (3)12 (2) - 12 (2) - 6 (1)2 (1)
Acelylene CylinderD size - E size - G size
Capacity105 (3) - 15 (1) - 12 (1)
Calculations based on these package size

Dangerous Goods Compliance Specifications

Complies with AS 4332:2004

Other Specifications

Full Weight 190 Kg
Storage Levels 5
