250L - Lithium-ion Battery Charging & Storage Cabinet

500266

Download the product spec sheet by filling the form below.

Select Quantity

Description

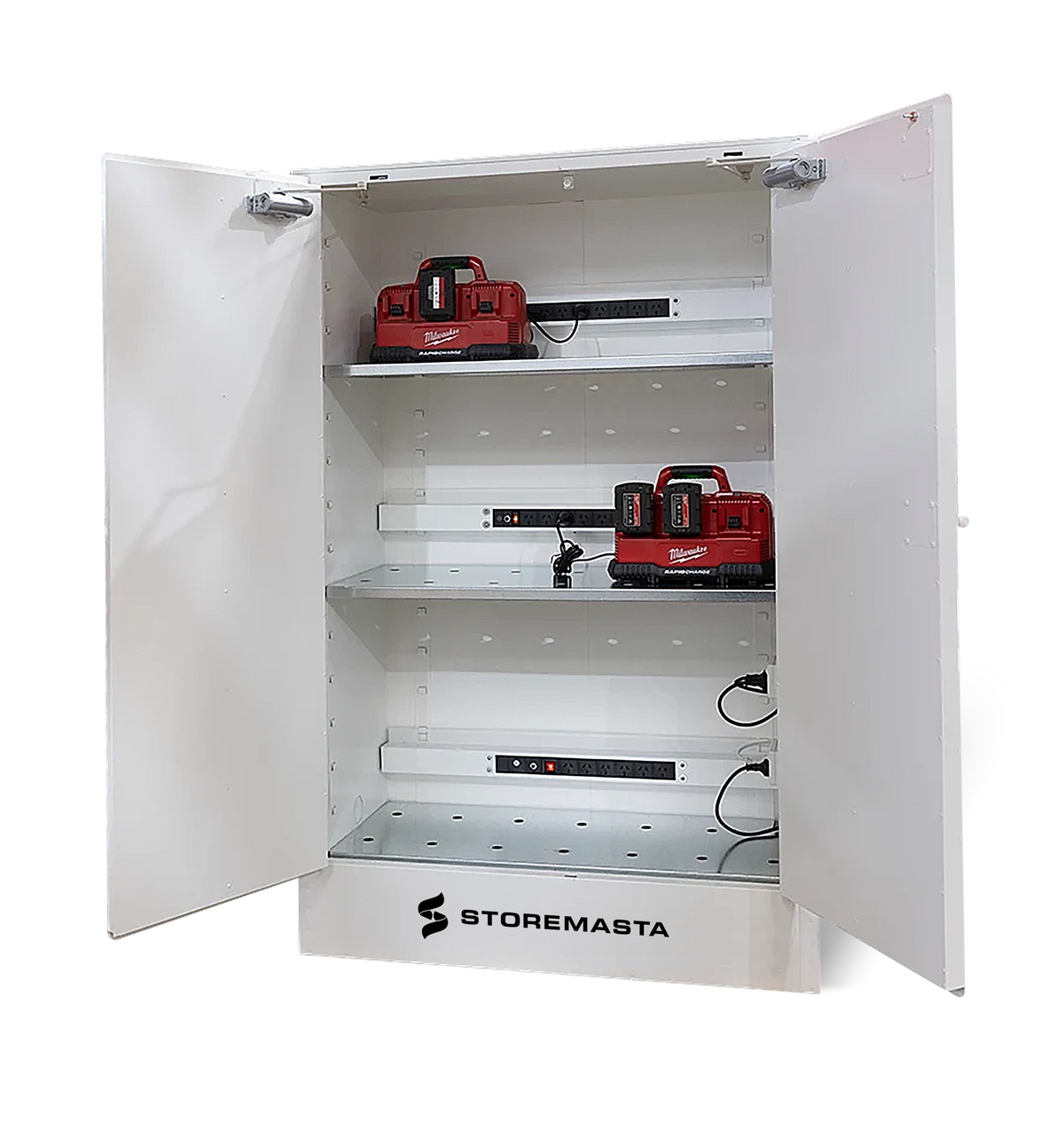

The 500266 is an innovative solution from STOREMASTA built for charging and storage of Lithium-ion batteries. Lithium battery storage cabinet has 12 x Charging Points (6 x Double GPO), double-walled sheet st
Show more +

Features

24 Charging points across 3 shelves

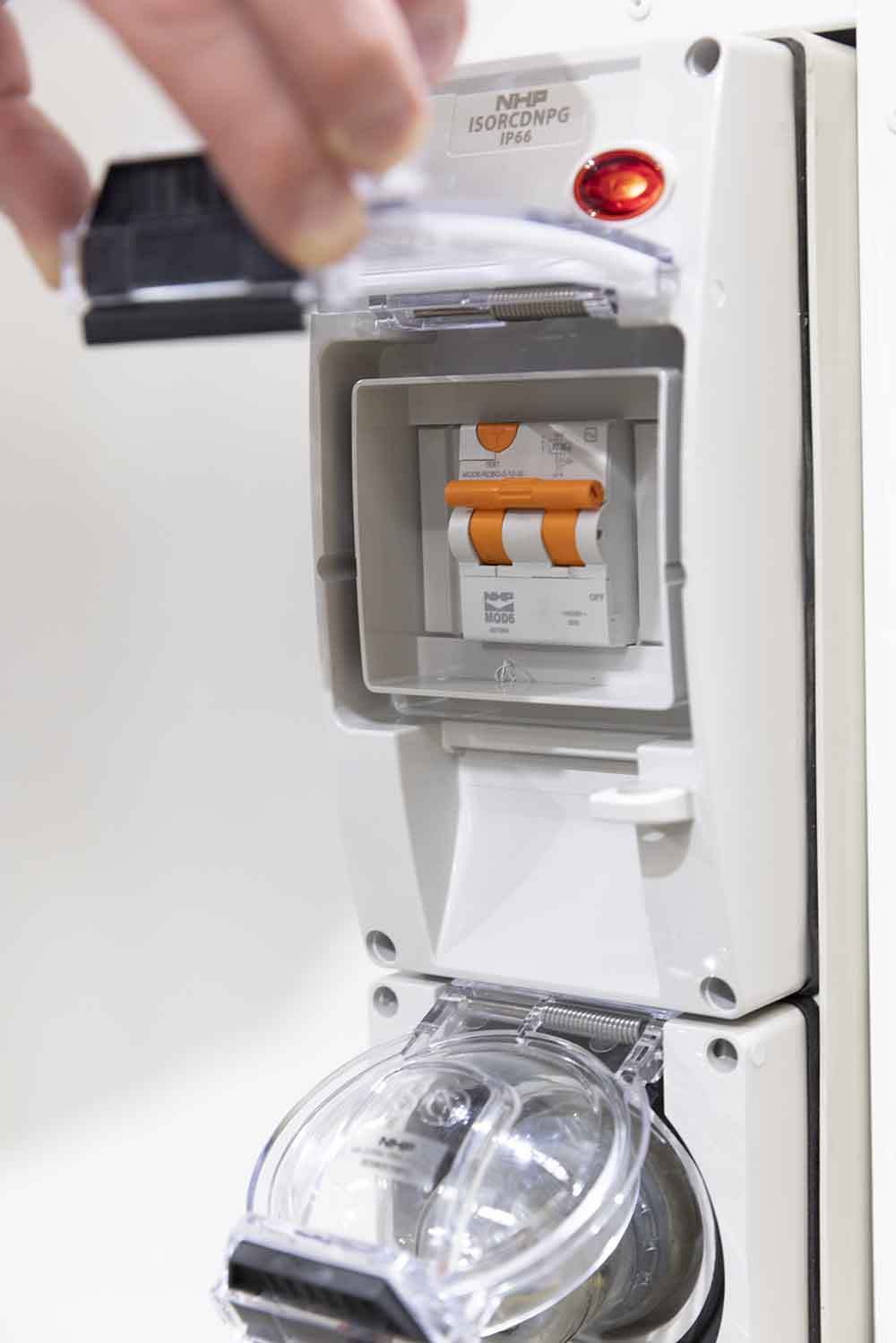

Fully certified electrical
10AMP supply with 2 pole power points
IP54 Rated fittings
10AMP Power inlet

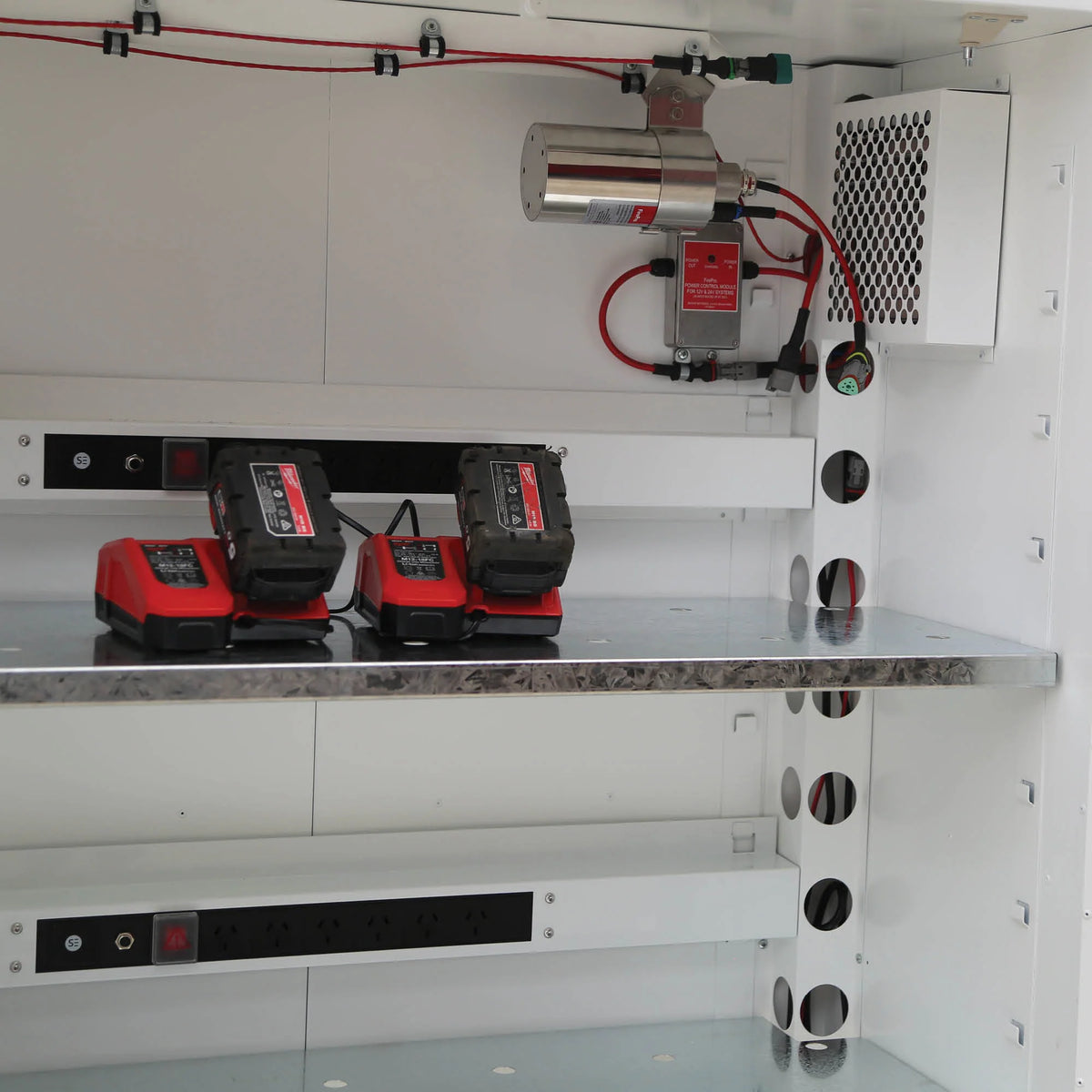

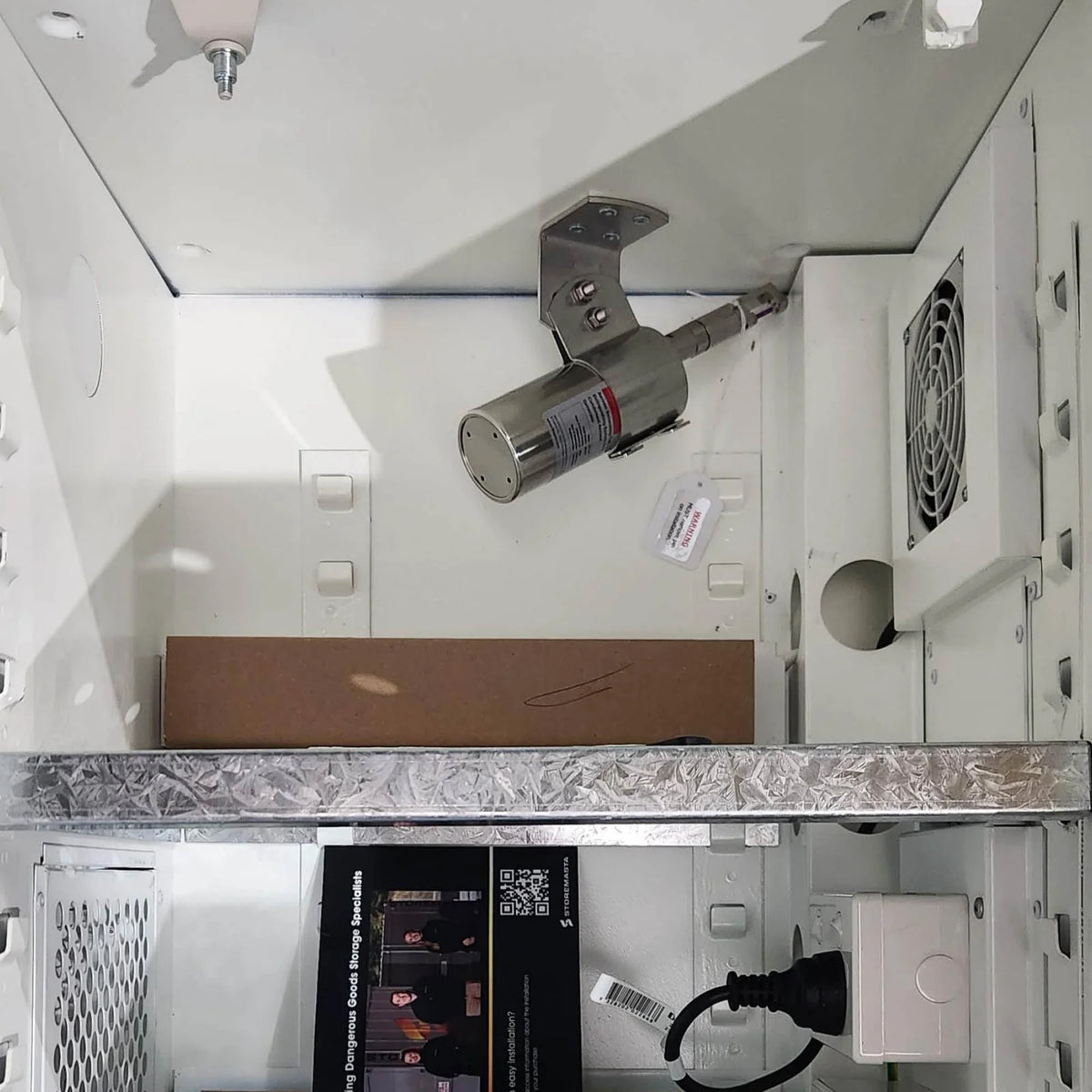

150MM Fans with grill and flex pushing through 67 cubic meters of air/hour

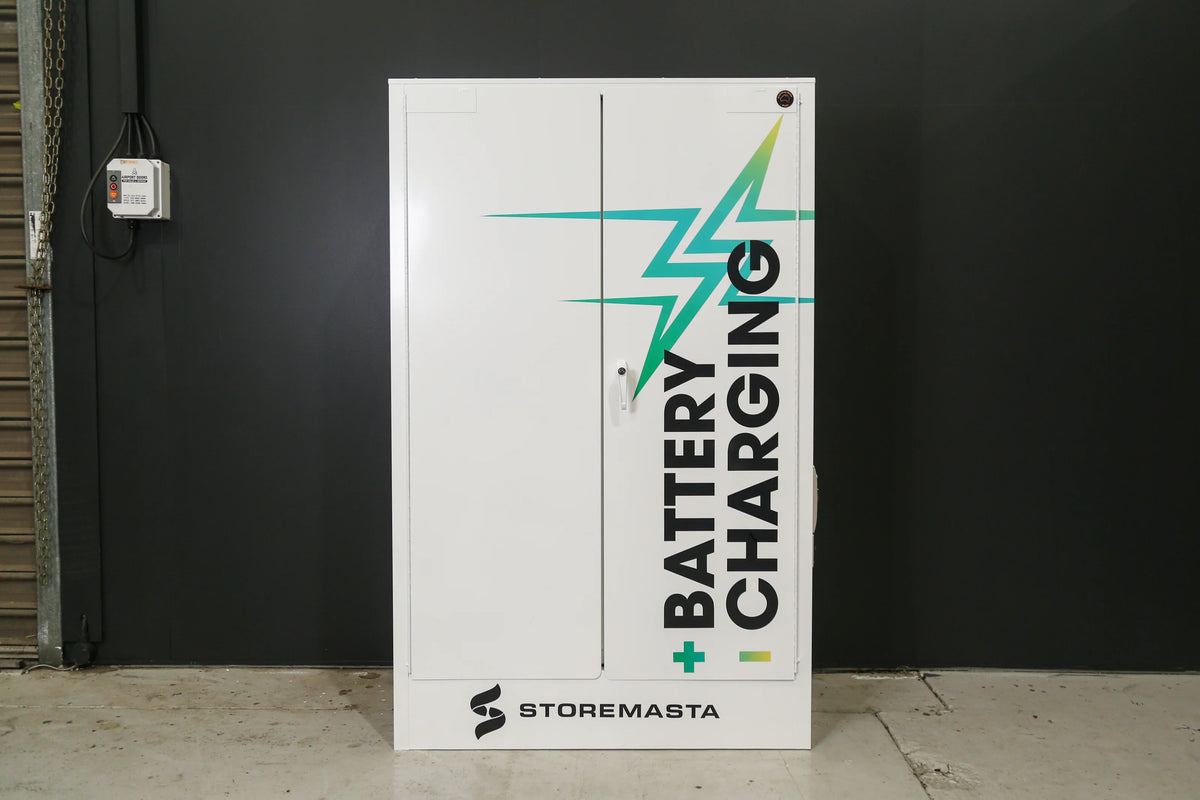

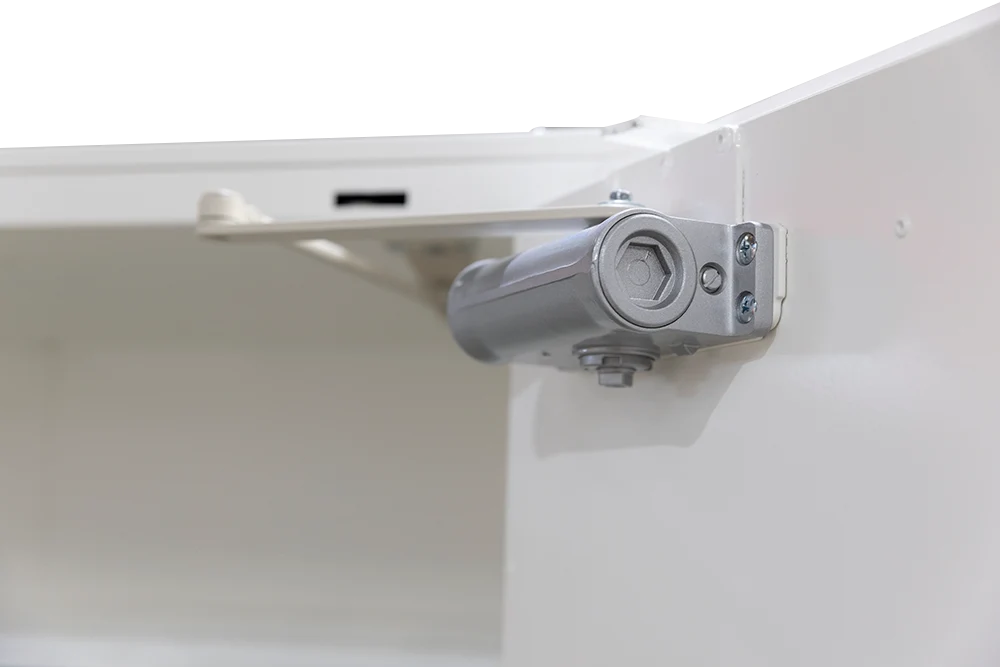

Self closing, close fitting doors
Self contained sump
Any gaps around the doors and into the space between the walls are sealed as far as is necessary to prevent the spread of flame or heat radiation.
The walls, floor, door and roof are double-walled sheet steel construction, with a space of at least 40 mm between the walls.

Dimensions (mm)

External	H 1750	W 1100	D 500
Internal	H 1503	W 1018	D 420

Storage Capacity

Max Capacity

250L

Winchester Size	0.5L	2.5L	5L
Capacity	450*****	63	30

Drum Size	4L	20L	60L
Capacity	50*****	9	4

*****5 Storage levels

Calculations based on these package size

Dangerous Goods Compliance Specifications

Sump Capacity

64L

Other Specifications

Weight	123.0 kg
Shelf Levels	3
