250L - Miscellaneous Dangerous Goods Storage


The SC2509 miscellaneous dangerous goods storage cabinet has capacity of 250 litres and features the patented SAFE-T-CLOSE® sequential closing system.

This cabinet is ideal for the storage of Class 9 Dangerous Goods and is fully compliant with legislative requirements. It's a high-performance dangerous goods storage solution for a wide range of industries.


  • Double walled sheet steel construction with a 40mm thermic air barrier
  • High capacity liquid tight sump to contain spills - 150mm deep
  • Self-closing, close fitting doors that latch at 2 points
  • Built in flash arrestors and vent openings [for mechanical ventilation systems]
  • Strong fully adjustable shelving perforated for free air movement, 100mm adjustment increments
  • Sequential door closing system
  • Stainless steel pin with continuous hinging for strength and reliability
  • State of the art powder coat finish for high durability and performance

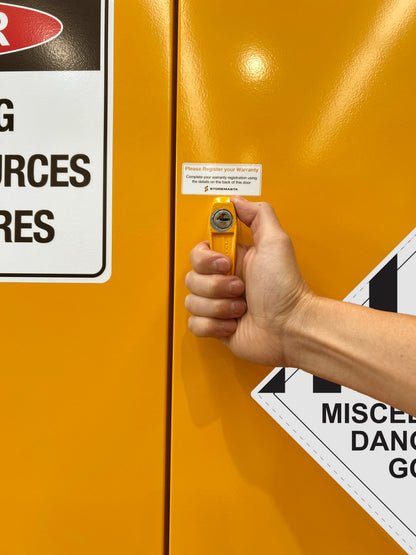

  • Comfortable ergonomic handle design
  • Distinct safety signs and directions that comply with AS 1216 and AS 1319
  • Designed and Manufactured in full conformance to AS/NZS 4681:2000 The storage and handling of Class 9 (miscellaneous) dangerous goods and articles

Dimensions (mm)

ExternalH 1750W 1100D 500
InternalH 1503W 1018D 420

Storage Capacity

Max Capacity 250
Winchester Size0.5L - 65mmW2.5L - 135mmW5L - 190mmW
Capacity450* - 5 storage levels6330
Drum Size4L - 180mmW20L - 300mmW60L - 400mmW
5 storage levels

Dangerous Goods Compliance Specifications

Complies with AS/NZS 4681:2000
Sump Capacity 64

Other Specifications

Weight 123.0 kg
Shelf Levels 3
