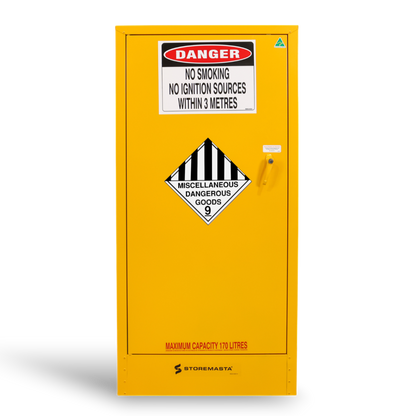

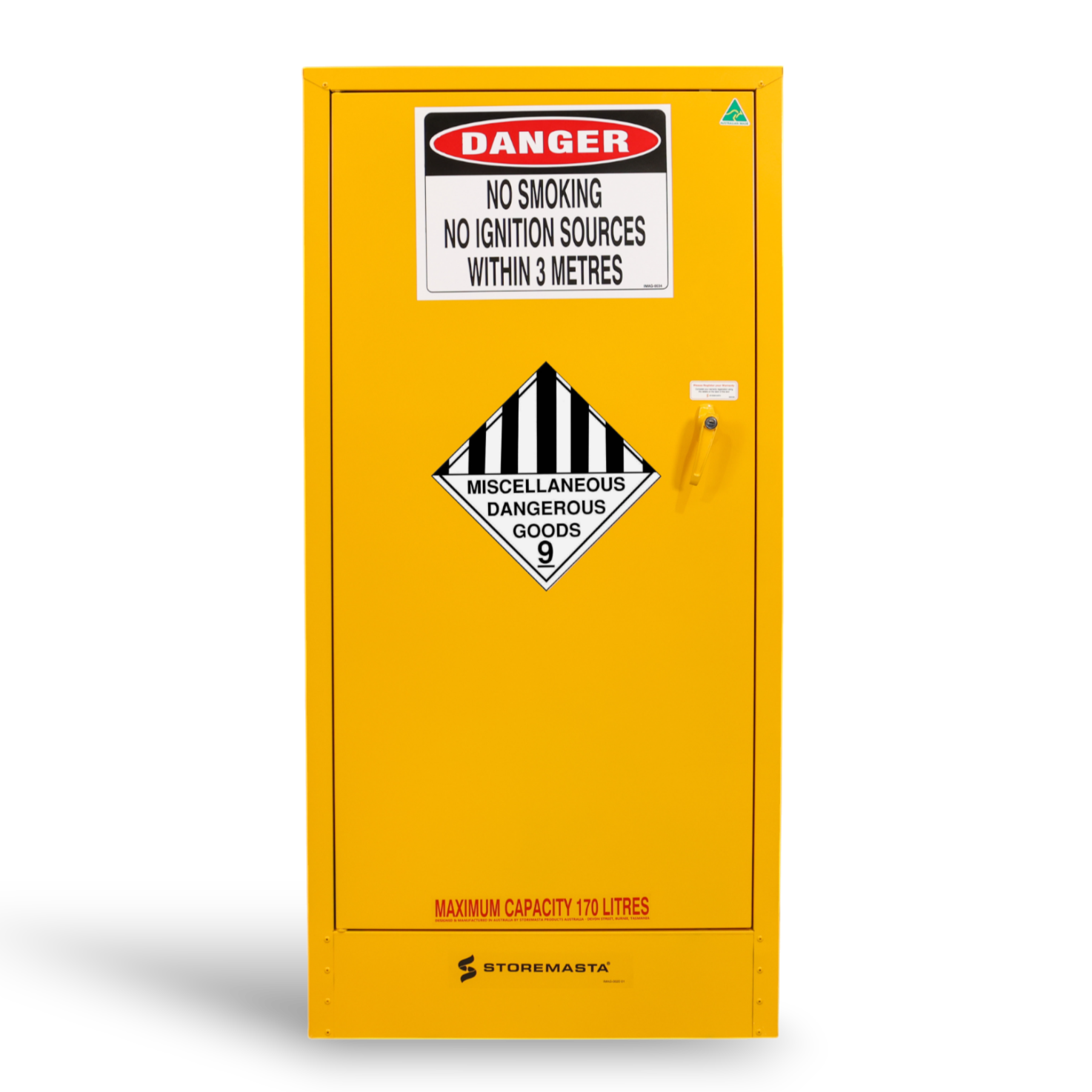

170L - Miscellaneous Dangerous Goods Storage Cabinet


The SC1709 miscellaneous dangerous goods storage cabinet has capacity of 170 litres and features the patented SAFE-T-CLOSE® sequential closing system.

This cabinet is ideal for the storage of Class 9 Dangerous Goods and is fully compliant with legislative requirements. It's a high-performance dangerous goods storage solution for a wide range of industries.

Class 9 Miscellaneous Dangerous Goods must be stored in a controlled environment to reduce the risk of chemical spills. The Storemasta Miscellaneous Dangerous Goods Storage Cabinet SC1709 is an Australian made Safety Cabinet that meets the stringent requirements of AS 4681.

Safety cabinet features include Storemasta’s patented sequential door closing system SAFE-T-CLOSE® — which delivers a smooth hydraulic action, allowing doors to close firmly and in sequence, every time.  This cabinet is equipped with a compliant spill containment sump to capture spills and fully adjustable perforated shelving to encourage natural air flow.

The Storemasta range of Chemical Storage Cabinets are an ideal indoor storage solution, with models available for every hazard class. Choose a Miscellaneous Substance Storage Cabinet that protects your people, property and environment with the highest quality chemical controls on the market.


  • Double walled sheet steel construction with a 40mm thermic air barrier
  • High capacity liquid tight sump to contain spills - 150mm deep
  • Self-closing, close fitting doors that latch at 2 points
  • Built in flash arrestors and vent openings [for mechanical ventilation systems]

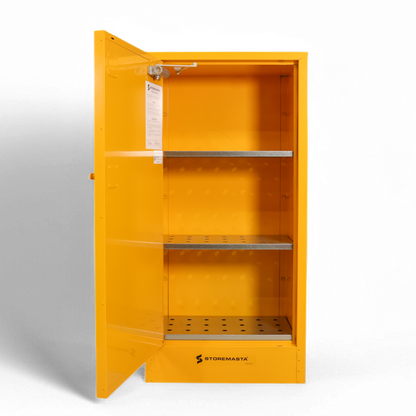

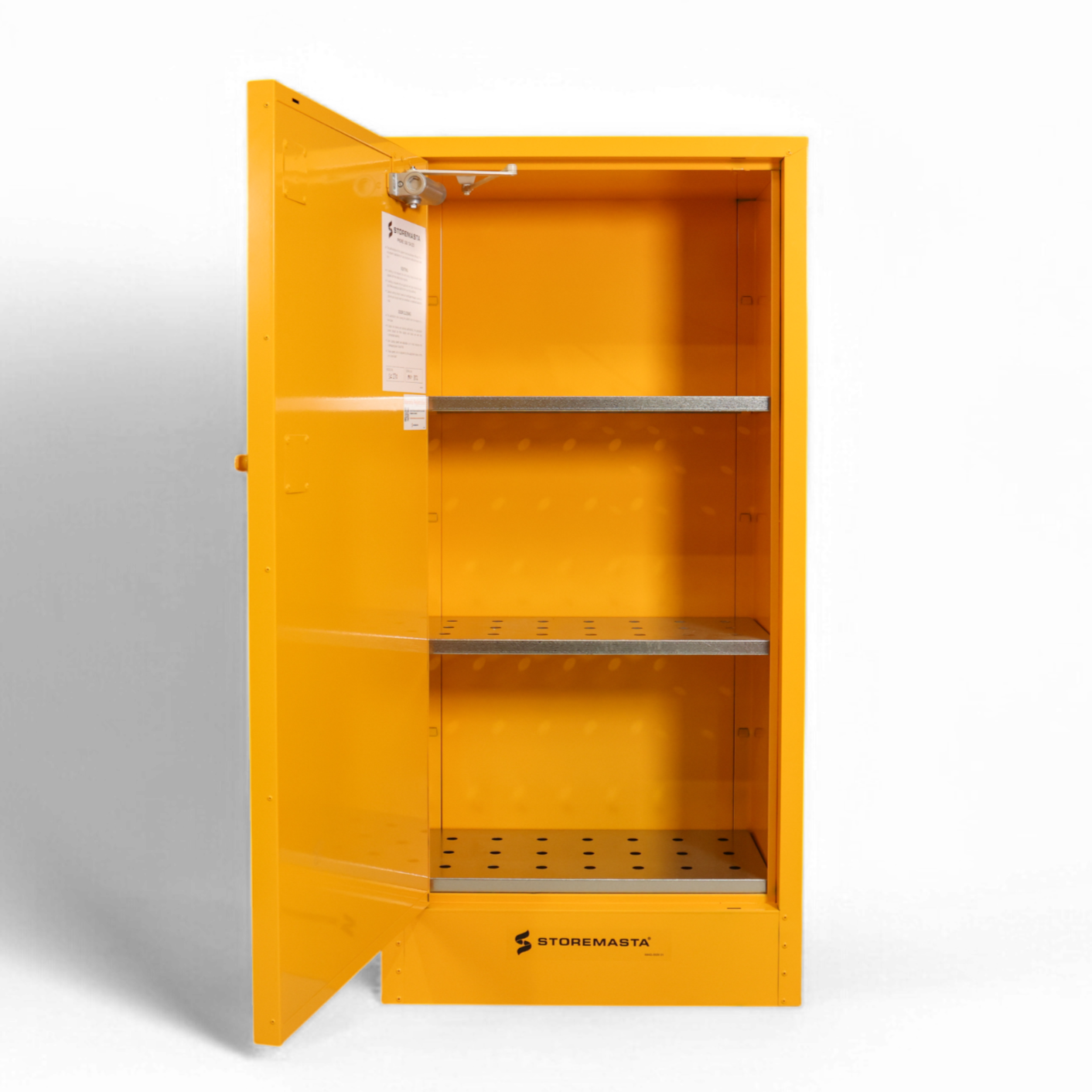

  • Strong fully adjustable shelving perforated for free air movement, 100mm adjustment increments
  • Sequential door closing system
  • Stainless steel pin with continuous hinging for strength and reliability
  • State of the art powder coat finish for high durability and performance

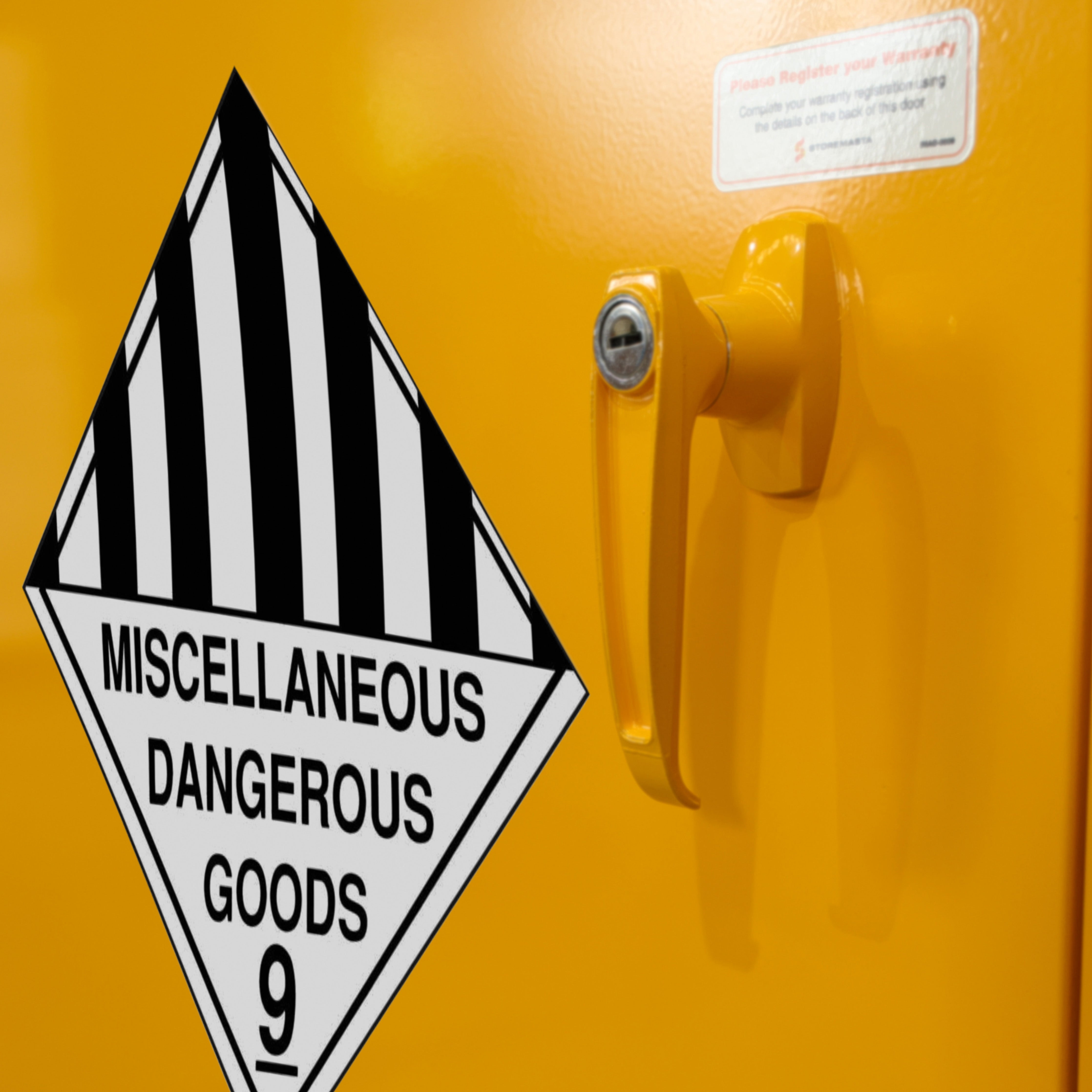

  • Comfortable ergonomic handle design
  • Distinct safety signs and directions that comply with AS 1216 and AS 1319
  • Designed and Manufactured in full conformance to AS/NZS 4681:2000 The storage and handling of Class 9 (miscellaneous) dangerous goods and articles

Dimensions (mm)

ExternalH 1540W 750D 450
InternalH 1315W 660D 360

Storage Capacity

Max Capacity 170
Drum Size4L 20L60L205L
*3 storage levels

Dangerous Goods Compliance Specifications

Complies with AS/NZS 4681:2000
Sump Capacity 36

Other Specifications

Weight 90.0 kg
Shelf Levels 2 + Base
Storage Levels 3
Shelf Thickness (mm) 28
Shelf spacing (mm) 190
No. of Shelf Lugs 6 (including base level)
