250L - Flammable Liquid Storage Cabinet

SC250
Description

The SC250 flammable liquid storage cabinet has capacity of 250 litres and features the patented SAFE-T-CLOSE® sequential closing system.

This cabinet is ideal for the everyday safe storage of most classes of Dangerous Goods, and is fully compliant with legislative requirements. It's a high performance dangerous goods storage solution for a wide range of industries.

Features

  • Double walled sheet steel construction with a 40mm thermic air barrier
  • High capacity liquid tight sump to contain spills - 150mm deep
  • Self-closing, close fitting doors that latch at 2 points

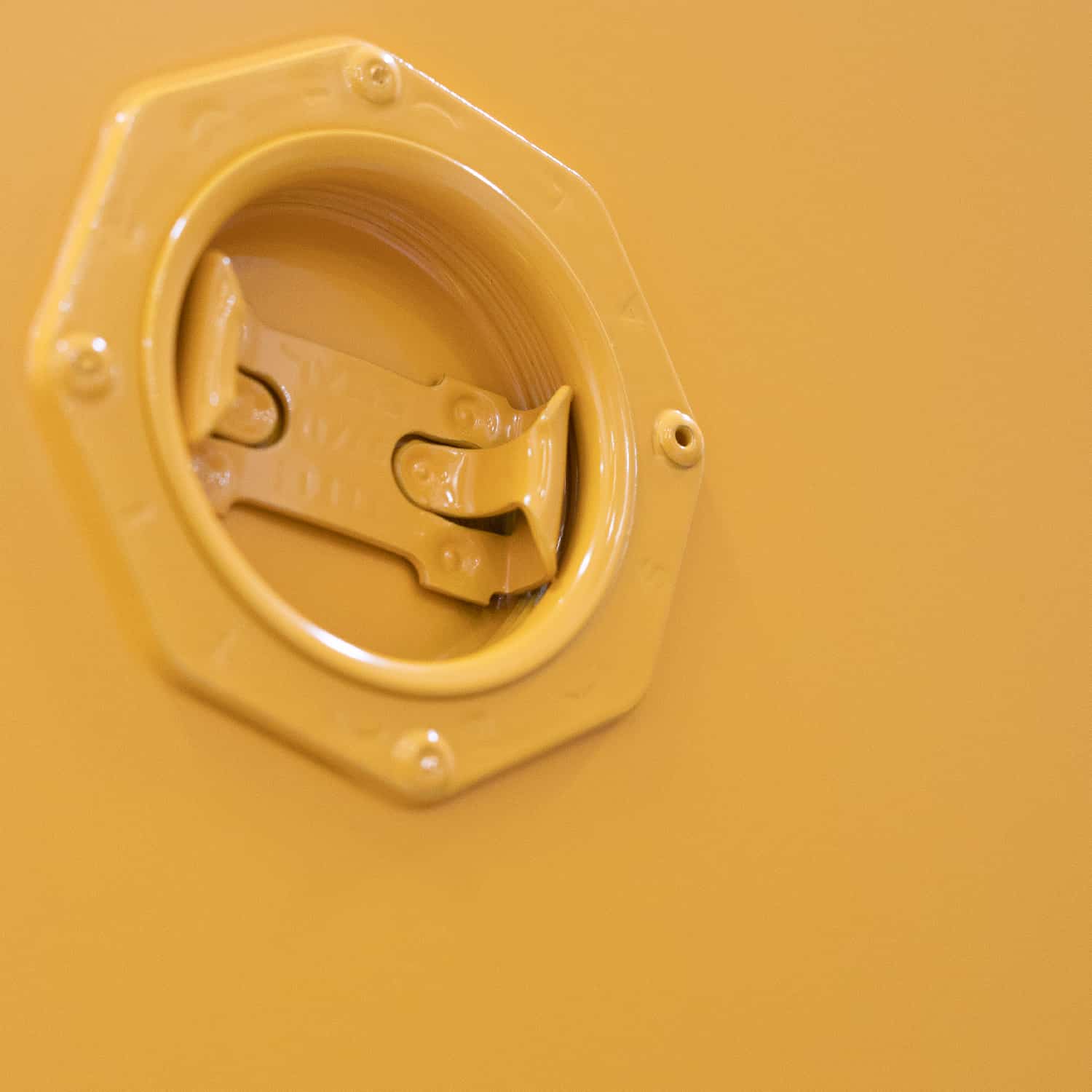

  • Built in flash arrestors and vent openings [for mechanical ventilation systems]

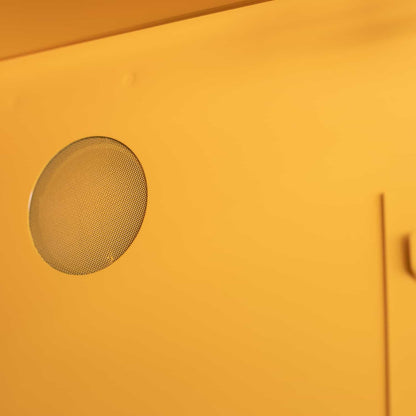

  • Strong fully adjustable shelving perforated for free air movement, 100mm adjustment increments
  • Sequential door closing system
  • Stainless steel pin with continuous hinging for strength and reliability
  • State of the art powder coat finish for high durability and performance
  • Distinct safety signs and directions that comply with AS 1216 and AS 1319
  • Designed and Manufactured in full conformance to AS 1940:2017 - The storage and handling of flammable and combustible liquids

Dimensions (mm)

ExternalH 1750W 1100D 500
InternalH 1503W 1018D 420

Storage Capacity

Max Capacity 250L
Winchester Size0.5L2.5L 5L
Capacity450***** 6330
Drum Size4L20L60L205L
Capacity50***** 94-
*****5 storage levels
Calculations based on these package size

Dangerous Goods Compliance Specifications

Complies with AS1940 - 2017
Sump Capacity 64L

Other Specifications

Weight 123.0 kg
Shelf Levels 3 (Including Base)
Storage Levels 3
Shelf Thickness (mm) 28
Shelf spacing (mm) 100
No. of Shelf Lugs 15
