160L - Oxidising Agent Storage Cabinet
SC160A

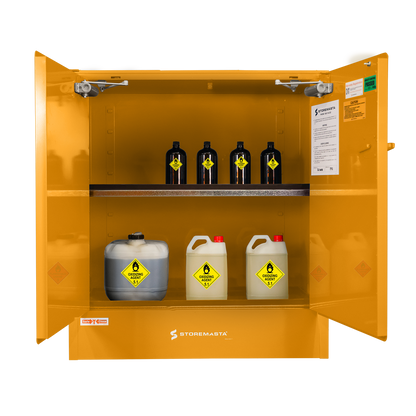

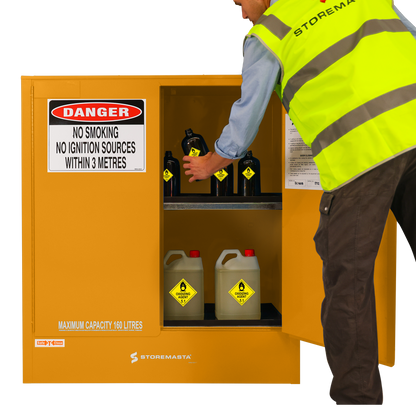

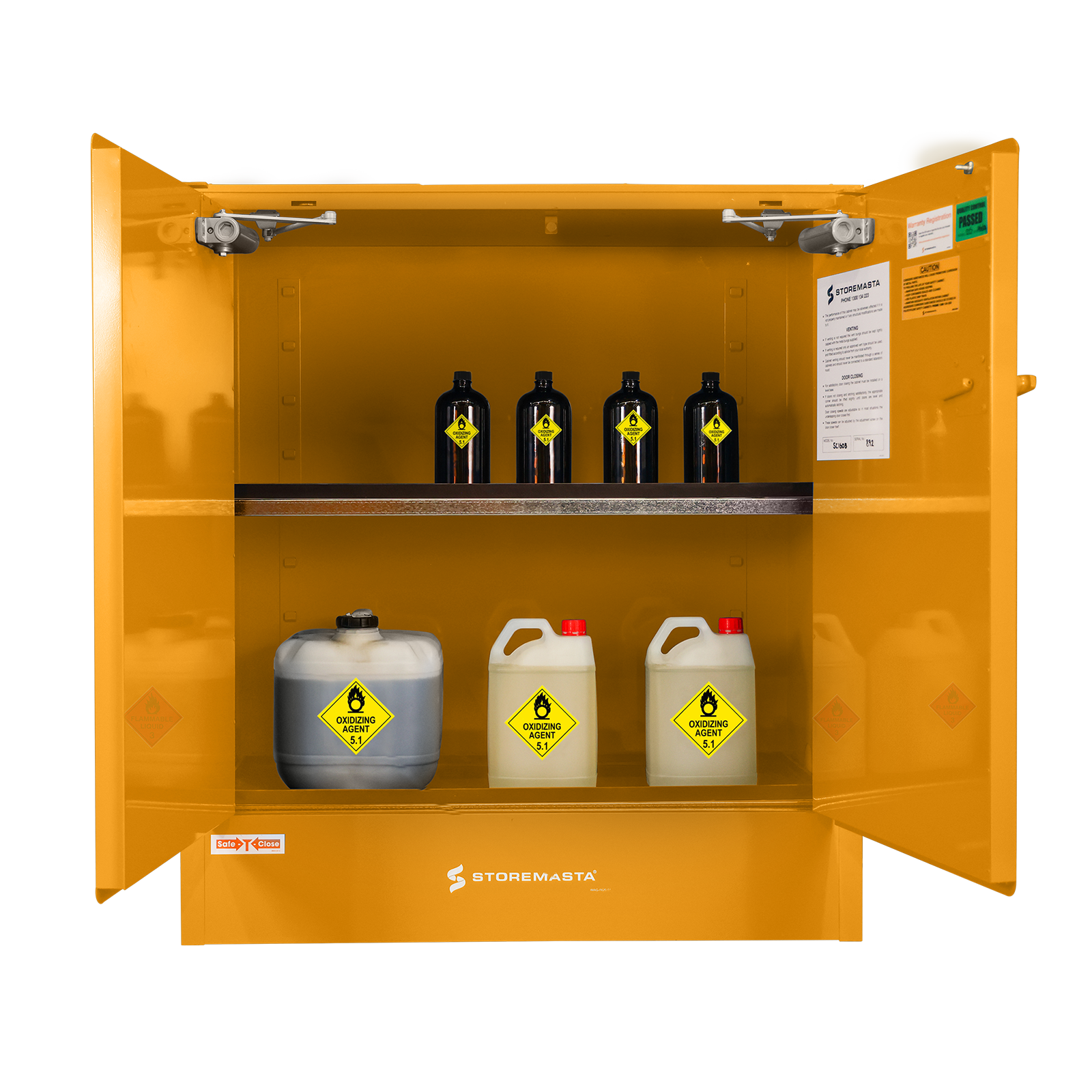

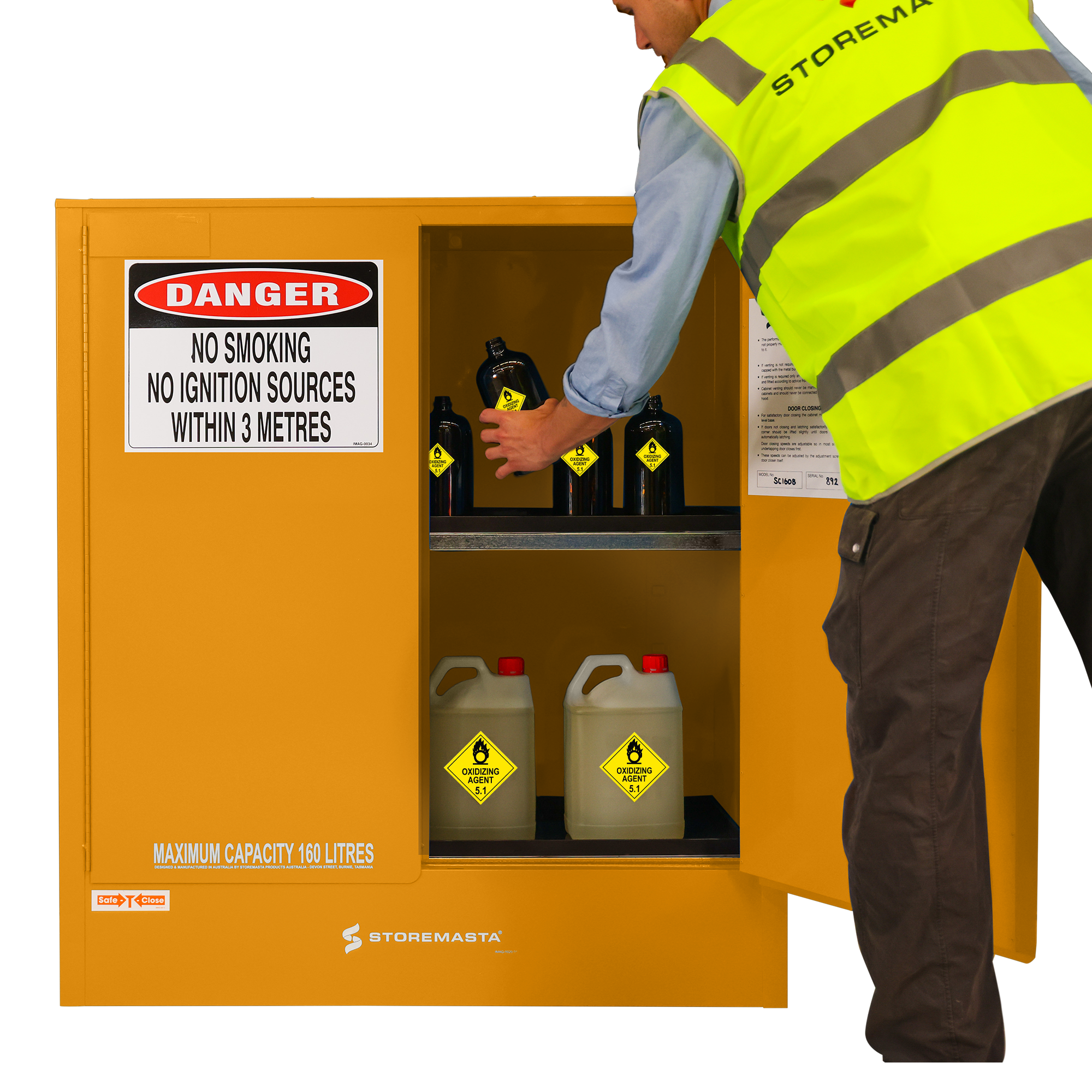

The SC160A is an indoor chemical storage cabinet purpose built for Class 5.1 Oxidising Agents (160 litre capacity). Keep oxidising agents away from flammables and other incompatible substances in this double-walled sheet steel cabinet.
Features of the 160L - Oxidising Agent Storage Cabinet include: heavy duty shelving that is fully adjustable along 100mm increments; built in flash arrestors and vent openings that sync with your mechanical ventilation system; high-tech polyurethane coating that resists corrosion. The unit is fitted with compliant safety signage and placards.
160L - Oxidising Agent Storage Cabinet is part of our range of fully compliant chemical stores for keeping Dangerous Goods safe indoors.
Designed and manufactured in Australia to the highest safety standards (including AS 4326-2008), order your Oxidising Agent Cabinet today.
Features
- Double walled sheet steel construction with a 40mm thermic air barrier
- High capacity liquid tight sump to contain spills - 150mm deep
- Self-closing, close fitting doors that automatically release in the event of a build-up of pressure within the cabinet
- Built in flash arrestors and vent openings [for mechanical ventilation systems]

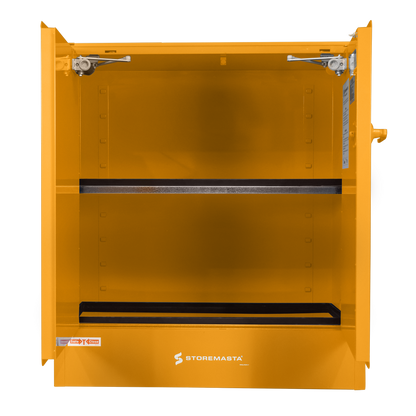

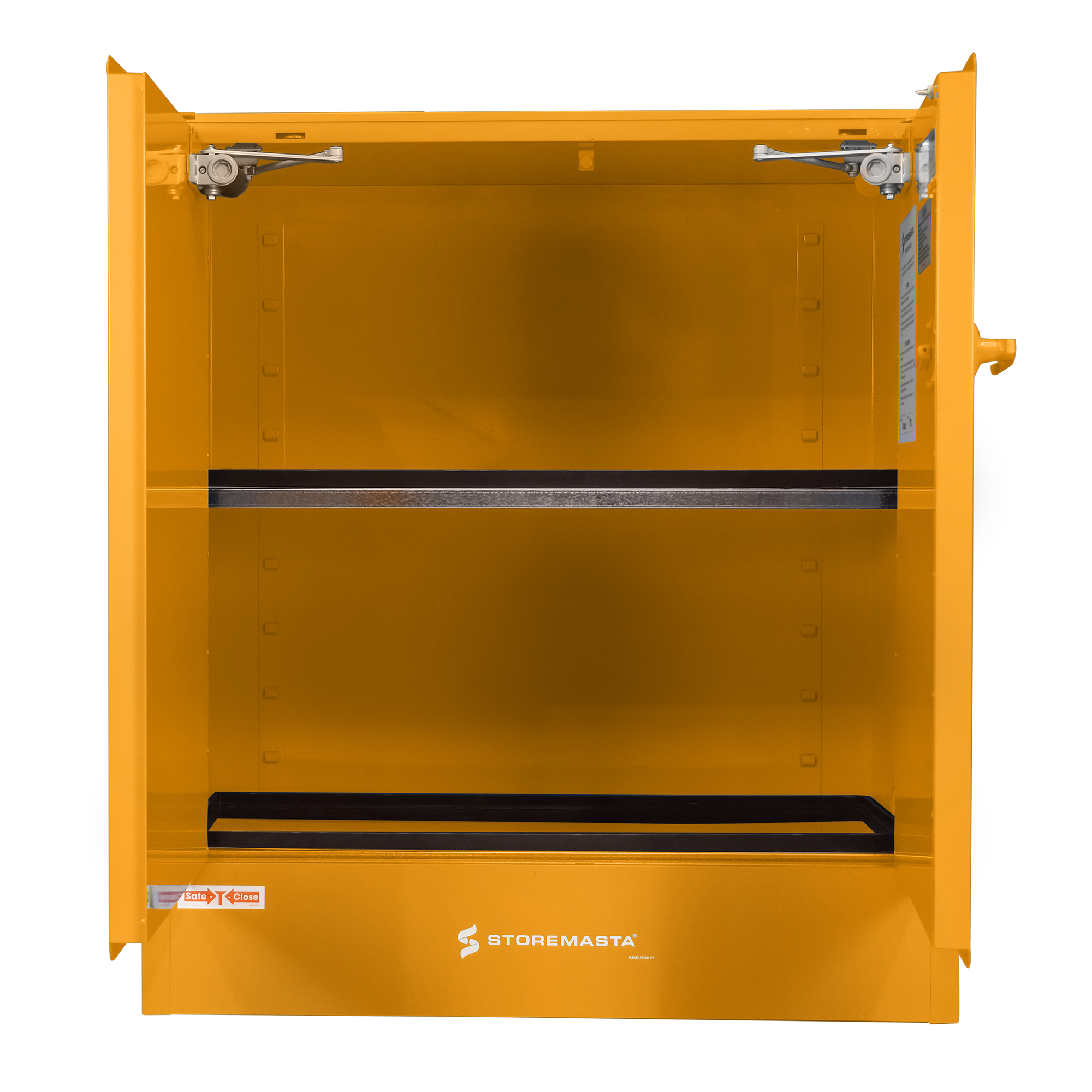

- Strong fully adjustable shelving perforated for free air movement, 100mm adjustment increments
- Sequential door closing system
- Stainless steel pin with continuous hinging for strength and reliability
- State of the art powder coat finish for high durability and performance

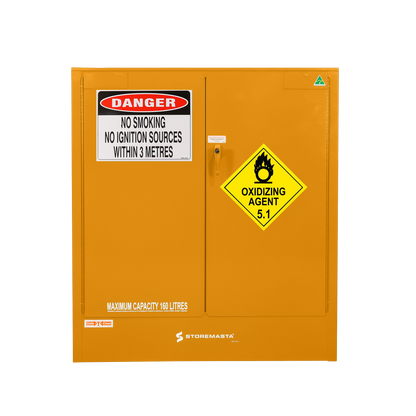

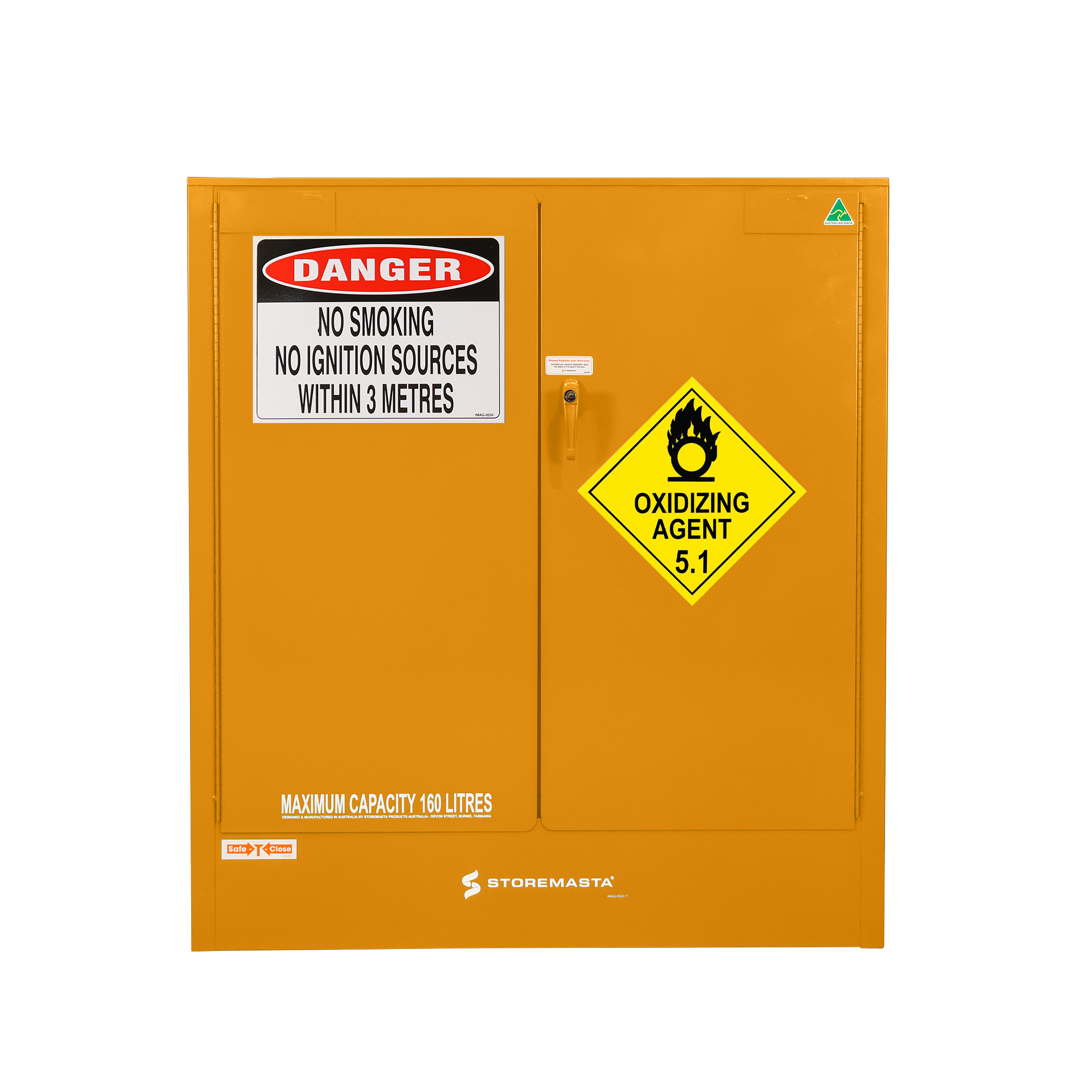

- Distinct safety signs and directions that comply with AS 1216 and AS 1319
- Designed and manufactured in full conformance to AS 4326:2008 - The storage and handling of oxidising agents.
Dimensions (mm)
External | H 1220 | W 1100 | D 450 |
Internal | H 973 | W 1018 | D 370 |
Storage Capacity
Max Capacity | 160L Maximum capacity of the cabinet is subject to the packing group of the chemical stored. Please refer to the relevant Australian Standard for further details. |
Winchester Size | 0.5L | 2.5L | 5L |
Capacity | 225*** | 28 | 10 |
Drum Size | 4L | 20L | 60L | 205L |
Capacity | 30***** | 6 | - | - |
Dangerous Goods Compliance Specifications
Complies with | AS4326 - 2008 |
Sump Capacity | 56L |
Other Specifications
Weight | 78.0 kg |
Shelf Levels | 2 |
Storage Levels | 2 |
Shelf Thickness (mm) | 28 |
Shelf spacing (mm) | 100 |
No. of Shelf Lugs | 10 |
