Download the product spec sheet by filling the form below.

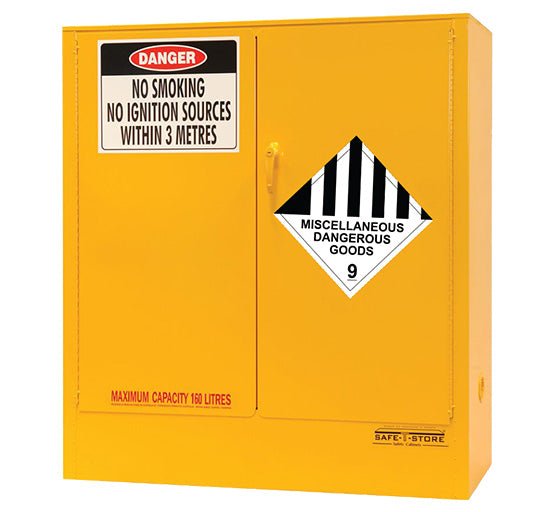

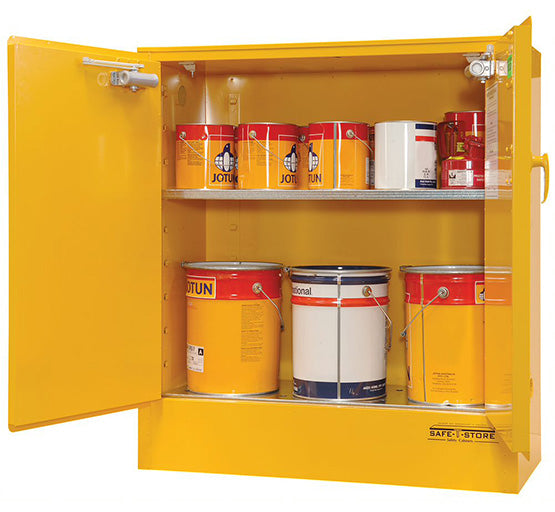

160L - Miscellaneous Dangerous Goods Storage
SC1609
Description
The 160L - Miscellaneous Dangerous Goods Storagecabinet has capacity of 160 litres and features the patented SAFE-T-CLOSE® sequential closing system.
This cabinet is ideal for the storage of Class 9 Dangerous Goods and is fully compliant with legislative requirements. It's a high-performance dangerous goods storage solution for a wide range of industries.
Features
- Double walled sheet steel construction with a 40mm thermic air barrier
- High capacity liquid tight sump to contain spills - 150mm deep
- Self-closing, close fitting doors that latch at 2 points
- Built in flash arrestors and vent openings [for mechanical ventilation systems]
- Strong fully adjustable shelving perforated for free air movement, 100mm adjustment increments
- Sequential door closing system
- Stainless steel pin with continuous hinging for strength and reliability
- State of the art powder coat finish for high durability and performance
- Comfortable ergonomic handle design
- Distinct safety signs and directions that comply with AS 1216 and AS 1319
- Designed and Manufactured in full conformance to AS/NZS 4681:2000 The storage and handling of Class 9 (miscellaneous) dangerous goods and articles
Dimensions (mm)
Dimensions (mm)
| External | H 1220 | W 1100 | D 450 |
| Internal | H 973 | W 1018 | D 370 |
Storage Capacity
Storage Capacity
| Max Capacity | 160 |
| Winchester Size | 0.5L - 65mmW | 2.5L - 135mmW | 5L - 190mmW |
| Capacity | 225* - 3 Storage levels | 28 | 10 |
| Drum Size | 4L - 180mmW | 20L - 300mmW |
| Capacity | 30* | 6 |
Dangerous Goods Compliance Specifications
Dangerous Goods Compliance Specifications
| Complies with | AS/NZS 4681:2000 |
| Sump Capacity | 56 |
Other Specifications
Other Specifications
| Weight | 78.0 kg |
| Shelf Levels | 2 |
Related Products

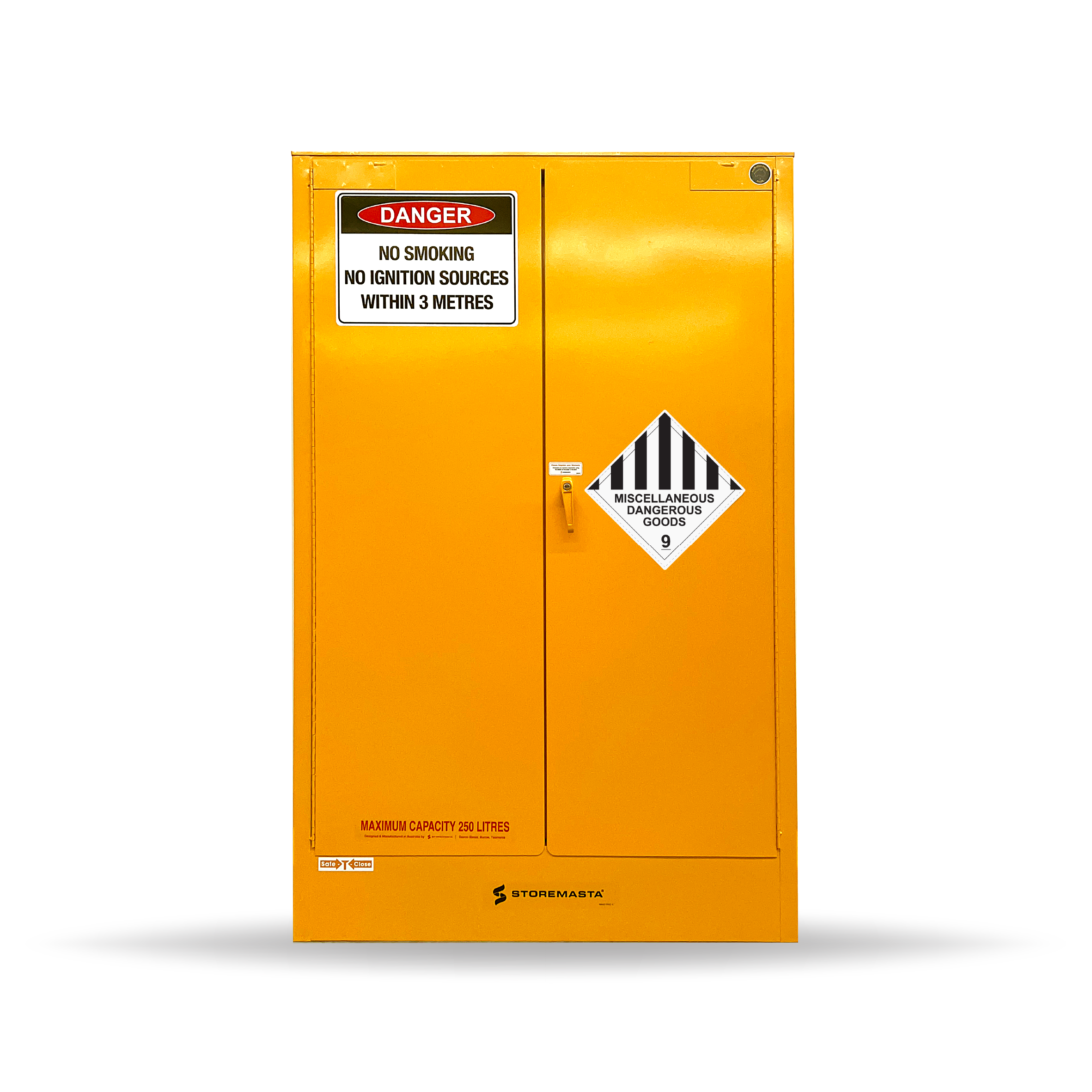

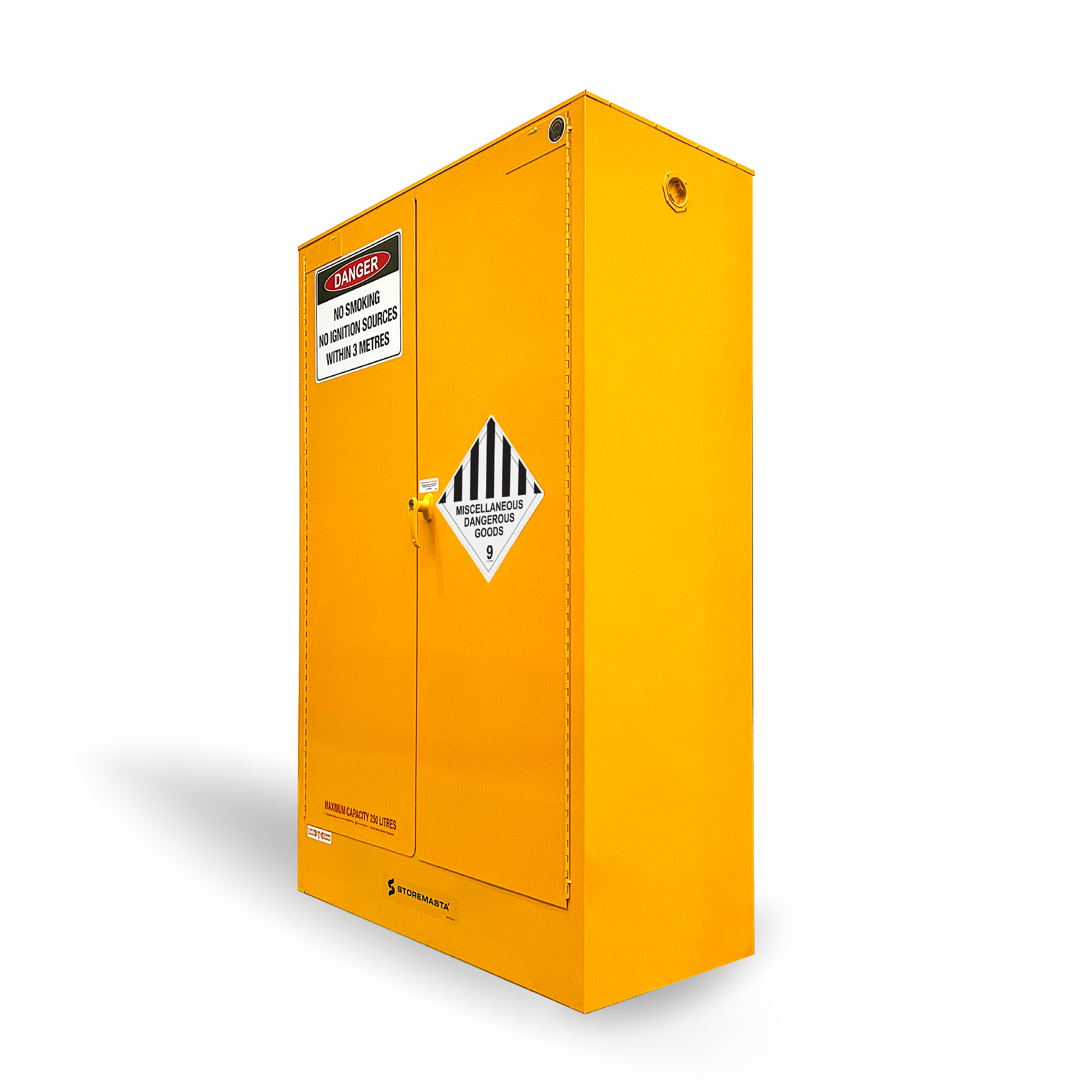

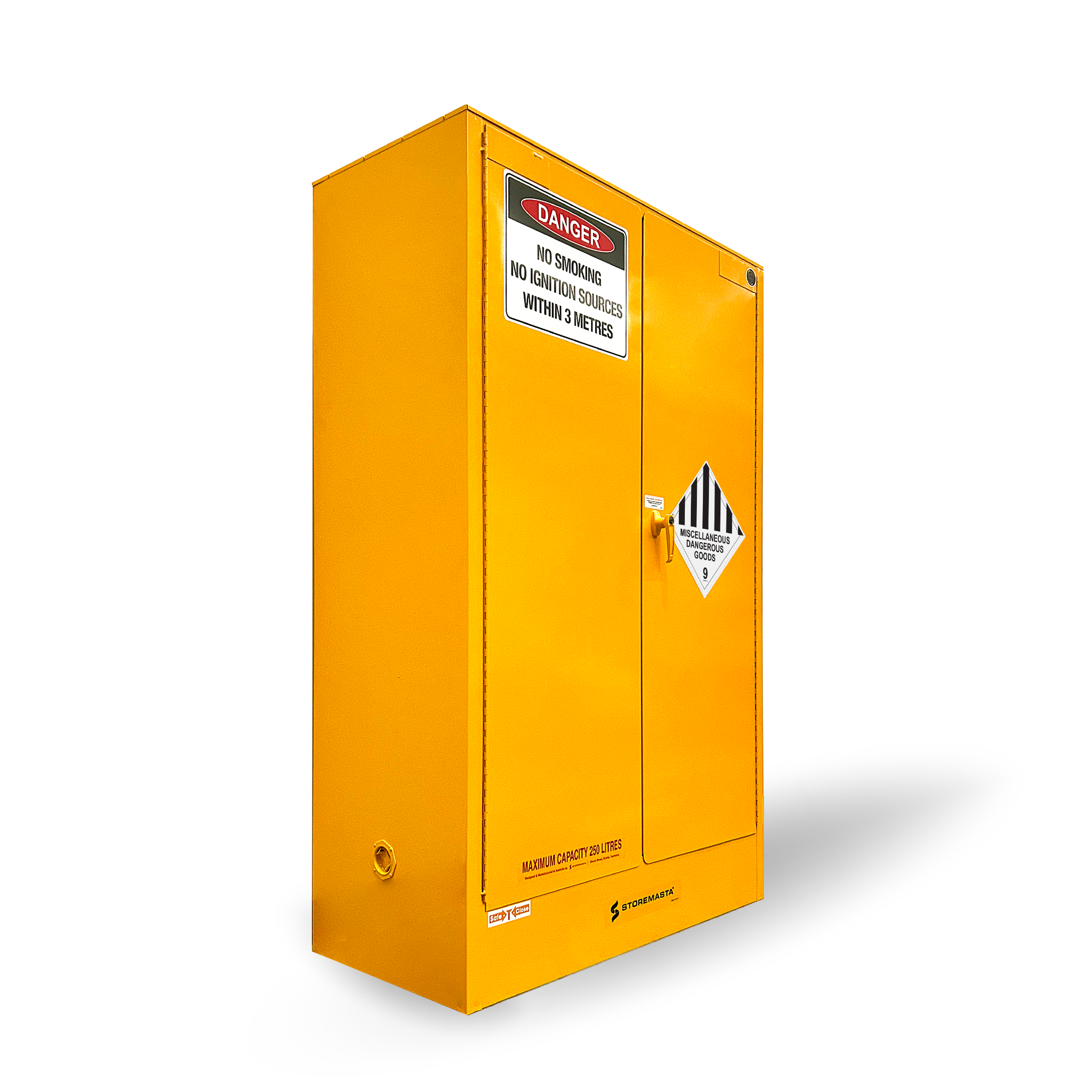

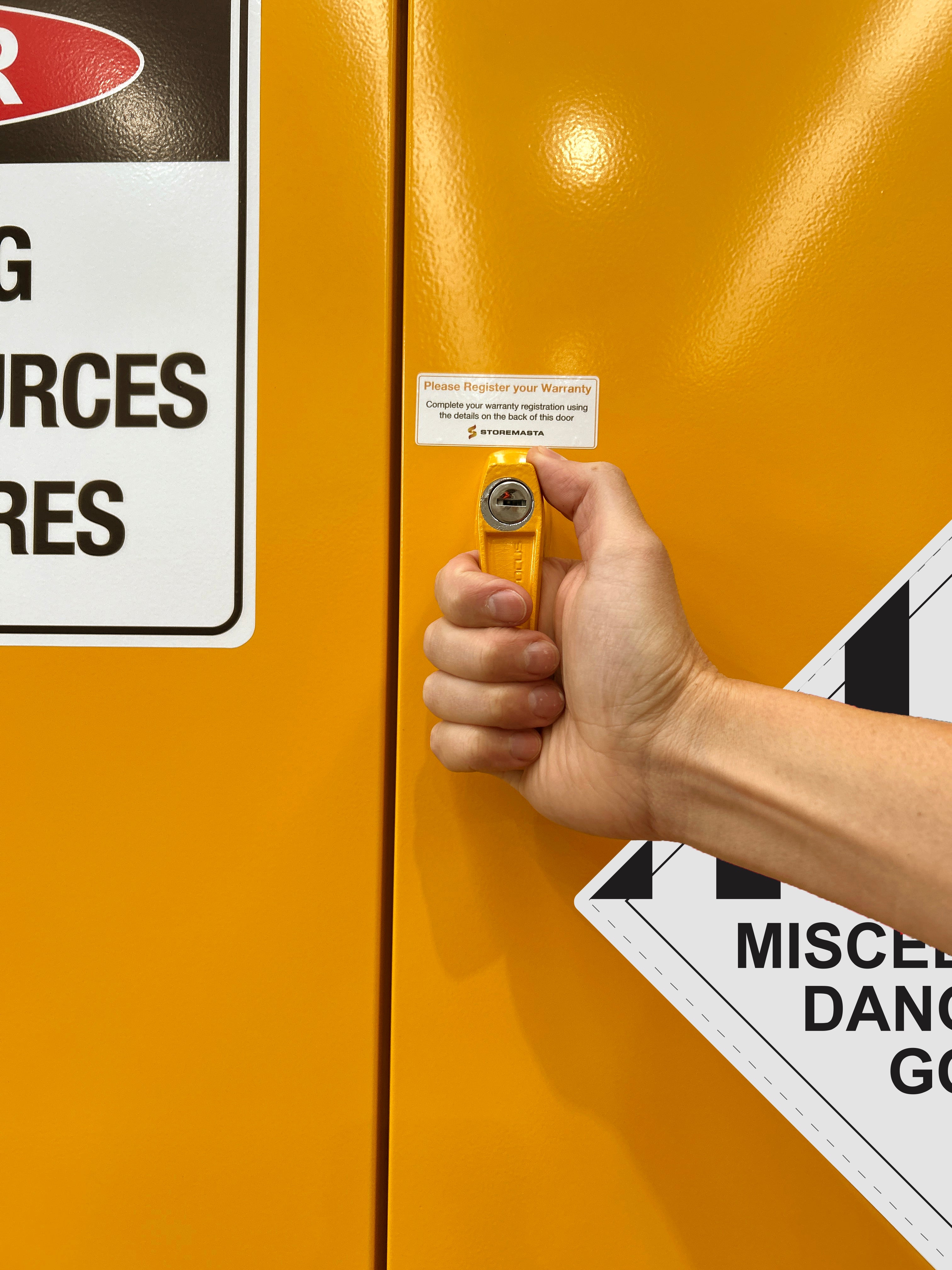

250L - Miscellaneous Dangerous Goods Storage
