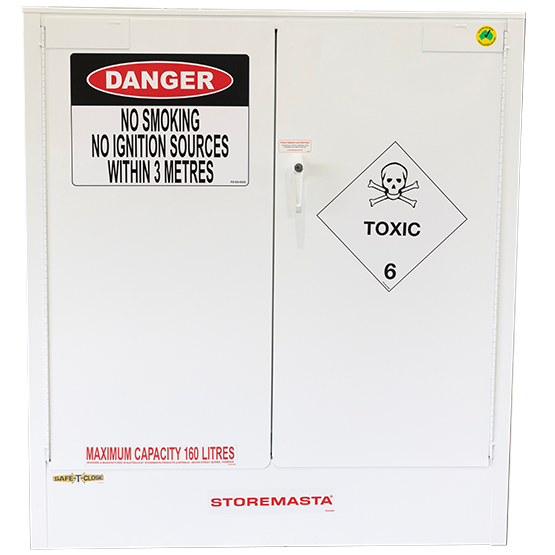

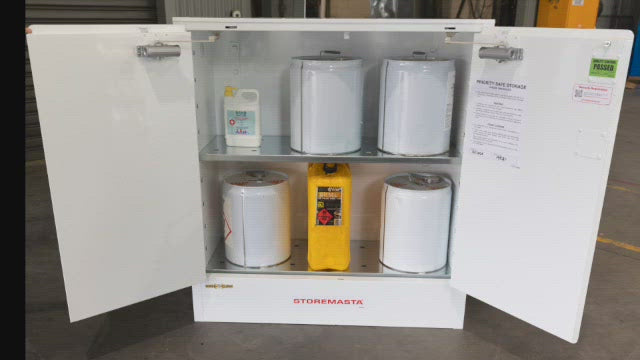

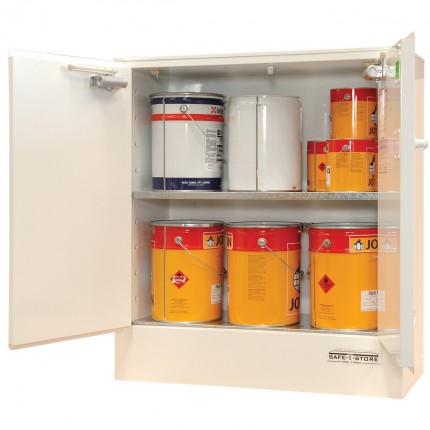

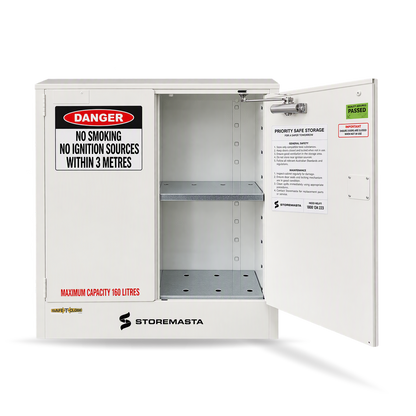

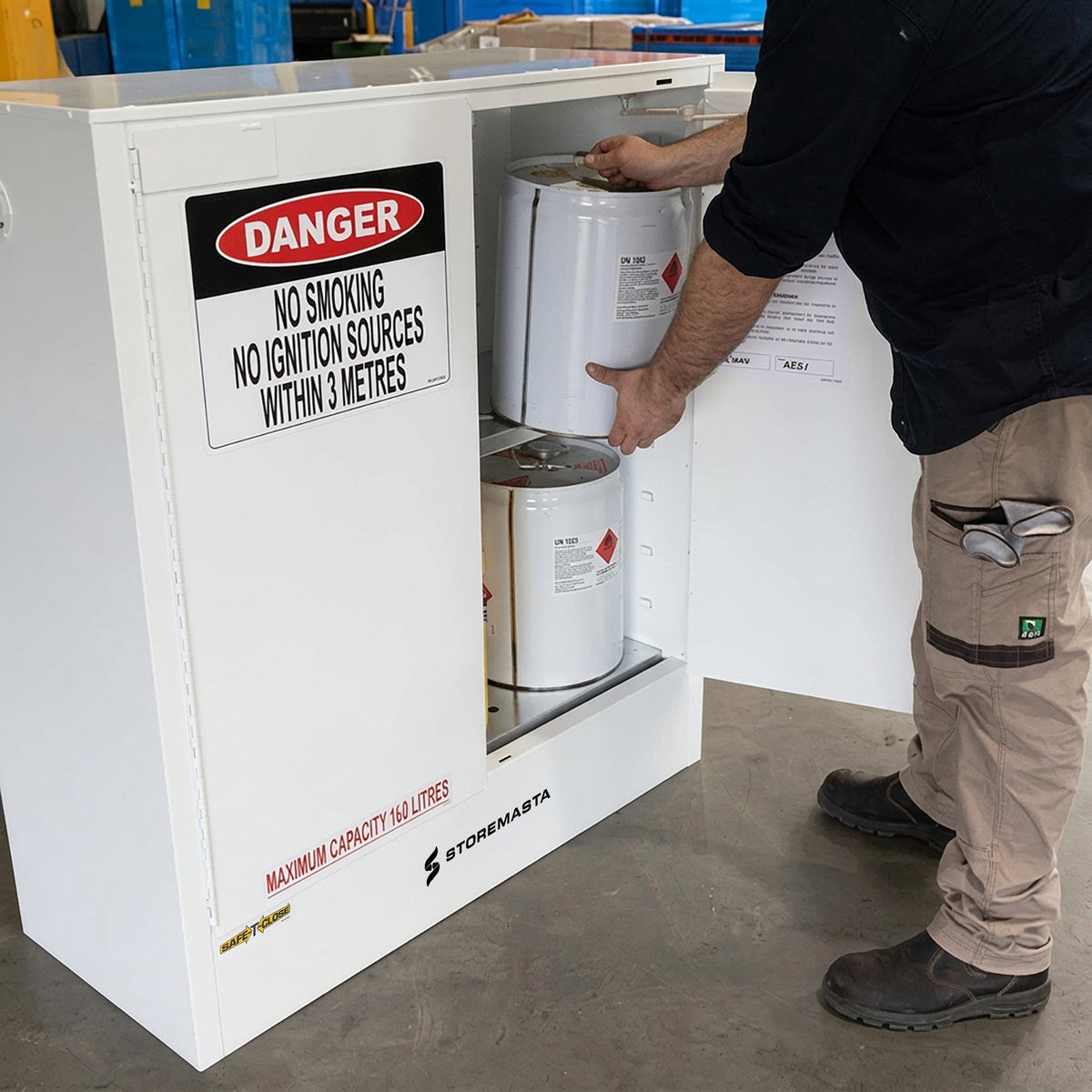

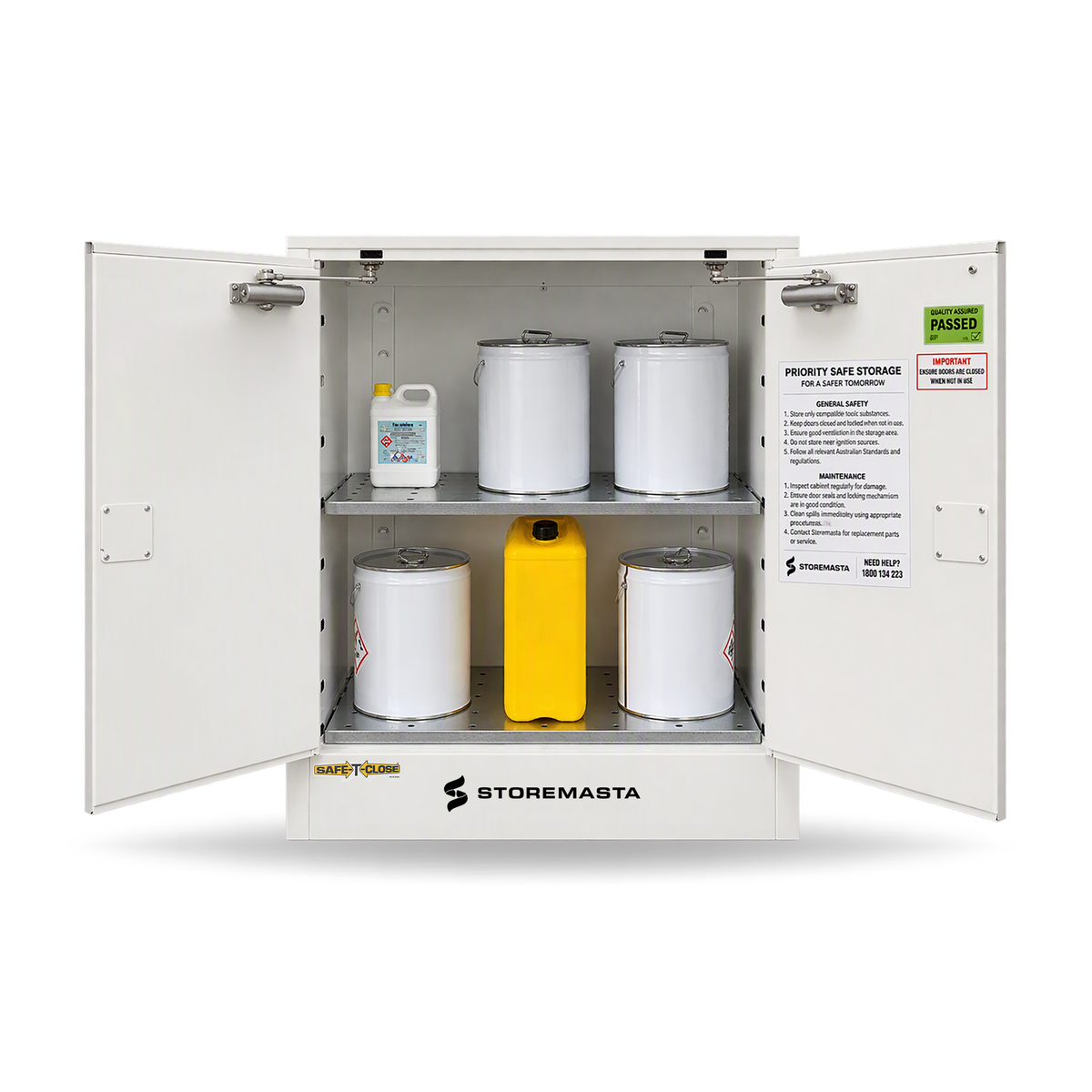

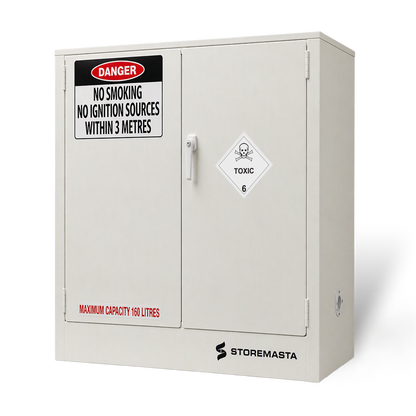

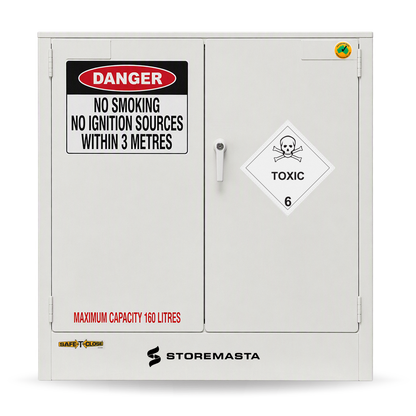

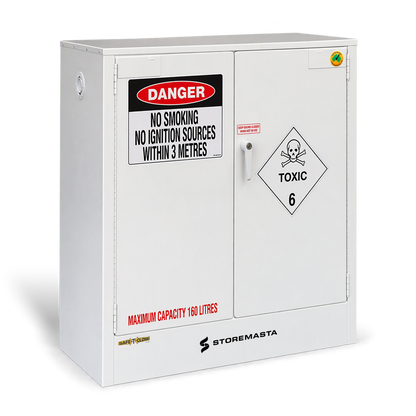

160L - Toxic Storage Cabinet
SC1606
Description
The Storage range of Toxic Storage Cabinets offer compliant protection for businesses working with Class 6 Toxic Substances.
This 160L Toxic Cabinet offers a 160 litre capacity and features Storemasta's patented SAFE-T-CLOSE© sequential closing system.
Everyday safe storage for most classes of Dangerous Goods, fully compliant with legislative construction requirements. A well respected performer in all areas of Dangerous Goods storage throughout all industries.
Features
- Double walled sheet steel construction with a 40mm thermic air barrier
- High capacity liquid tight sump to contain spills - 150mm deep

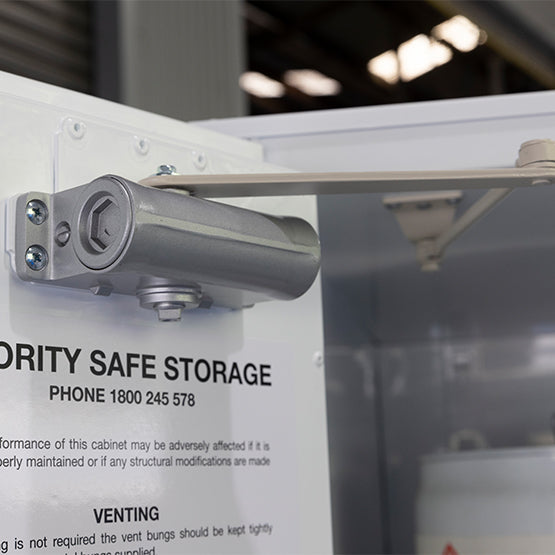

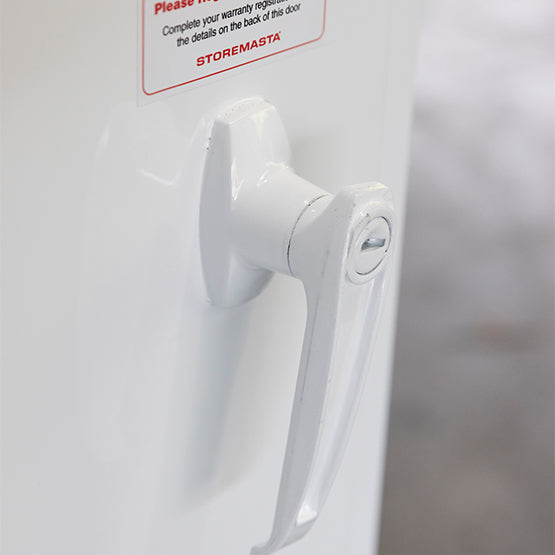

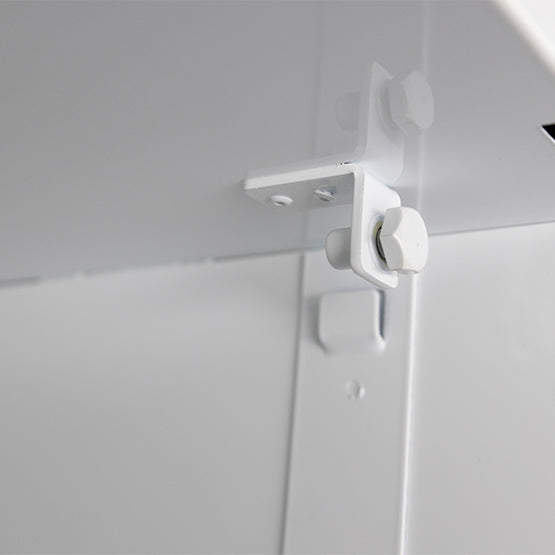

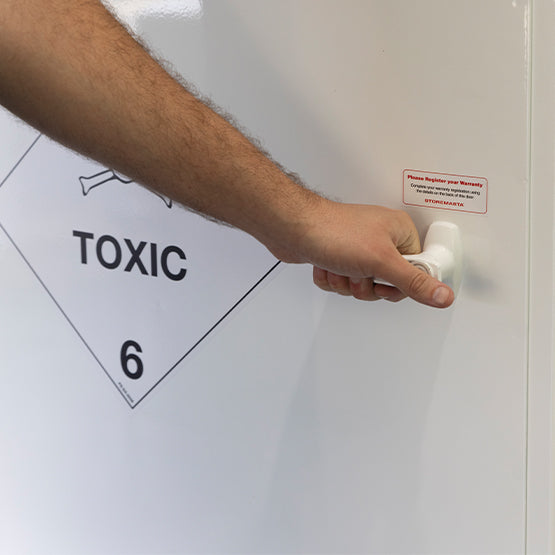

- Self-closing, close fitting doors held shut by catches at 2 points

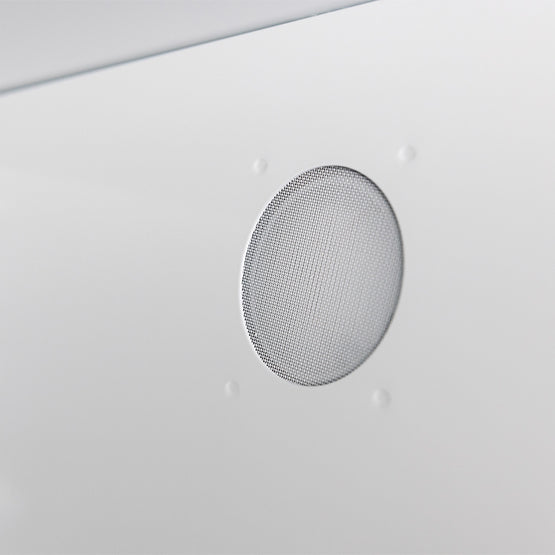

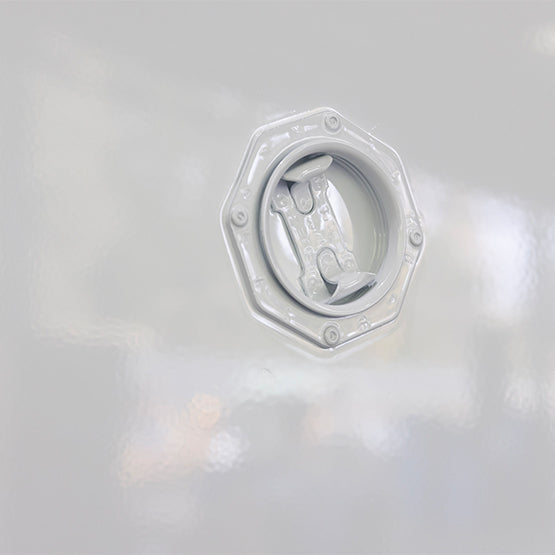

- Built in flash arrestors and vent openings [for mechanical ventilation systems]

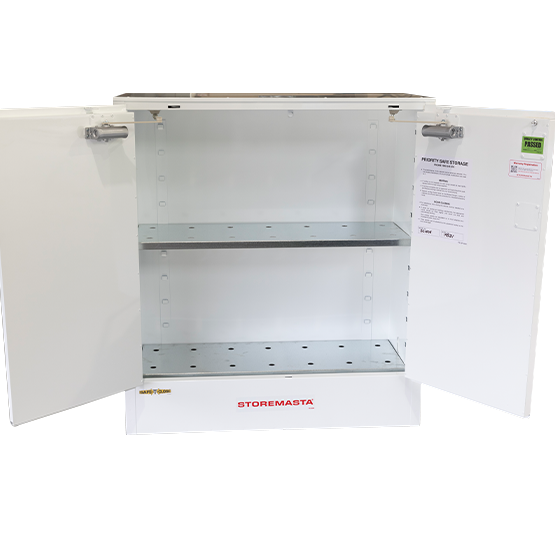

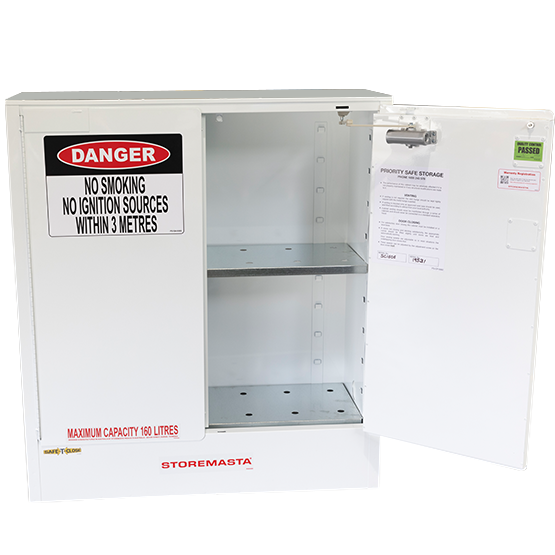

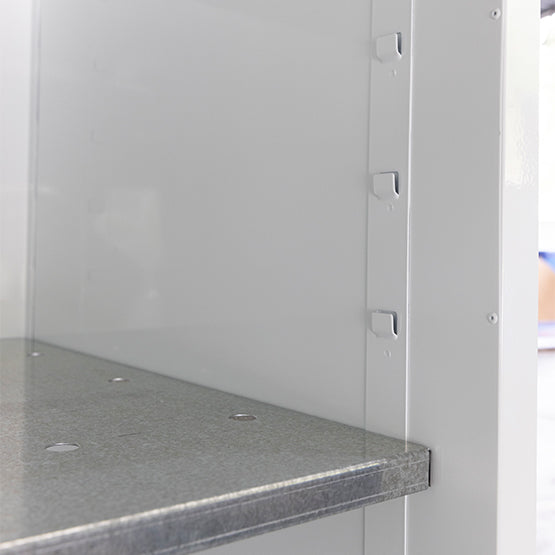

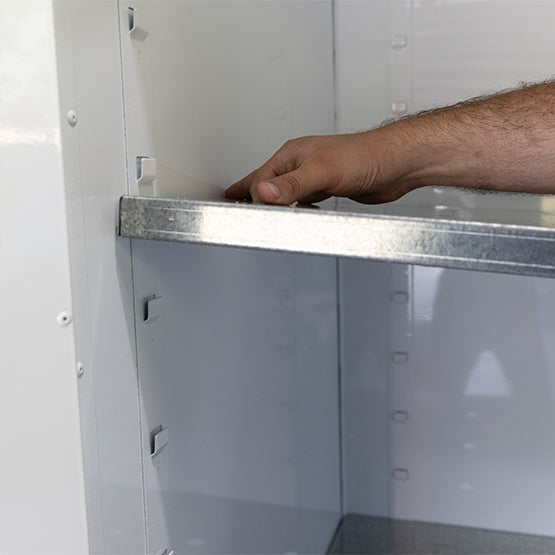

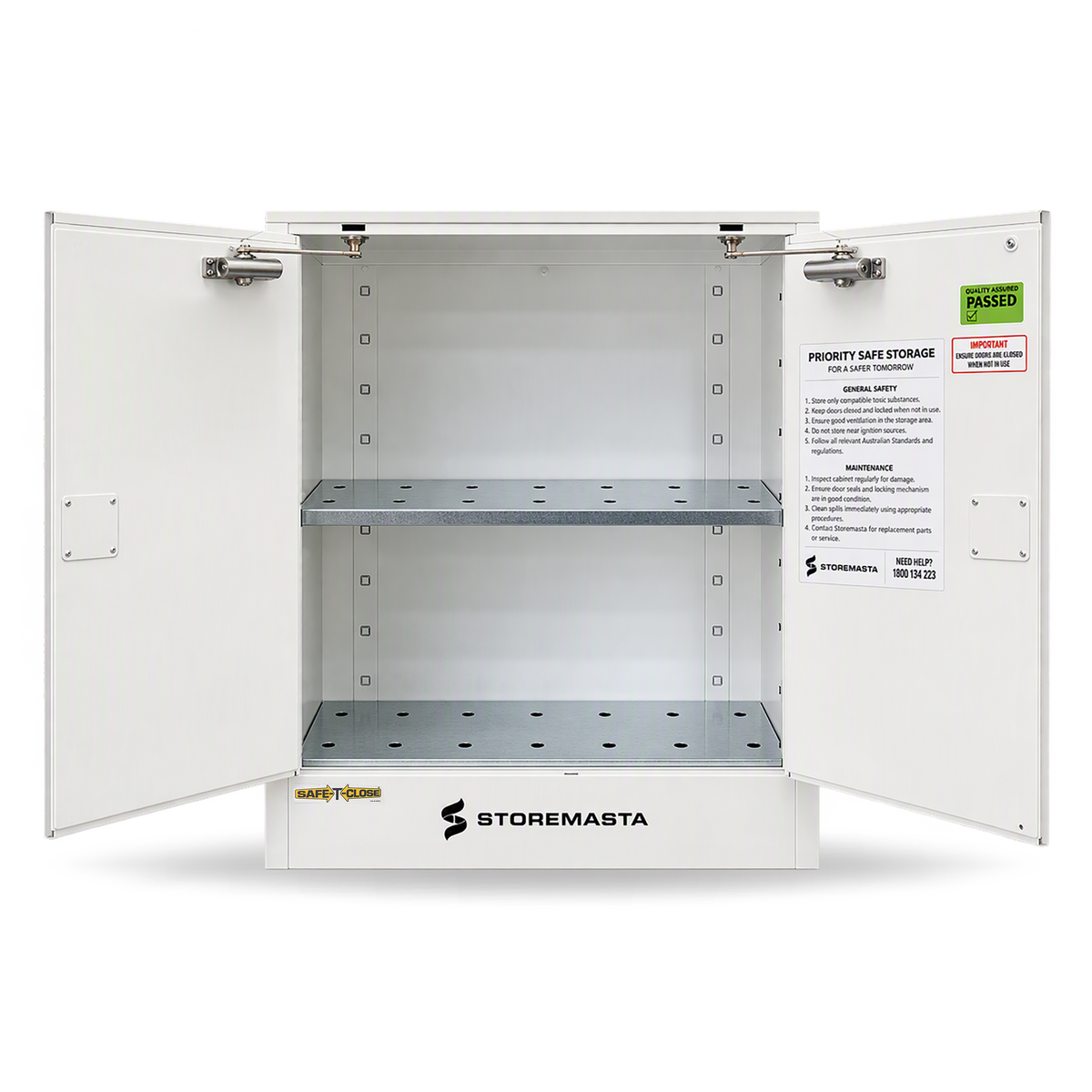

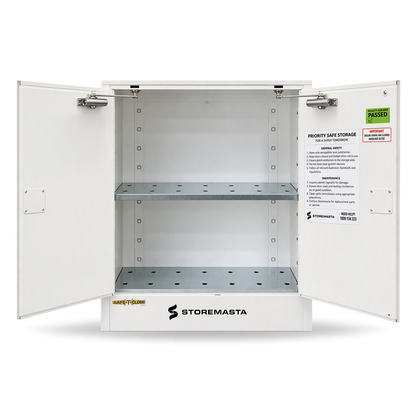

- Strong fully adjustable shelving perforated for free air movement, 100mm adjustment increments

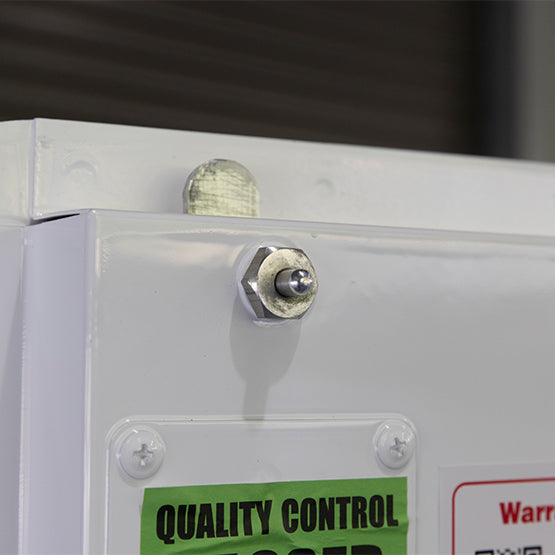

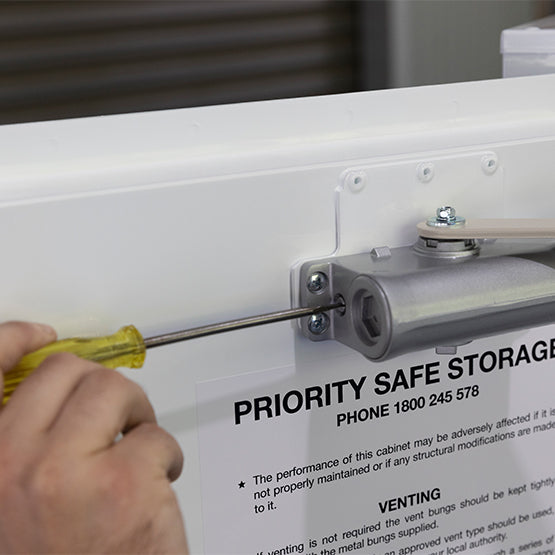

- Sequential door closing system
- Stainless steel pin with continuous hinging for strength and reliability
- State of the art powder coat finish for high durability and performance

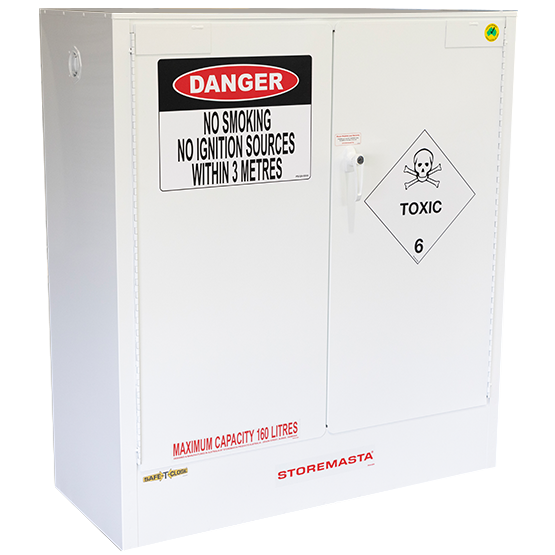

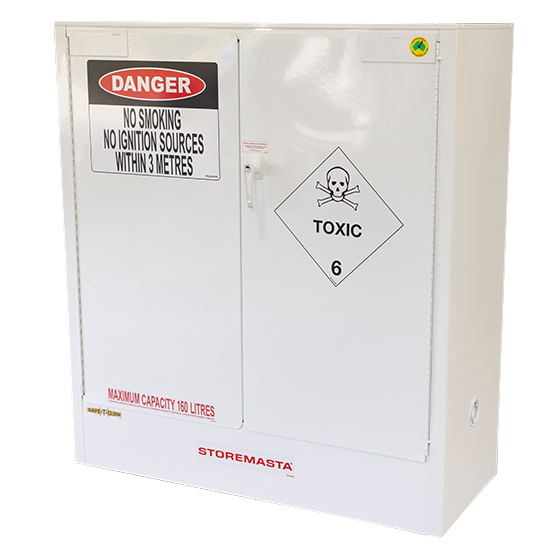

- Distinct safety signs and directions that comply with AS 1216 and AS 1319
- Designed and manufactured in full conformance to AS/NZS 4452:1997 - The storage and handling of toxic substances.
Dimensions (mm)
Dimensions (mm)
| External | H 1220 | W 1100 | D 450 |
| Internal | H 973 | W 1018 | D 370 |

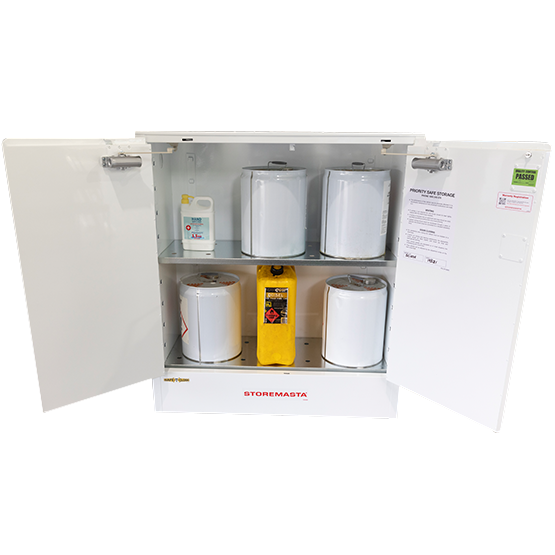

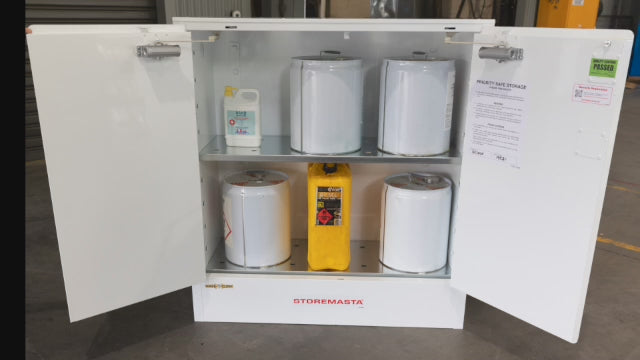

Storage Capacity
Storage Capacity
| Max Capacity | 160L |
| Winchester Size | 0.5L | 2.5L | 5L |
| Capacity | 225*** | 28 | 10 |
| Drum Size | 4L | 20L | 60L | 205L |
| Capacity | 30*** | 6 | - | - |
Calculations based on these package size
Dangerous Goods Compliance Specifications
Dangerous Goods Compliance Specifications
| Complies with | AS/NZS - 4452 - 1997 |
| Sump Capacity | 56L |
Other Specifications
Other Specifications
| Weight | 78.0 kg |
| Shelf Levels | 2 |
| Storage Levels | 2 |
| Shelf Thickness (mm) | 28 |
| Shelf spacing (mm) | 100 |
| No. of Shelf Lugs | 10 |
