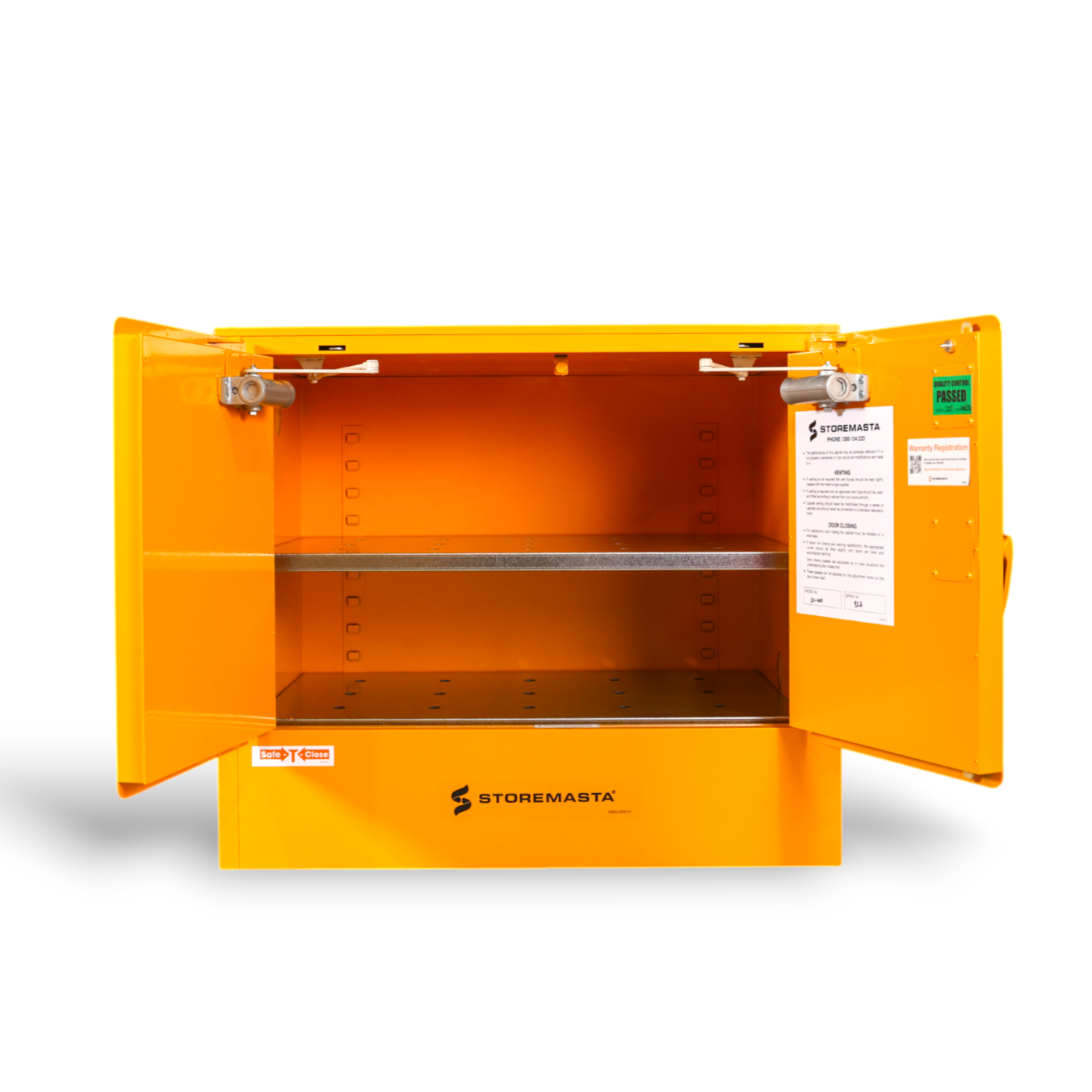

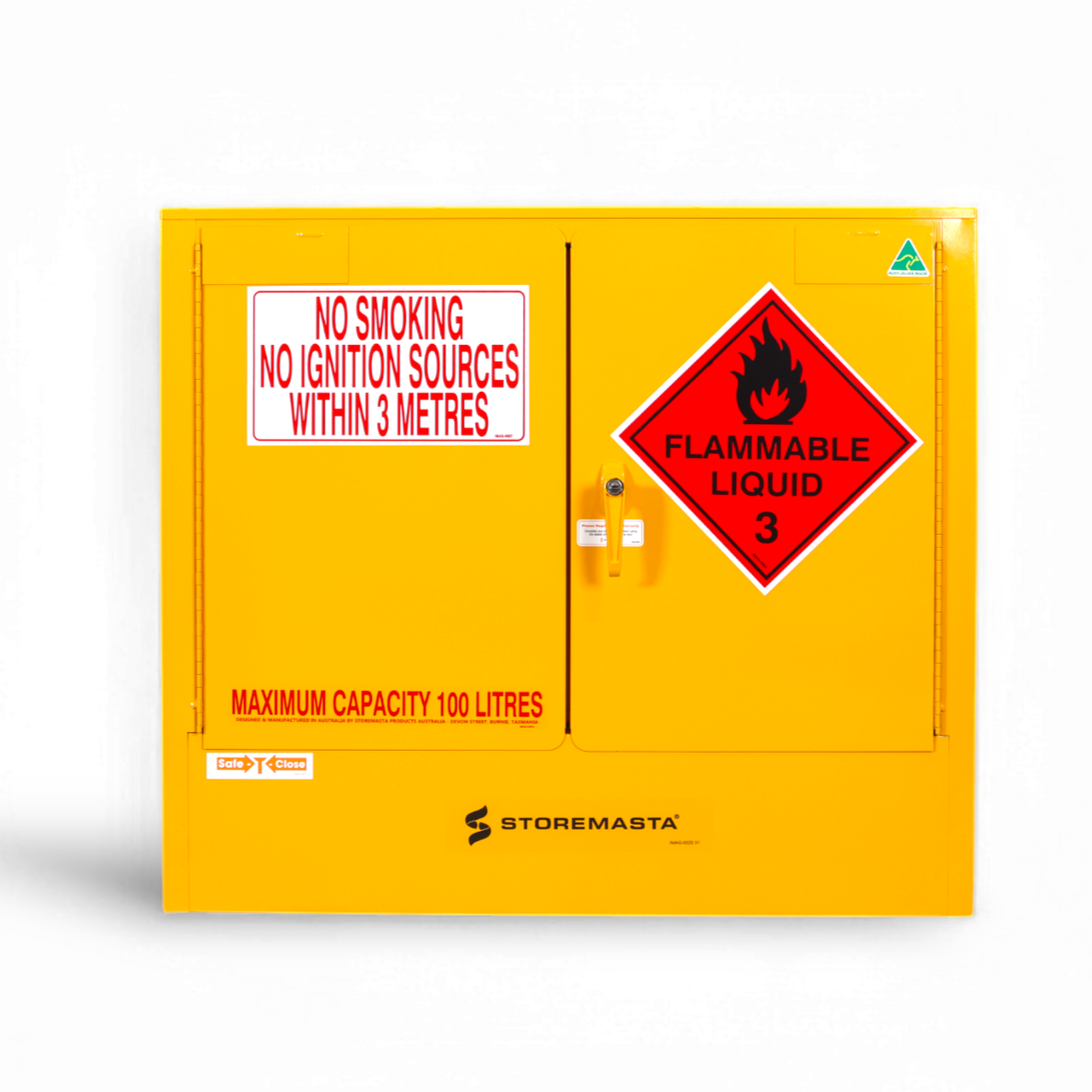

100L - Flammable Liquid Storage Cabinet

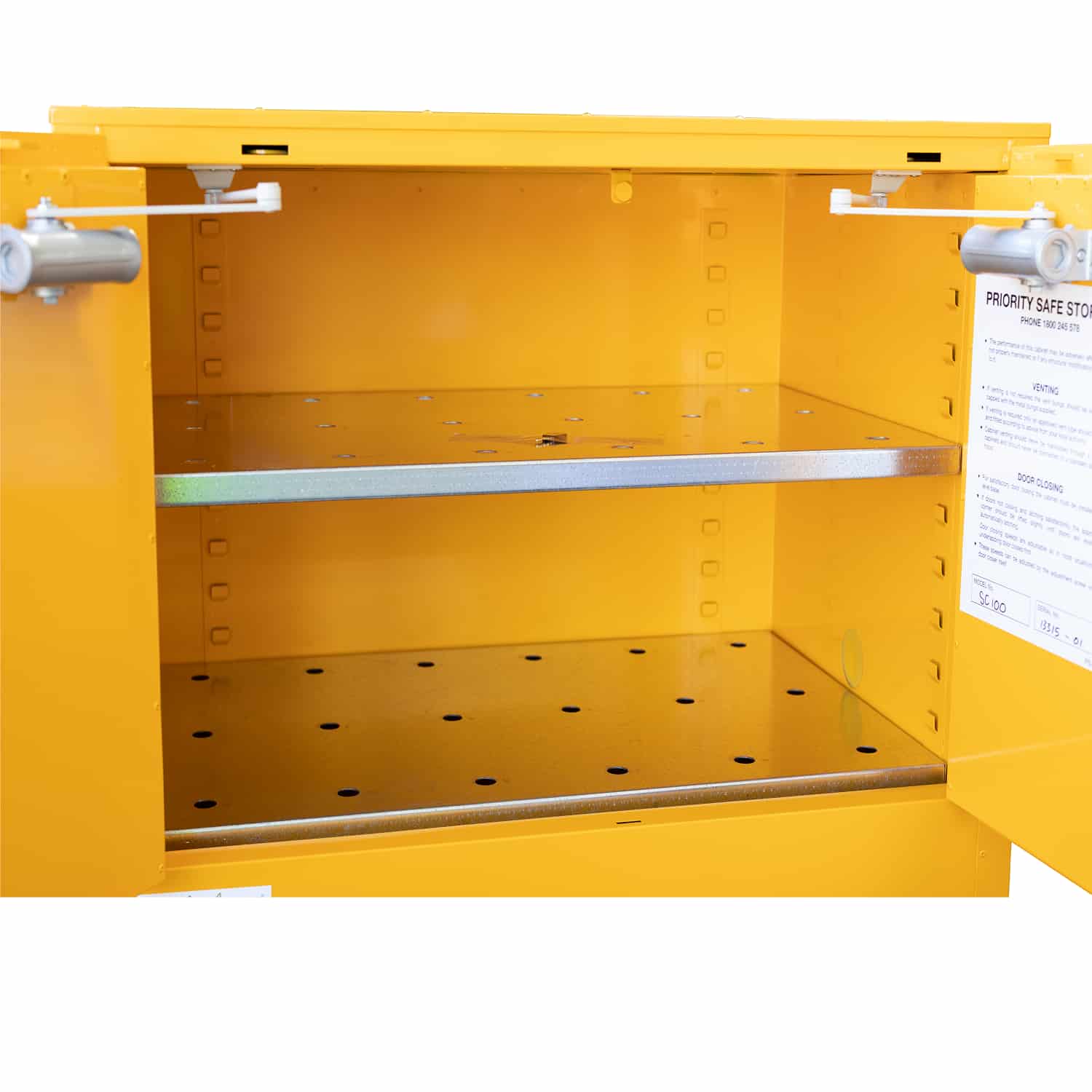

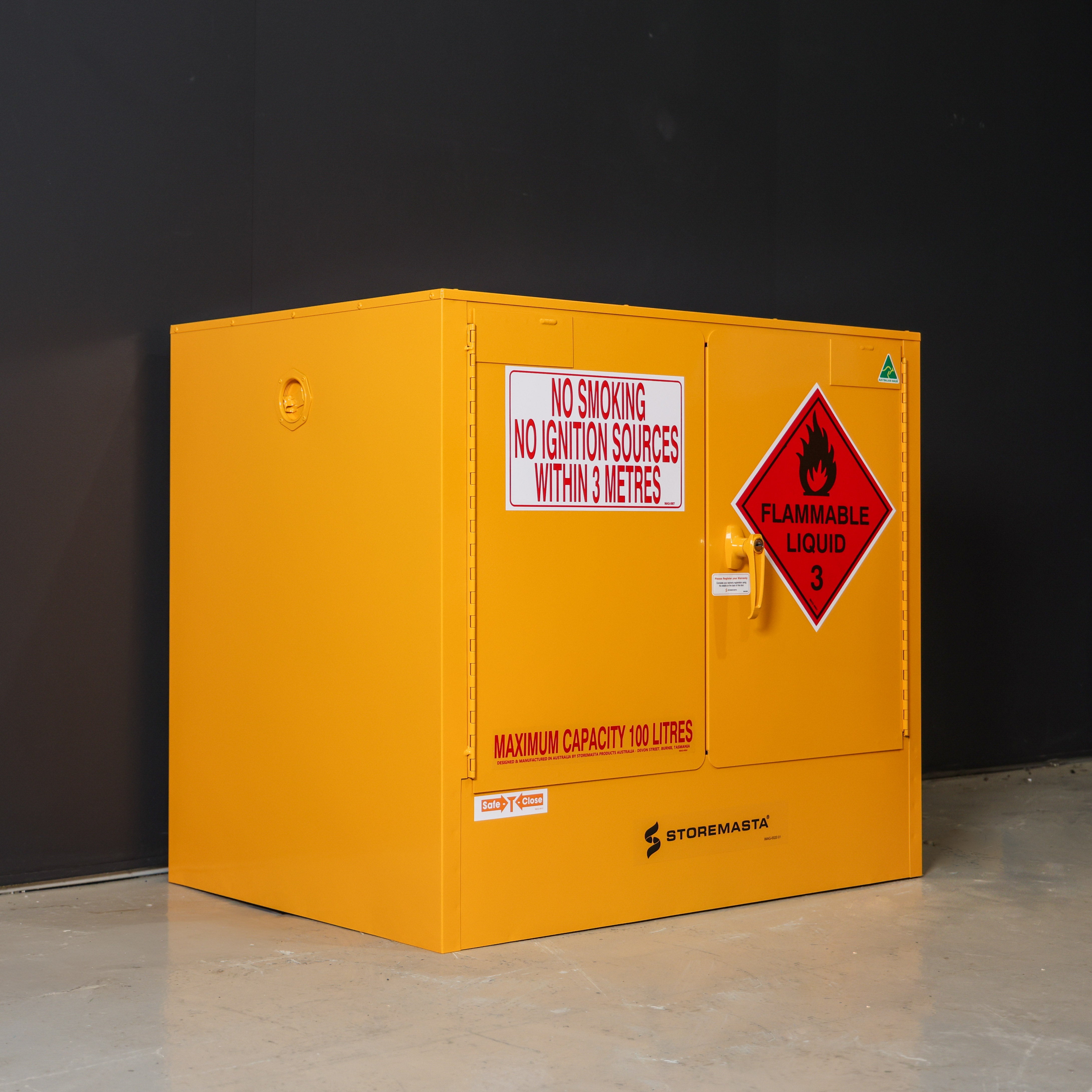

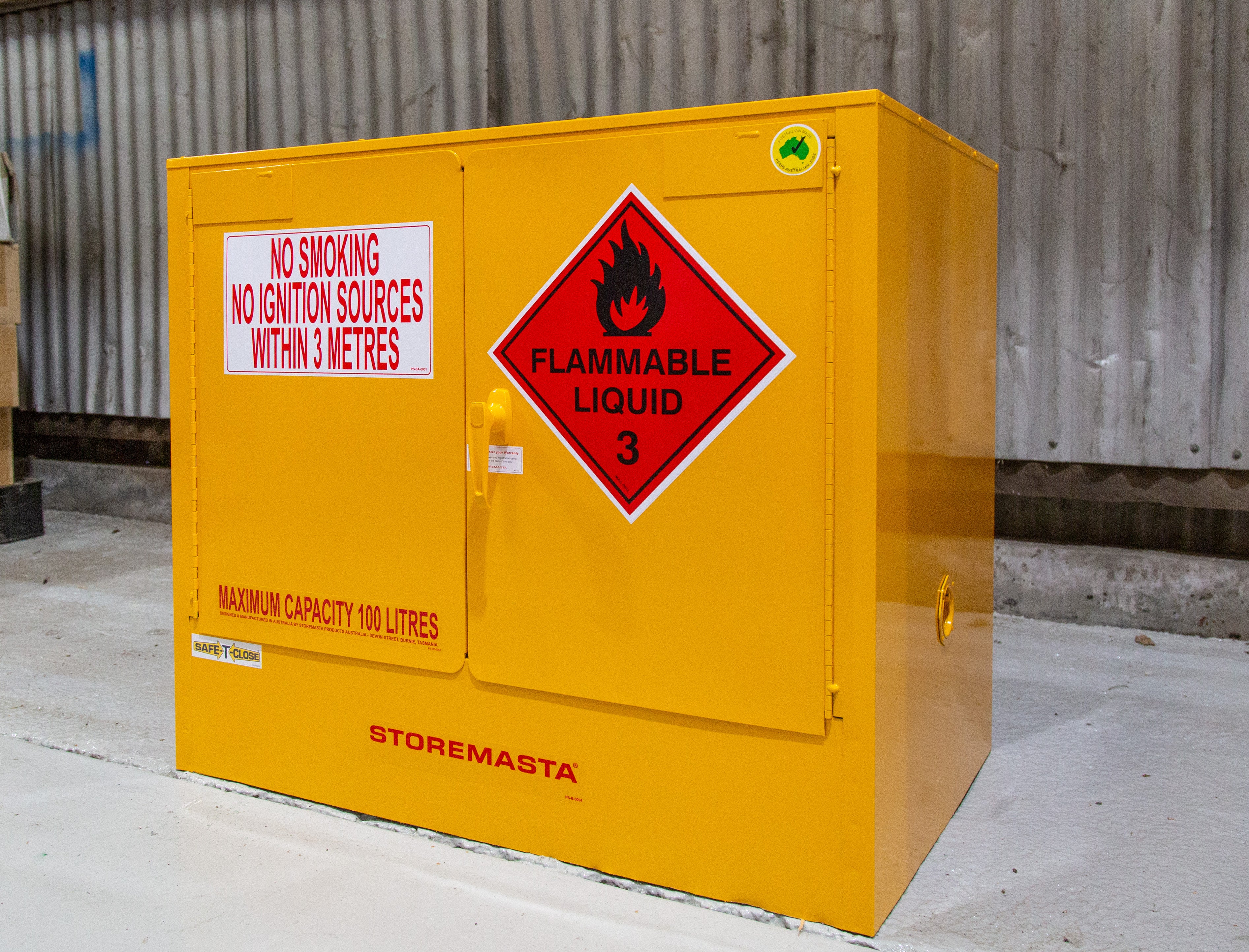

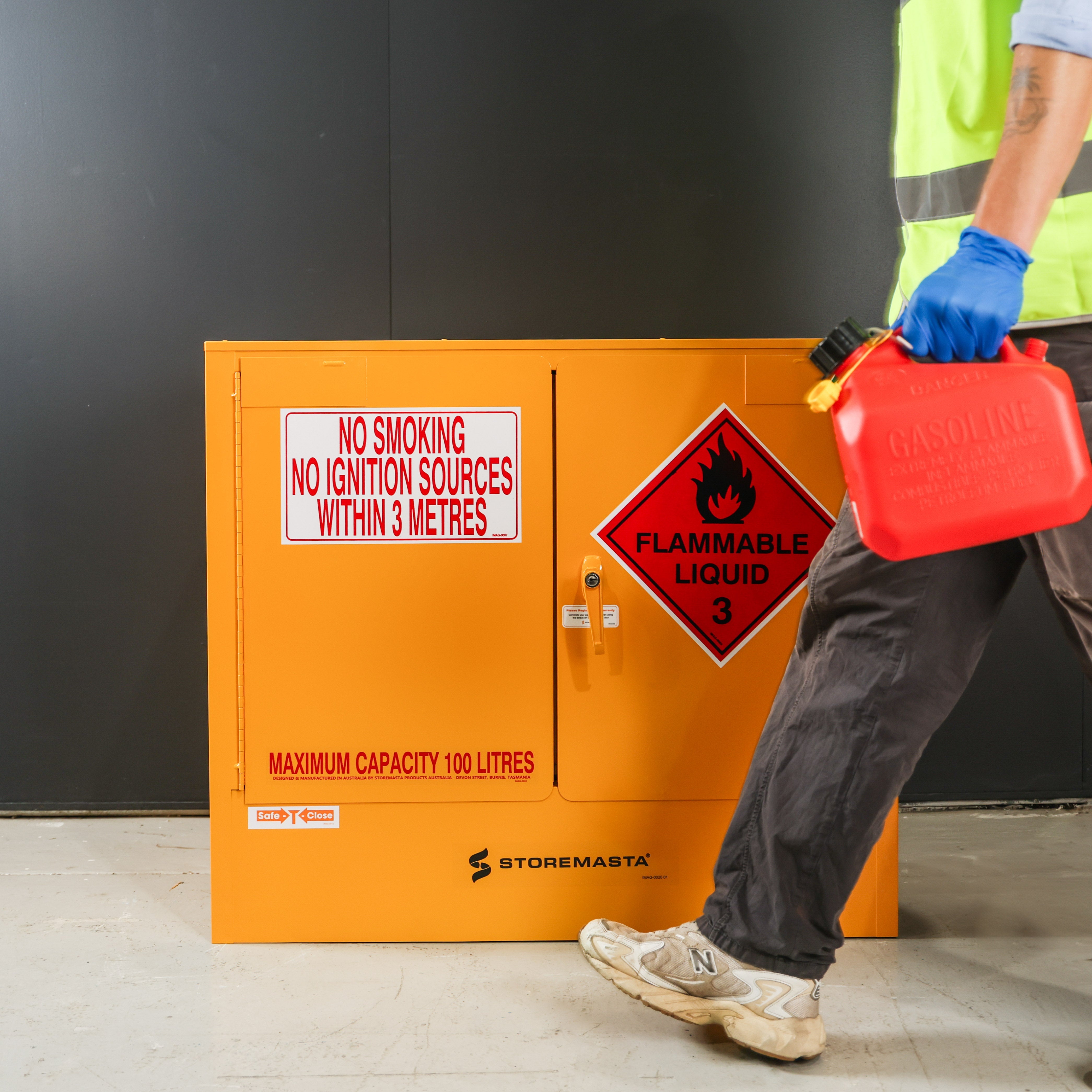

The SC100 is an indoor Flammable Liquid Storage Cabinet designed to store up to 100 litres of Class 3 Flammable Liquids. This innovative under-bench storage solution offers protection against spills and flammable vapours with a compliant spill containment sump, perforated shelving for airflow, and flash arrestors and vent openings to suit a mechanical ventilation system.

Your flammable liquids are always secure behind Storemasta's SAFE-T-CLOSE® sequential door closing system, which automatically ensures the cabinet doors close, without generating sparks.

On the outside, the SC100 is finished with a high-tech powder coat, and arrives complete with Class 3 Flammable Liquid and hazard signage.

Designed and manufactured in Australia to meet the requirements of AS1940, order your Flammable Cabinet direct from Storemasta today.


  • Double walled sheet steel construction with a 40mm thermic air barrier

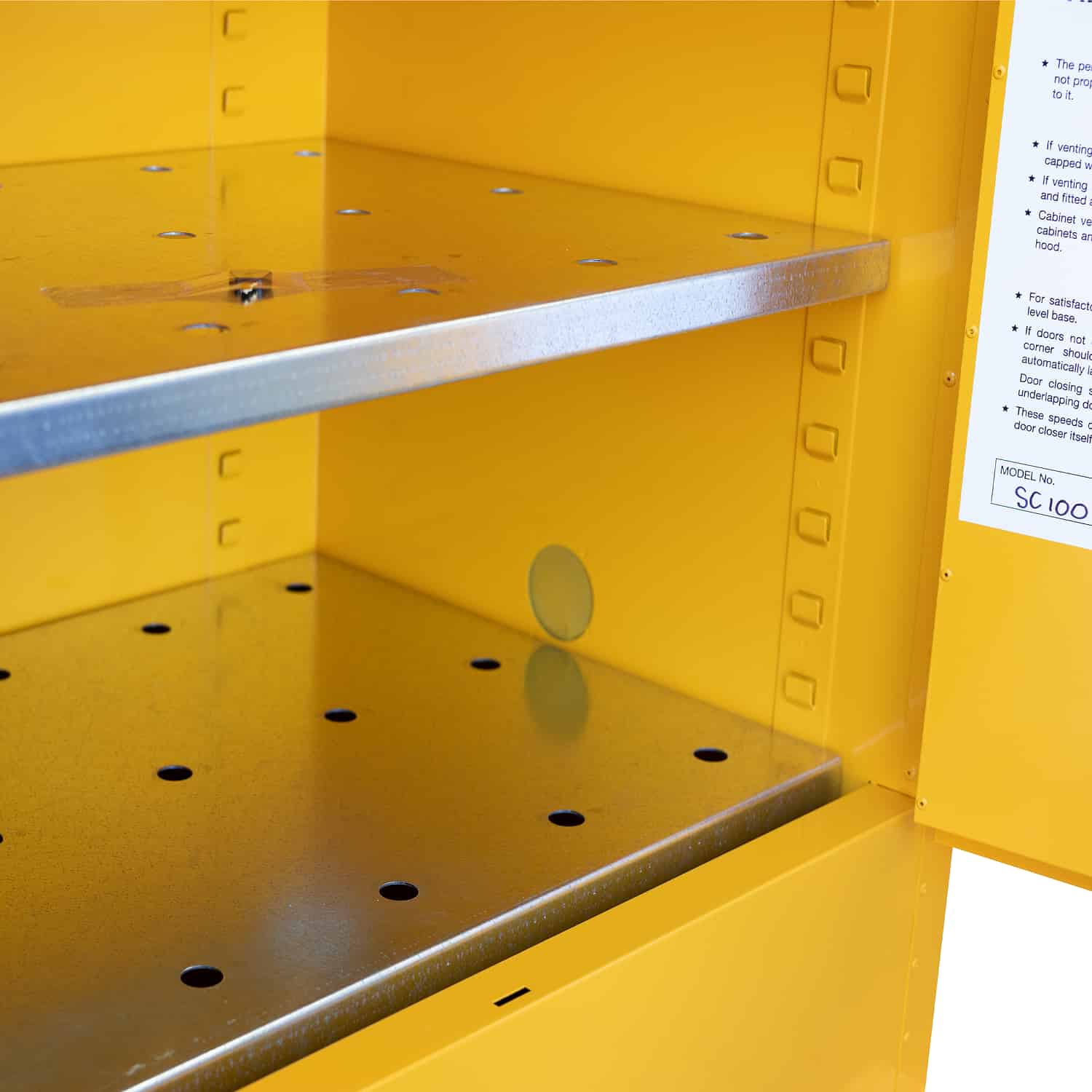

  • High capacity liquid tight sump to contain spills - 150mm deep

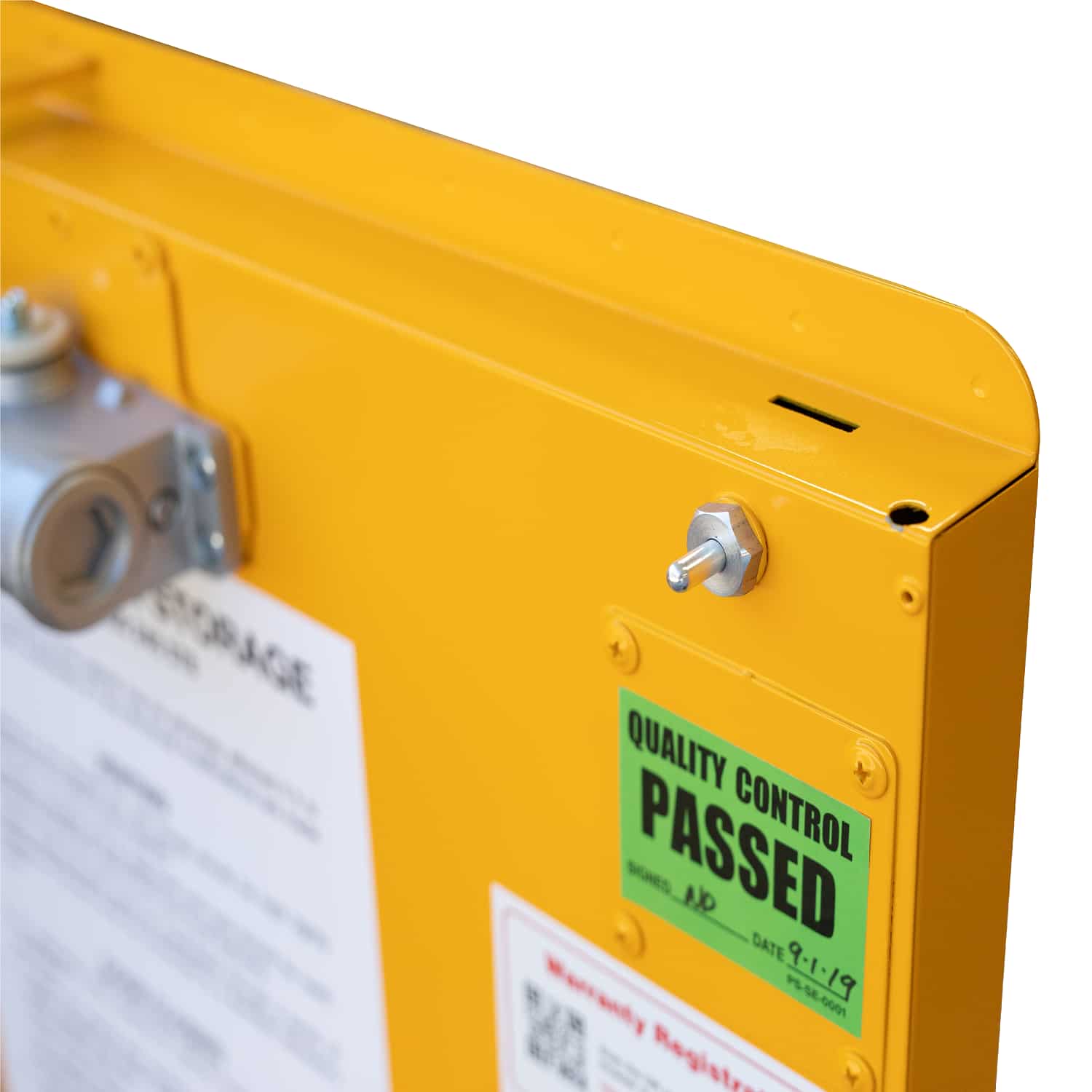

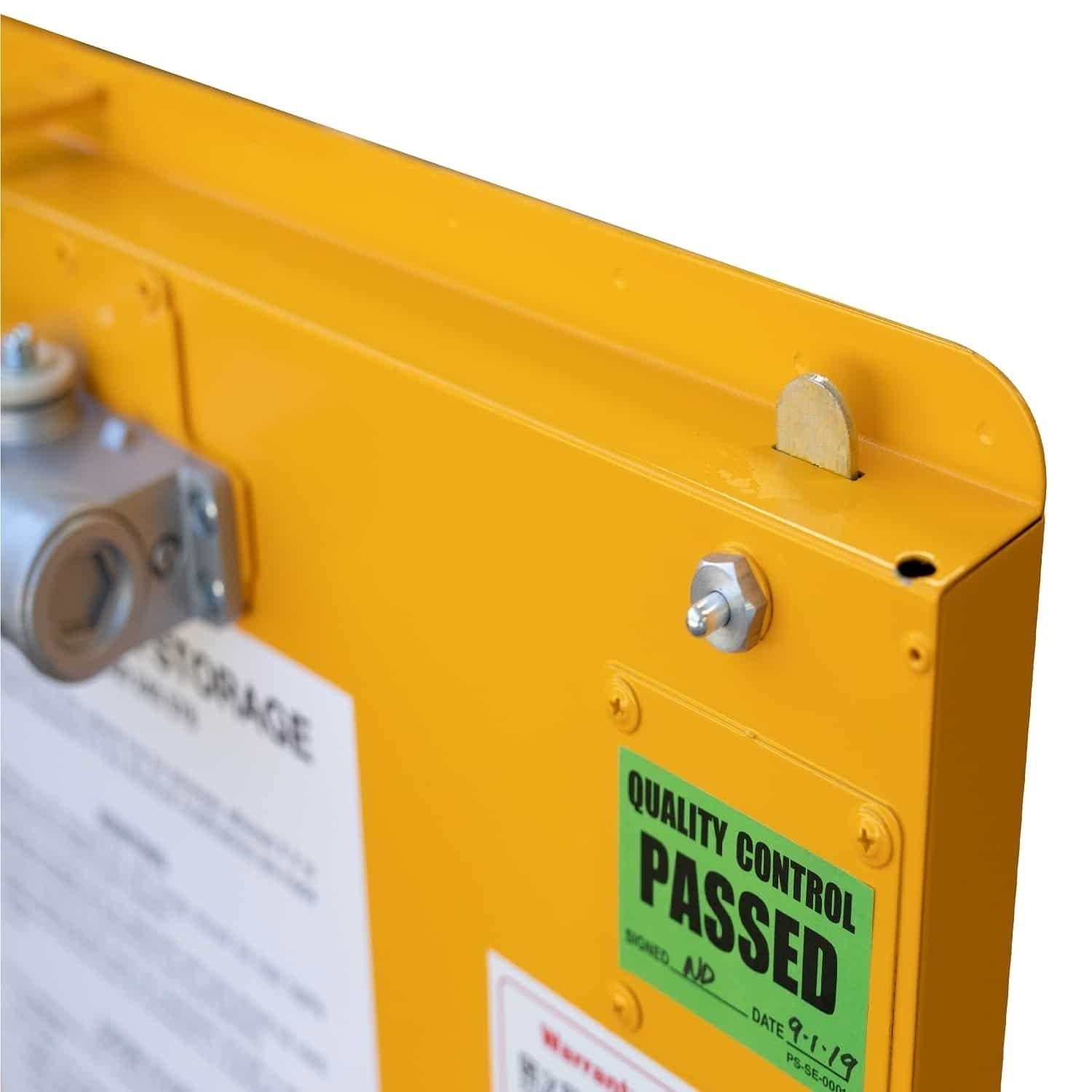

  • Self-closing, close fitting doors that latch at 2 points

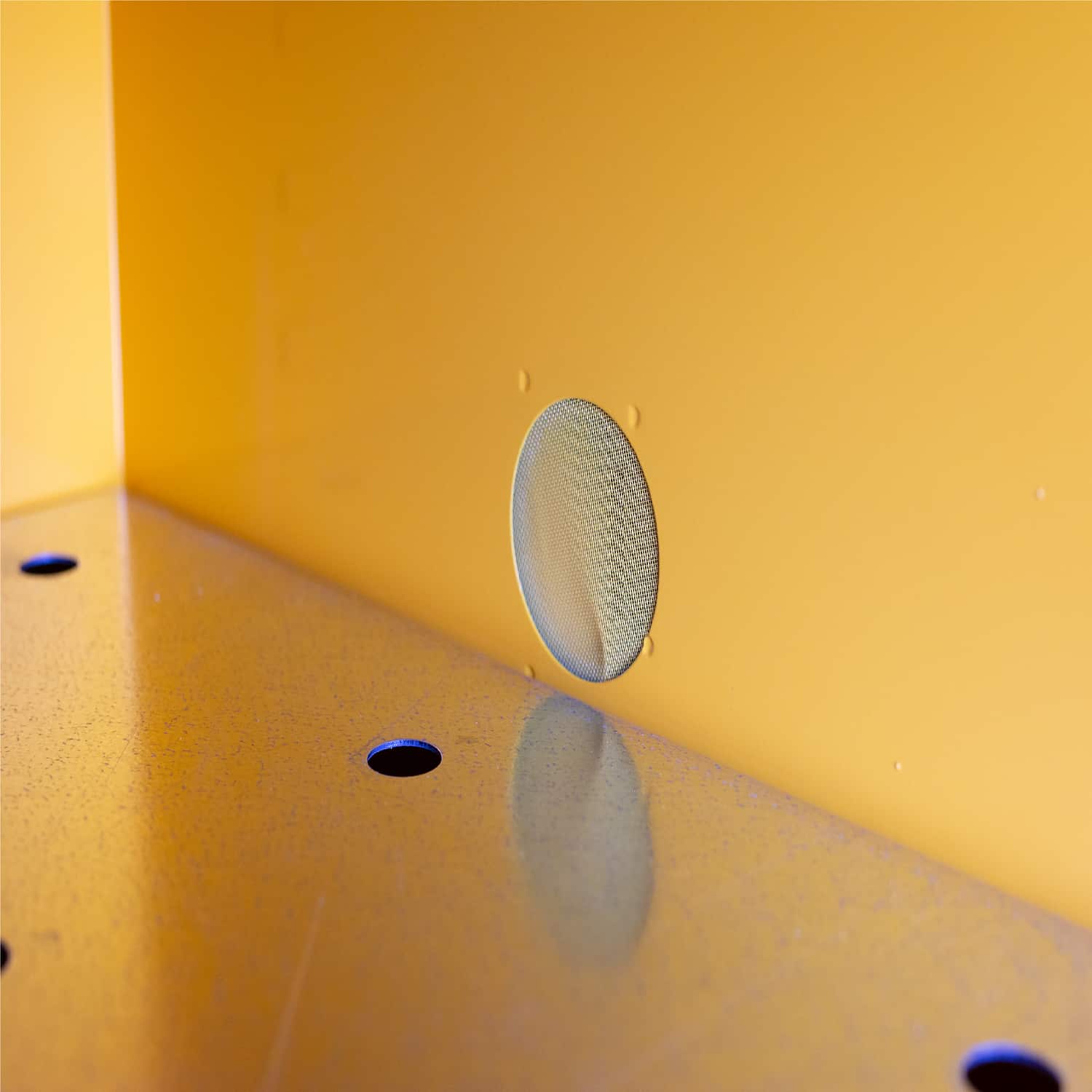

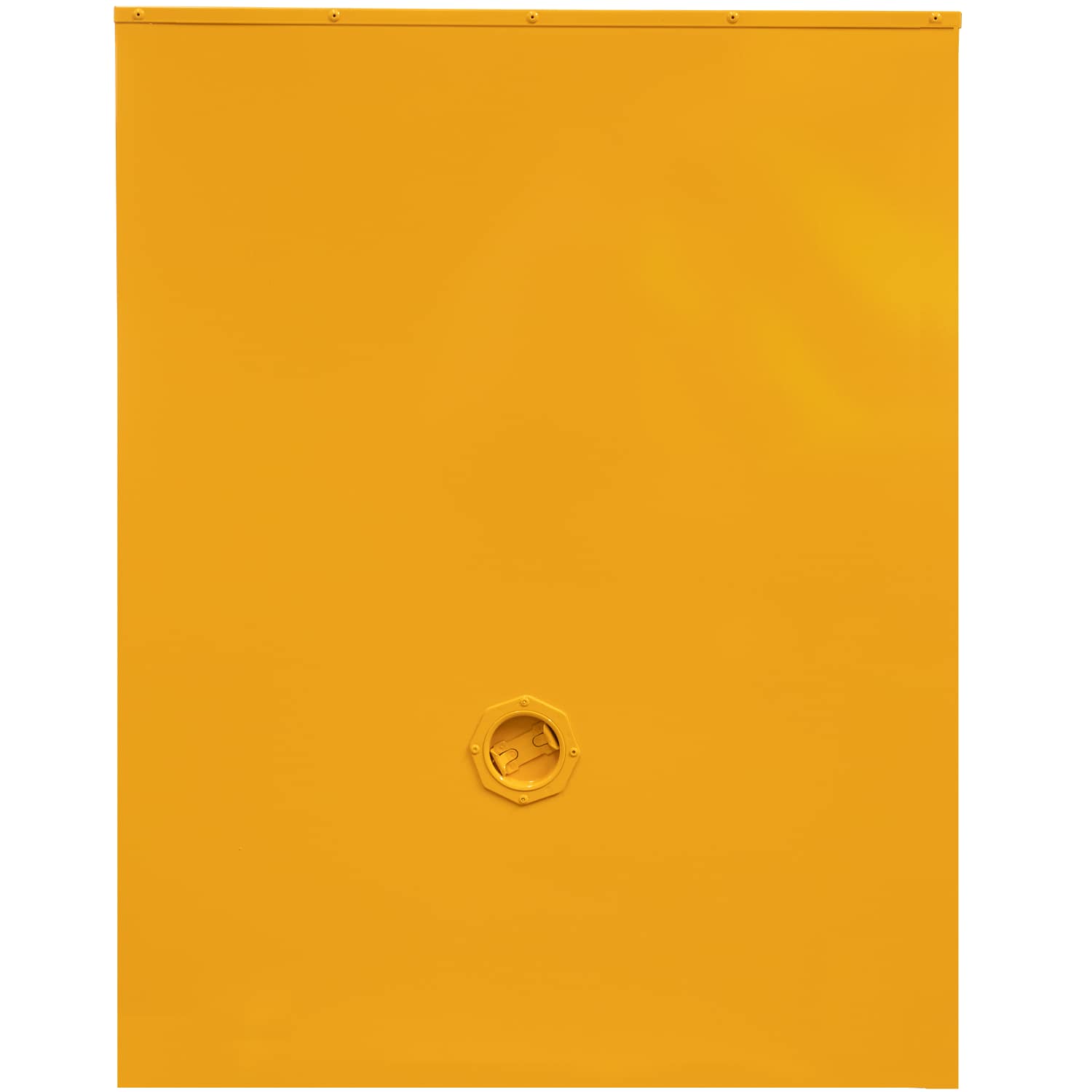

  • Built in flash arrestors and vent openings [for mechanical ventilation systems]

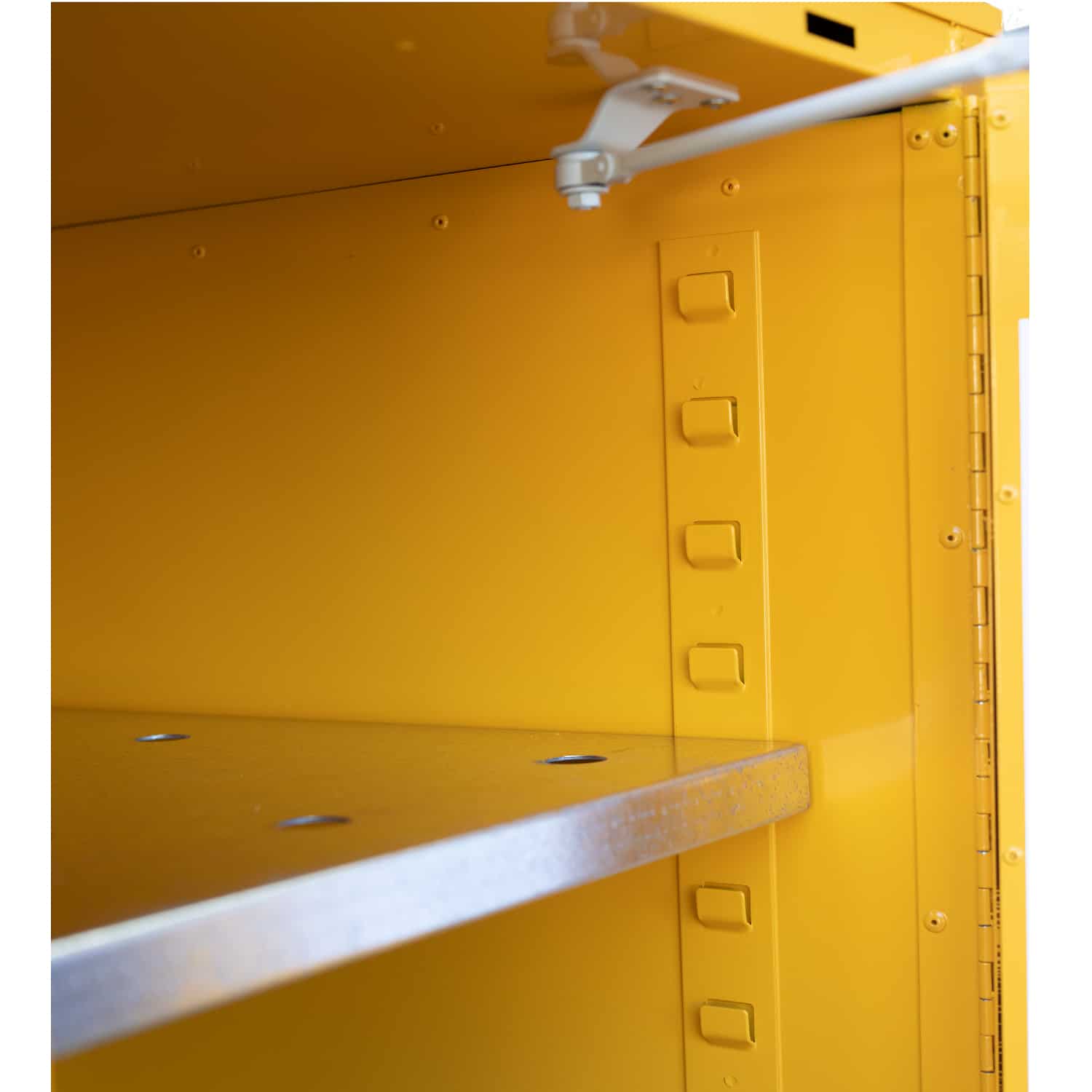

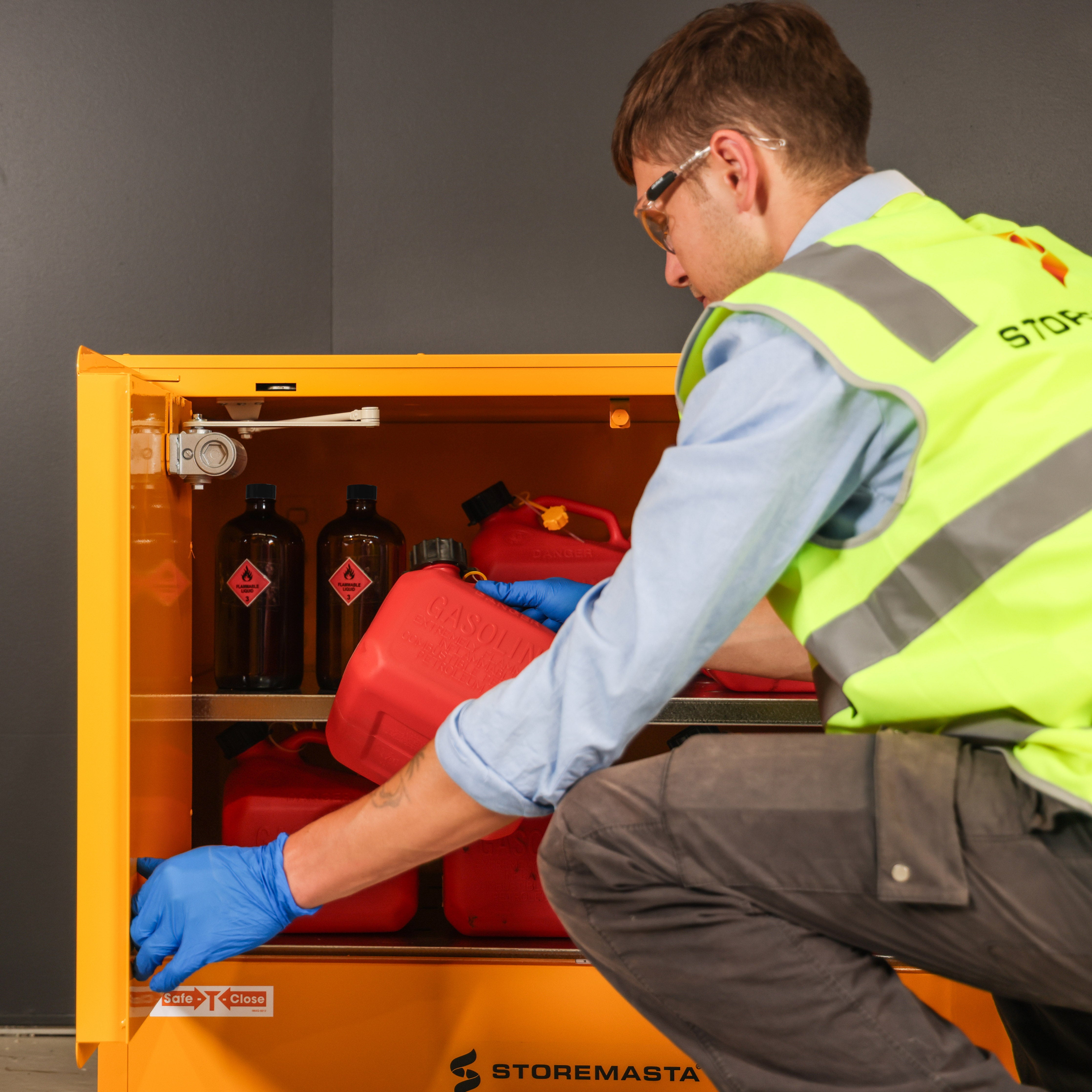

  • Strong fully adjustable shelving perforated for free air movement, 100mm adjustment increments

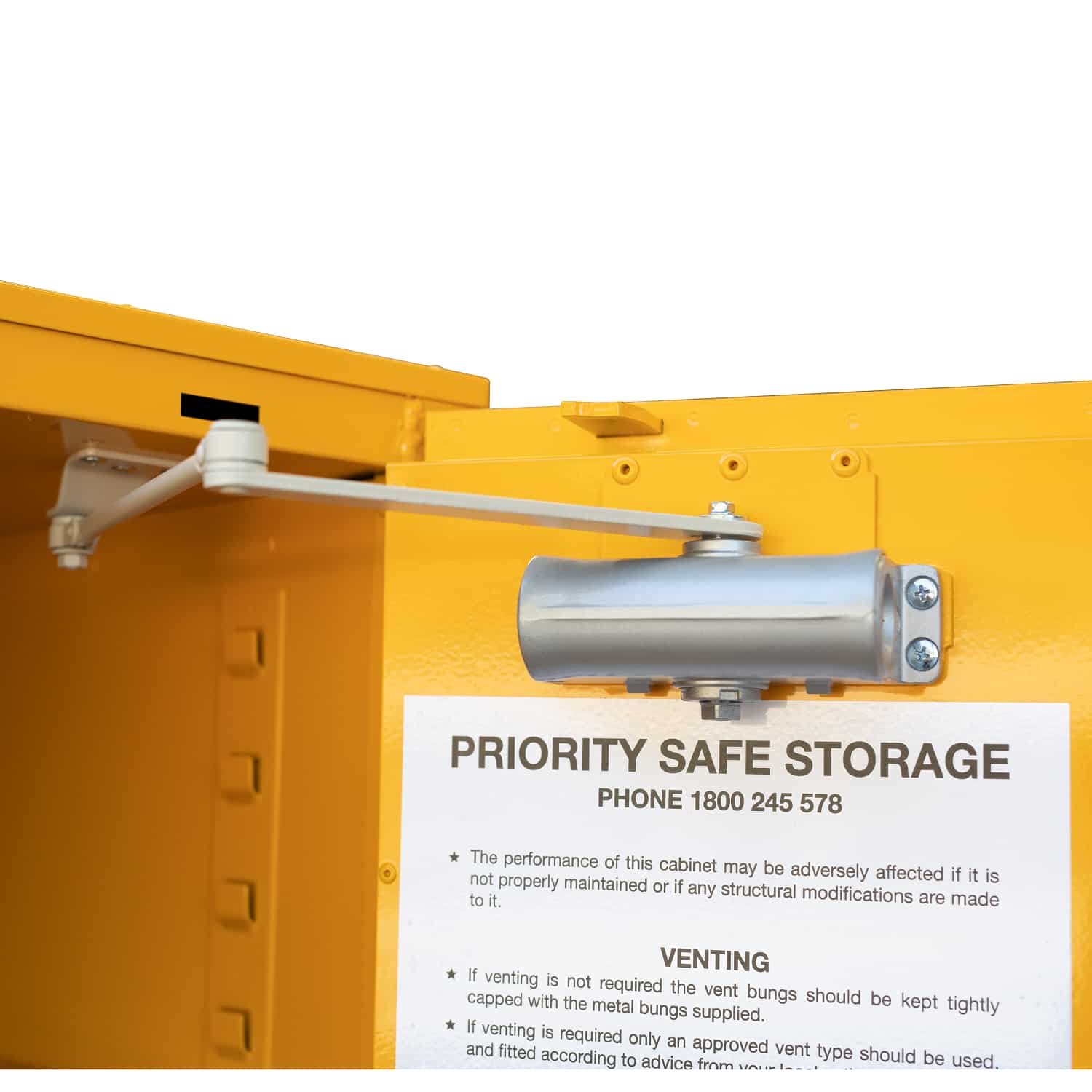

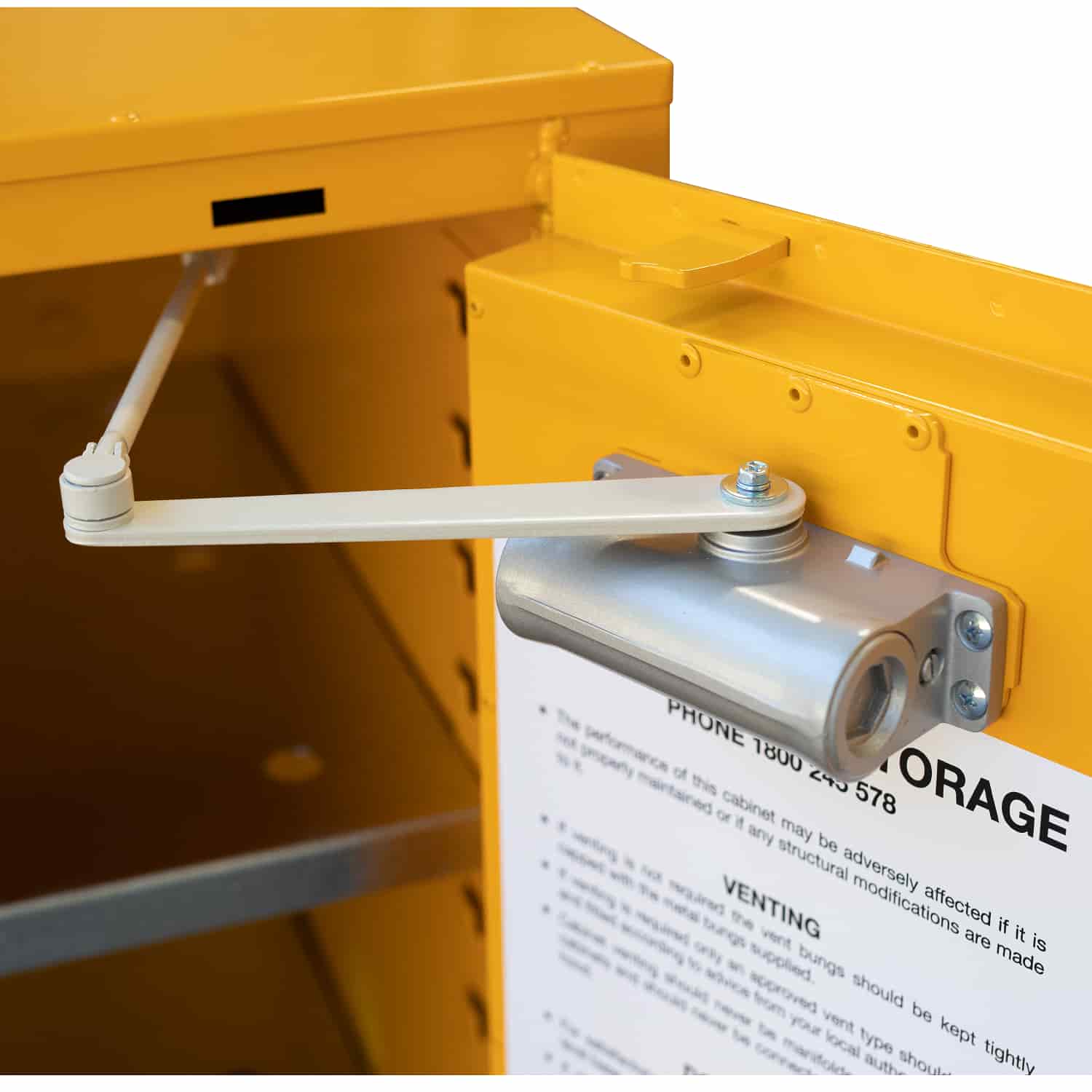

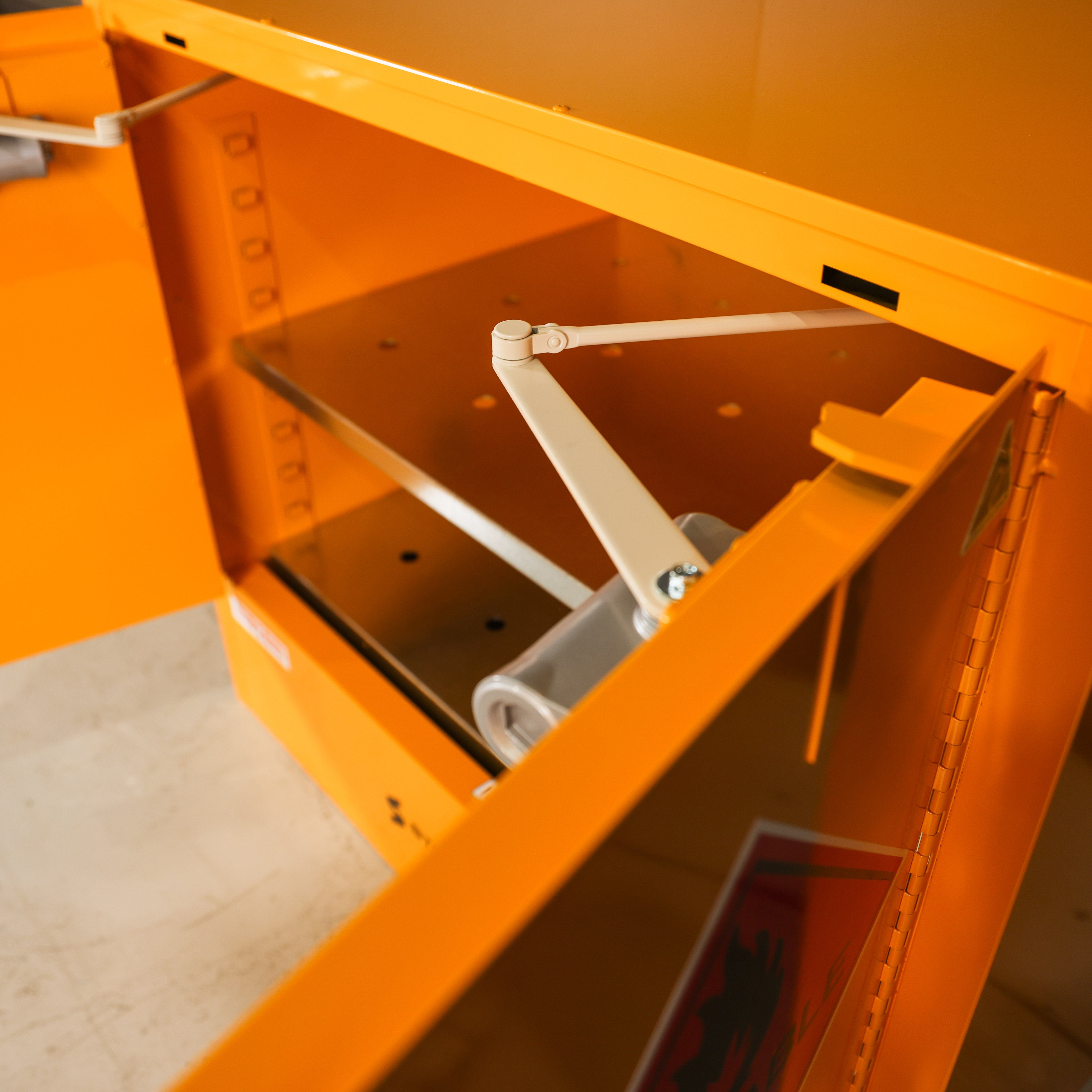

  • Sequential door closing system
  • Stainless steel pin with continuous hinging for strength and reliability
  • State of the art powder coat finish for high durability and performance

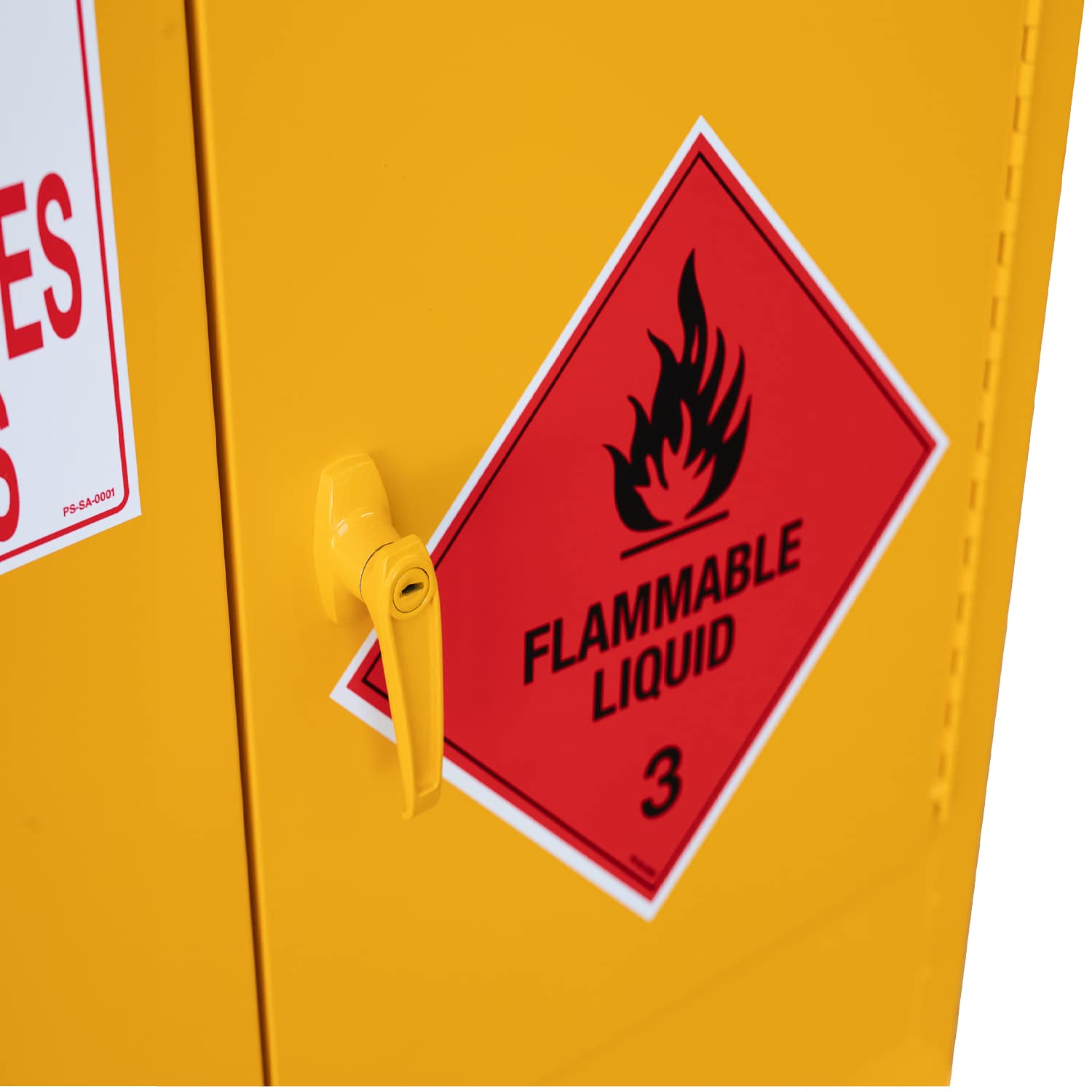

  • Distinct safety signs and directions that comply with AS 1216 and AS 1319
  • Designed and Manufactured in full conformance to AS 1940:2017 - The storage and handling of flammable and combustible liquids

Dimensions (mm)

ExternalH 800W 920D 615
InternalH 553W 838D 535

Storage Capacity

Max Capacity 100L
Winchester Size0.5L2.5L 5L
Drum Size4L20L60L205L
Calculations based on these package size

Dangerous Goods Compliance Specifications

Complies with AS1940 - 2017
Sump Capacity 67L

Other Specifications

Weight 65.0 kg
Shelf Levels 2
Storage Levels 2
Shelf Thickness (mm) 28
Shelf spacing (mm) 50
No. of Shelf Lugs 11
