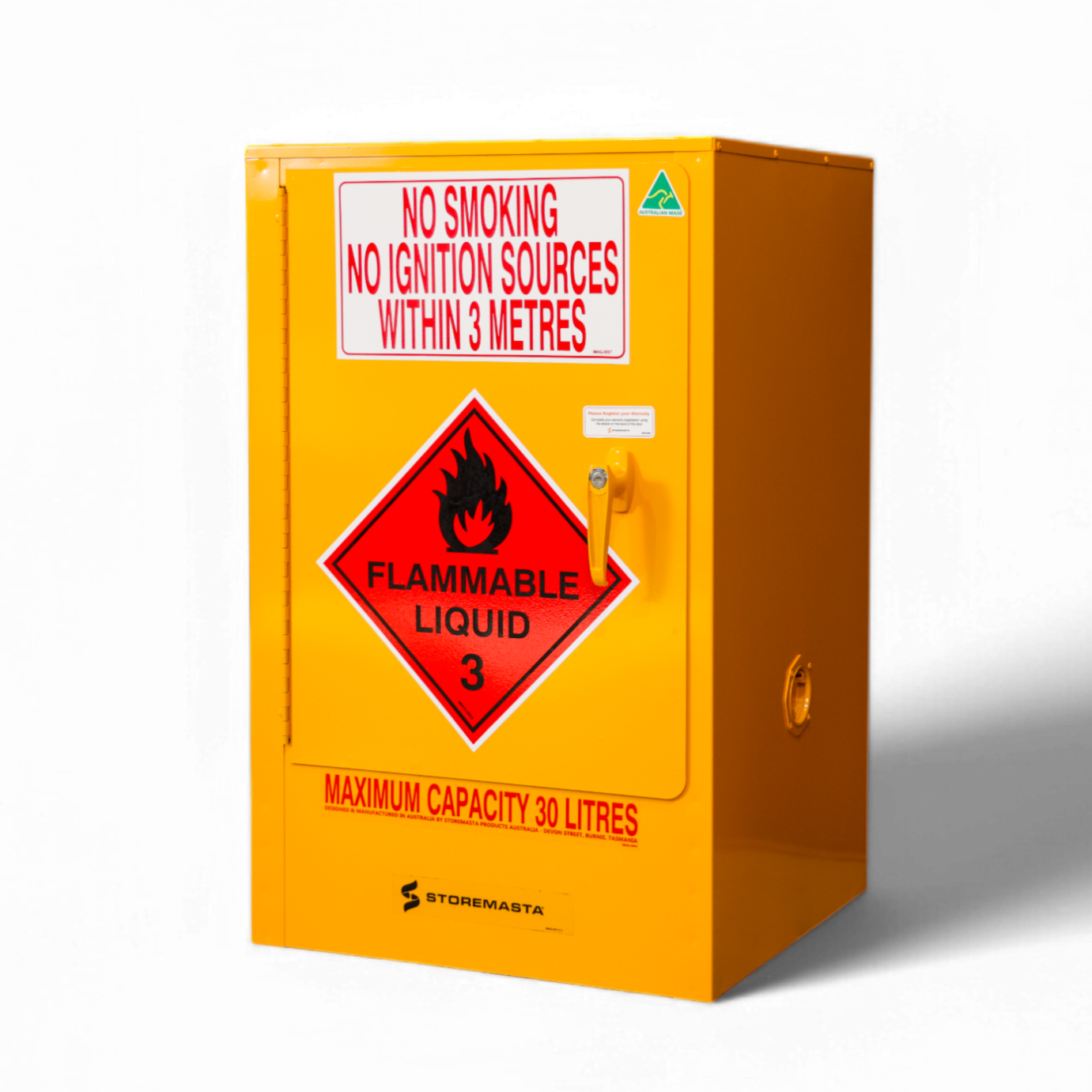

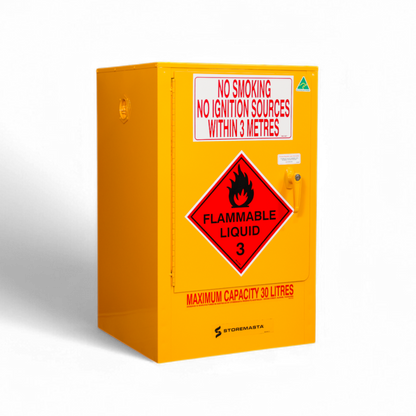

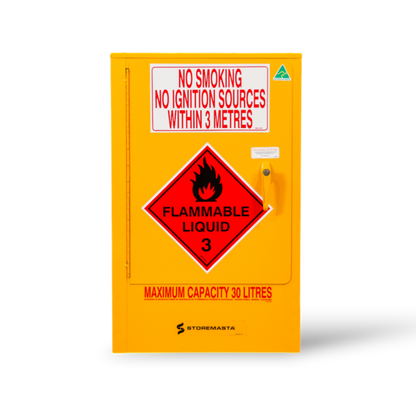

30L - Flammable Liquid Storage Cabinet

SC030
Description

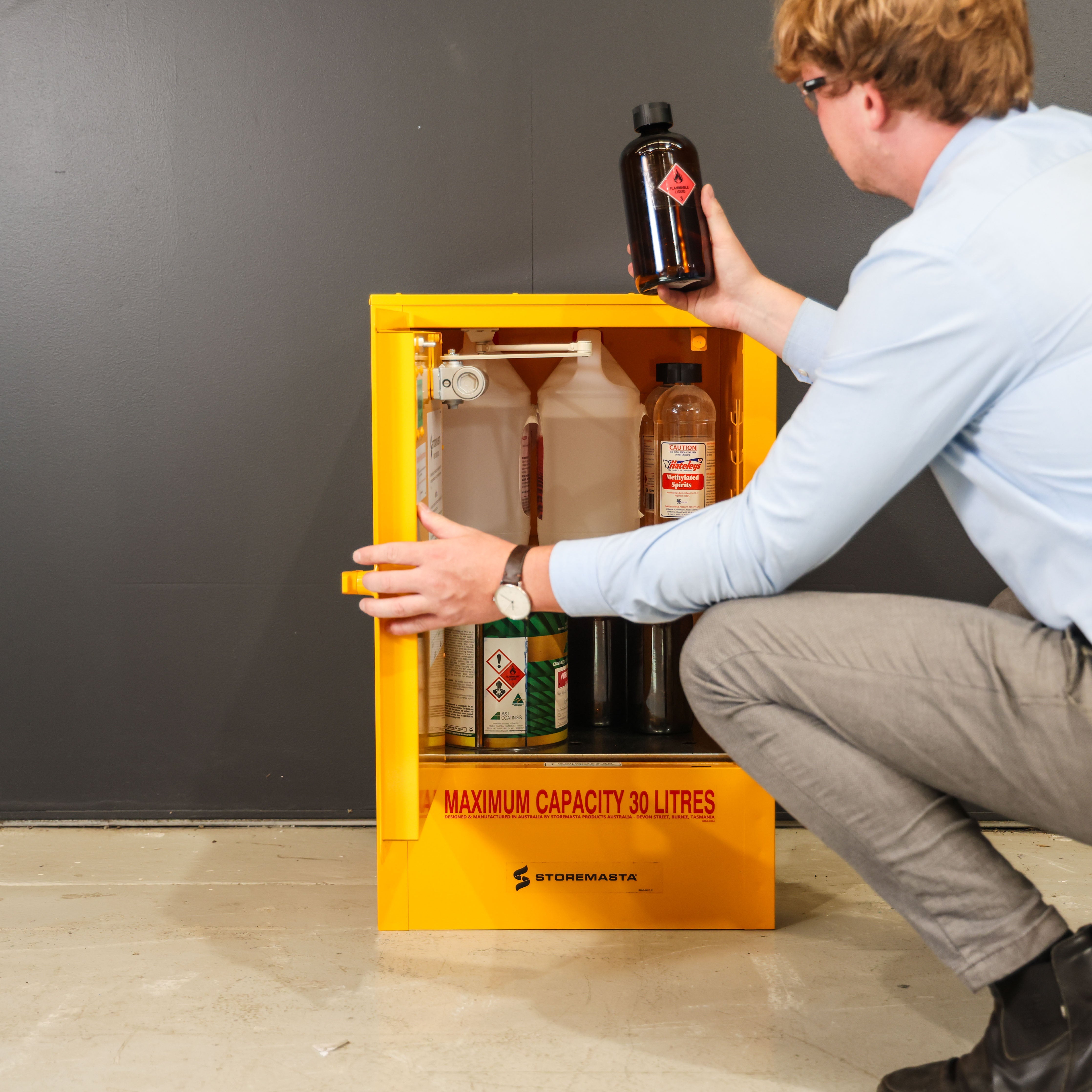

The SC030 is an indoor Flammable Cabinet designed to hold up to 30 litres of Class 3 Flammable Liquids. This innovative under-bench model is designed for small vertical spaces.

This 30L Flammable Liquid Storage Cabinet is built-to-last, with double walled sheet steel, finished with a high-tech power coating. Storemasta Flammable Cabinets feature fully adjustable perforated shelving to allow natural air flow, a 23 litre spill containment sump and the patented door closing system which allows cabinet doors to close automatically, in sequence every time. The SC030 arrives complete with compliant warning placards suited to Class 3 Flammable Liquids.

Storemasta's 30L Flammable Liquid Storage Cabinet is designed and manufactured in Australia to meet the strict requirements of AS 1940. Order direct from Storemasta today and protect your workplace from the hazards associated with flammable liquids.

Features

  • Double walled sheet steel construction with a 40mm thermic air barrier
  • High capacity liquid tight sump to contain spills - 150mm deep
  • Self-closing, close fitting doors that latch at 2 points

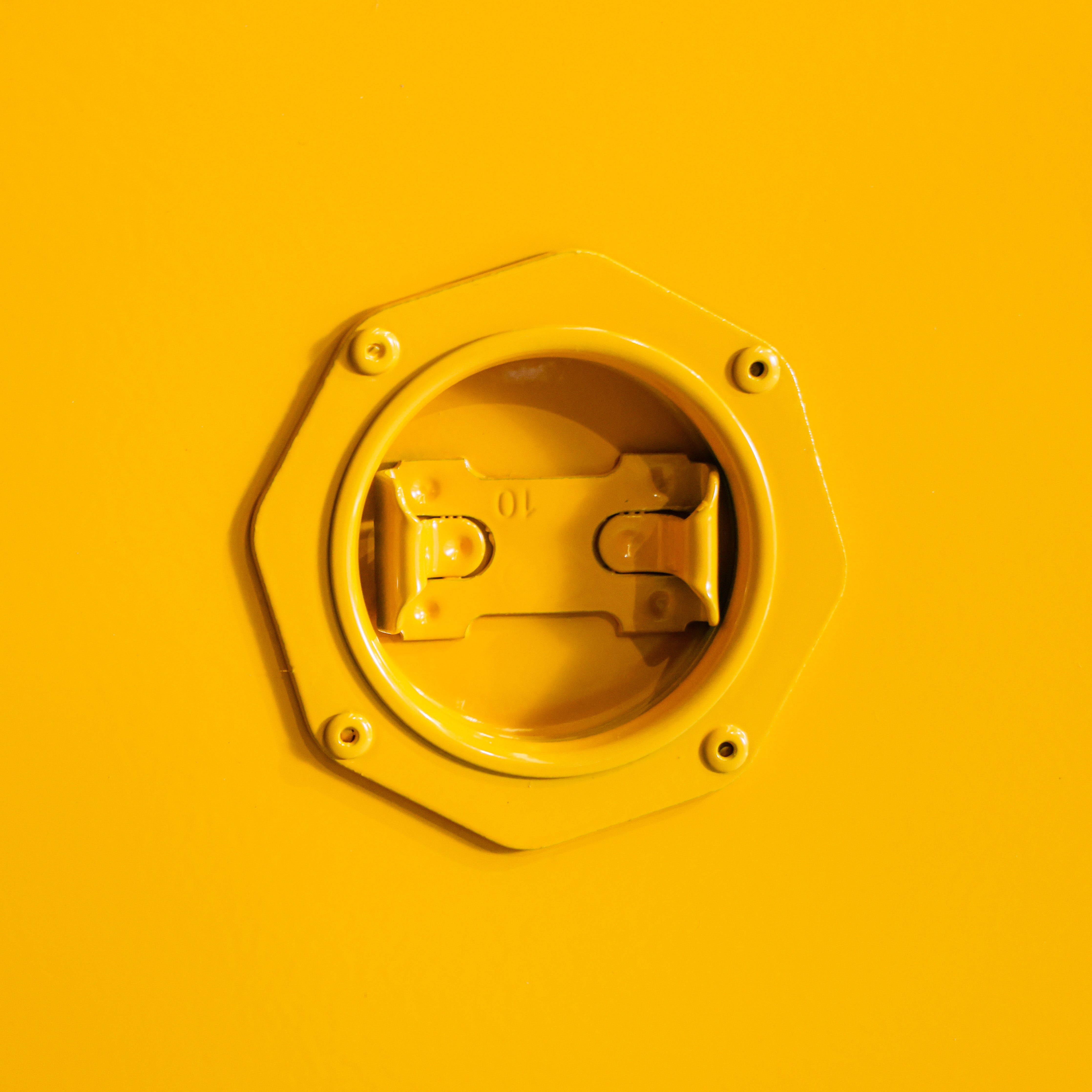

  • Built in flash arrestors and vent openings [for mechanical ventilation systems]

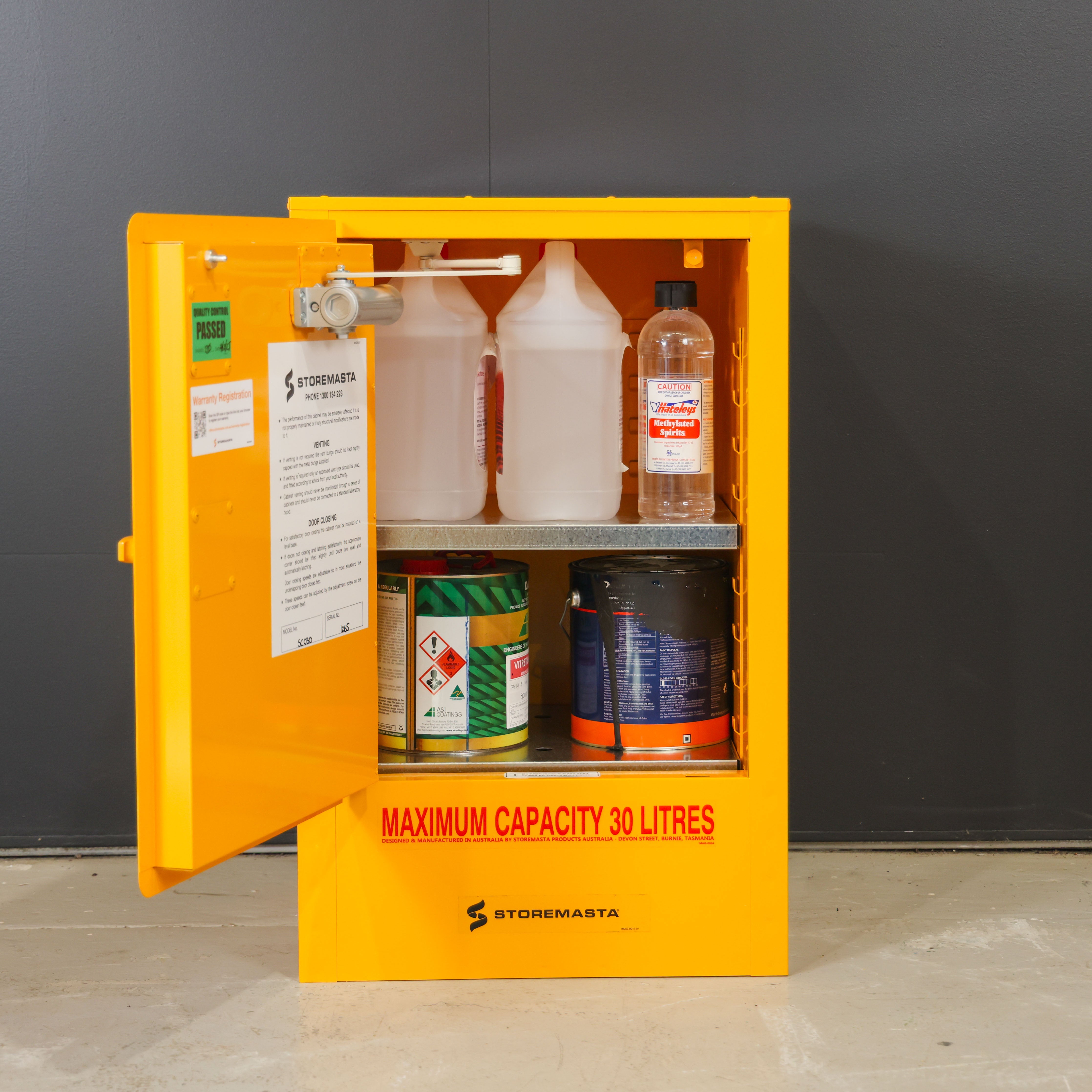

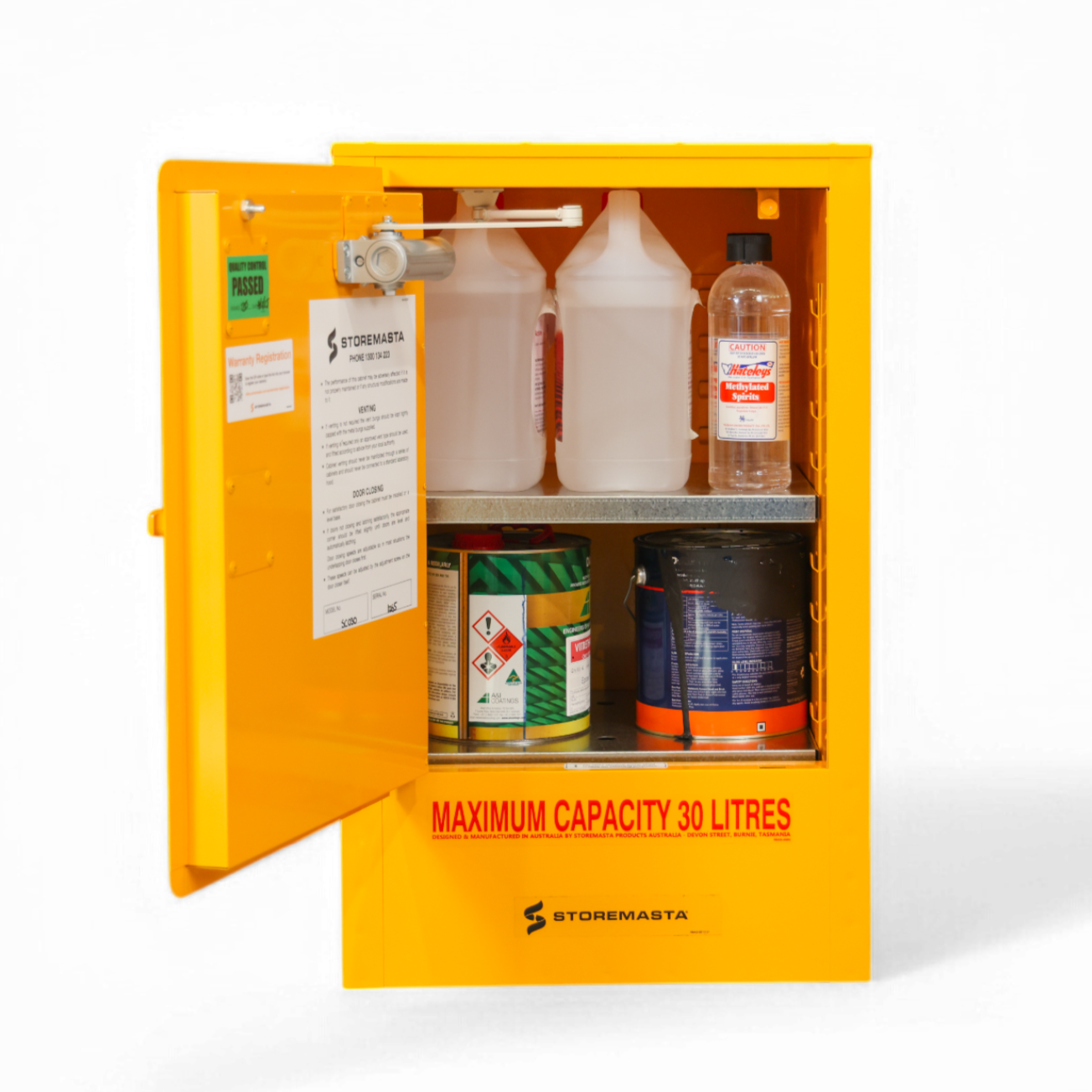

  • Strong fully adjustable shelving perforated for free air movement, 100mm adjustment increments

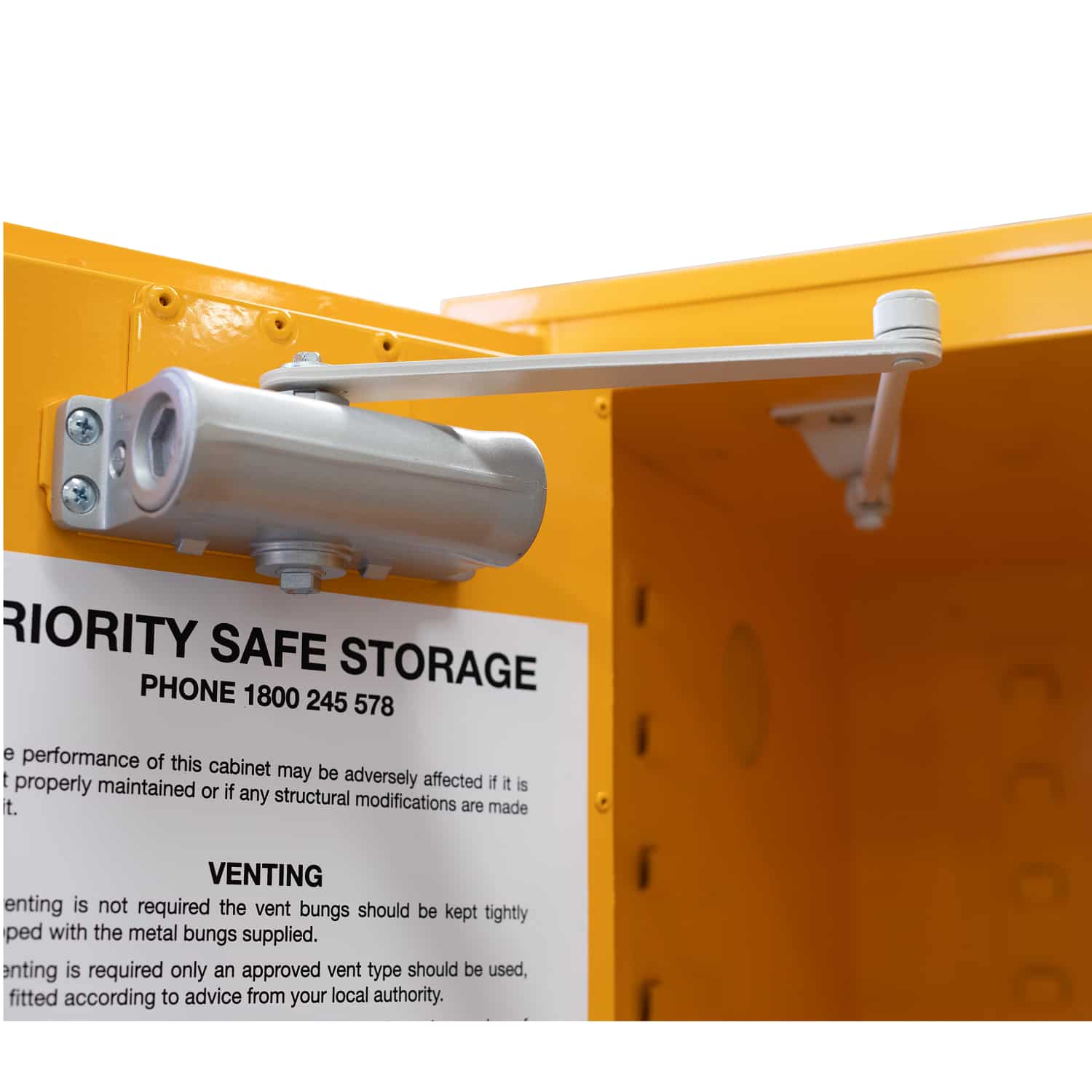

  • Sequential door closing system
  • Stainless steel pin with continuous hinging for strength and reliability
  • State of the art powder coat finish for high durability and performance

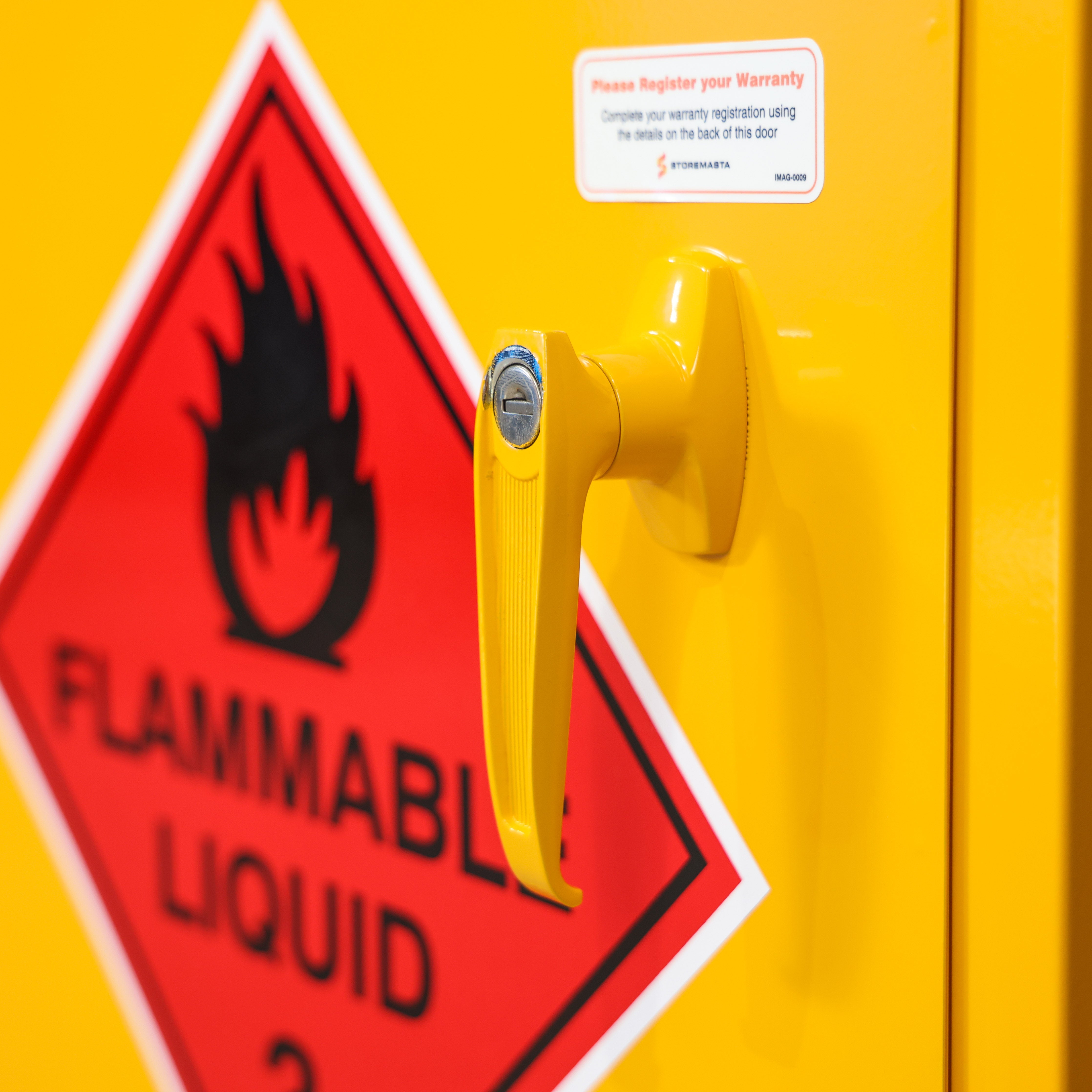

  • Distinct safety signs and directions that comply with AS 1216 and AS 1319
  • Designed and Manufactured in full conformance to AS 1940:2017 - The storage and handling of flammable and combustible liquids

Dimensions (mm)

ExternalH 800W 500D 450
InternalH 553W 418D 370

Storage Capacity

Max Capacity 30L
Winchester Size0.5L2.5L 5L
Capacity3062
Drum Size4L20L60L205L
Capacity81--
Calculations based on these package size

Dangerous Goods Compliance Specifications

Complies with AS1940 - 2017
Sump Capacity 23L

Other Specifications

Weight 33.0 kg
Full Weight 33 Kg
Shelf Levels 2
Storage Levels 2
Shelf Thickness (mm) 28
Shelf spacing (mm) 50
No. of Shelf Lugs 11
