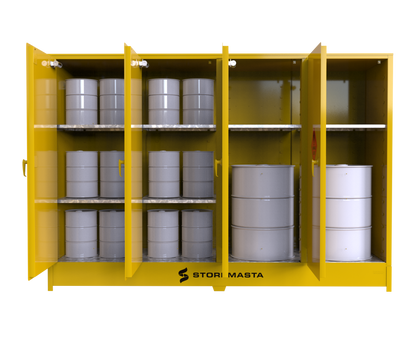

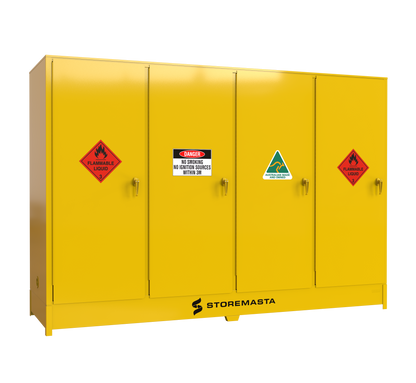

850L - Large Capacity Flammable Liquids Storage Cabinet
PS850SS
Description
Do you need a compliant chemical safety cabinet, purpose built for holding Class 3 Flammable Liquids? The PS850SS is a heavy duty safety cabinet (25% stronger than standard flammable cabinets) and can safely hold up to 850 litres in a range of tin sizes including large drums.
Features of the PS850SS include: 270 litre spill containment sump (with drain plug), twin hydraulic-action doors which close in sequence without jamming or generating sparks, plus compliant warning placards.
100% designed and manufactured in Australia, order your Large Capacity Flammable Liquids Storage Cabinet direct from Storemasta today.
Features
- Manufactured from 25% heavier materials than minimum requirement
- Double walled sheet steel construction with a 40mm thermic air barrier
- High capacity liquid tight sump to contain spills with a fixed suspended perforated floor - 150mm deep. The sump has the capacity to contain 25% of the aggregate capacity of the cabinet
- Self-closing close-fitting doors that latch at 2 points
- Unique spark-proof, self latching locking system with lockable handle
- Vent openings with built-in flash arrestors [for mechanical ventilation systems]
- Continuous stainless steel pin hinging for maximum strength and reliability
- State of the art powder coat finish for high durability and performance
- Safety signs and directions that comply with AS1216 and AS1319
- Designed and manufactured in full conformance to AS1940-2017 - The storage and handling of flammable and combustible liquids
Dimensions (mm)
Dimensions (mm)
| External | H 1880 | W 2588 | D 804 |
| Internal | H 1608 | W 2500 | D 718 |
Storage Capacity
Storage Capacity
| Max Capacity | 850L |
| Winchester Size | 0.5L | 2.5L | 5L |
| Capacity | 1980**** | 360**** | 144**** |
| Drum Size | 4L | 20L | 60L | 205L |
| Capacity | 180***** | 48 | 12 | 4 |
Calculations based on these package size
Dangerous Goods Compliance Specifications
Dangerous Goods Compliance Specifications
| Complies with | AS1940 - 2017 |
| Sump Capacity | 269L |
Other Specifications
Other Specifications
| Weight | 375.0 kg |
| Shelf Levels | 6 |
| Storage Levels | 3 |
| Shelf Thickness (mm) | 28 |
| Shelf spacing (mm) | 100 |
| No. of Shelf Lugs | 16 |
