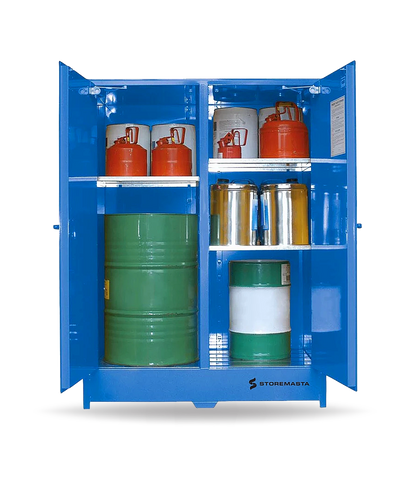

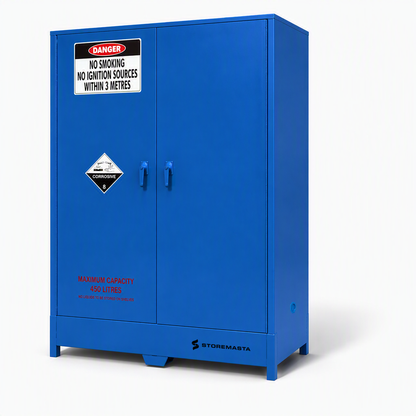

450L - Large Capacity Corrosive Substance Storage Cabinet
PS4508SS
Description
The PS4508SS is a heavy duty Corrosive Substance Safety Cabinet, designed to store up to 450L of Class 8 Corrosive chemicals.
Storemasta's large capacity Chemical Cabinets are 25% stronger than standard models, providing excellent isolation and storage for your corrosive substances.
This Corrosive Substance Storage Cabinet features include twin hydraulic-action doors which automatically close in sequence — with no jamming or sparking — 2-Pack corrosion-resistant polyurethane finish, warning placards, and a compliant spill sump.
Order your Large Capacity Corrosive Substance Storage Cabinet from Storemasta today.
Features
- Manufactured from 25% heavier materials than minimum requirement
- Double walled sheet steel construction with a 40mm thermic air barrier
- High capacity liquid tight sump to contain spills with a fixed suspended perforated floor - 150mm deep
- The sump has the capacity to contain 25% of the aggregate capacity of the cabinet
- Self-closing, close fitting doors held shut by catches at 2 points. The doors do not open inwards and are capable of being opened from within the cabinet
- Unique spark-proof, self latching locking system with lockable handle
- Vent openings with built-in flash arrestors [for mechanical ventilation systems]
- Continuous stainless steel pin hinging for maximum strength and reliability
- State of the art powder coat finish for high durability and performance
- PVC spill trays on shelves for corrosion protection
- Safety signs and directions that comply with AS 1216 and AS 1319
- Designed and manufactured in full conformance to AS 3780:2008 - The storage and handling of corrosive substances
Dimensions (mm)
Dimensions (mm)
| External | H 1880 | W 1386 | D 804 |
| Internal | H 1608 | W 1302 | D 718 |
Storage Capacity
Storage Capacity
| Max Capacity | 450L |
| Winchester Size | 0.5L | 2.5L | 5L |
| Capacity | 990***** | 160**** | 72**** |
| Drum Size | 4L | 20L | 60L | 205L |
| Capacity | 90***** | 24 | 4 | 2 |
Calculations based on these package size
Dangerous Goods Compliance Specifications
Dangerous Goods Compliance Specifications
| Complies with | AS3780 - 2008 |
| Sump Capacity | 140L |
Other Specifications
Other Specifications
| Weight | 220.0 kg |
| Shelf Levels | 6 |
| Storage Levels | 3 |
| Shelf Thickness (mm) | 28 |
| Shelf spacing (mm) | 100 |
| No. of Shelf Lugs | 16 |
