• Class 3 - Fammable Liquids

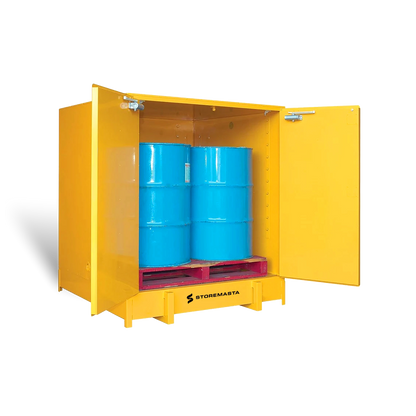

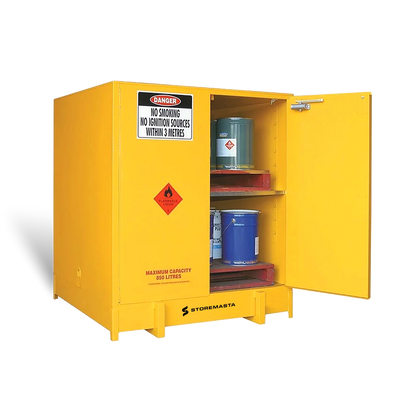

850L - Large Capacity Flammable Liquids Storage Cabinet - Pallet Store

PS1000SS

Download the product spec sheet by filling the form below.

Description

The PS1000SS is a heavy duty safety cabinet purpose-built for holding drums of Class 3 flammable liquids (850 litre capacity) on pallets. Safely isolate fuel, solvents and lubricants from ignition sources, o
Show more +

Features
  • Manufactured from 25% heavier materials than minimum requirement
  • Double walled sheet steel construction with a 40mm thermic air barrier
  • High capacity liquid tight sump to contain spills with a fixed suspended perforated floor - 150mm deep. The sump has the capacity to contain 25% of the aggregate capacity of the cabinet
  • Self-closing close-fitting doors that latch at 2 points
  • Unique spark-proof, self latching locking system with lockable handle
  • Vent openings with built-in flash arrestors [for mechanical ventilation systems]
  • Continuous stainless steel pin hinging for maximum strength and reliability
  • State of the art powder coat finish for high durability and performance
  • Safety signs and directions that comply with AS1216 and AS1319
  • Designed and manufactured in full conformance to AS1940-2017 - The storage and handling of flammable and combustible liquids
Dimensions (mm)
External H 1610 W 1384 D 1386
Internal H 1330 W 1300 D 1300
Storage Capacity
Max Capacity 850L
Pallets 1
Winchester Size 0.5L 2.5L 5L
Capacity 1600**** 243*** 108***
Drum Size 4L 20L 60L 205L
Capacity 196**** 48*** 18 4
***3 Storage levels ****4 storage levels
Calculations based on these package size
Dangerous Goods Compliance Specifications
Complies with AS1940 - 2017
Sump Capacity 254L
Other Specifications
Weight 255.0 kg
Shelf Levels 2
Storage Levels 2
Shelf Thickness (mm) 28
Shelf spacing (mm) 100
No. of Shelf Lugs 13
