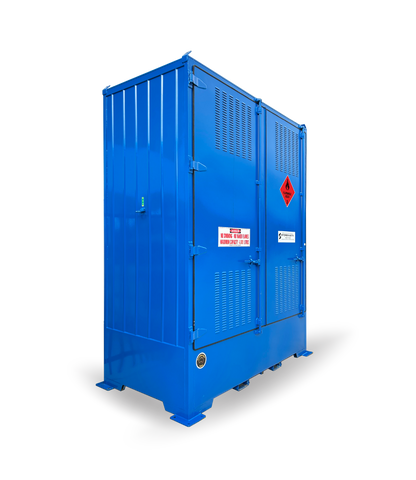

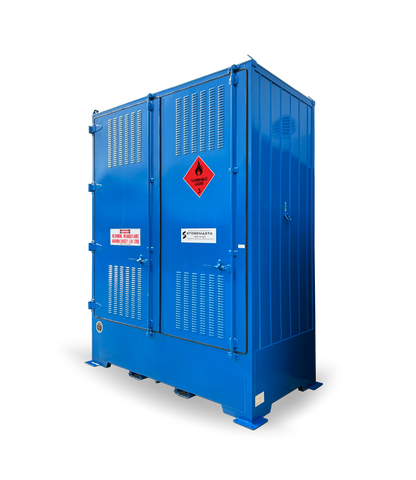

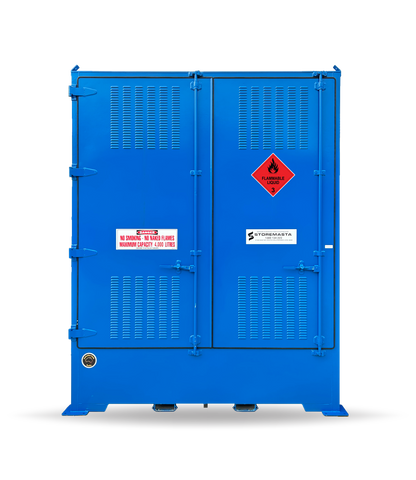

Single Depth Flammable Liquids Store - 4 IBC

PR04BB
Description

Storemasta's Australian-made Relocatable Bulk Dangerous Goods Stores are an ideal solution for immediate, safe, approved and efficient storage of large quantities of dangerous goods.

Each store is purpose built to specifically comply with your requirements and can include shelving compartments, decanting systems, pump stations, poly bund linings and built-in eyewash facilities. The Single Depth Flammable Liquids Store - 4 IBC has a capacity of 4000 litres, and offers safety and compliance without the need to construct a fixed chemical store.

Features

  • Constructed with quality sheet steel
  • Doors which fold back 270° for ease of access when loading and unloading IBC’s with a forklift
  • Easy access: each IBC accessible via forklift
  • ISO locking bars for high security
  • Natural ventilation that complies with AS 1940:2017
  • Lifting lugs, forklift channels and locating plates
  • Finished in high build 2 pak polyurethane primer and high gloss topcoat, total build thickness minimum of 120 microns
  • Cyclonic proof construction
  • Earth stake and mounting
  • Cambered roof for rainwater run off
  • Liquid tight spill containment sump with compliant capacity
  • Engineered footing details available
  • Suitable for storage of IBC’s and pallets
  • Appropriate warning and safety signage that complies with AS 1216 and AS 1319
  • Designed and manufactured in full conformance to AS 1940:2017 - The storage and handling of flammable and combustible liquids

Dimensions (mm)
ExternalH 3445W 2790D 1440
InternalH 2 x 1275 (2650)W 2500D 1225

Storage Capacity
Max Capacity 4000L
IBC 4
Calculations based on these package size

Dangerous Goods Compliance Specifications
Complies with AS1940 - 2017
Sump Capacity 2000L

Other Specifications
Weight 835.3 kg
Storage Levels 2
