850L - Small Outdoor Flammable Liquid Store

PR850
Description

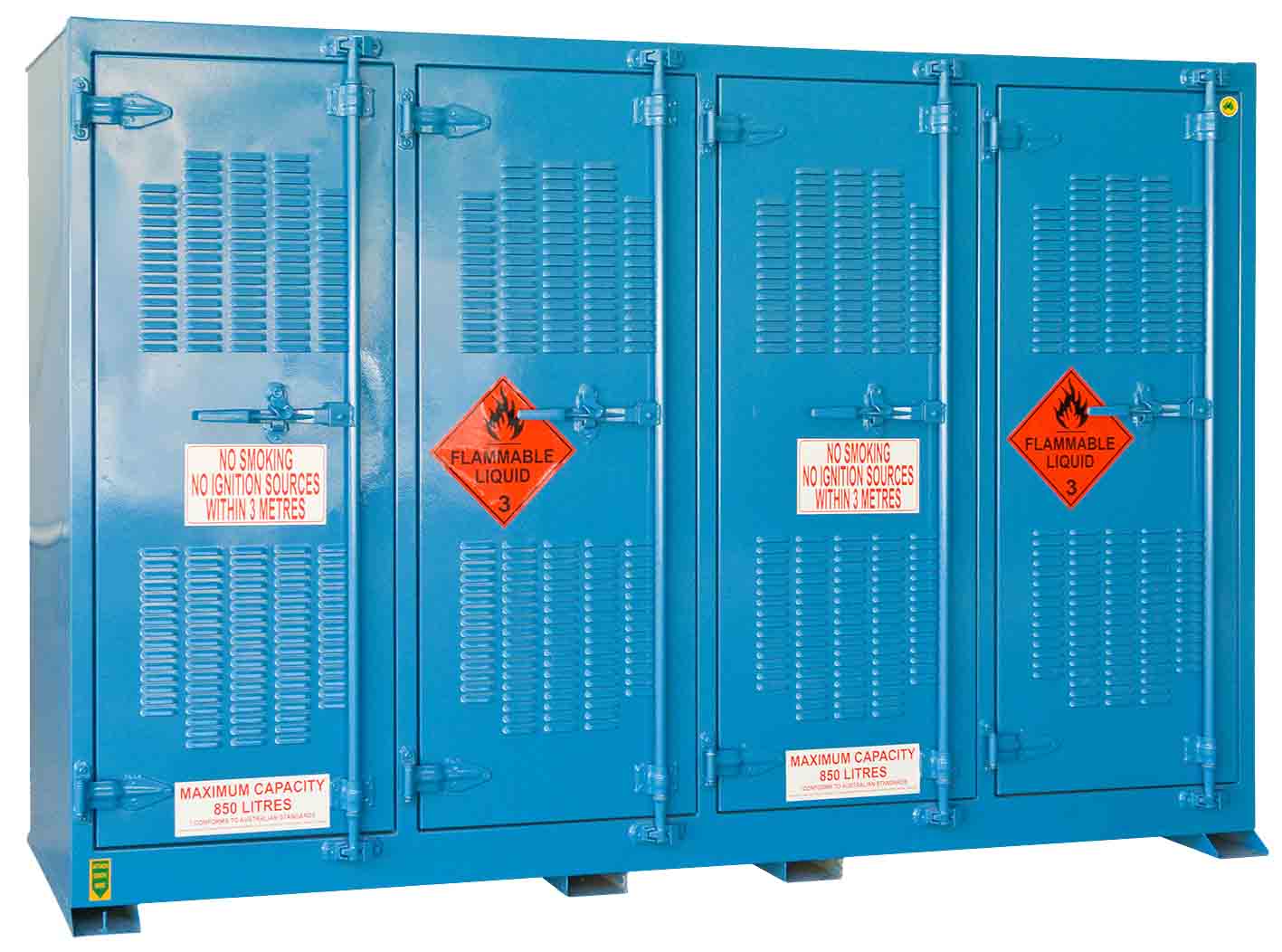

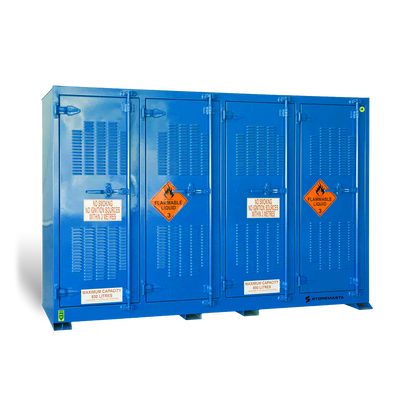

The PR850 is a hard-wearing Outdoor Chemical Store designed to hold up to 850 litres of Class 3 Flammable Liquids. This Miniseries store is purpose-built to resist a tough outdoor environment and features a cambered roof for maximum rainwater run-off, cyclone proof construction, and ISO locking bars for maximum protection.

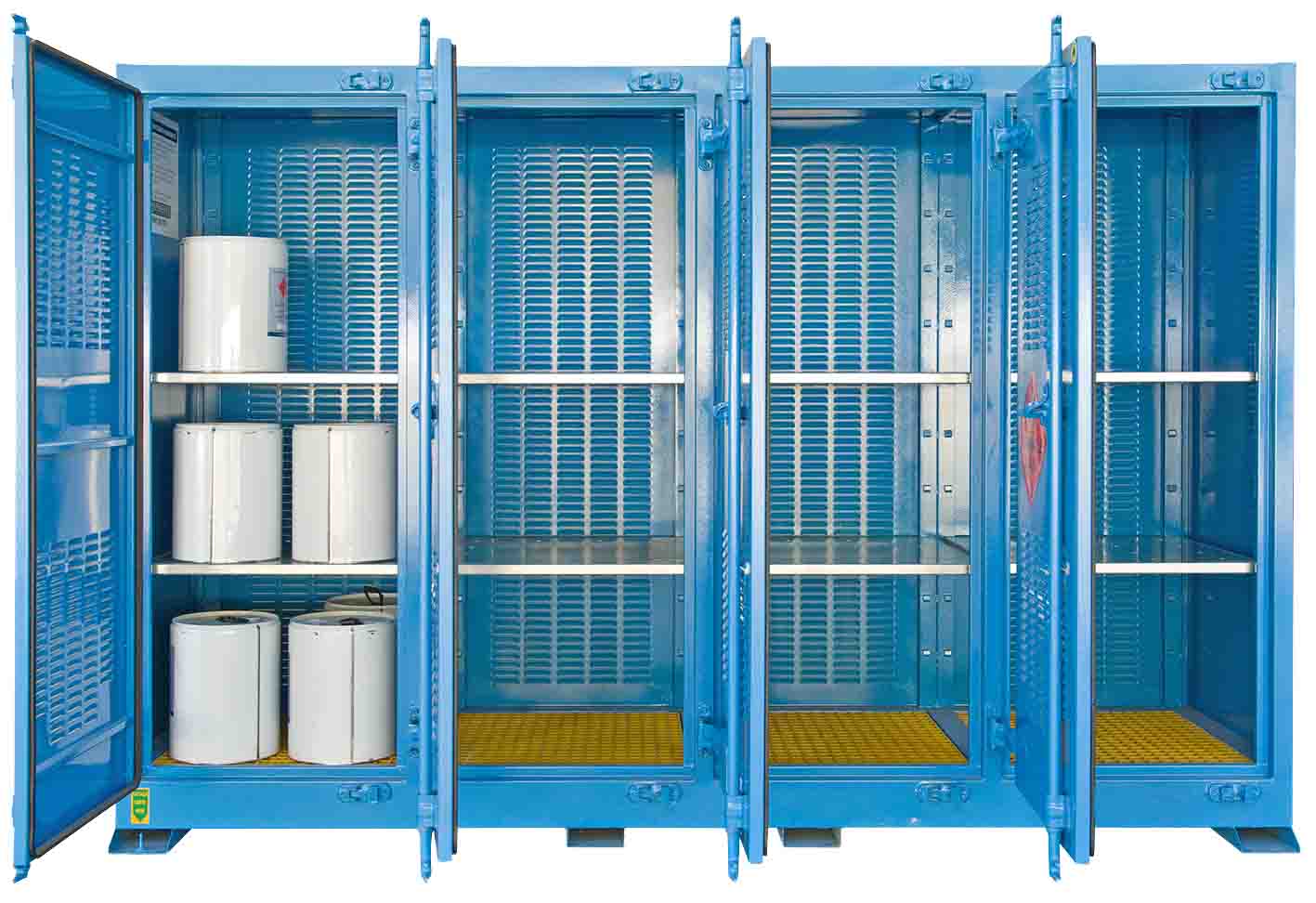

Safety features of the 850L - Small Outdoor Flammable Liquid Store include fully adjustable shelves that are perforated to maximise air flow, a 238 litre capacity spill containment sump (liquid tight), and ventilators that meet the requirements of AS 1940.

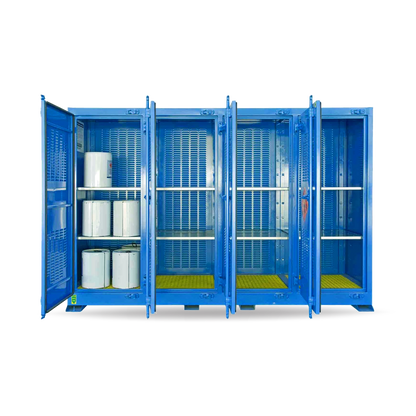

This Australian made 850L - Small Outdoor Flammable Liquid Store is built with 4 x heavy-duty doors that fold back 270° for ease of operation. It also comes complete with all relevant dangerous goods and hazard signage.

Features

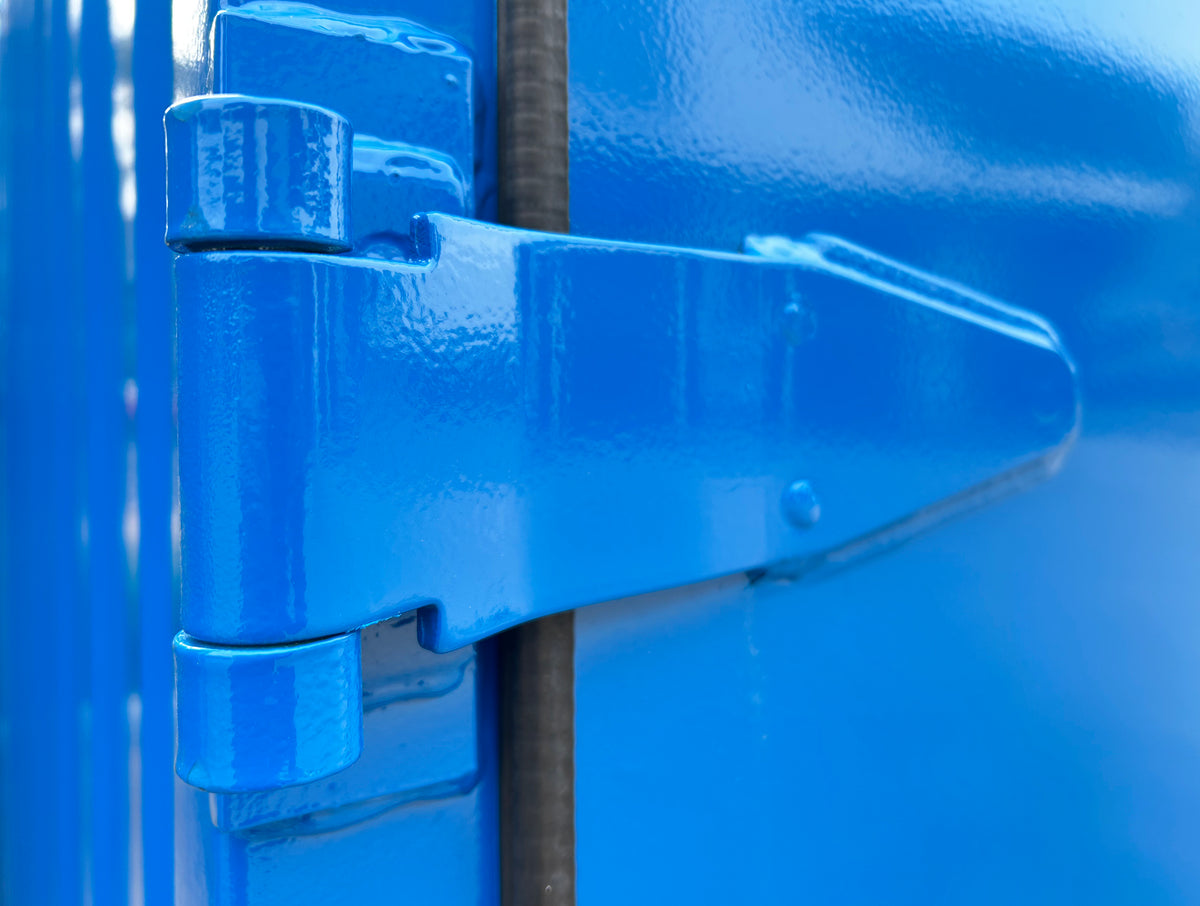

  • Doors with 270° hinging to provide easy access

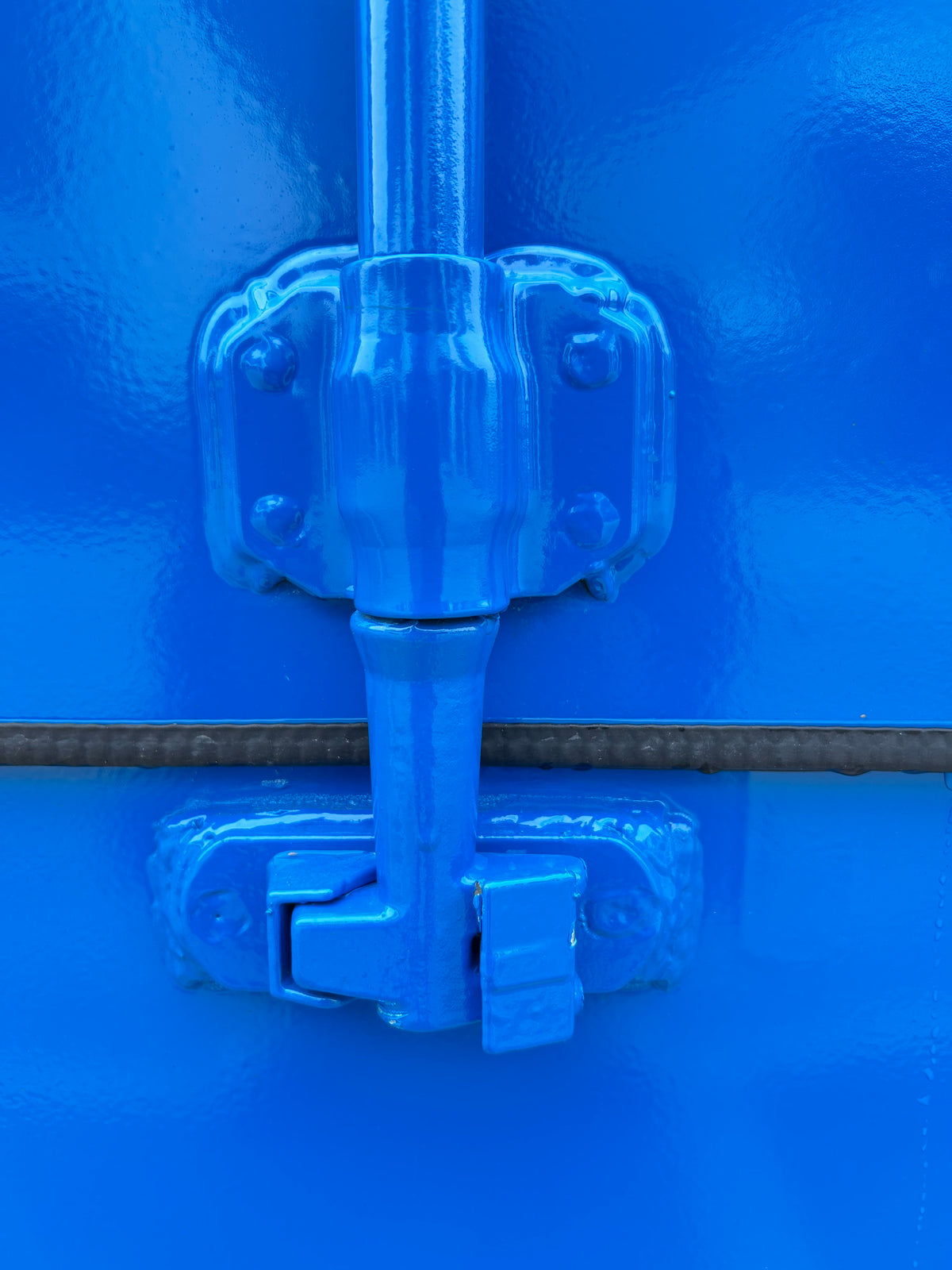

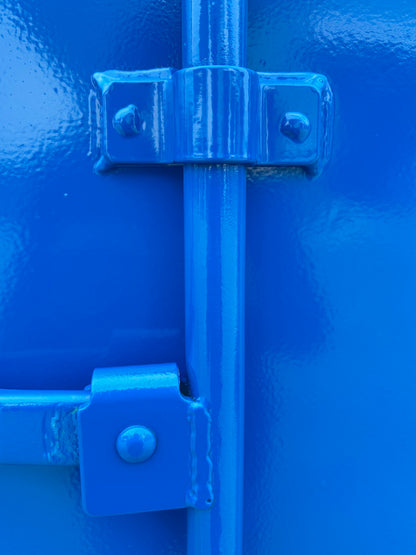

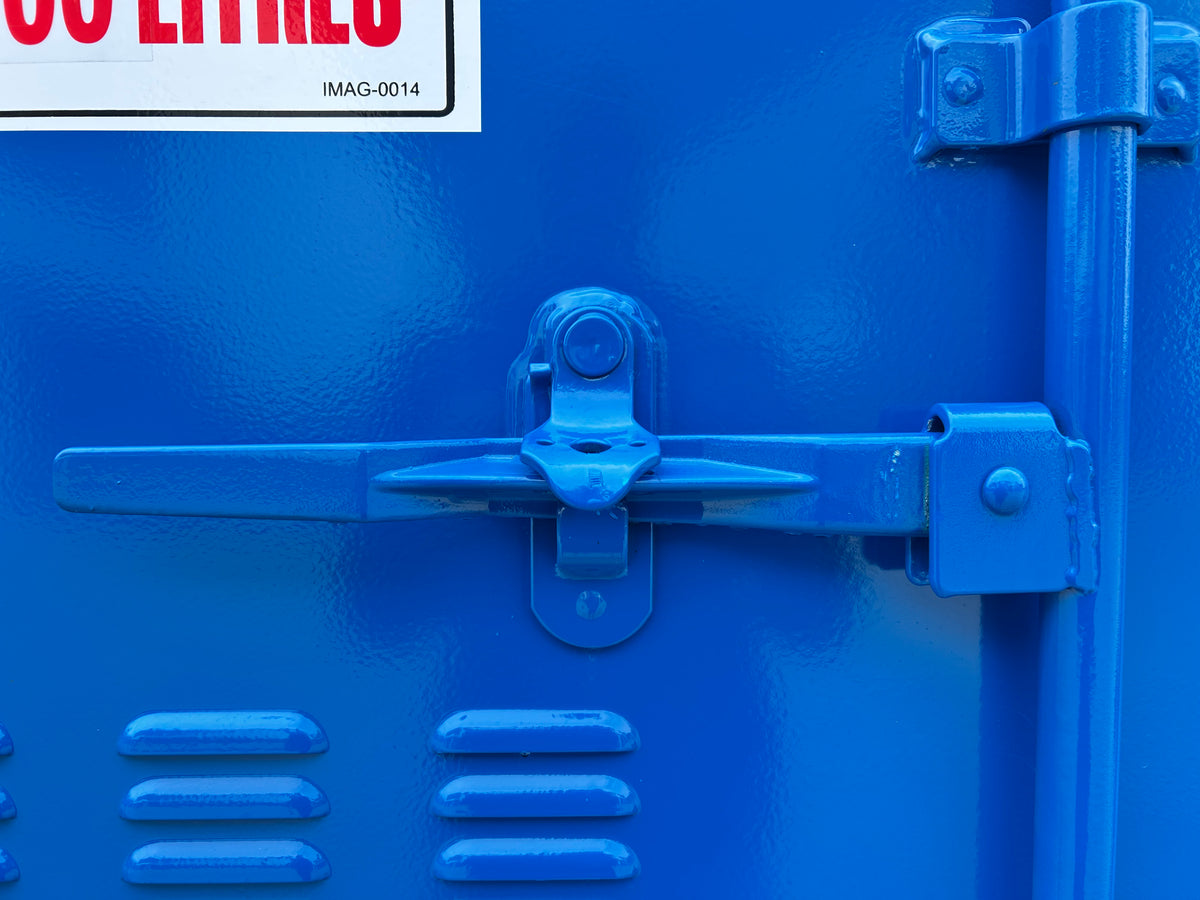

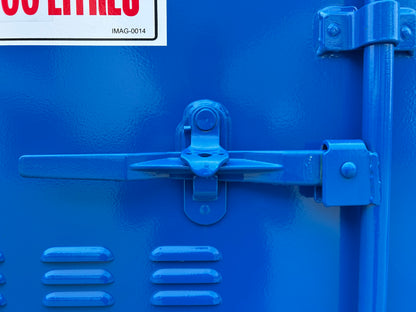

  • ISO locking bars for high security

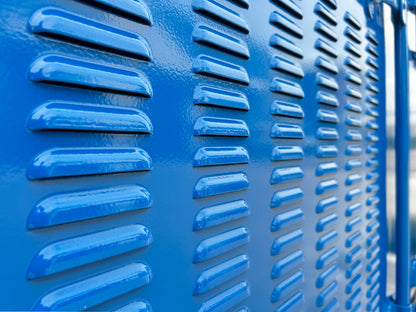

  • Natural ventilation that complies with AS 1940:2017
  • Forklift channels for easy relocation
  • Heavy duty adjustable perforated shelving
  • Cambered roof for rainwater run off
  • Earthing stake and mounting
  • Appropriate safety signage that complies with AS 1216 and AS 1319
  • Designed and manufactured in full conformance to AS 1940:2017 - The storage and handling of flammable and combustible liquids

Dimensions (mm)

ExternalH 1995W 2990D 900
InternalH 1690W 2825D 755

Storage Capacity

Max Capacity 850L
Drum Size0.5L 2.5L 5L 4L
Capacity2000*****500*****108180*****
Drum Size20L 60L 205L
Capacity4884
*****5 Storage levels
Calculations based on these package size

Dangerous Goods Compliance Specifications

Complies with AS1940 - 2017
Sump Capacity 340.8L

Other Specifications

Weight 513.8 kg
Shelf Levels 3
Storage Levels 3
Shelf Thickness (mm) 28
Shelf spacing (mm) 165
No. of Shelf Lugs 10
