FD-000232

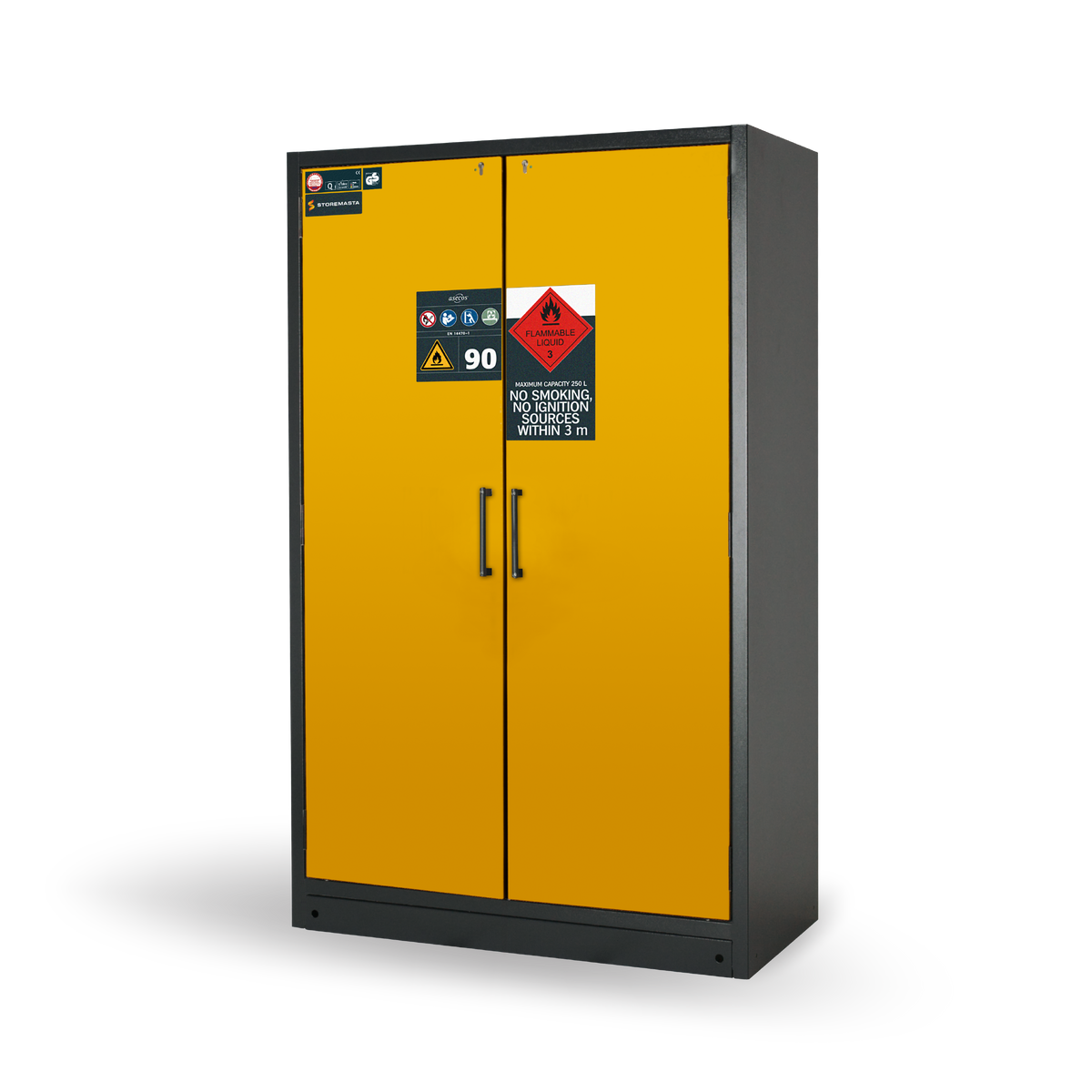

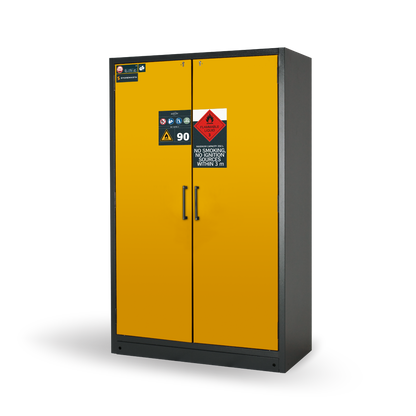

HI-LINE ION-LINE 90-minute Fire Rated Lithium-ion Battery Storage & Charging Cabinet, 1200mm wide (IO90.195.120.PC.WDC)
Built for a fire that starts inside. Lithium-ion batteries are a different kind of risk. A damaged or faulty battery can go into thermal runaway without warning, often while it is charging and no one is around. A standard chemical cabinet is designed to keep an outside fire out. A battery cabinet also has to keep an inside fire in.
The HI-LINE ION-LINE does both. It is fire resistant for 90 minutes from the outside in (type tested to EN 14470-1, Type 90) and for 90 minutes from the inside out (EN 1363-1). Smoke detectors and a temperature sensor pick up an incipient fire early, raise visual and audible alarms, and can pass the alarm straight to your building control system. That early warning and those 90 minutes are what give your people time to respond and your building time to stay protected.
This 1200mm wide cabinet is designed for storing and charging, with insulated shelves fitted with socket strips, coupled wing doors that open together with one hand and close automatically, and 3-point locking. Choose 3 to 6 shelves, and add options such as remote alarm signalling, a relay module or a fire suppression unit.
HI-LINE by Storemasta β Manufactured in Germany by asecos
Built for a fire that starts inside. Lithium-ion batteries are a different kind of risk. A damaged or faulty battery can go into thermal runaway without warning, often while it is charging and no one is around. A standard chemical cabinet is designed to keep an outside fire out. A battery cabinet also has to keep an inside fire in.
The HI-LINE ION-LINE does both. It...
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
FAQβs
Use this text to answer questions in as much detail as possible for your customers.
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Product details
Features
- 90-minute fire resistance from the outside in (Type 90, EN 14470-1) and from the inside out (EN 1363-1)
- Designed for safe storage and charging of lithium-ion batteries
- Smoke detectors and temperature sensor detect incipient fires early
- Visual and audible alarms, with alarm transfer to building control systems
- Insulated shelves with socket strips: choose 3 to 6 shelves
- Coupled wing doors: open both doors at once with one hand, automatic closing
- 3-point locking
- Options: remote alarm signalling, relay module, fire suppression unit, shelf dividers
- HI-LINE by Storemasta β Manufactured in Germany by asecos
Dimensions (mm)
| External | W 1193 | D 615 | H 2114 |
| Internal | W 1050 | D 503 | H 1647 |
| Weight | 544.0 kg |
Dangerous goods compliance specifications
| Sump Capacity | 2.6 L |
| Complies with | EN 14470-1 (Type 90), EN 1363-1, VDMA 24994 |
Other specifications
| Storage Levels | 3 to 6 (depends on interior equipment) |
