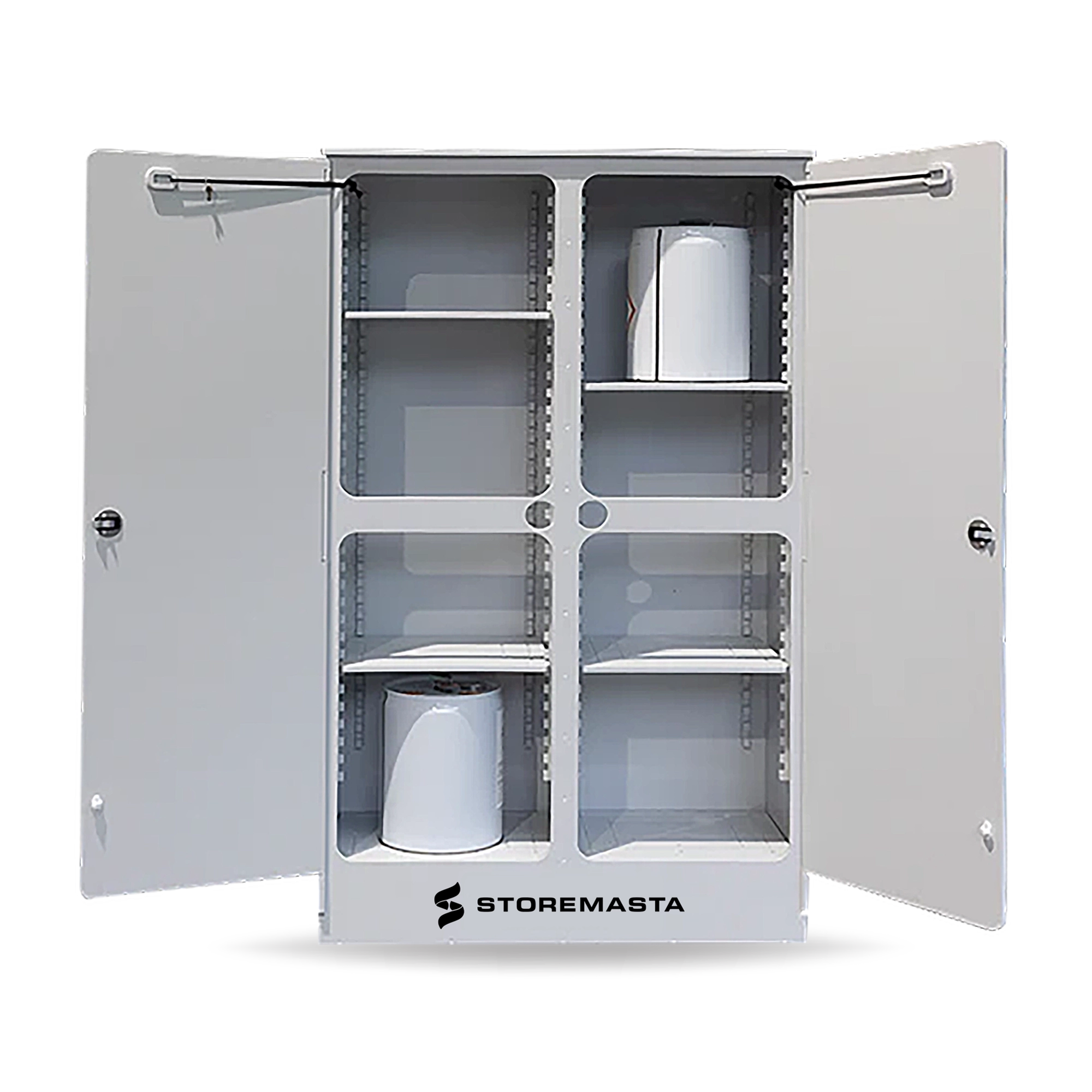

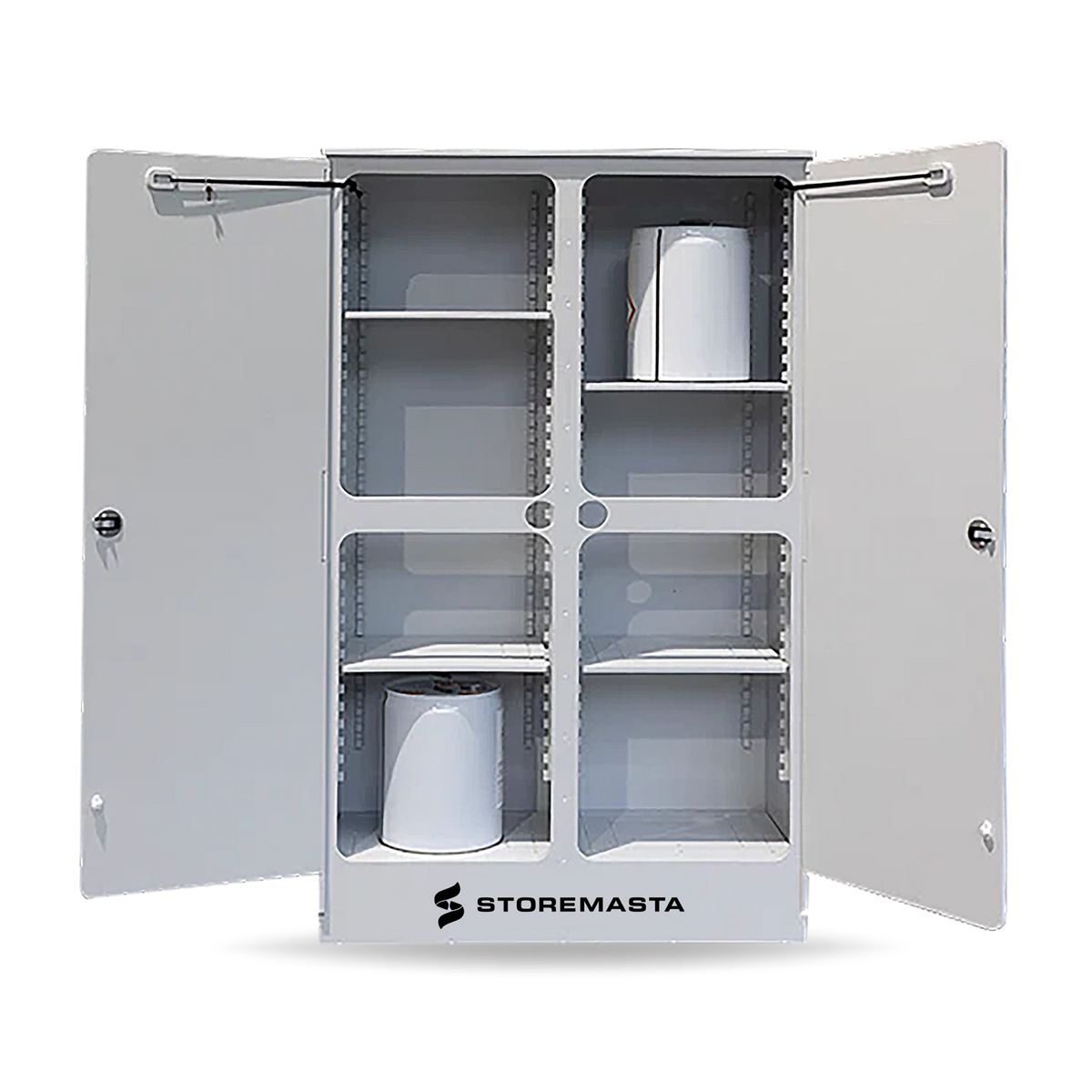

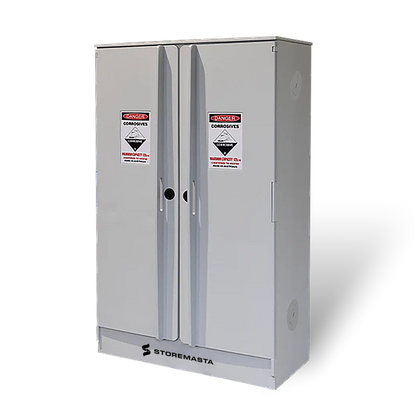

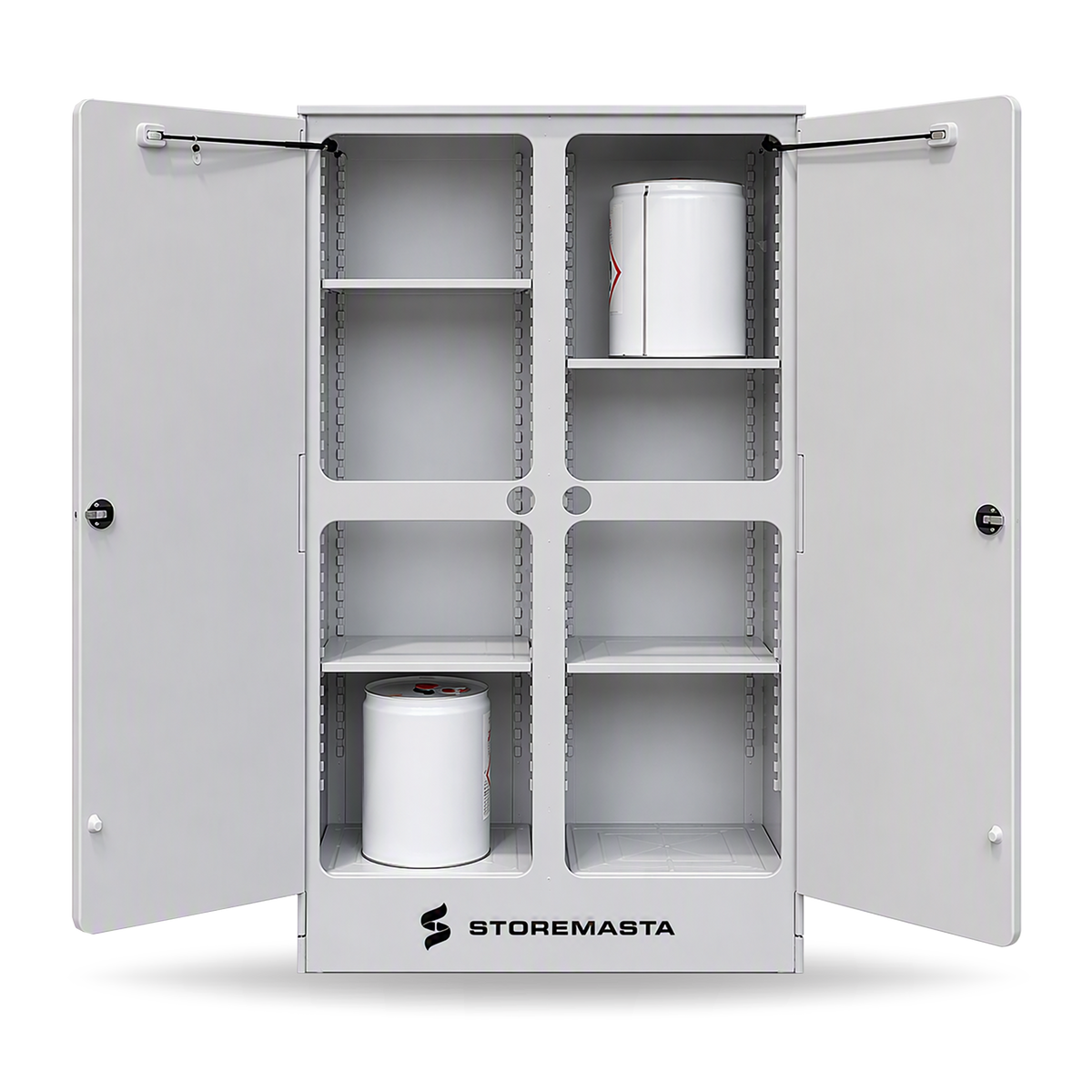

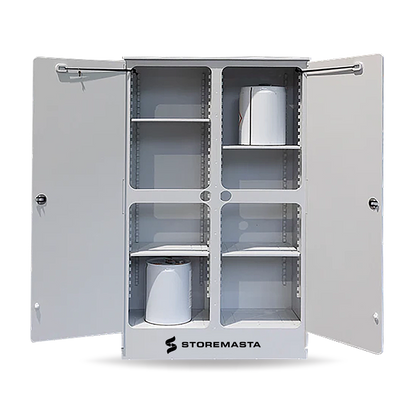

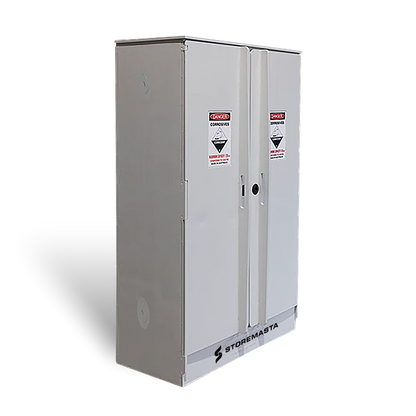

250L - Polyethylene Corrosive Substance Storage Cabinet

CP2500

Download the product spec sheet by filling the form below.

Description

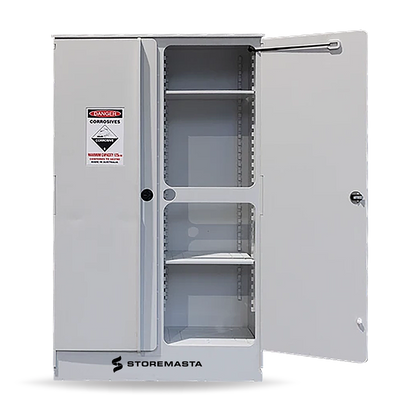

250 litre capacity corrosive substances cabinet made from high density polyethylene.

Secure and adjustable storage with additional shelves and ventilation ports as available options.

    Features

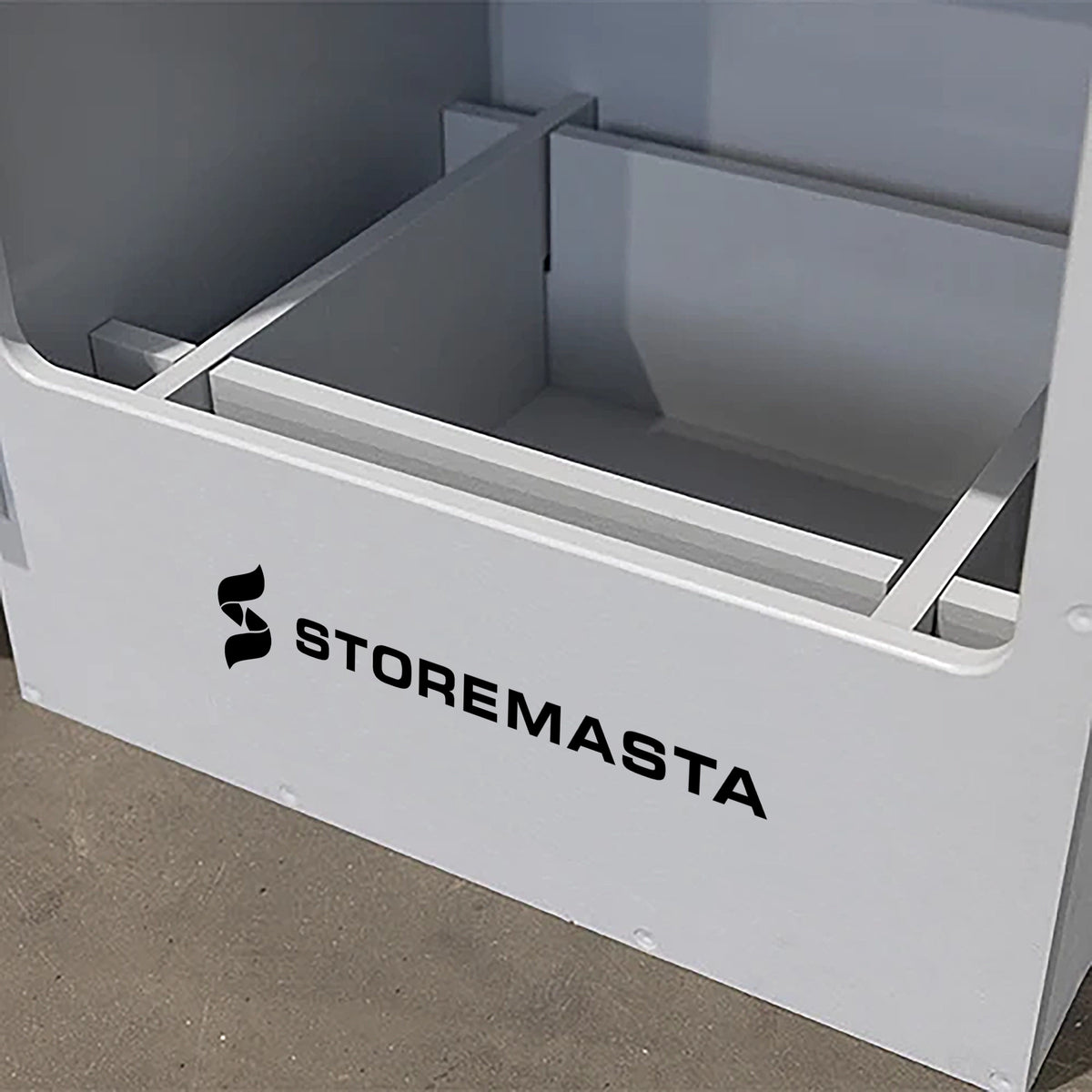

    • High capacity liquid tight spill containment sump to contain spills - 150mm deep
    • Self closing, close fitting doors. Doors do not open inward and can be opened from within the cabinet

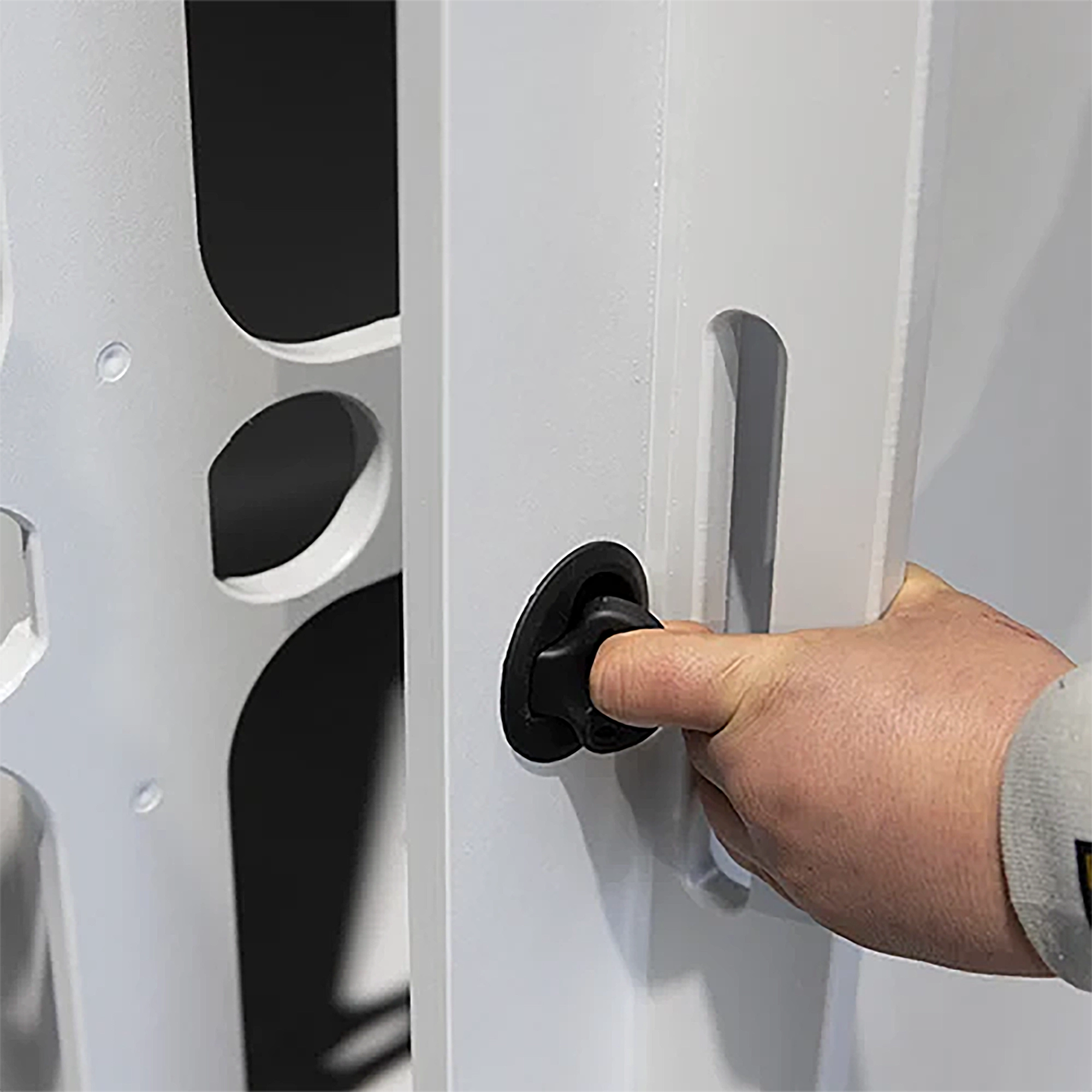

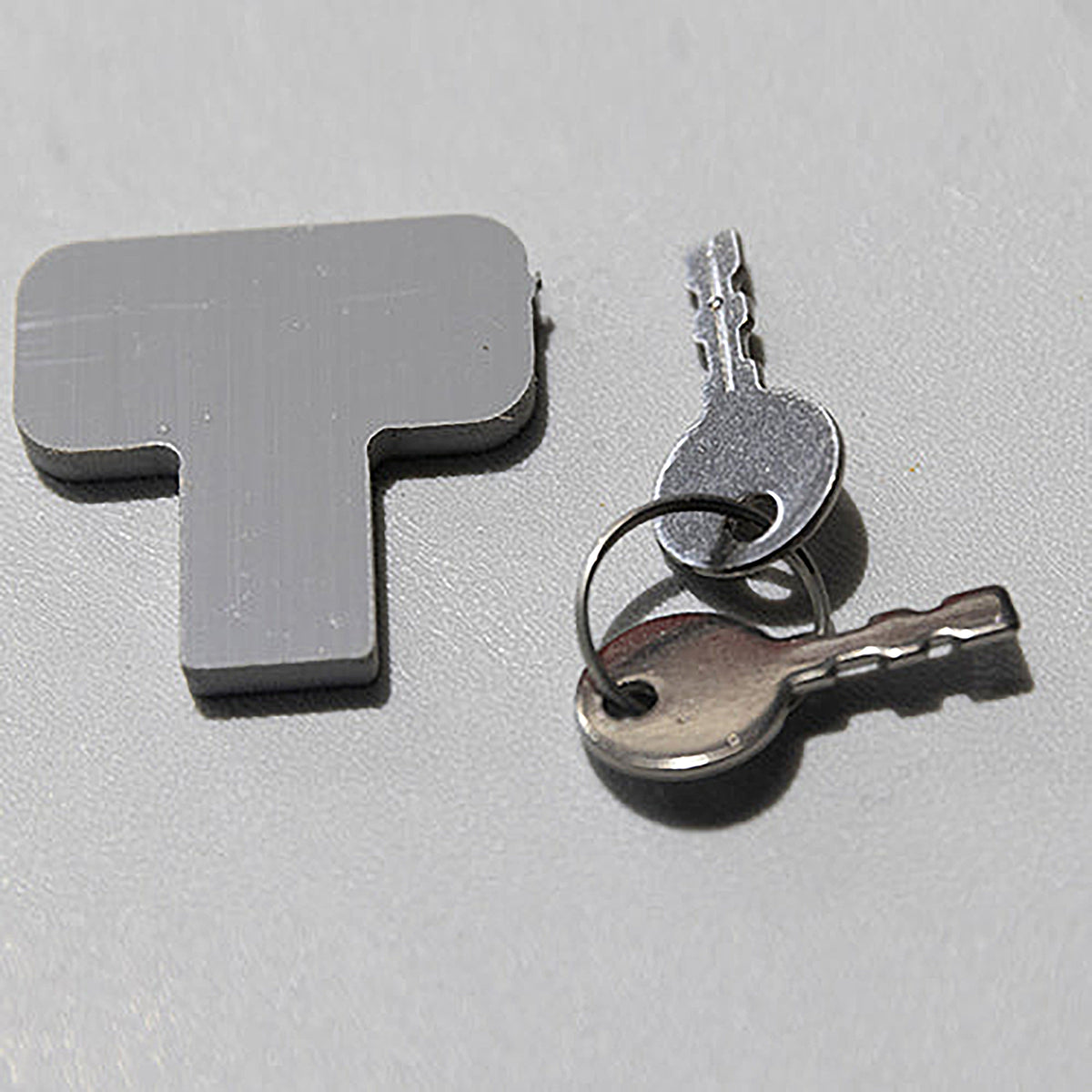

    • Corrosive resistant latch with no metallic components

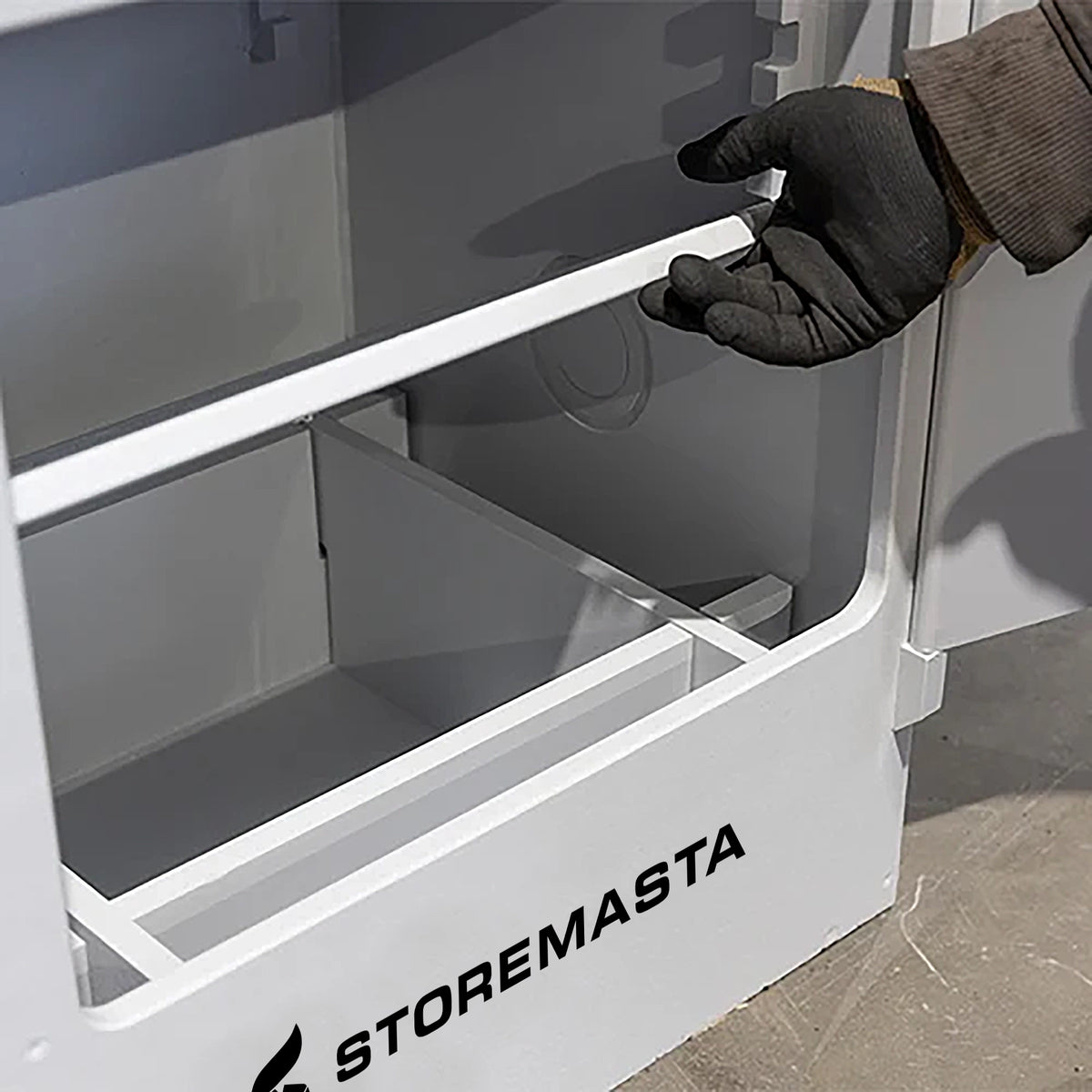

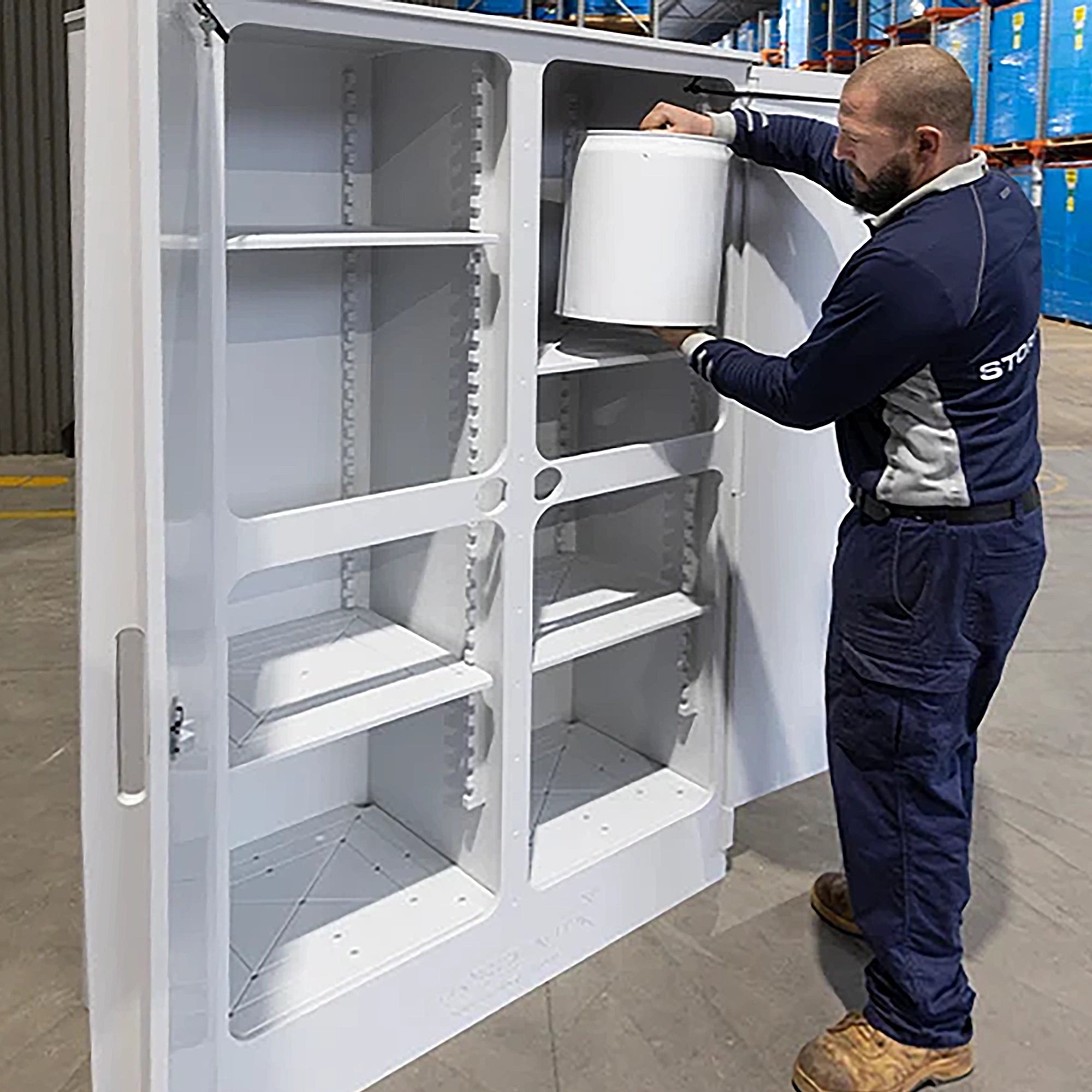

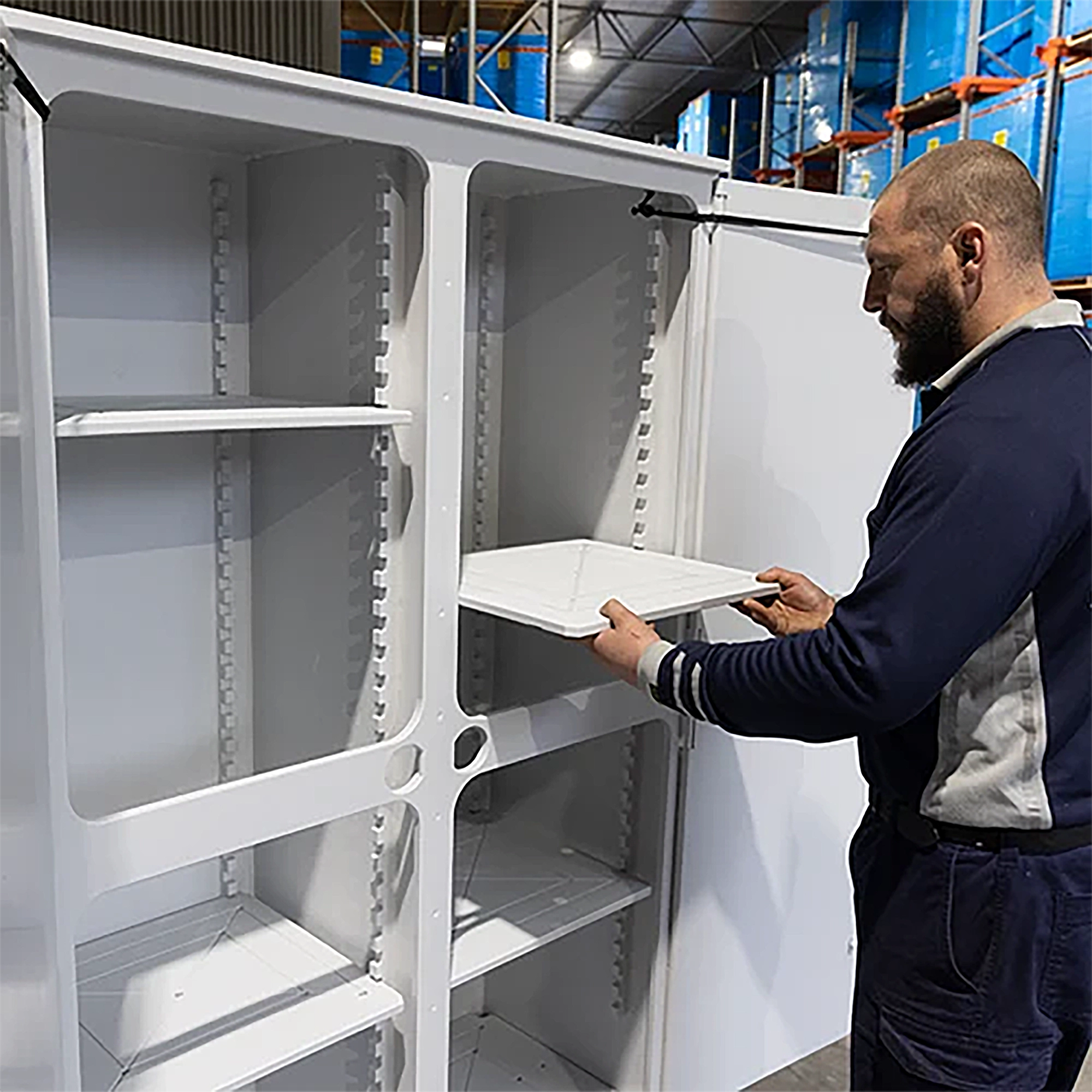

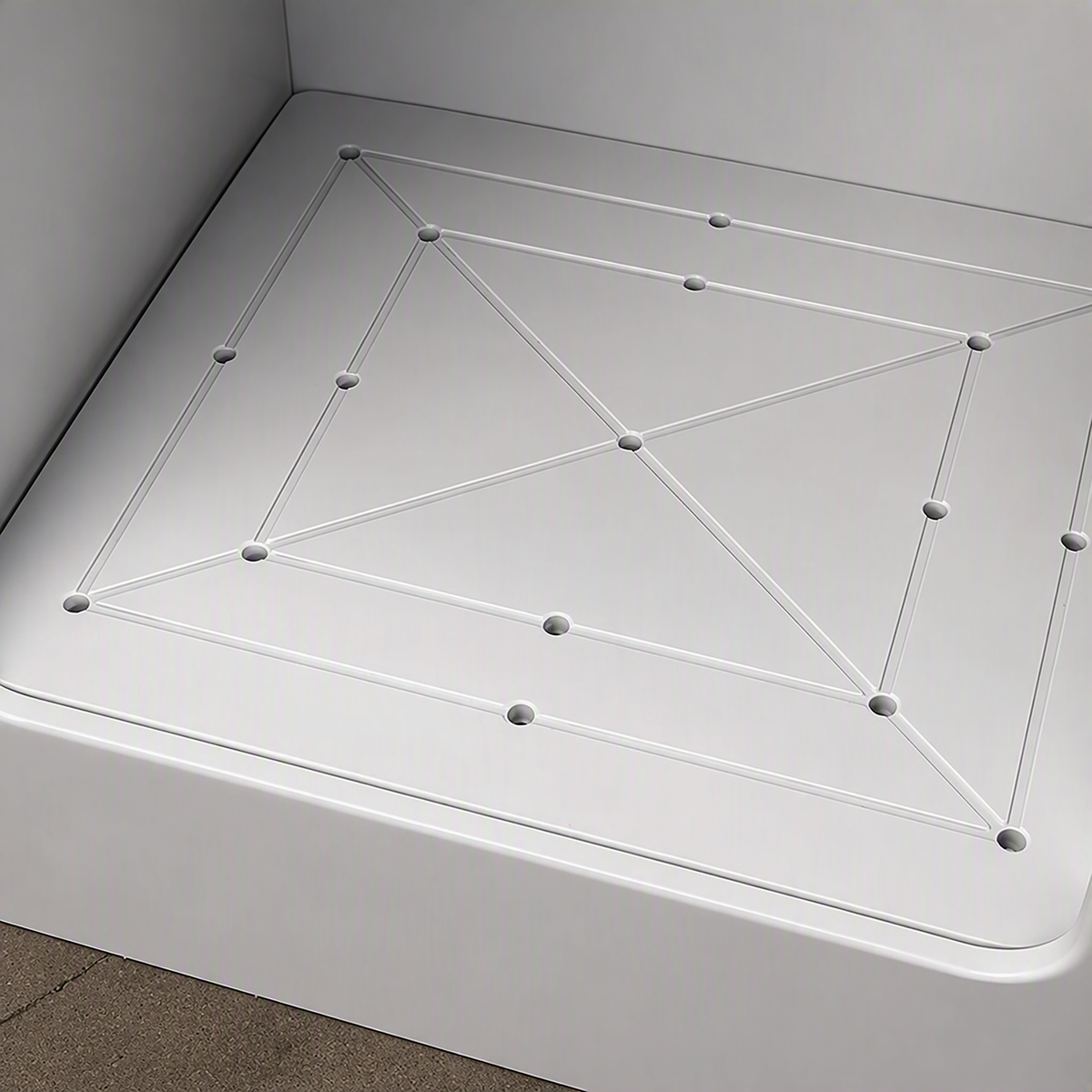

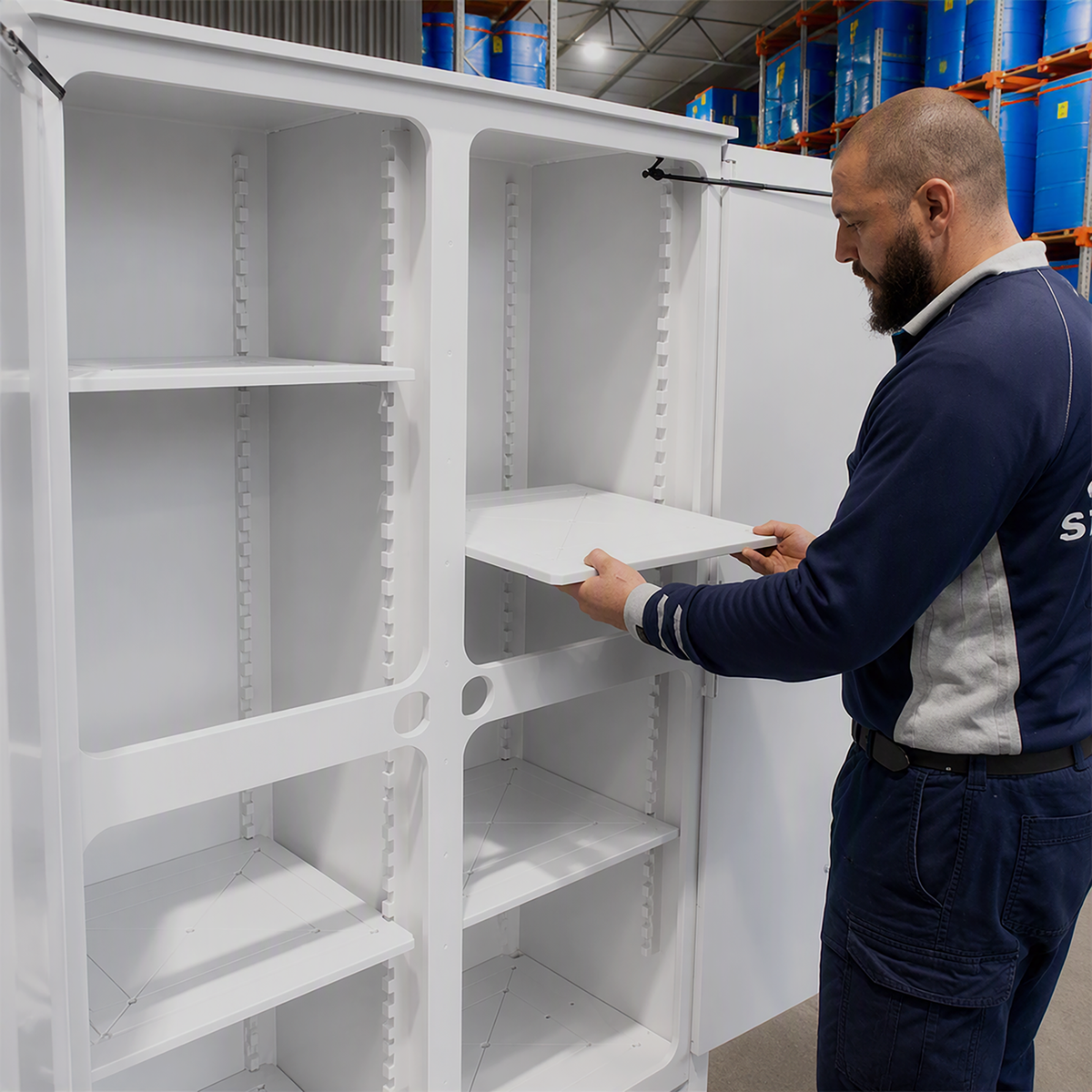

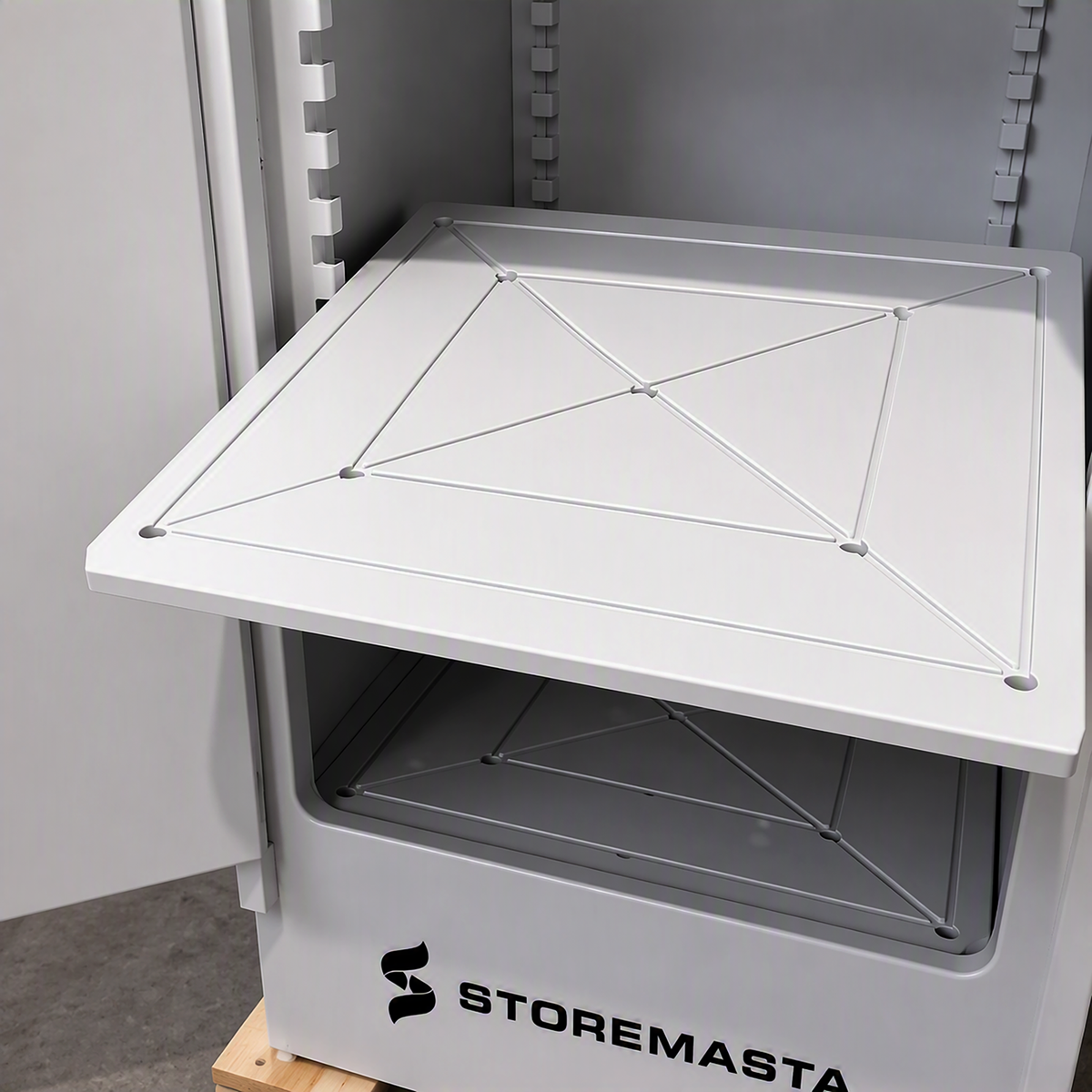

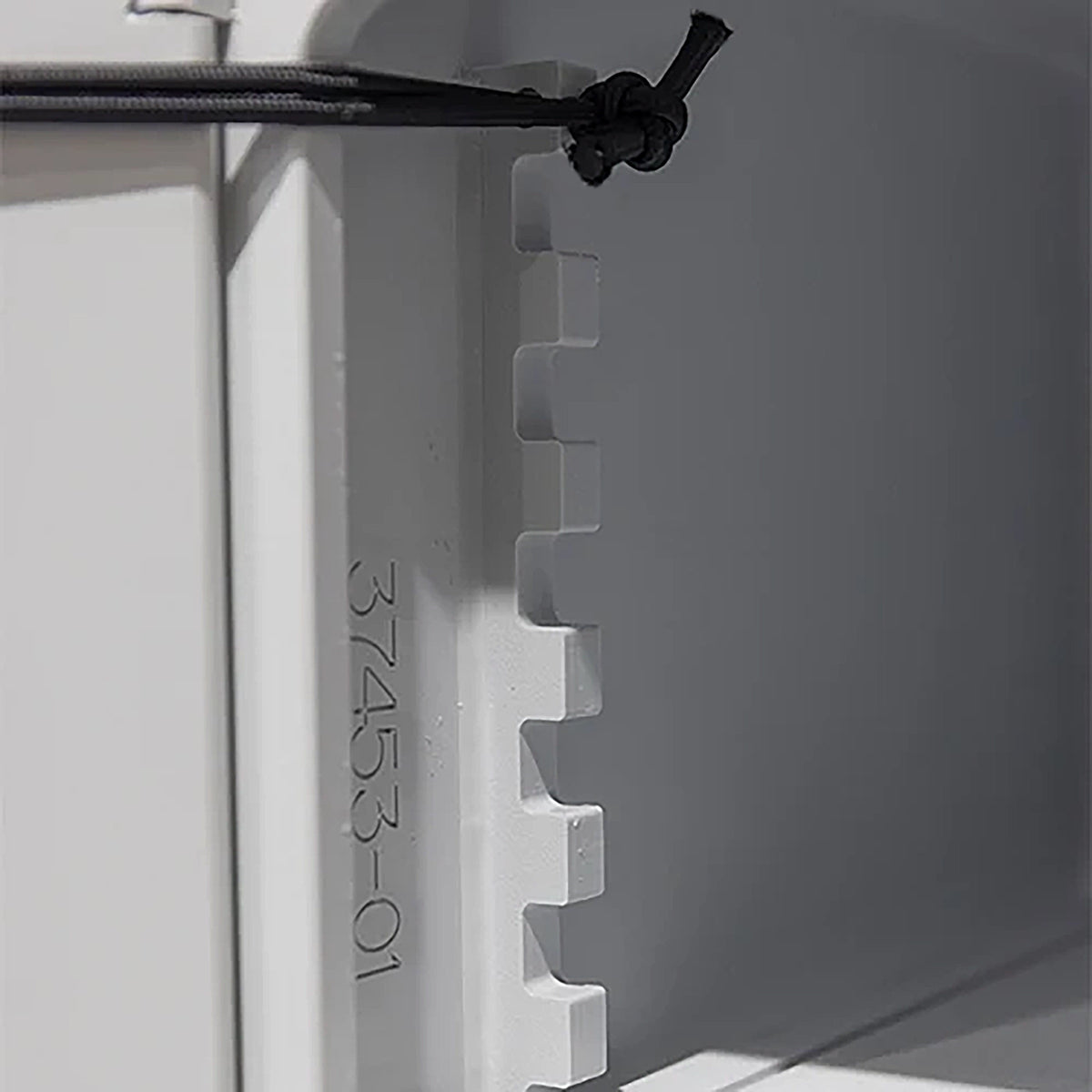

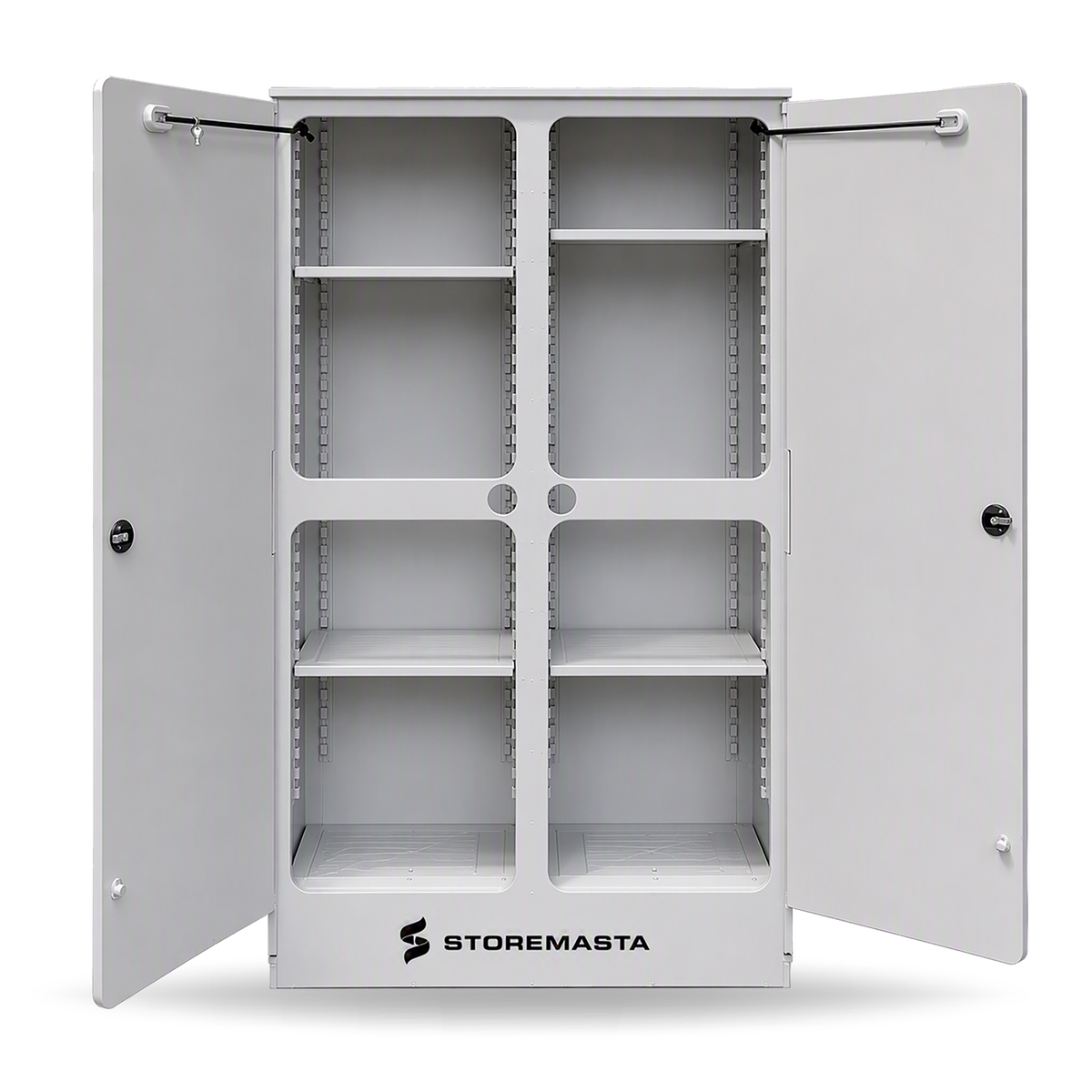

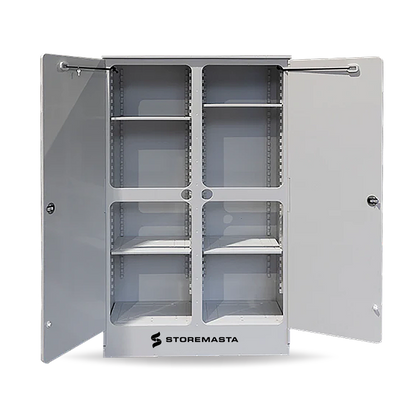

    • Strong fully adjustable shelving perforated for free air movement, 100mm adjustable increments

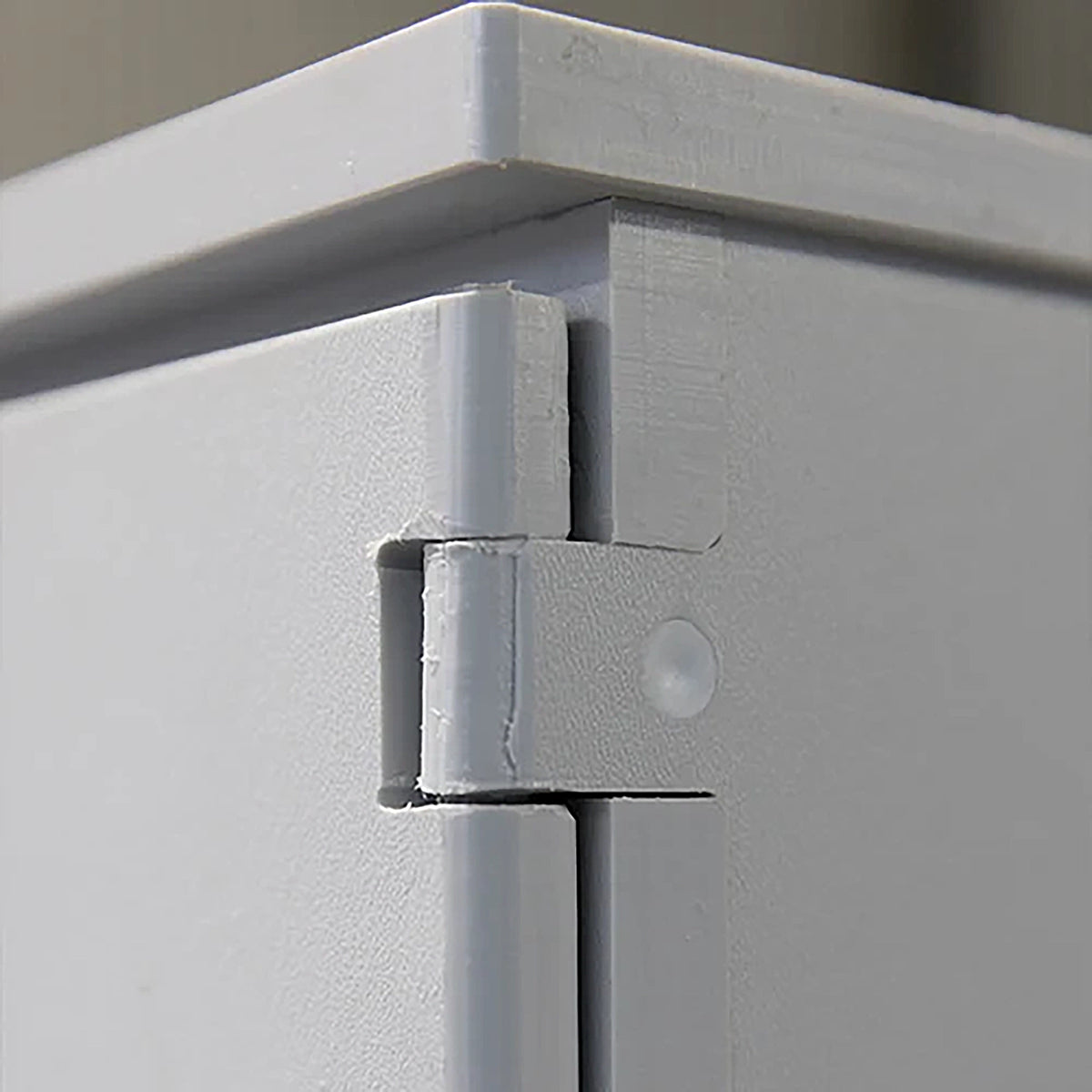

    • Fully welded polyethylene construction

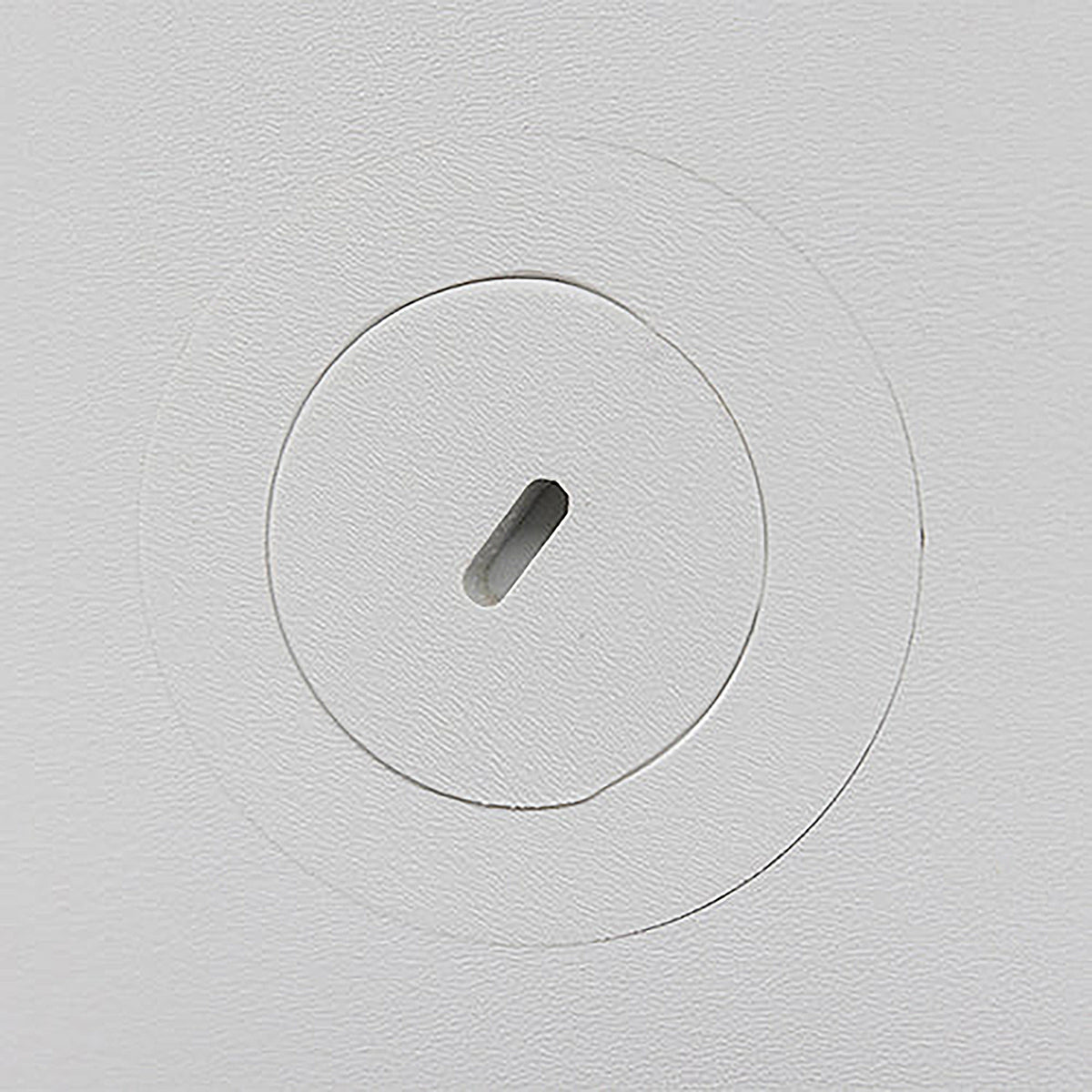

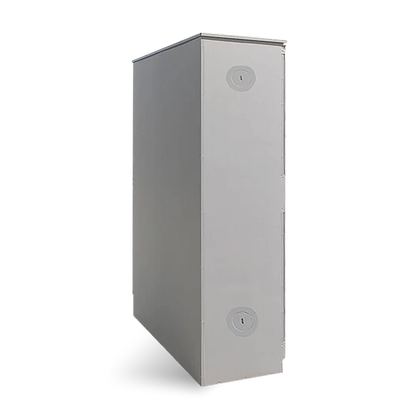

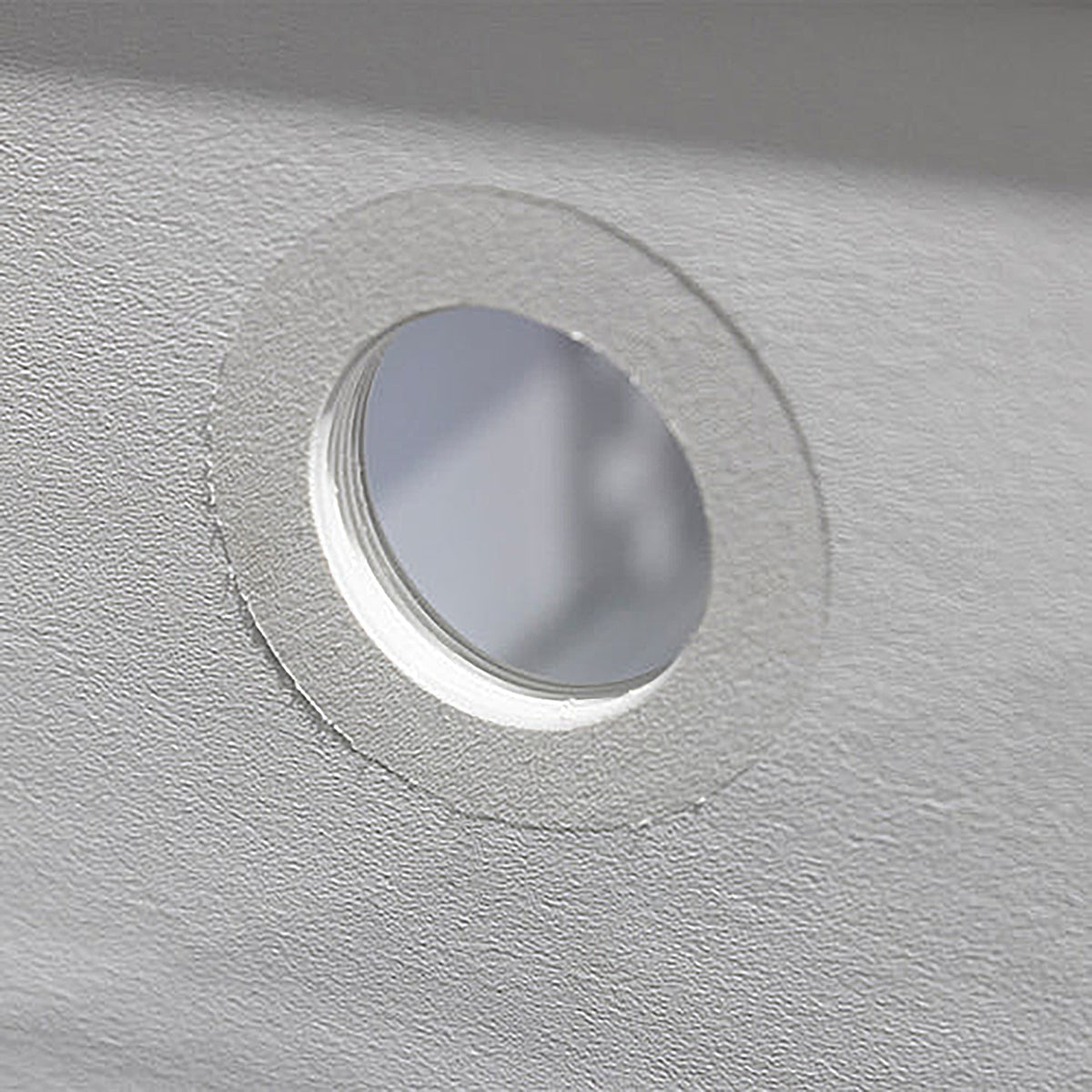

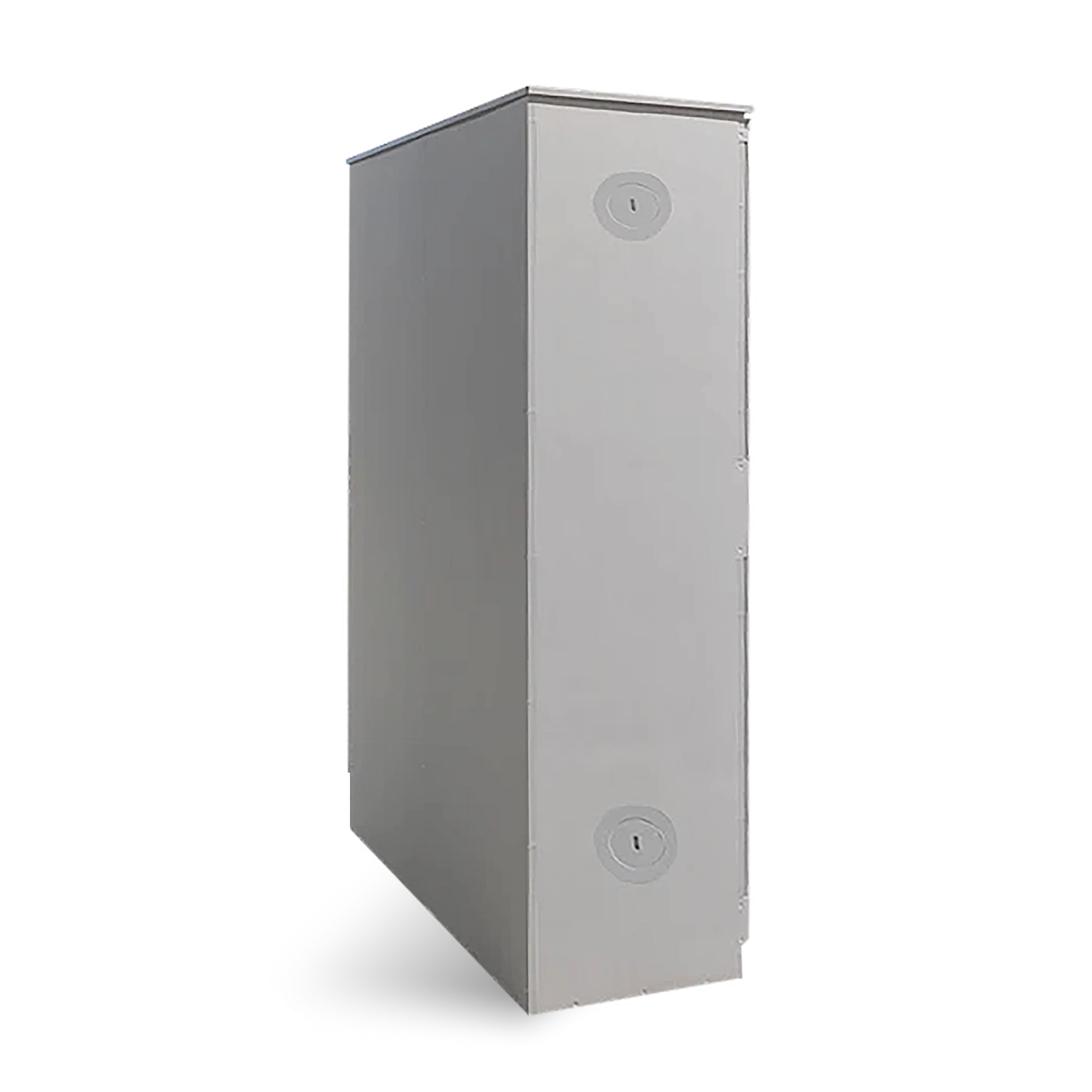

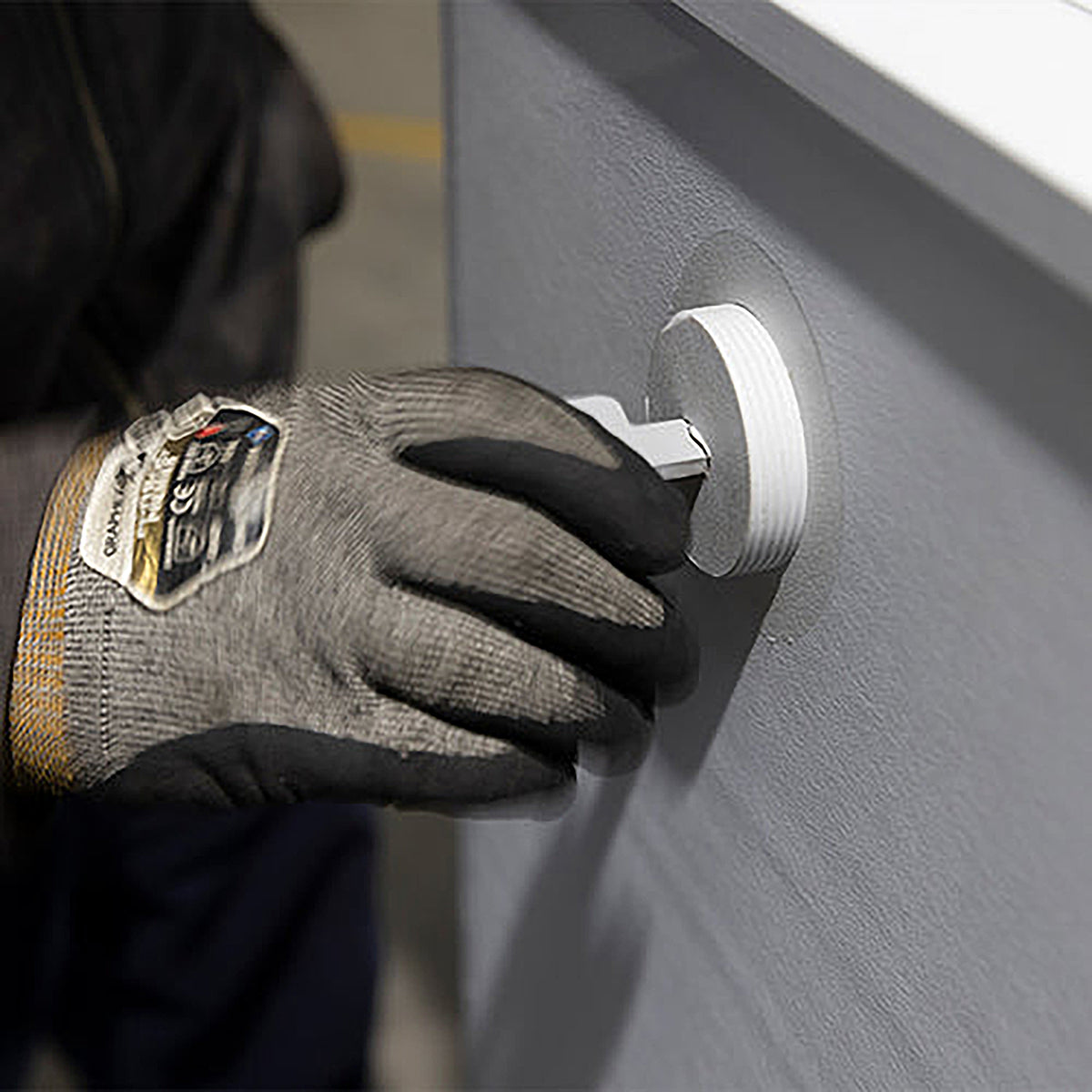

    • Optional vent openings and flash arrestors [for mechanical ventilation systems]
    • Manufactured with UV-stabilized High Density Polyethylene (HDPE) for high durability and performance
    • Distinct safety signs and directions that comply with AS 1216 and AS 1319
    • Designed and manufactured in full conformance to AS 3780:2008 - The storage and handling of corrosive substances
    Dimensions (mm)
    External H 1790 W 1100 D 490
    Internal H 1590 W 2 x 520 D 430
    Storage Capacity
    Max Capacity 250L
    Winchester Size 0.5L 2.5L 5L
    Capacity 504****** 72**** 32****
    Drum Size 4L 20L 60L 205L
    Capacity 56******* 6 4 -
    ****4 Storage levels ******6 storage levels *******7 storage levels
    Calculations based on these package size
    Dangerous Goods Compliance Specifications
    Complies with AS3780 - 2008
    Sump Capacity 2 x 115L
    Other Specifications
    Weight 255.0 kg
    Shelf Levels 6
    Storage Levels 3
    Shelf Thickness (mm) 15
    Shelf spacing (mm) 40
    No. of Shelf Lugs 40
