Flammable Solids Storage Cabinet - 60L

SC06041
Description

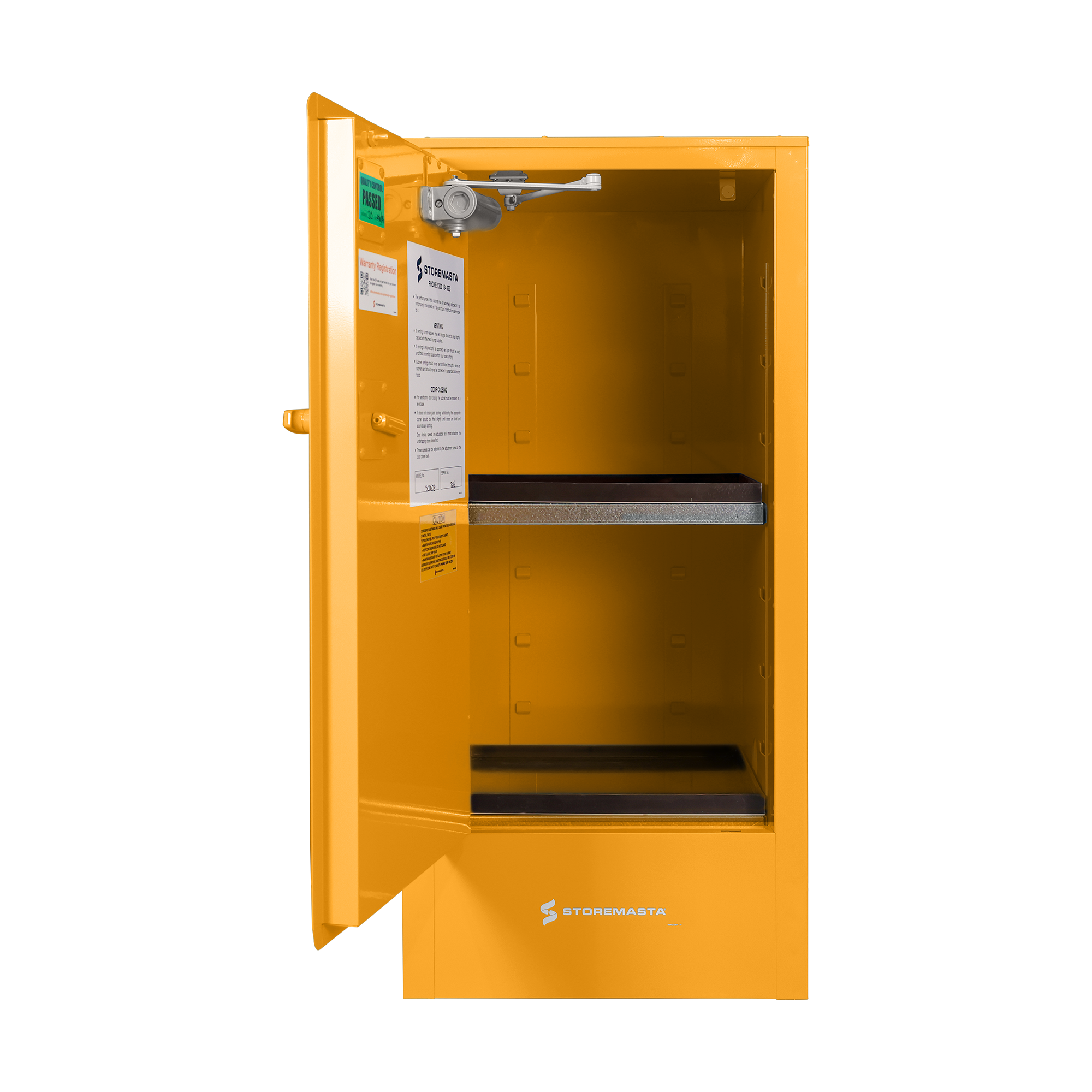

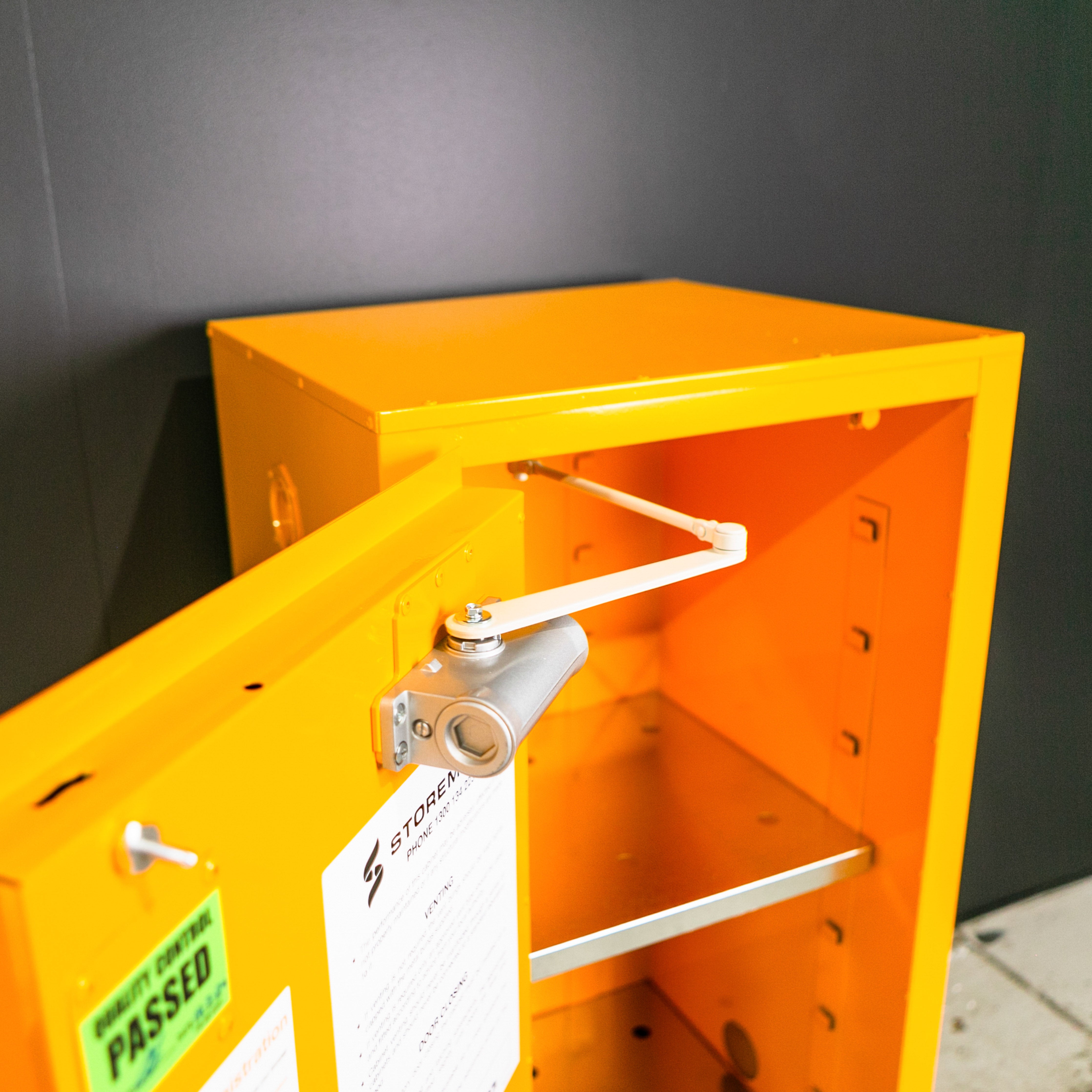

The SC06041 is a safety cabinet purpose-built for storing Class 4 Flammable Solids indoors (60 litre capacity). This chemical storage cabinet utilises a high-tech self-closing system - SAFE-T-CLOSE: the hydraulic-action door closes automatically without jamming or producing sparks.

The flammable cabinet is constructed from double-walled sheet steel and retains a natural flow of air through its perforated shelving and base. The unit also features a spill containment sump (23 litre capacity), flash arrestors and vent openings.

The SC06041 is part of our range of chemical safety cabinets for storing Dangerous Goods indoors. 100% designed and manufactured Australia, order your flammable solid storage cabinet from Storemasta today.

Features

  • Double walled sheet steel construction with a 40mm thermic air barrier
  • High capacity liquid tight sump to contain spills - 150mm deep
  • Self-closing, close fitting doors that automatically release in the event of a build-up of pressure within the cabinet
  • Built in flash arrestors and vent openings [for mechanical ventilation systems]
  • Strong fully adjustable shelving perforated for free air movement, 100mm adjustment increments
  • Sequential door closing system
  • Stainless steel pin with continuous hinging for strength and reliability
  • State of the art powder coat finish for high durability and performance
  • Distinct safety signs and directions that comply with AS 1216 and AS 1319
  • Designed and manufactured in full conformance to AS/NZS 5026:2012 - The storage and handling of class 4 dangerous goods.

Dimensions (mm)

ExternalH 1065W 500D 450
InternalH 818W 418D 370

Storage Capacity

Max Capacity 60L Maximum capacity of the cabinet is subject to the packing group of the chemical stored. Please refer to the relevant Australian Standard for further details.
Winchester Size0.5L2.5L 5L
Capacity60124
Drum Size4L20L60L205L
Capacity12*** 2--
***3 Storage levels
Calculations based on these package size

Dangerous Goods Compliance Specifications

Complies with AS/NZS - 5026 - 2012
Sump Capacity 23L

Other Specifications

Weight 41.0 kg
Shelf Levels 2
Storage Levels 2
Shelf Thickness (mm) 28
Shelf spacing (mm) 100
No. of Shelf Lugs 8
