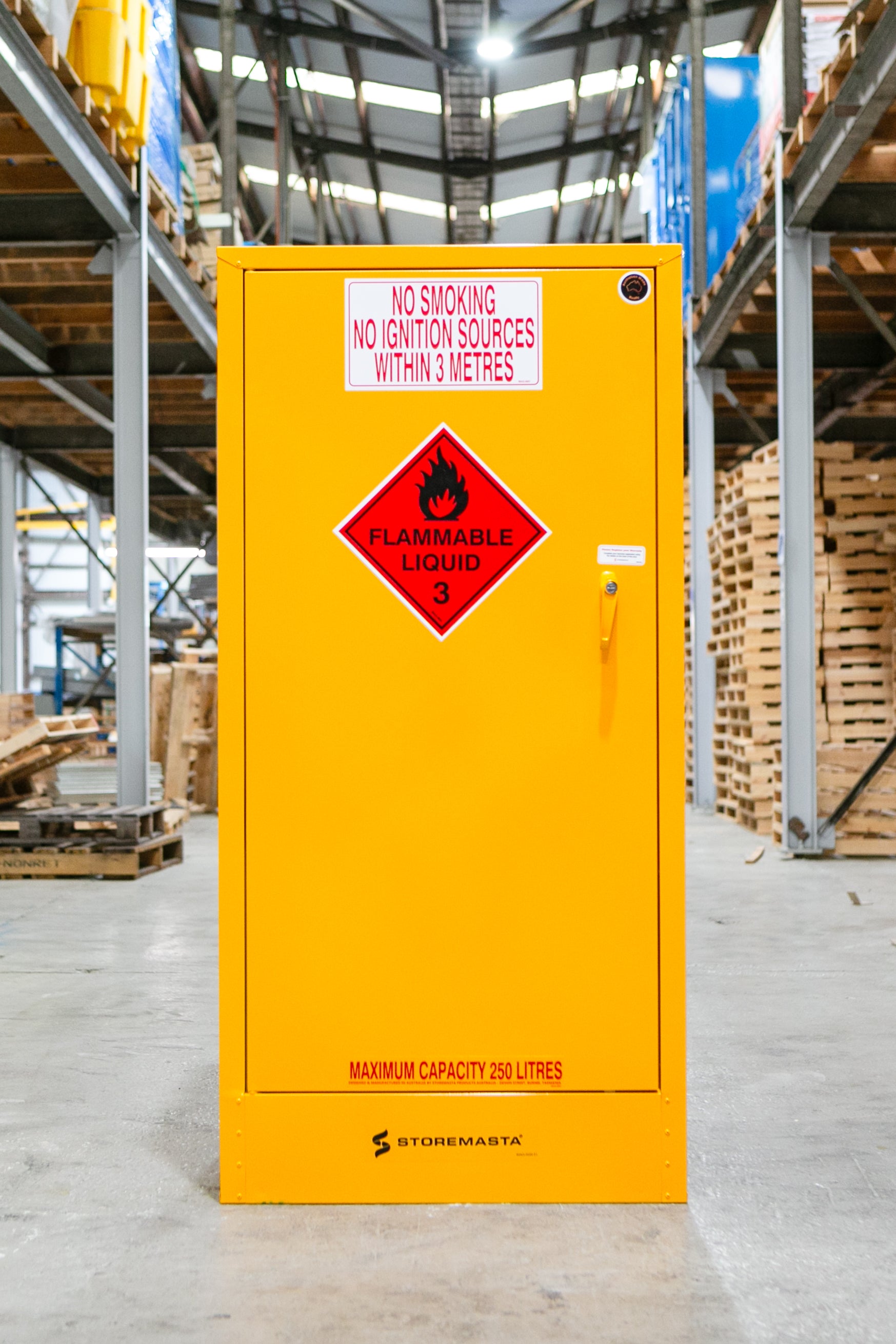

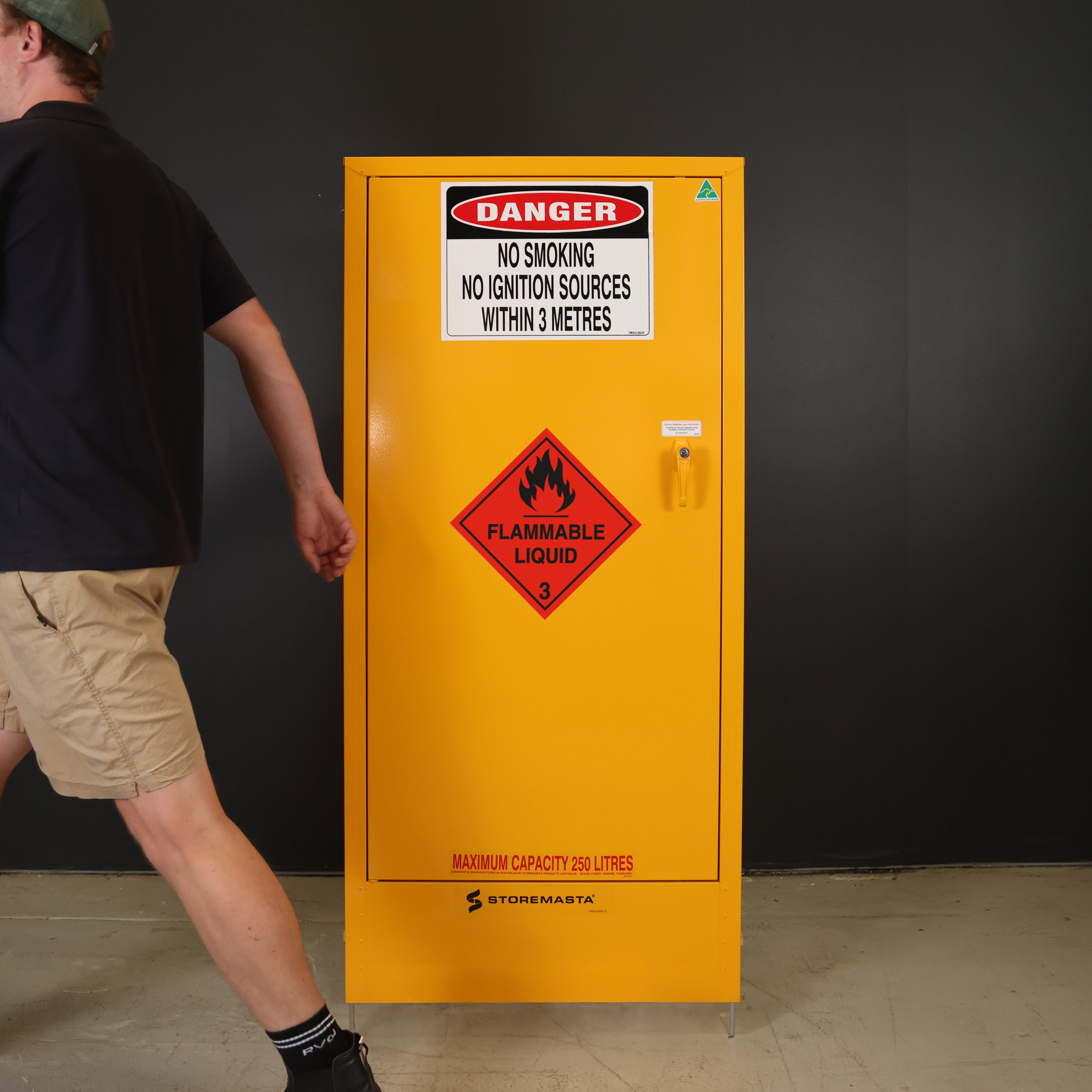

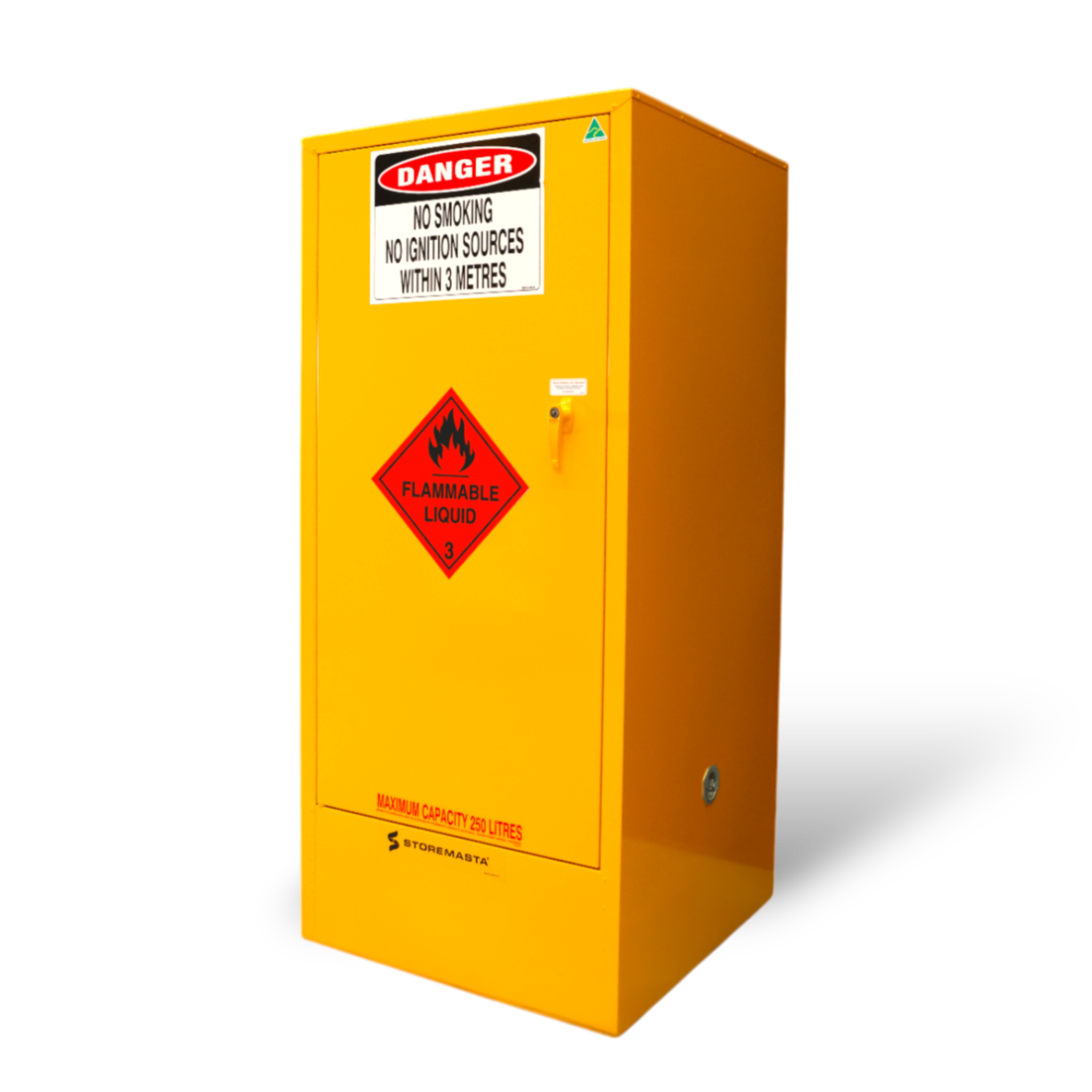

250L - Flammable Liquid Storage Cabinet - Single Door

SC300
Description

Flammable liquids require a controlled environment to reduce the risk of fire and explosion. The Storemasta Flammable Liquid Storage Cabinet SC300 is a locally designed and made Safety Cabinet that meets the stringent requirements of the Australian Standard 1940.

Features include Storemasta’s patented sequential door closing system SAFE-T-CLOSE® — which delivers a smooth hydraulic action, allowing doors to close firmly and in sequence, every time.  This Flammable Safety Cabinet also features a compliant spill containment sump to capture leaks and spills, and fully adjustable perforated shelving to allow for natural air flow.

The SC300 offers 250 litres of flammable liquid storage and has a tall, slimline design that allows it to be installed in smaller spaces. Storemasta also offers the classic SC250 model which provides the same chemical storage capacity but in a standard Flammable Cabinet design.

Storemasta’s range of Flammable Cabinets are an ideal indoor chemical storage solution, delivering the ultimate controls to protect people, place and property from the hazards of flammable liquids.

Features

  • Double walled sheet steel construction with a 40mm thermic air barrier
  • High capacity liquid tight sump to contain spills - 150mm deep

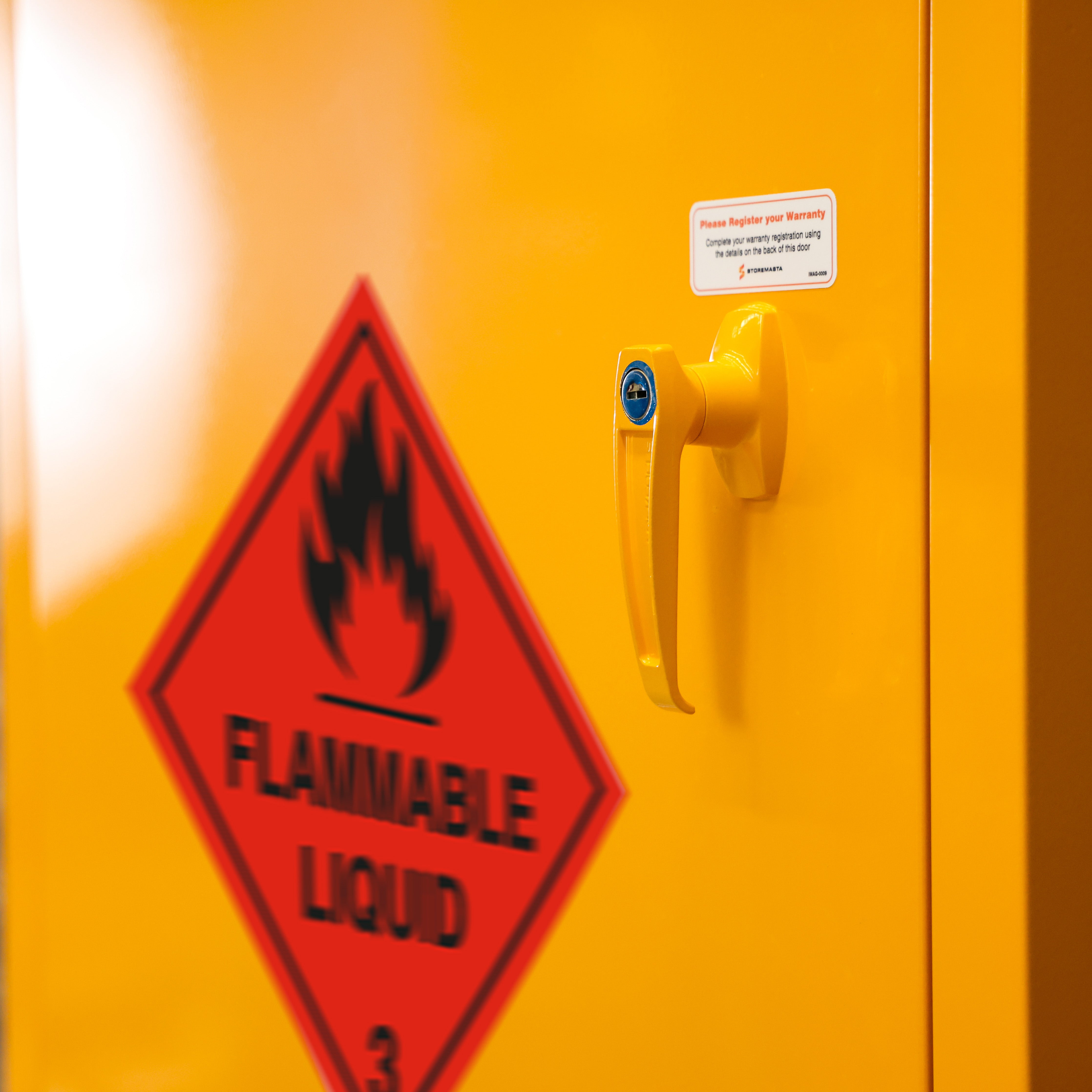

  • Self-closing, close fitting doors that latch at 2 points

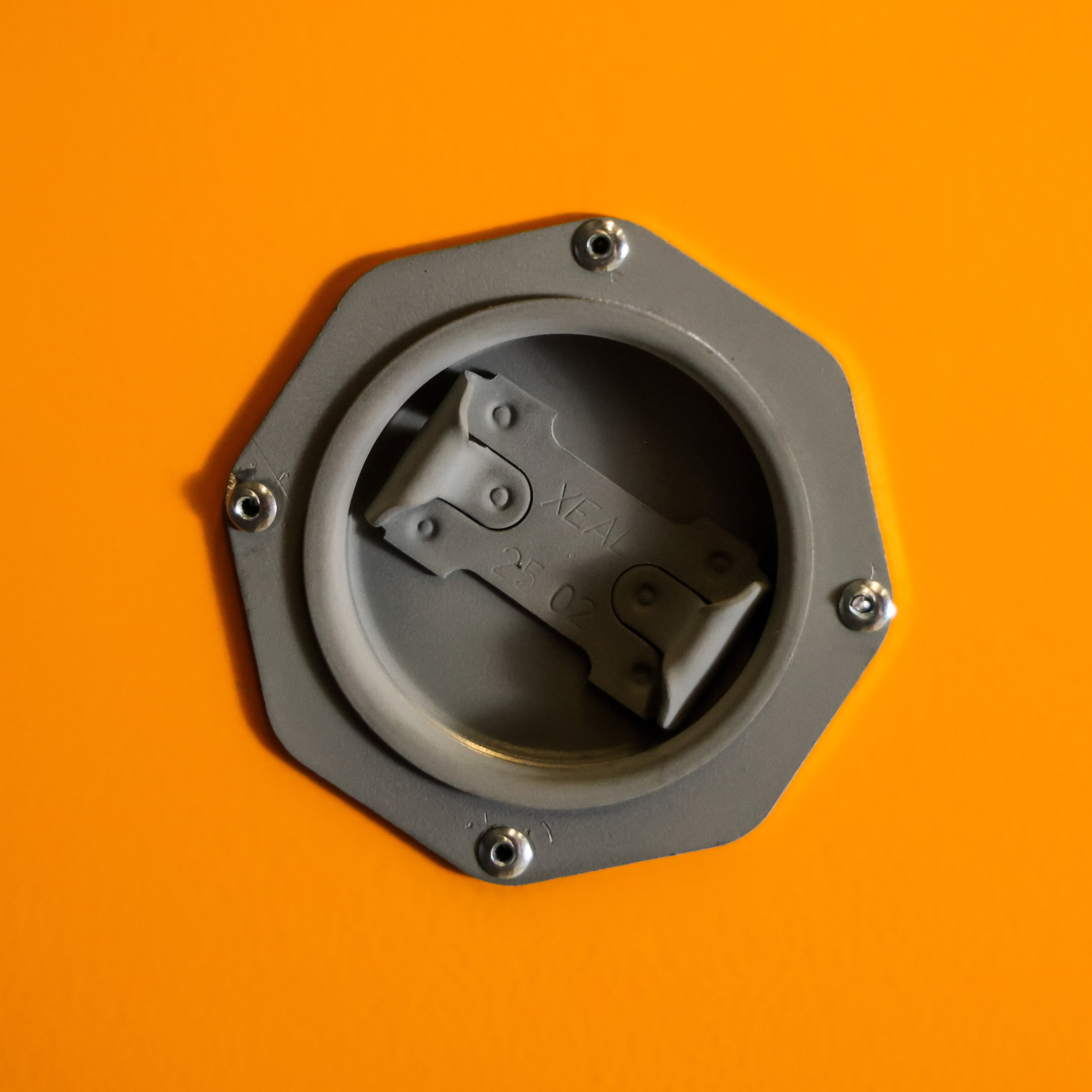

  • Built in flash arrestors and vent openings [for mechanical ventilation systems]

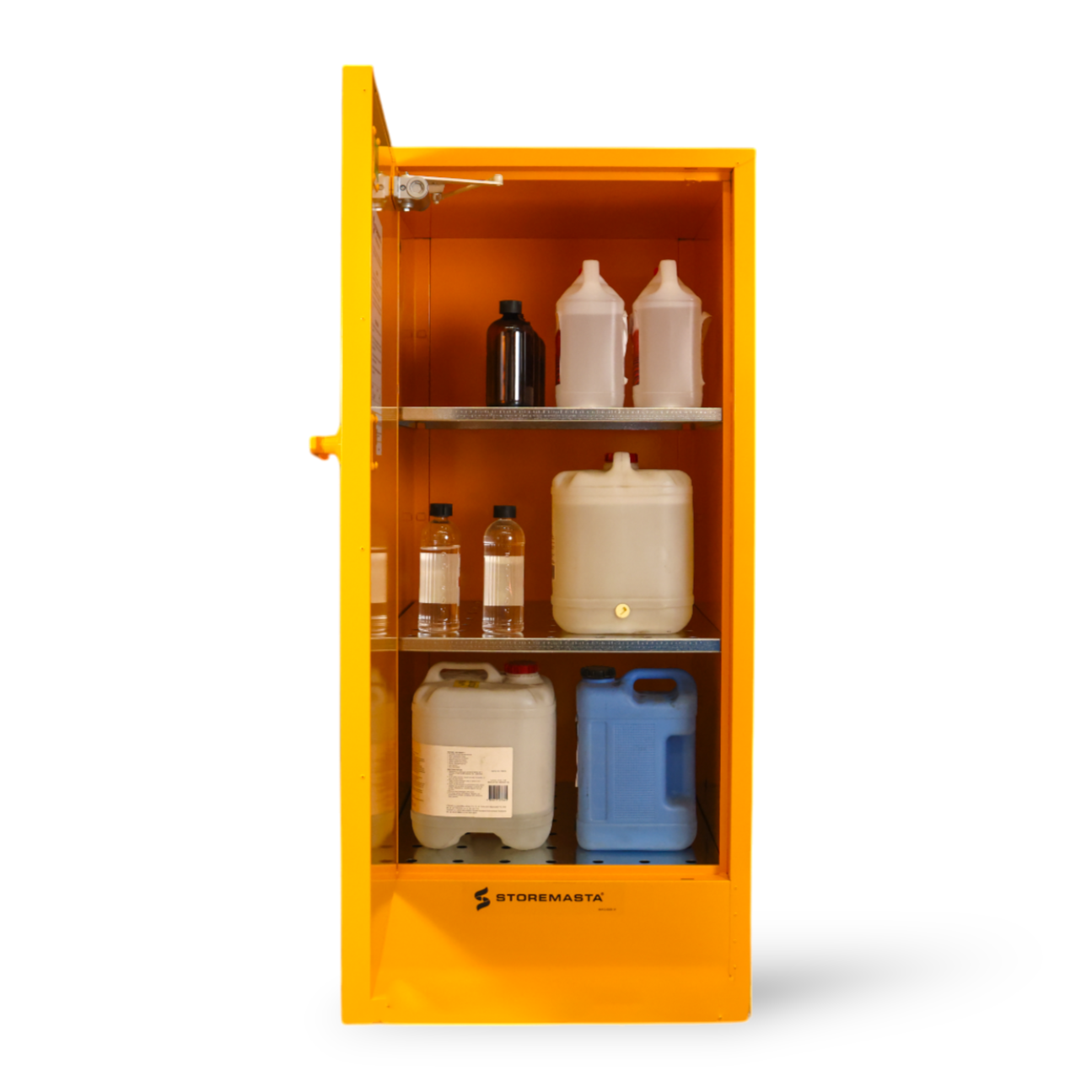

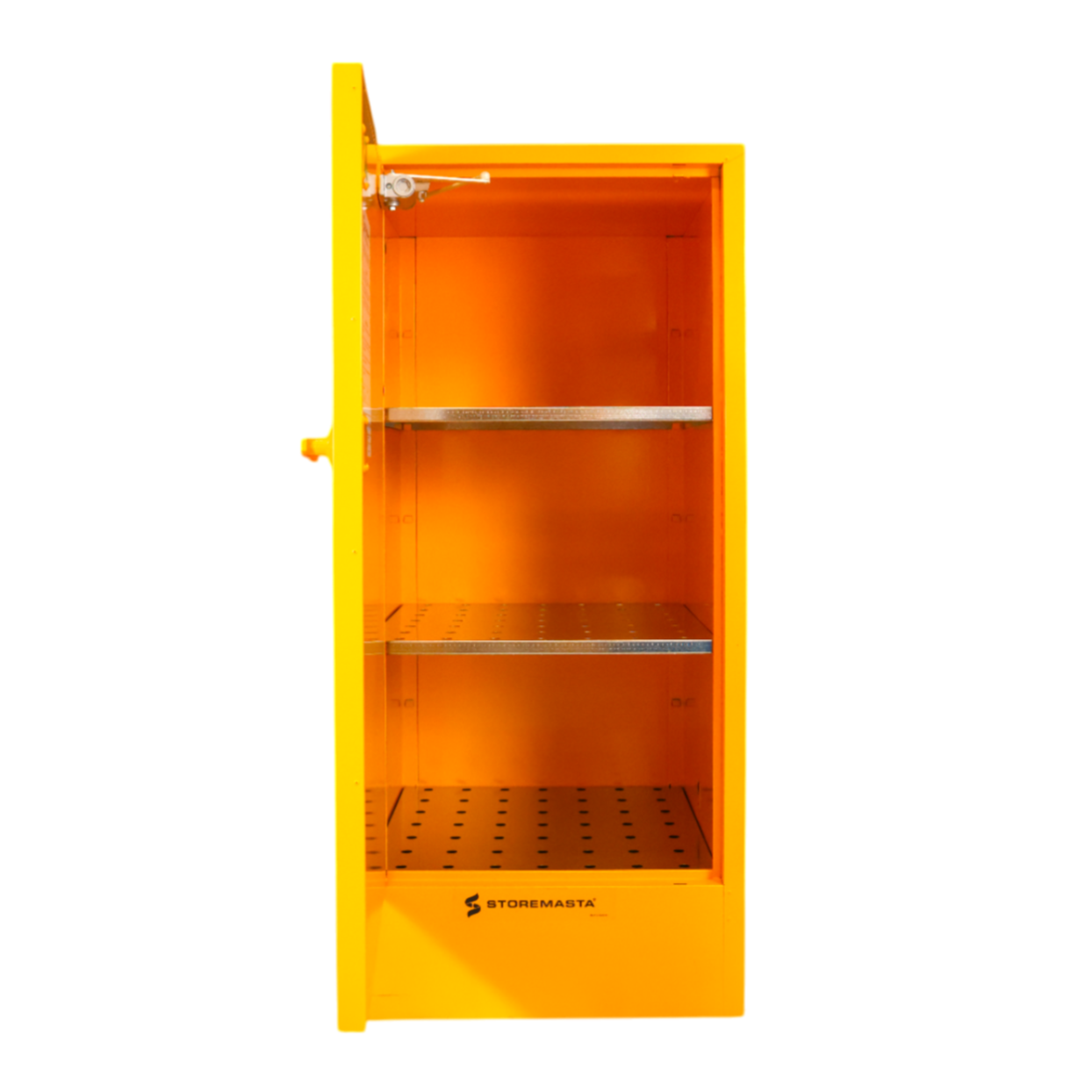

  • Strong fully adjustable shelving perforated for free air movement, 100mm adjustment increments
  • Sequential door closing system
  • Stainless steel pin with continuous hinging for strength and reliability
  • State of the art powder coat finish for high durability and performance
  • Distinct safety signs and directions that comply with AS 1216 and AS 1319
  • Designed and Manufactured in full conformance to AS 1940:2017 - The storage and handling of flammable and combustible liquids

Dimensions (mm)

ExternalH 1540W 750D 750
InternalH 1315W 660D 660

Storage Capacity

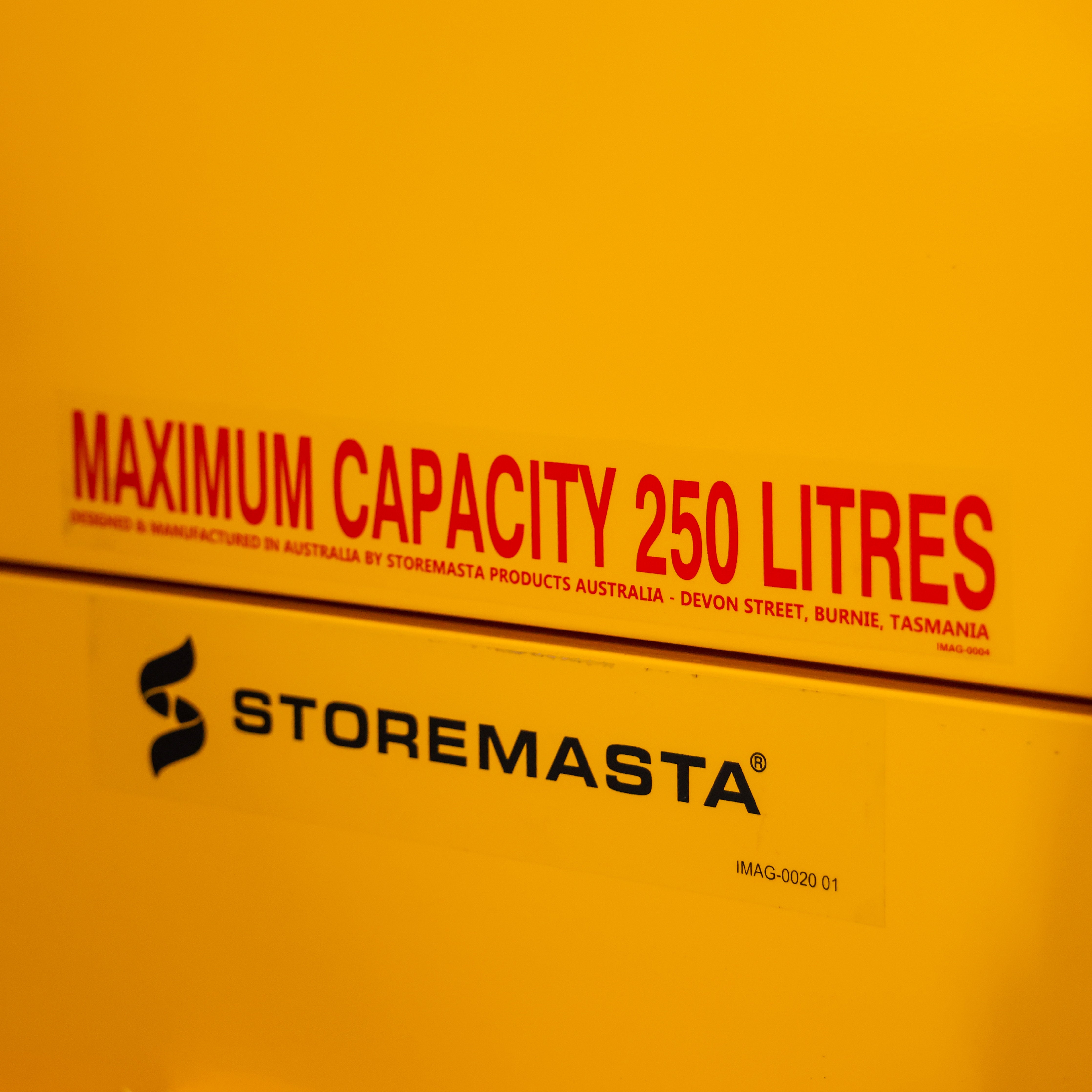

Max Capacity 250L
Drum Size4L20L60L205L
Capacity27*12*11
*3 storage levels
Calculations based on these package size

Dangerous Goods Compliance Specifications

Complies with AS1940 - 2017
Sump Capacity 59L

Other Specifications

Weight 125.0 kg
Shelf Levels 2 + Base
Storage Levels 3
Shelf Thickness (mm) 28
Shelf spacing (mm) 190
No. of Shelf Lugs 6 (including base level)
