Dangerous When Wet Storage Cabinet - 60L
SC06043
Description

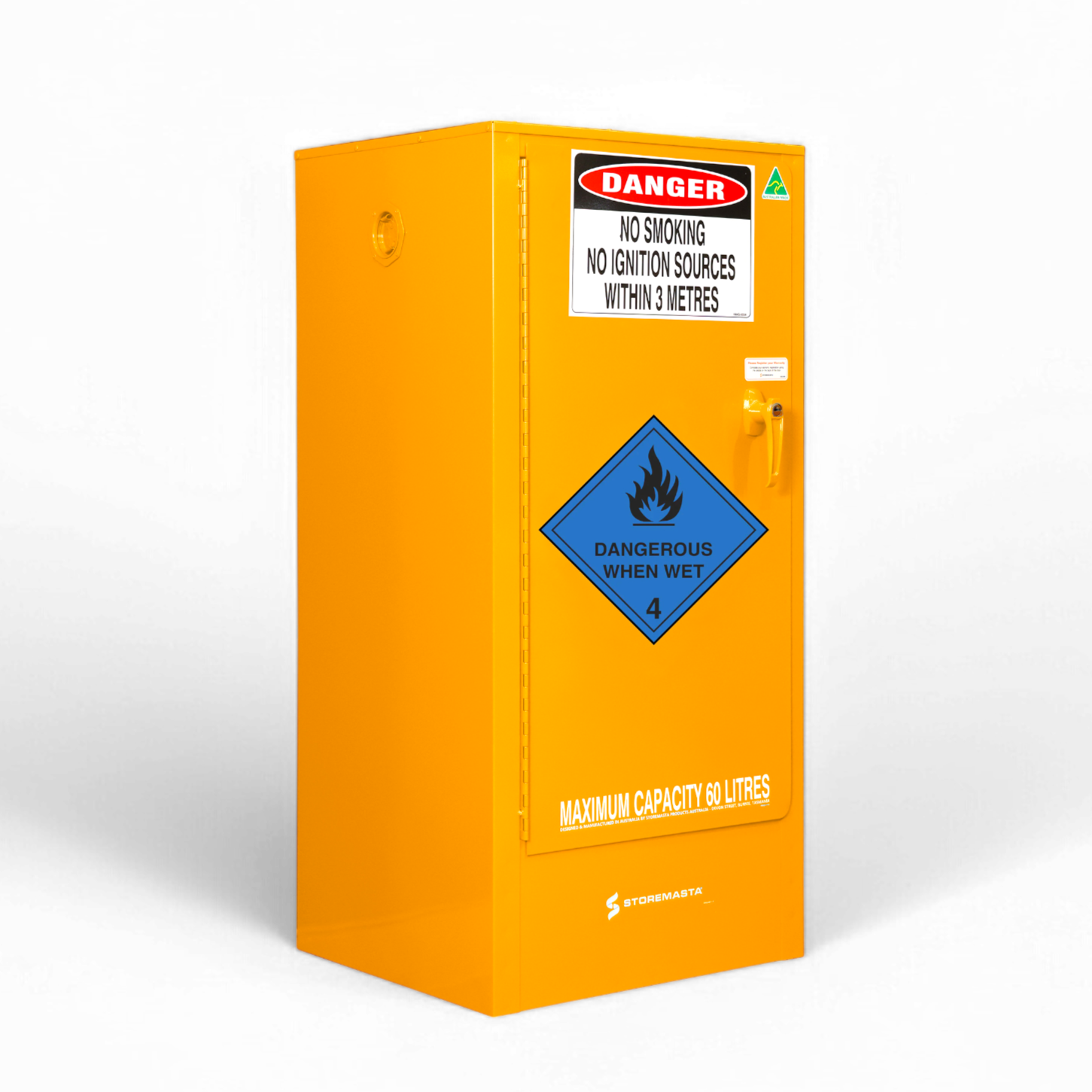

This Storemasta Dangerous When Wet Storage Cabinet has a 60 litre capacity and features the patented SAFE-T-CLOSE® sequential closing system.
It€™s ideal for the safe everyday storage of most classes of Dangerous Goods, and is fully compliant with legislative requirements. A well respected performer in all areas of Dangerous Goods storage - throughout all industries.
Features
- Double walled sheet steel construction with a 40mm thermic air barrier
- High capacity liquid tight sump to contain spills - 150mm deep

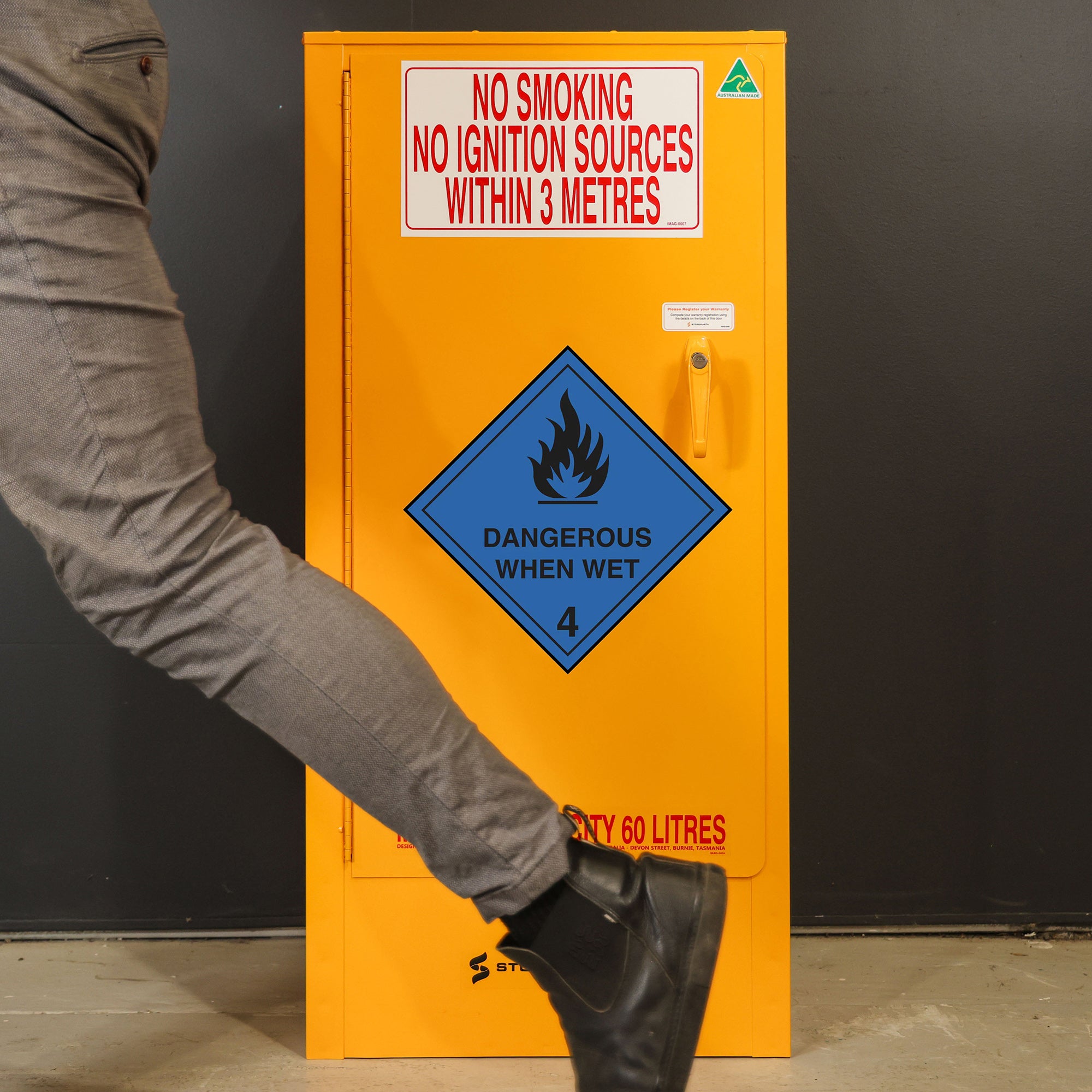

- Self-closing, close fitting doors that automatically release in the event of a build-up of pressure within the cabinet
- Built in flash arrestors and vent openings [for mechanical ventilation systems]

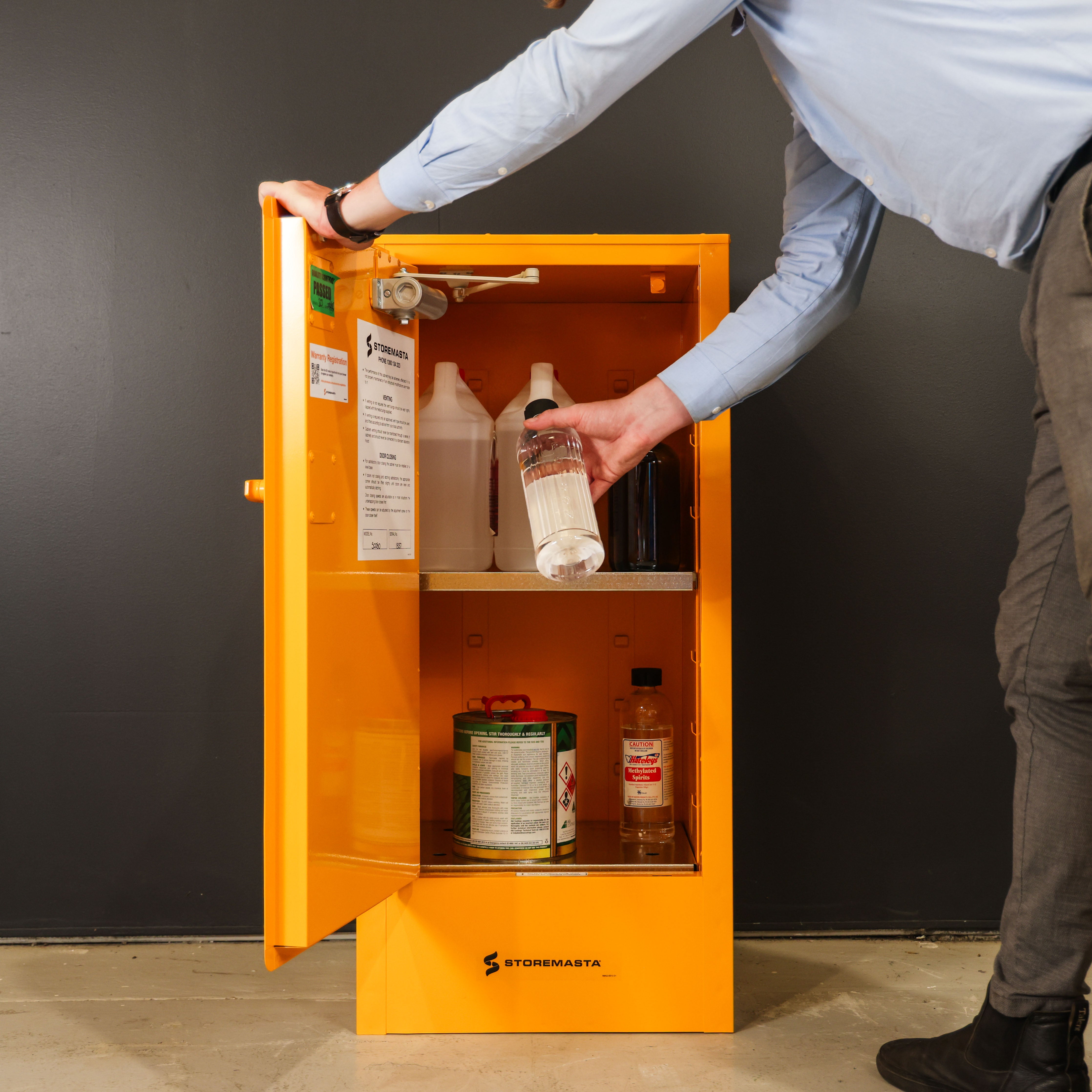

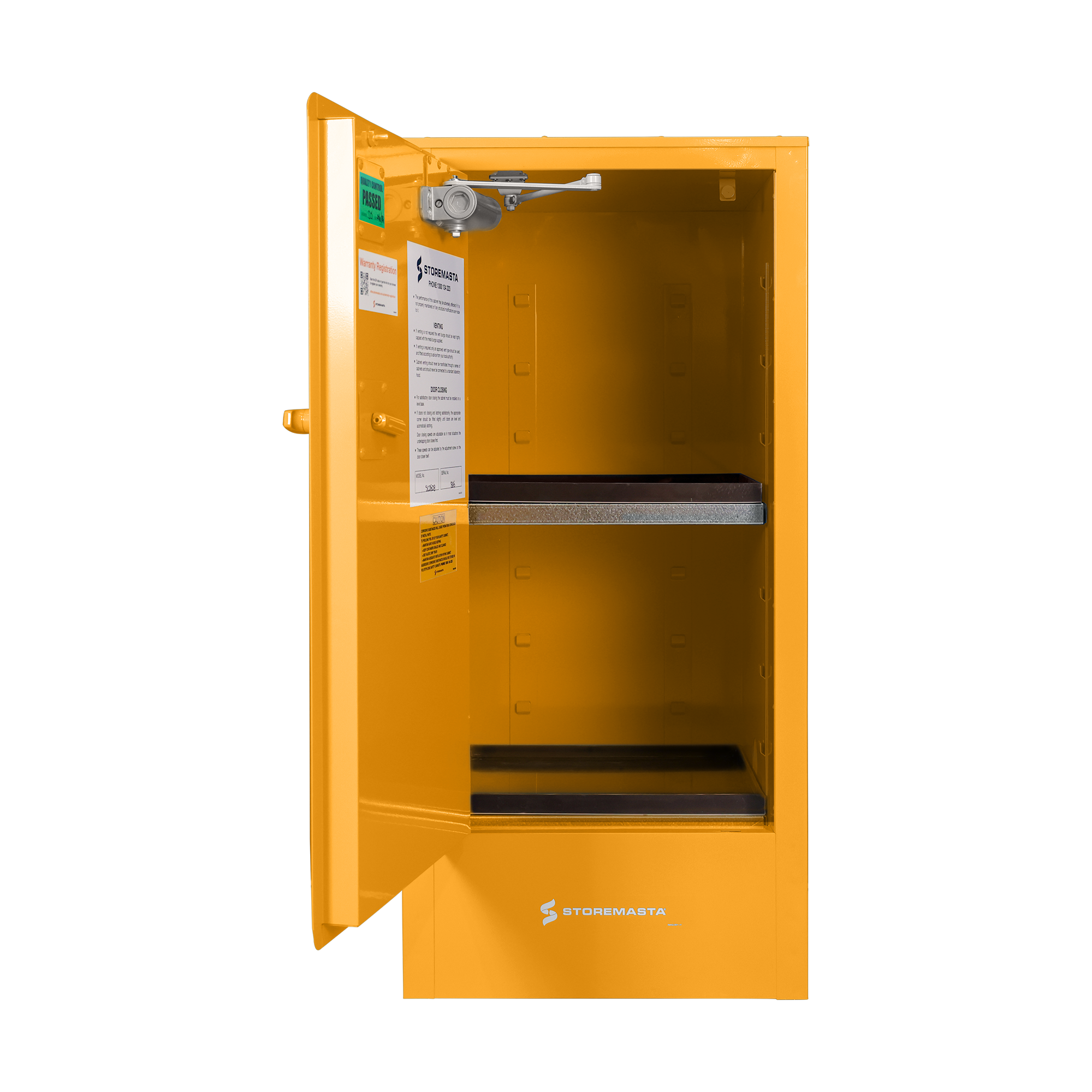

- Strong fully adjustable shelving perforated for free air movement, 100mm adjustment increments
- Sequential door closing system
- Stainless steel pin with continuous hinging for strength and reliability
- State of the art powder coat finish for high durability and performance

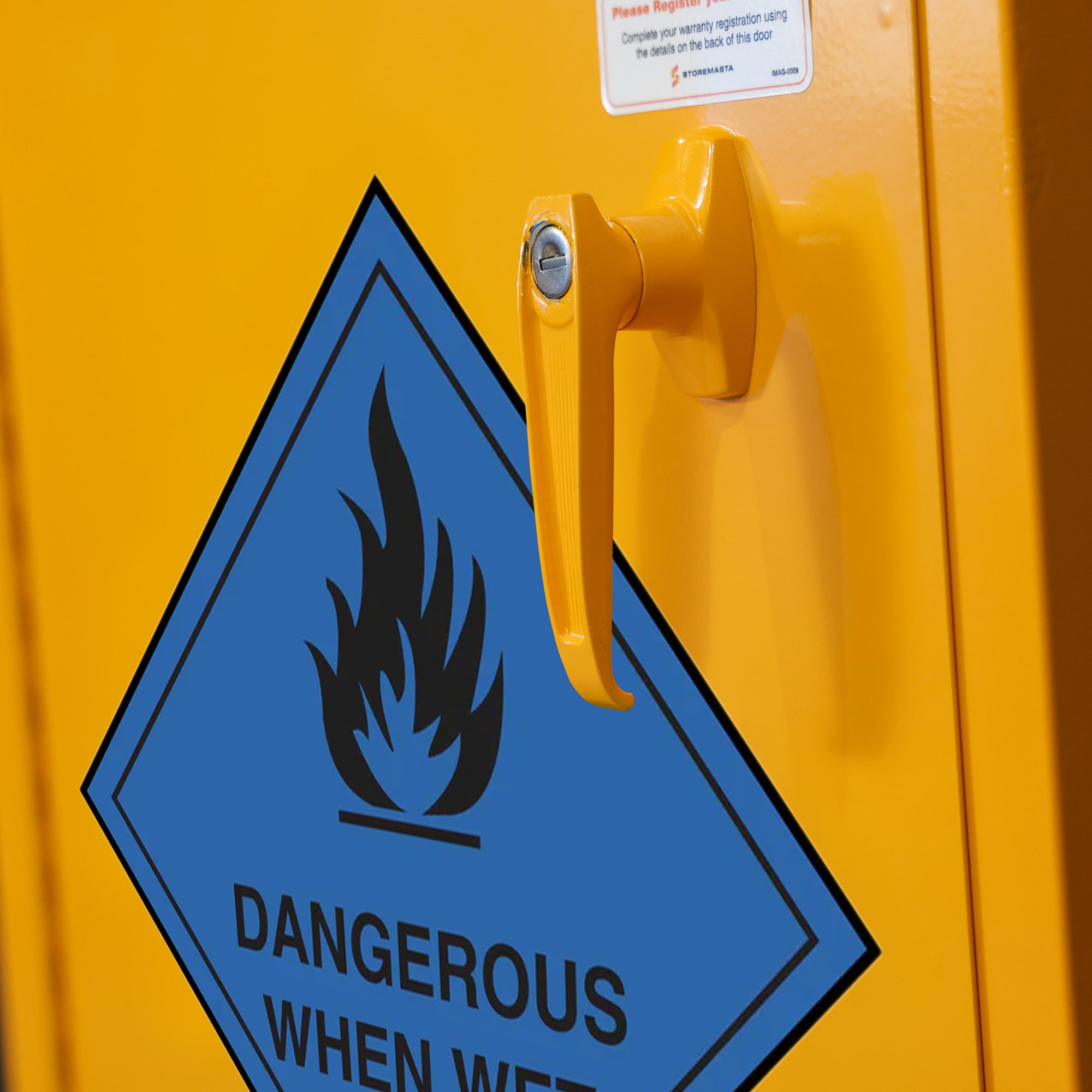

- Distinct safety signs and directions that comply with AS 1216 and AS 1319
- Designed and manufactured in full conformance to AS/NZS 5026:2012 - The storage and handling of class 4 dangerous goods.
Dimensions (mm)
Dimensions (mm)
| External | H 1065 | W 500 | D 450 |
| Internal | H 818 | W 418 | D 370 |
Storage Capacity
Storage Capacity

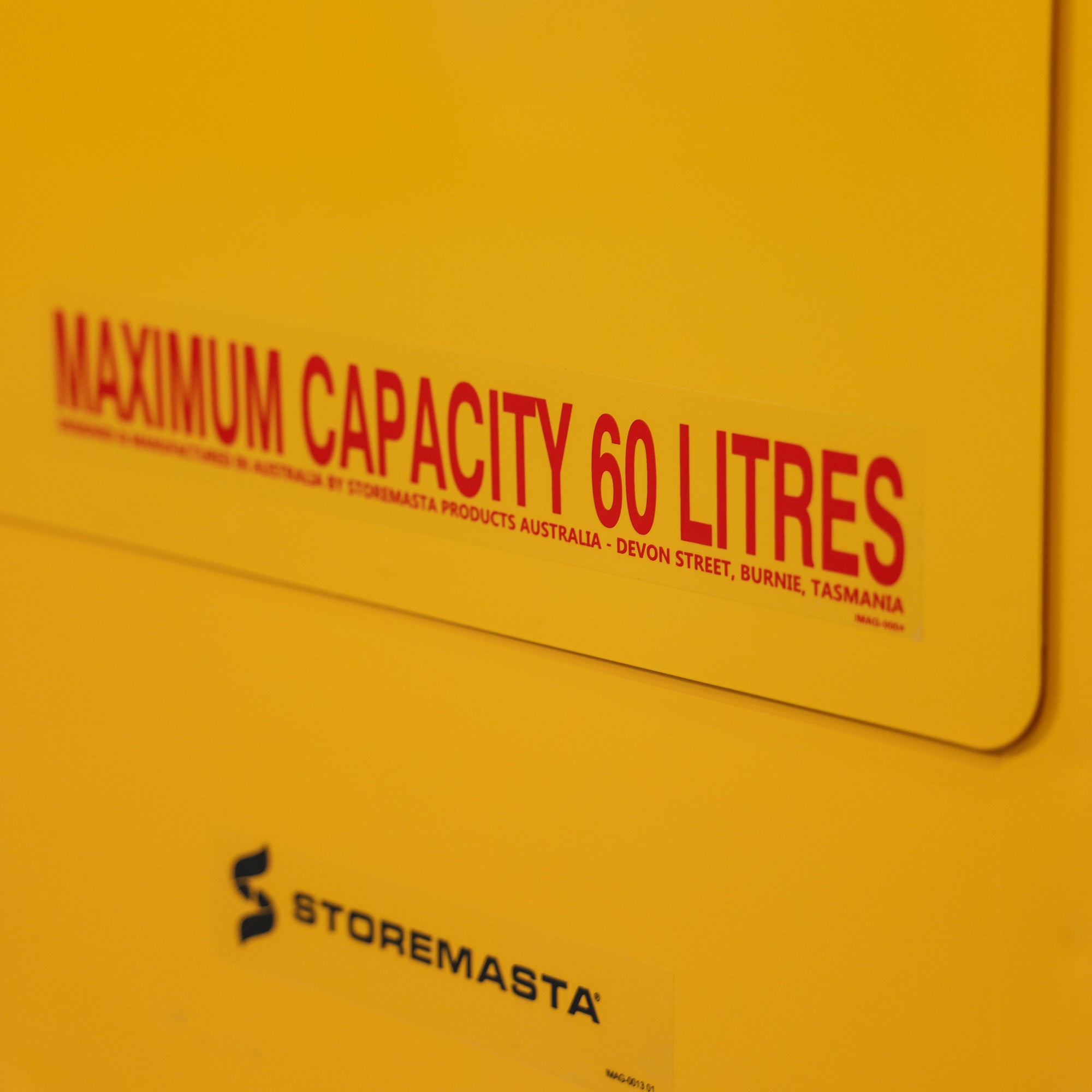

| Max Capacity | 60L Maximum capacity of the cabinet is subject to the packing group of the chemical stored. Please refer to the relevant Australian Standard for further details. |
| Winchester Size | 0.5L | 2.5L | 5L |
| Capacity | 60 | 12 | 4 |
| Drum Size | 4L | 20L | 60L | 205L |
| Capacity | 12*** | 2 | - | - |
Calculations based on these package size
Dangerous Goods Compliance Specifications
Dangerous Goods Compliance Specifications
| Complies with | AS/NZS - 5026 - 2012 |
| Sump Capacity | 23L |
Other Specifications
Other Specifications
| Weight | 41.0 kg |
| Shelf Levels | 2 |
| Storage Levels | 2 |
| Shelf Thickness (mm) | 28 |
| Shelf spacing (mm) | 100 |
| No. of Shelf Lugs | 8 |
