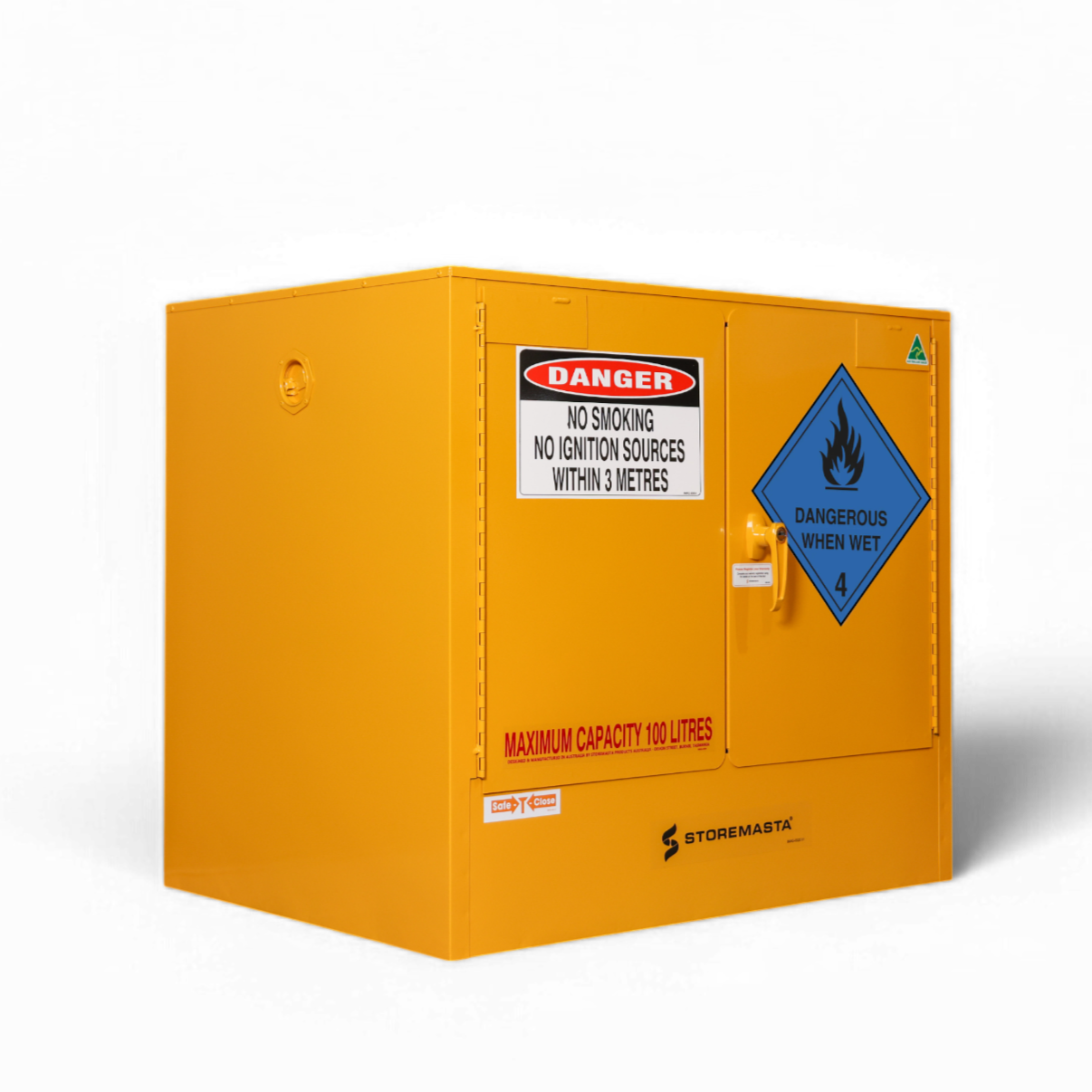

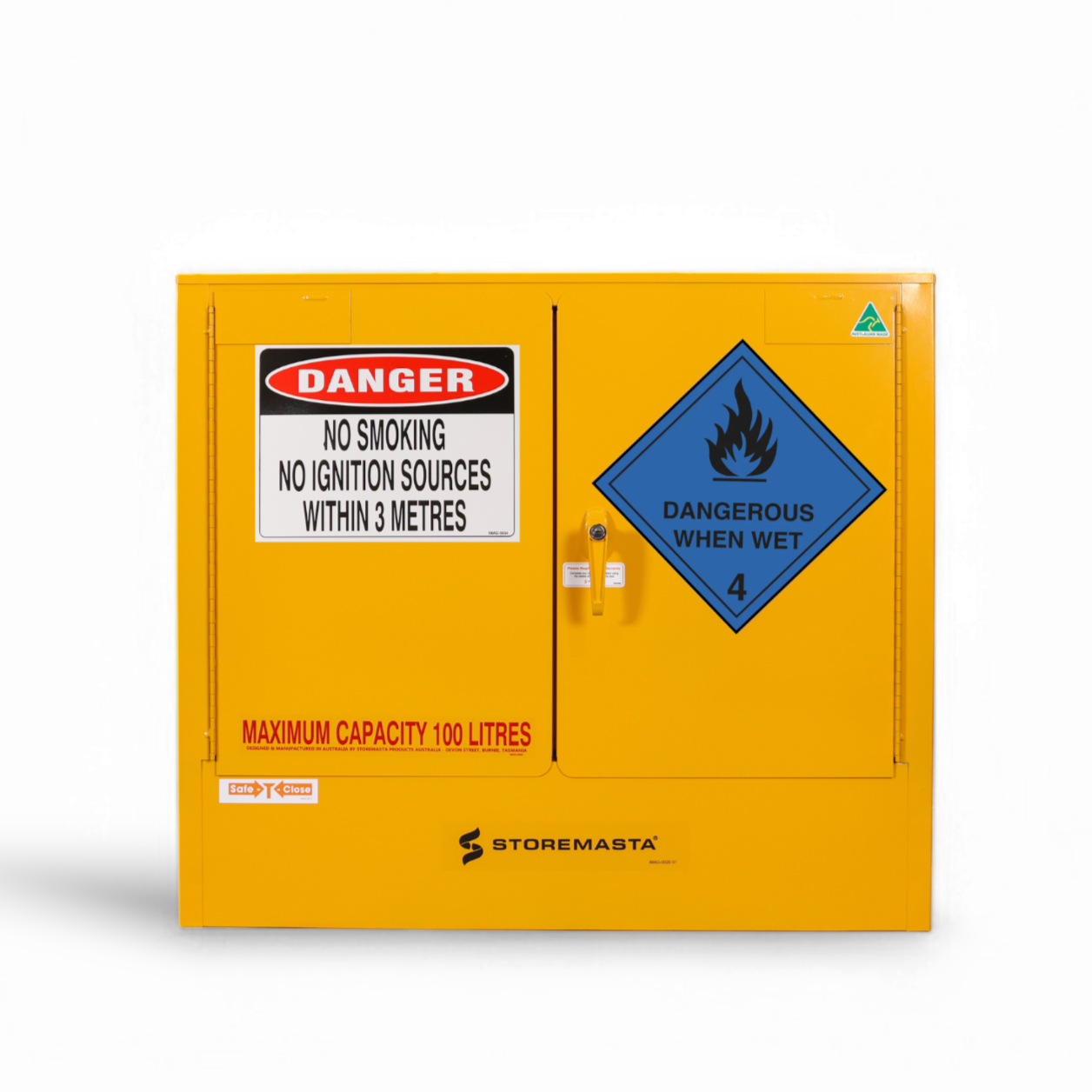

Dangerous When Wet Storage Cabinet - 100L
SC10043
Description
This Storemasta Dangerous When Wet Storage Cabinet has a 100 litre capacity and features the patented SAFE-T-CLOSE® sequential closing system.
This cabinet is ideal for the everyday safe storage of most classes of dangerous goods, and is fully compliant with legislative requirements. A well respected performer in all areas of dangerous goods storage, throughout all industries.
Features
- Double walled sheet steel construction with a 40mm thermic air barrier

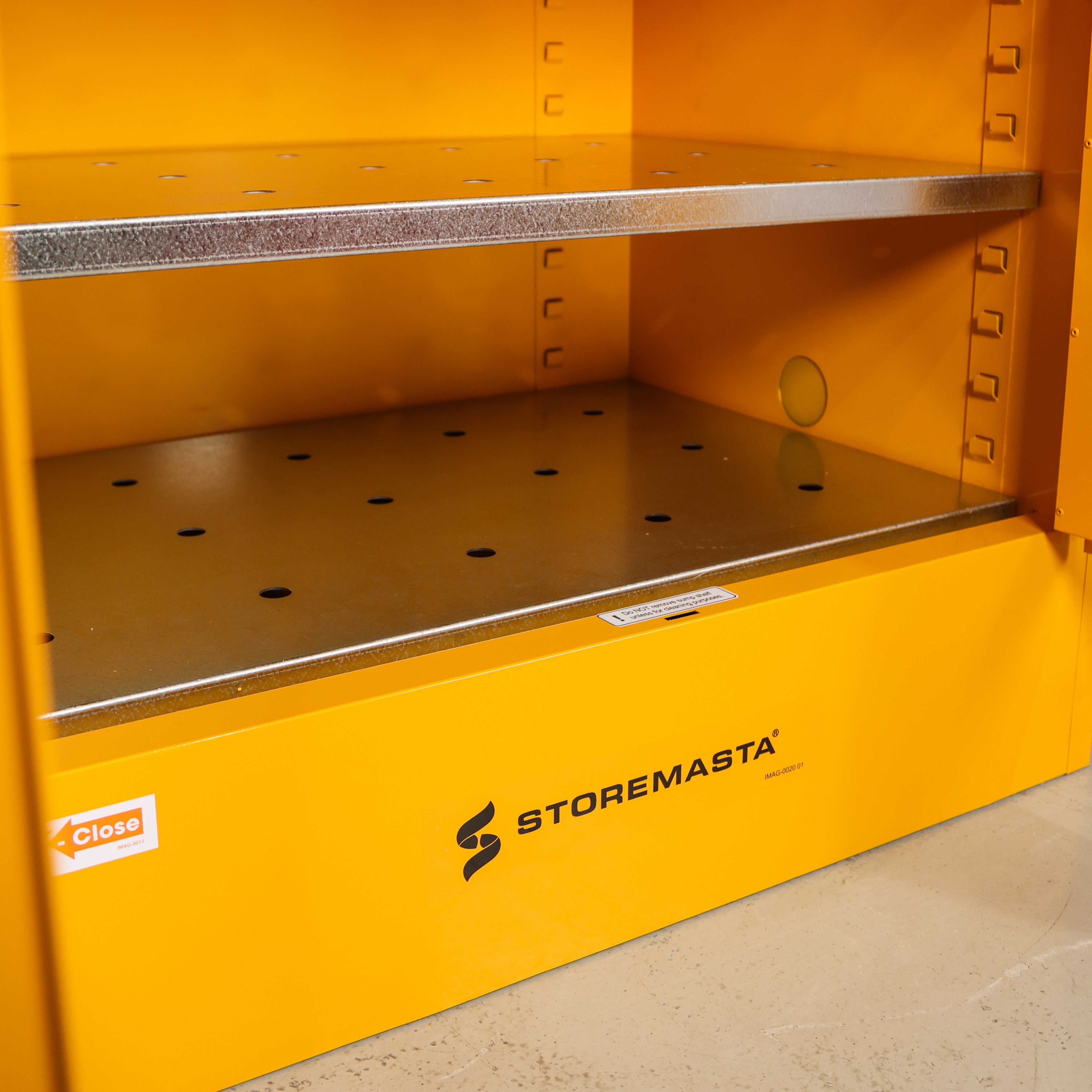

- High capacity liquid tight sump to contain spills - 150mm deep
- Self-closing, close fitting doors that automatically release in the event of a build-up of pressure within the cabinet

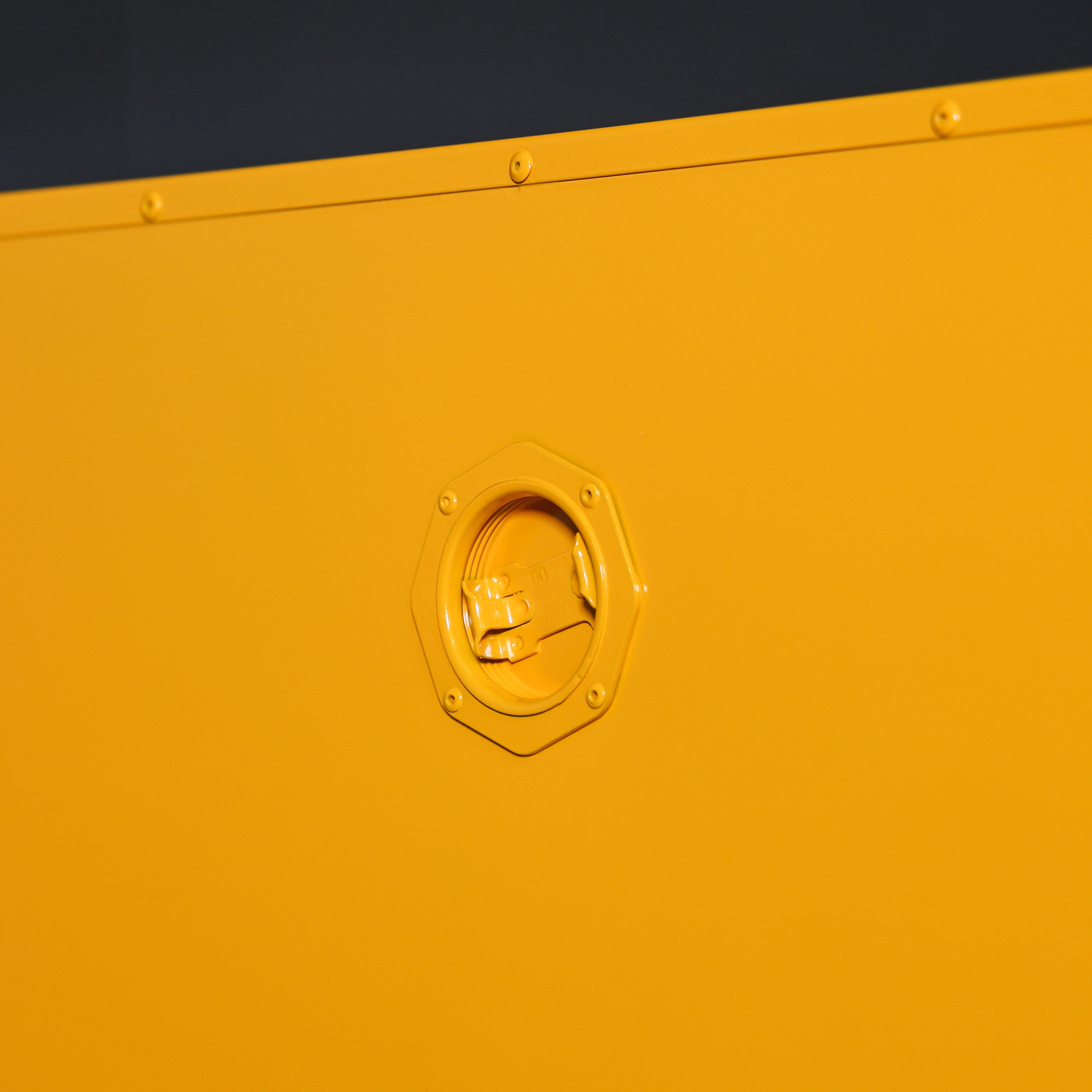

- Built in flash arrestors and vent openings [for mechanical ventilation systems]

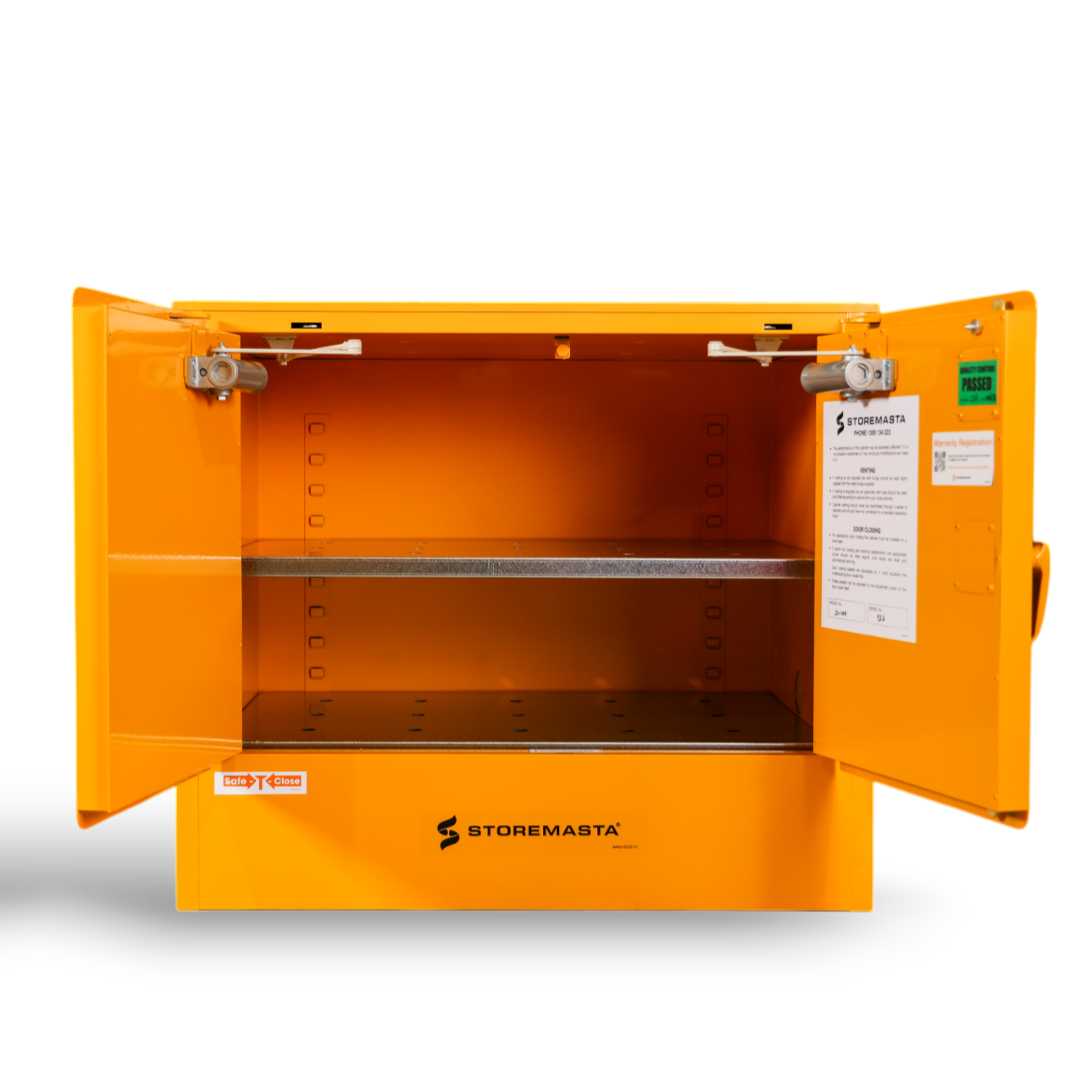

- Strong fully adjustable shelving perforated for free air movement, 100mm adjustment increments

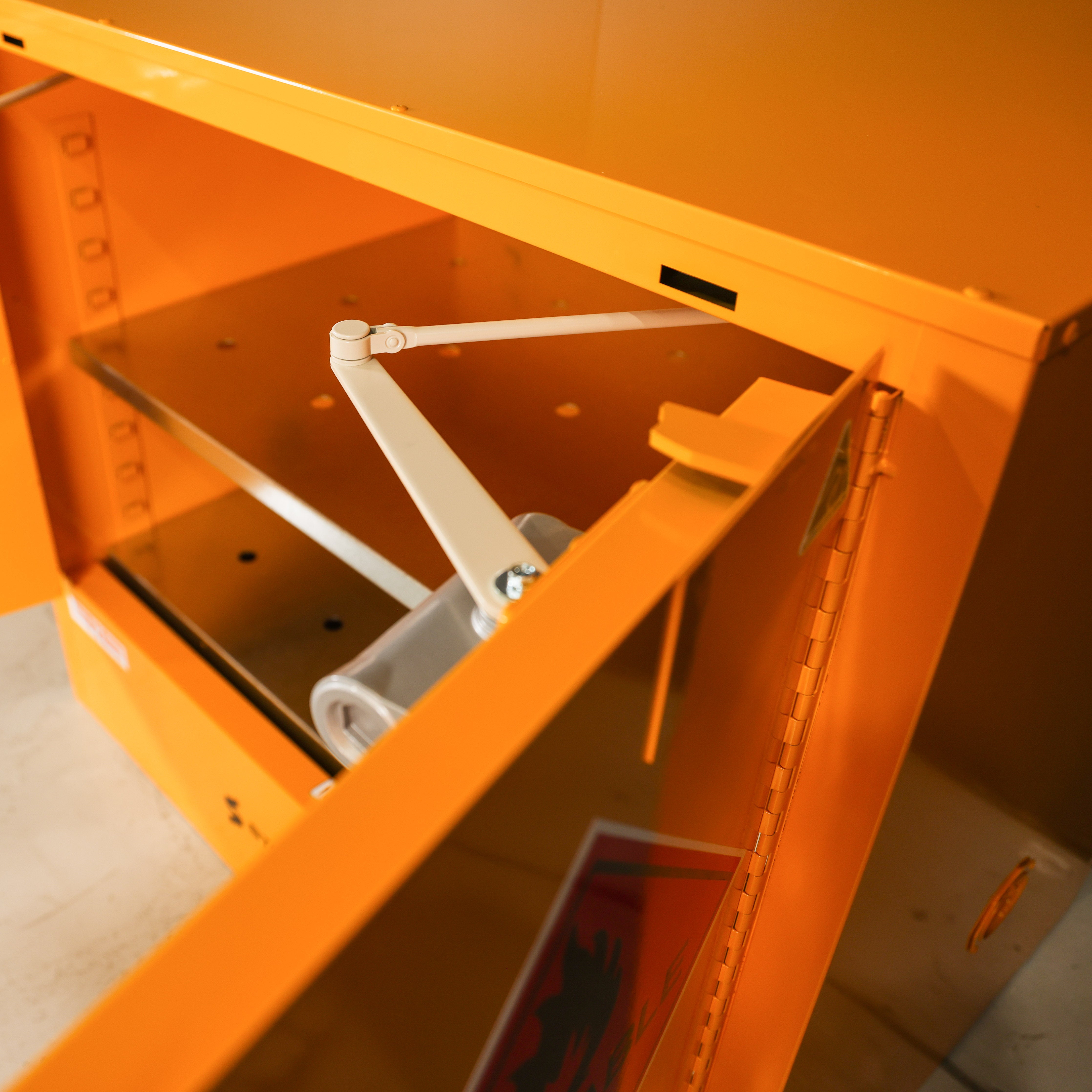

- Sequential door closing system
- Stainless steel pin with continuous hinging for strength and reliability
- State of the art powder coat finish for high durability and performance

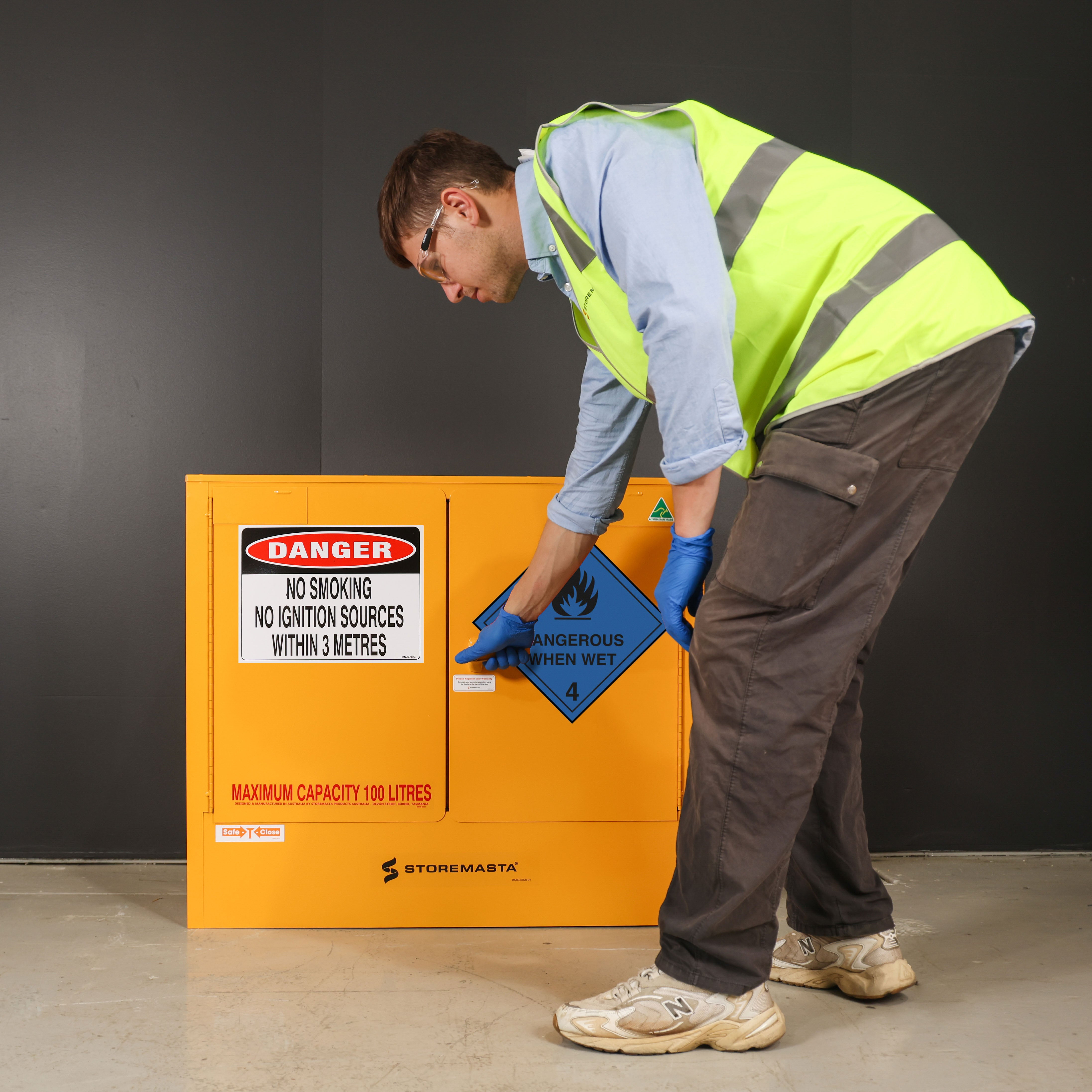

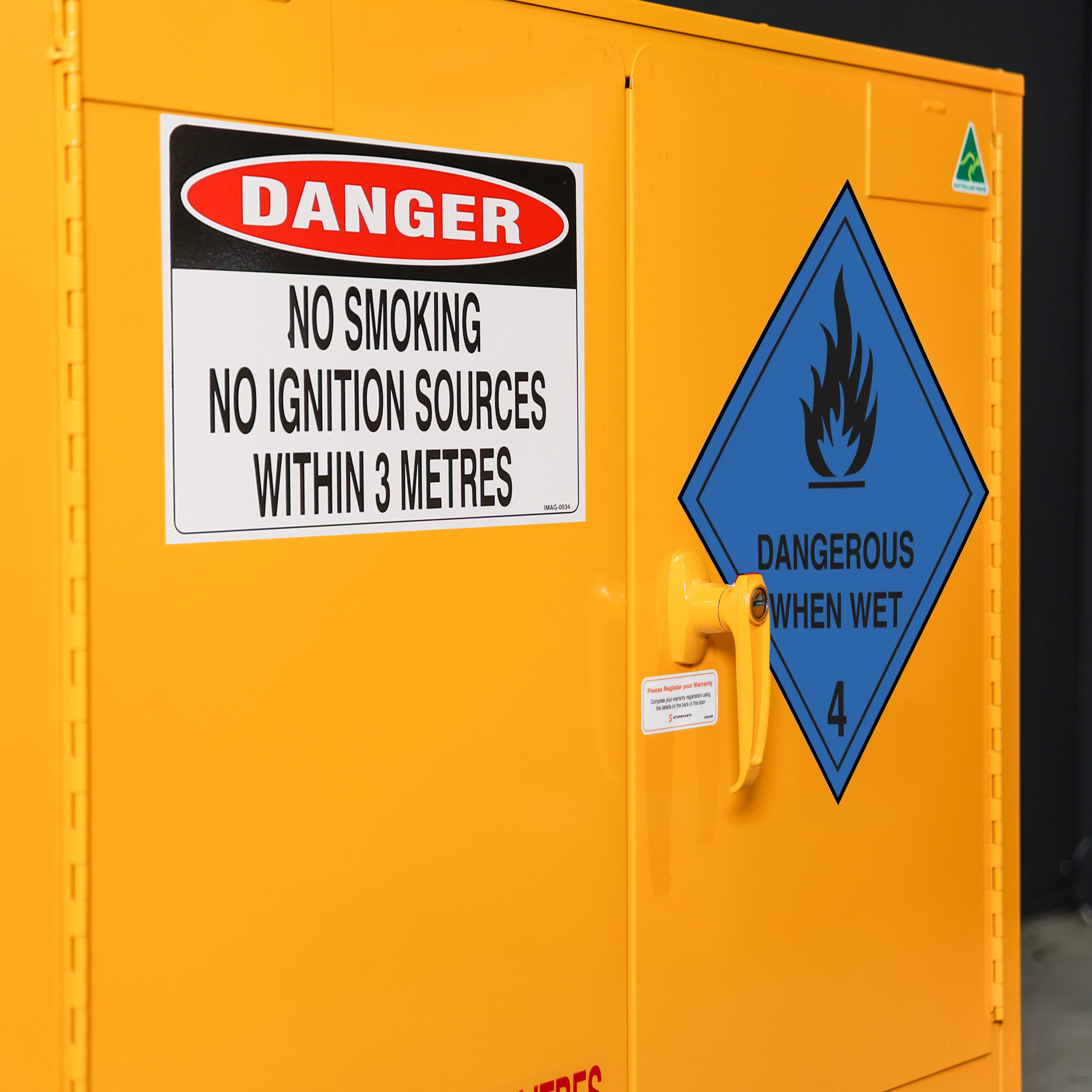

- Distinct safety signs and directions that comply with AS 1216 and AS 1319
- Designed and manufactured in full conformance to AS/NZS 5026:2012 - The storage and handling of class 4 dangerous goods.
Dimensions (mm)
Dimensions (mm)
| External | H 800 | W 920 | D 615 |
| Internal | H 553 | W 838 | D 535 |
Storage Capacity
Storage Capacity
| Max Capacity | 100L Maximum capacity of the cabinet is subject to the packing group of the chemical stored. Please refer to the relevant Australian Standard for further details. |
| Winchester Size | 0.5L | 2.5L | 5L |
| Capacity | 96 | 18 | 8 |
| Drum Size | 4L | 20L | 60L | 205L |
| Capacity | 16 | 4 | - | - |
Calculations based on these package size
Dangerous Goods Compliance Specifications
Dangerous Goods Compliance Specifications
| Complies with | AS/NZS - 5026 - 2012 |
| Sump Capacity | 67L |
Other Specifications
Other Specifications
| Weight | 65.0 kg |
| Shelf Levels | 2 |
| Storage Levels | 2 |
| Shelf Thickness (mm) | 28 |
| Shelf spacing (mm) | 50 |
| No. of Shelf Lugs | 11 |
