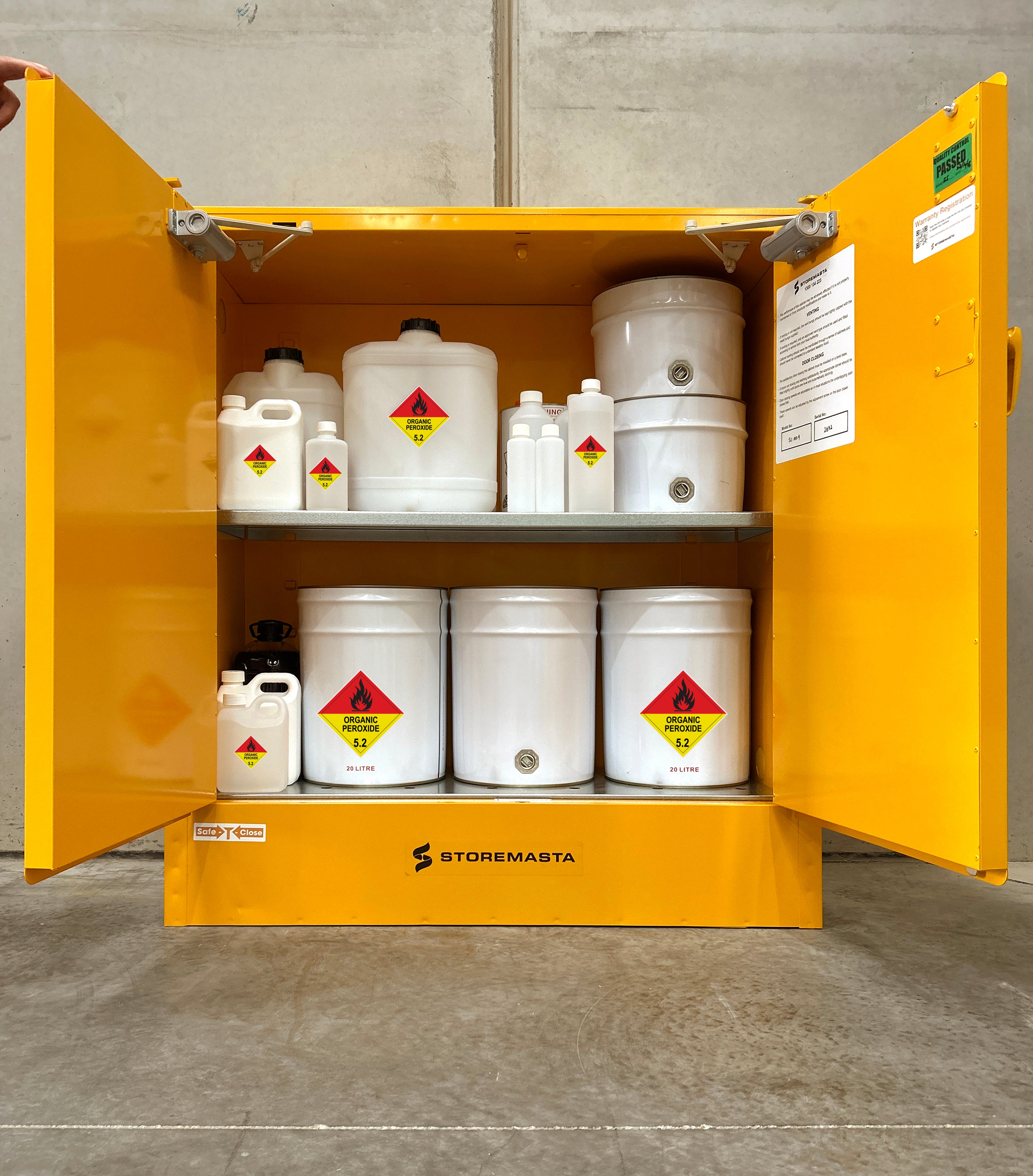

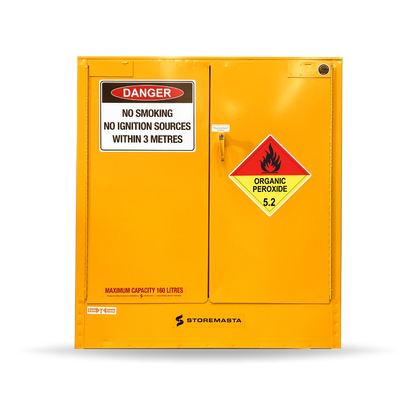

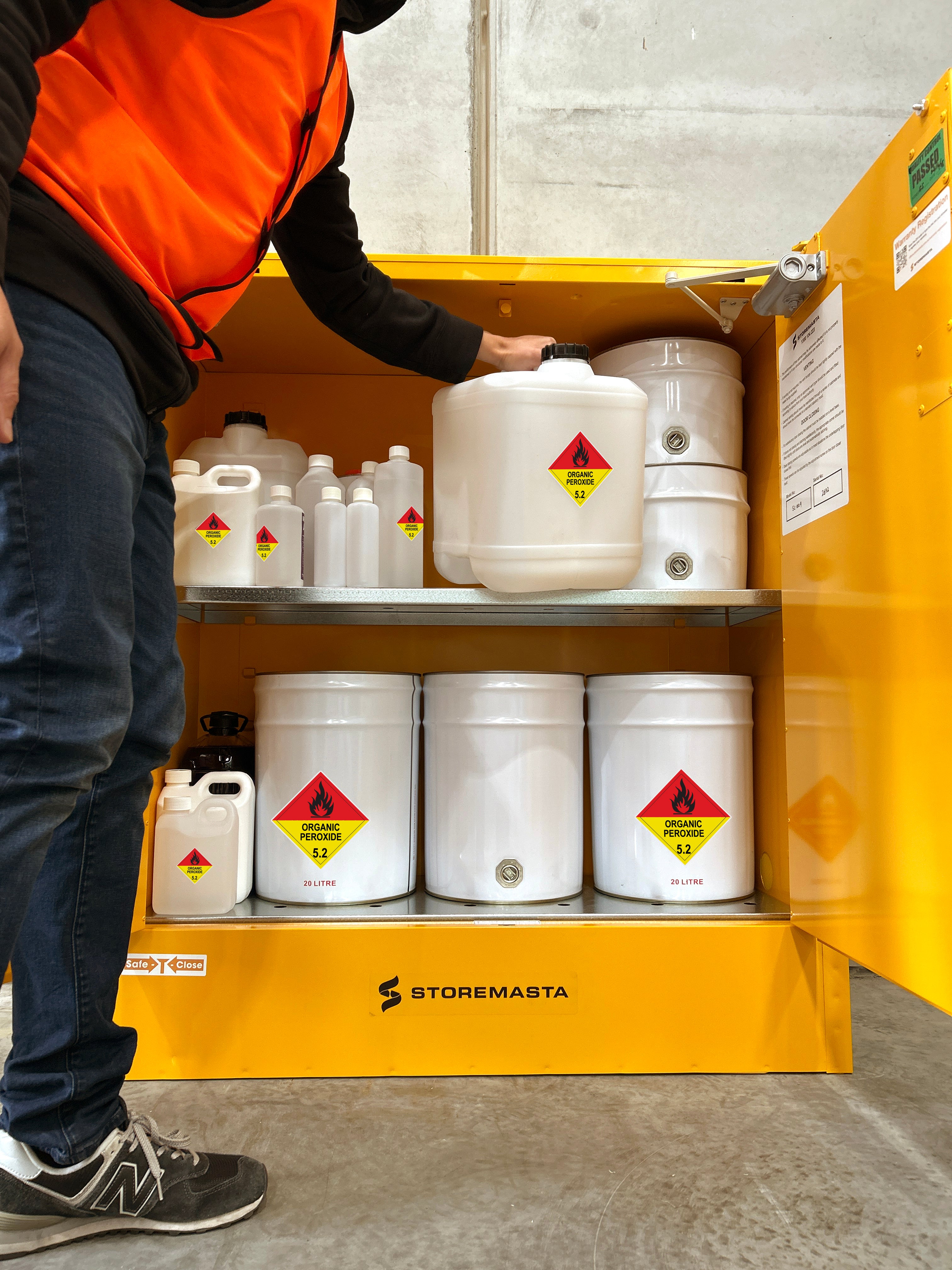

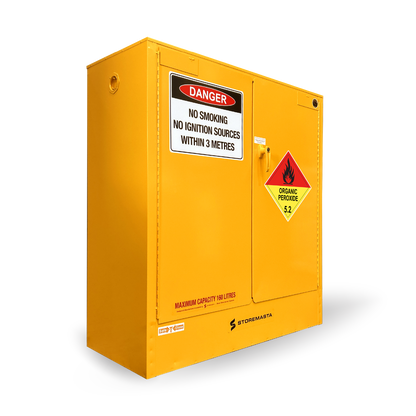

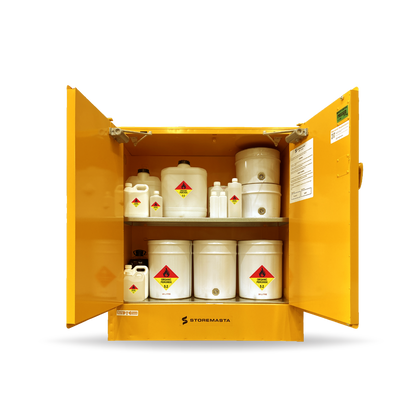

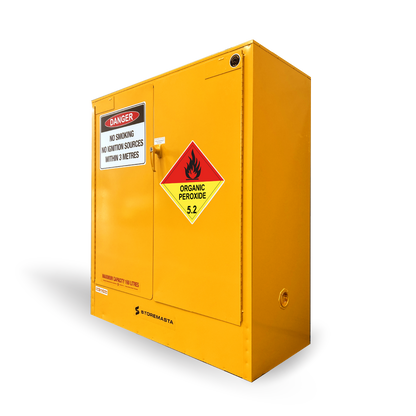

160L - Organic Peroxide Storage Cabinet

SC16052
Description

The SC16052 is an indoor chemical storage cabinet able to safely store up to 160 litres of Class 5.2 Organic Peroxides. Keep your organic peroxides secured from flammables and other incompatible substances in this double-walled sheet steel safety cabinet.

Features of the 160L - Organic Peroxide Storage Cabinet include: compliant spill containment sump (57 litre capacity); self-closing doors which don’t jam or generate sparks; perforated shelving to maximise the natural movement of air; mandatory warning placards and safety signage.

The SC16052 is part of the Storemasta range of compliant chemical safety cabinets for storing Dangerous Goods and Hazardous Chemicals.

Designed and made in Australia to the highest quality and safety standards including AS 2714 - The storage and handling of organic peroxides. Order today.

Features

  • Double walled sheet steel construction with a 40mm thermic air barrier
  • High capacity liquid tight sump to contain spills - 150mm deep
  • Self-closing, close fitting doors that automatically release in the event of a build-up of pressure within the cabinet
  • Built in flash arrestors and vent openings [for mechanical ventilation systems]
  • Strong fully adjustable shelving perforated for free air movement, 100mm adjustment increments
  • Sequential door closing system
  • Stainless steel pin with continuous hinging for strength and reliability
  • State of the art powder coat finish for high durability and performance
  • Distinct safety signs and directions that comply with AS 1216 and AS 1319
  • Designed and manufactured in full conformance to AS 2714:2008 - The storage and handling of organic peroxides

Dimensions (mm)

ExternalH 1220W 1100D 450
InternalH 973W 1018D 370

Storage Capacity

Max Capacity 160L Maximum capacity of the cabinet is subject to the packing group of the chemical stored. Please refer to the relevant Australian Standard for further details.
Winchester Size0.5L2.5L 5L
Capacity225*** 2810
Drum Size4L20L60L205L
Capacity306--
***3 Storage levels
Calculations based on these package size

Dangerous Goods Compliance Specifications

Complies with AS2714 - 2008
Sump Capacity 56L

Other Specifications

Weight 78.0 kg
Shelf Levels 2
Storage Levels 2
Shelf Thickness (mm) 28
Shelf spacing (mm) 100
No. of Shelf Lugs 10
