100L - Organic Peroxide Storage Cabinet

SC10052
Description

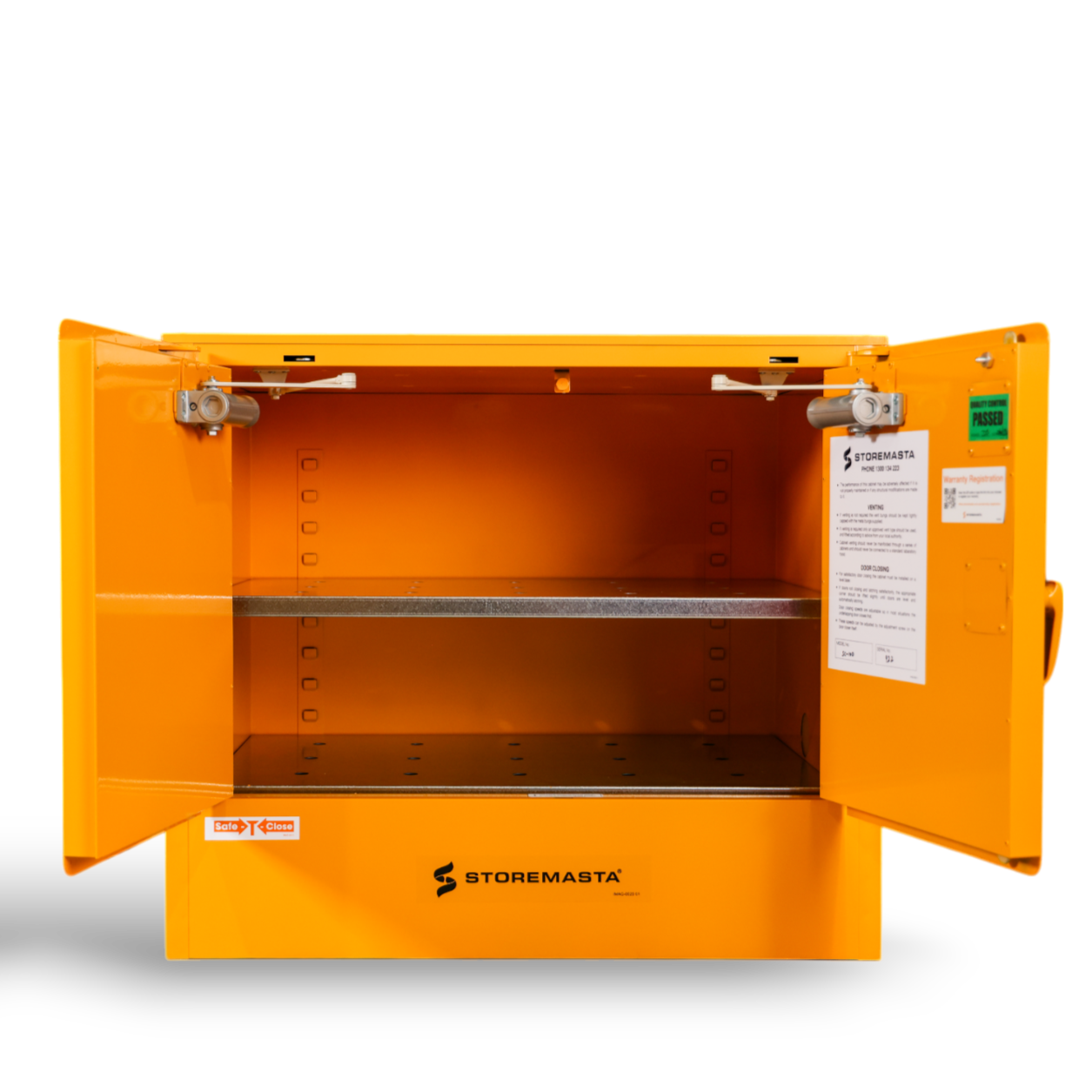

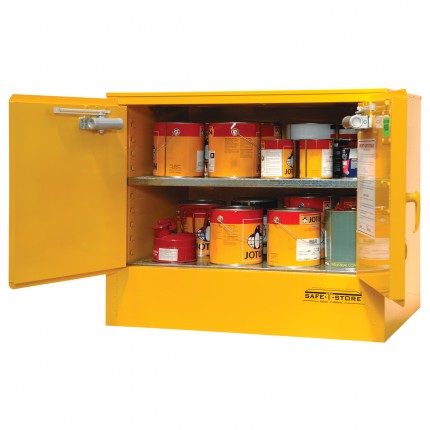

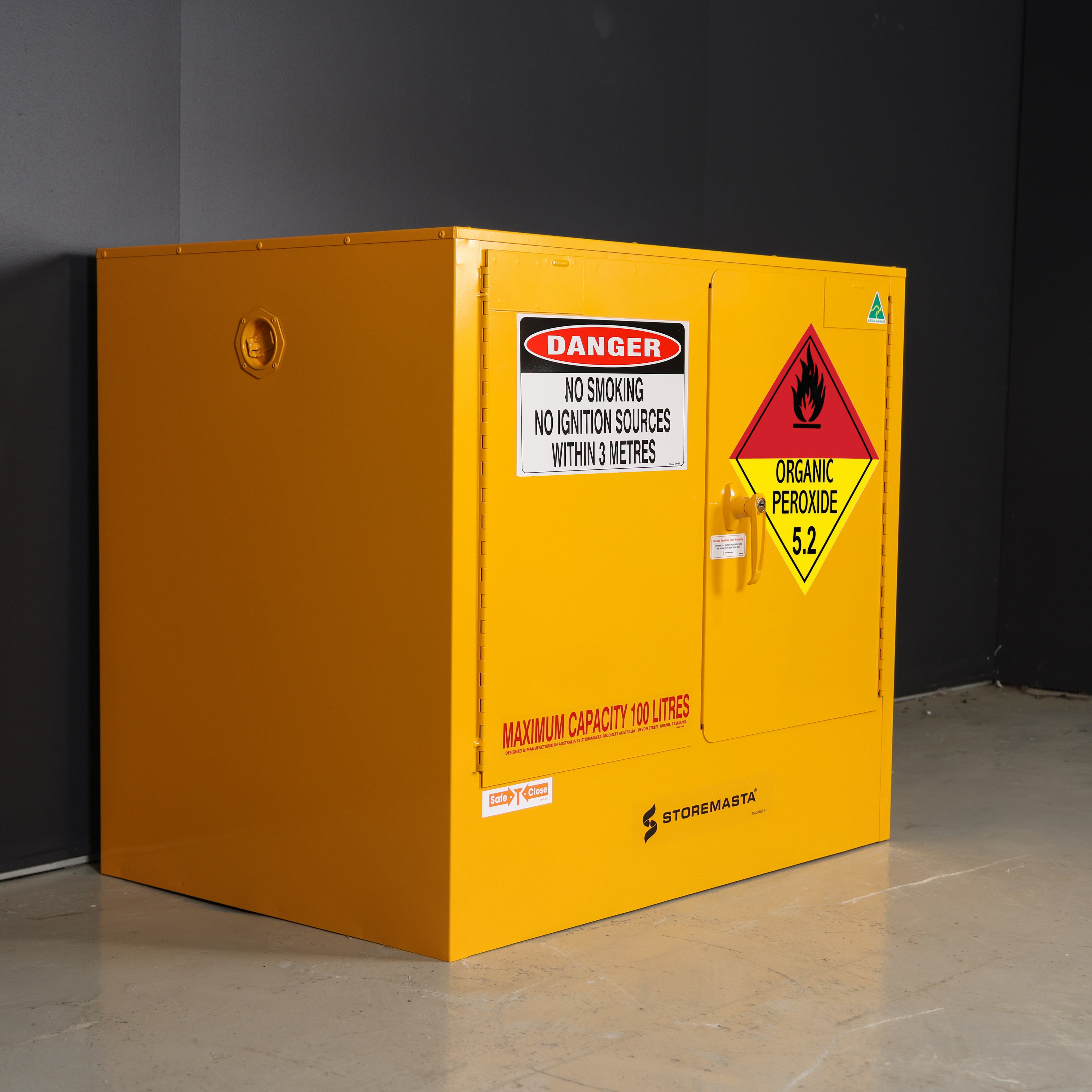

The 100L - Organic Peroxide Storage Cabinet is a chemical storage cabinet purpose-built for holding 100 litres of Class 5.2 Organic Peroxides indoors.

Safely isolate organic peroxides from flammables, light and heat in this fully compliant safety cabinet made from double-walled sheet steel.

Features of the SC10052 include: 150mm deep spill containment sump (45 litre capacity); twin hydraulic-action doors which close automatically in sequence; perforated shelving that is fully adjustable; mandatory warning placards.

The SC10052 is just part of our range of compliant chemical safety cabinets, designed for storing Dangerous Goods. 100% manufactured in Australia to the highest safety Standards including AS 2714 - The storage and handling of organic peroxides. Order from Storemasta today.

Features

  • Double walled sheet steel construction with a 40mm thermic air barrier
  • High capacity liquid tight sump to contain spills - 150mm deep

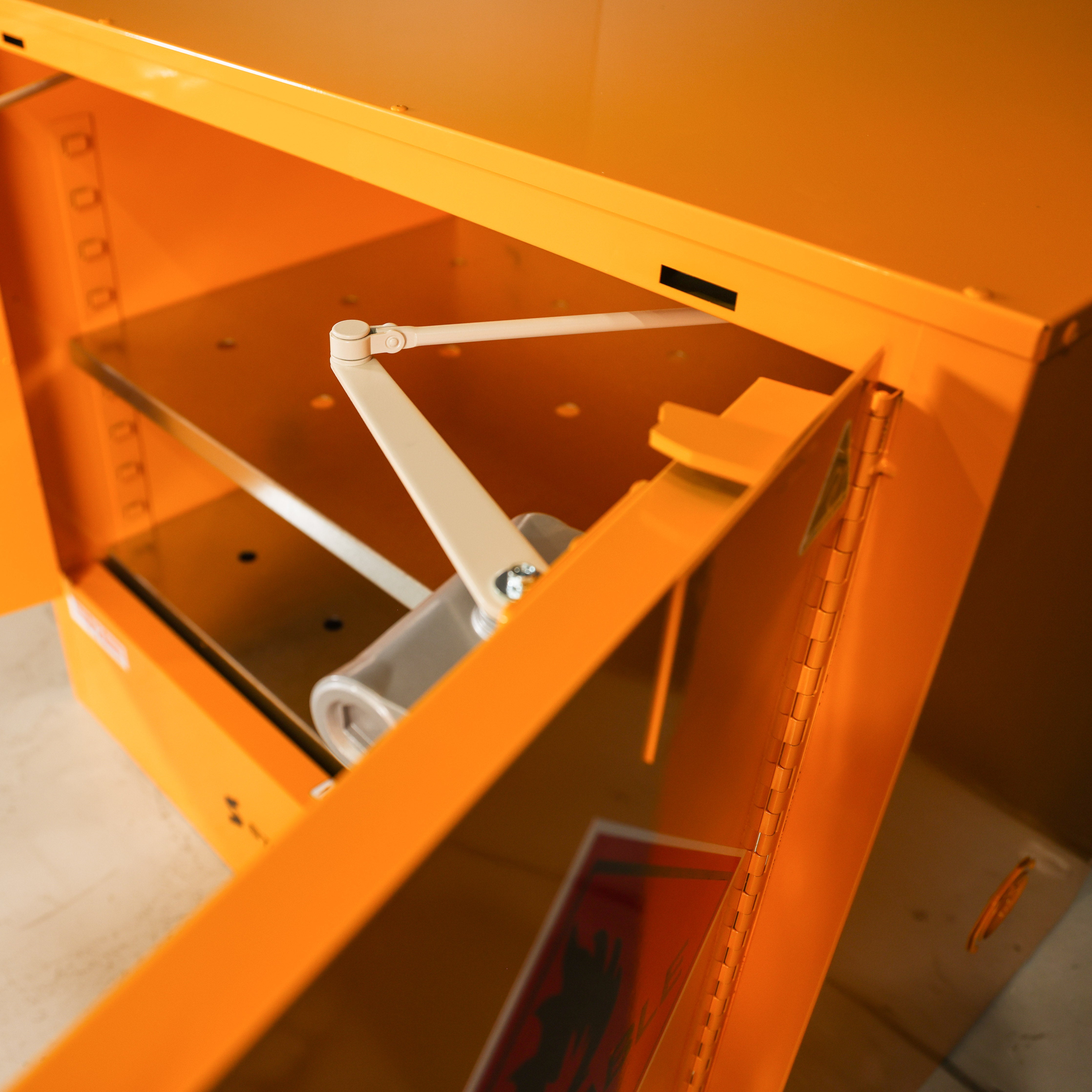

  • Self-closing, close fitting doors that automatically release in the event of a build-up of pressure within the cabinet

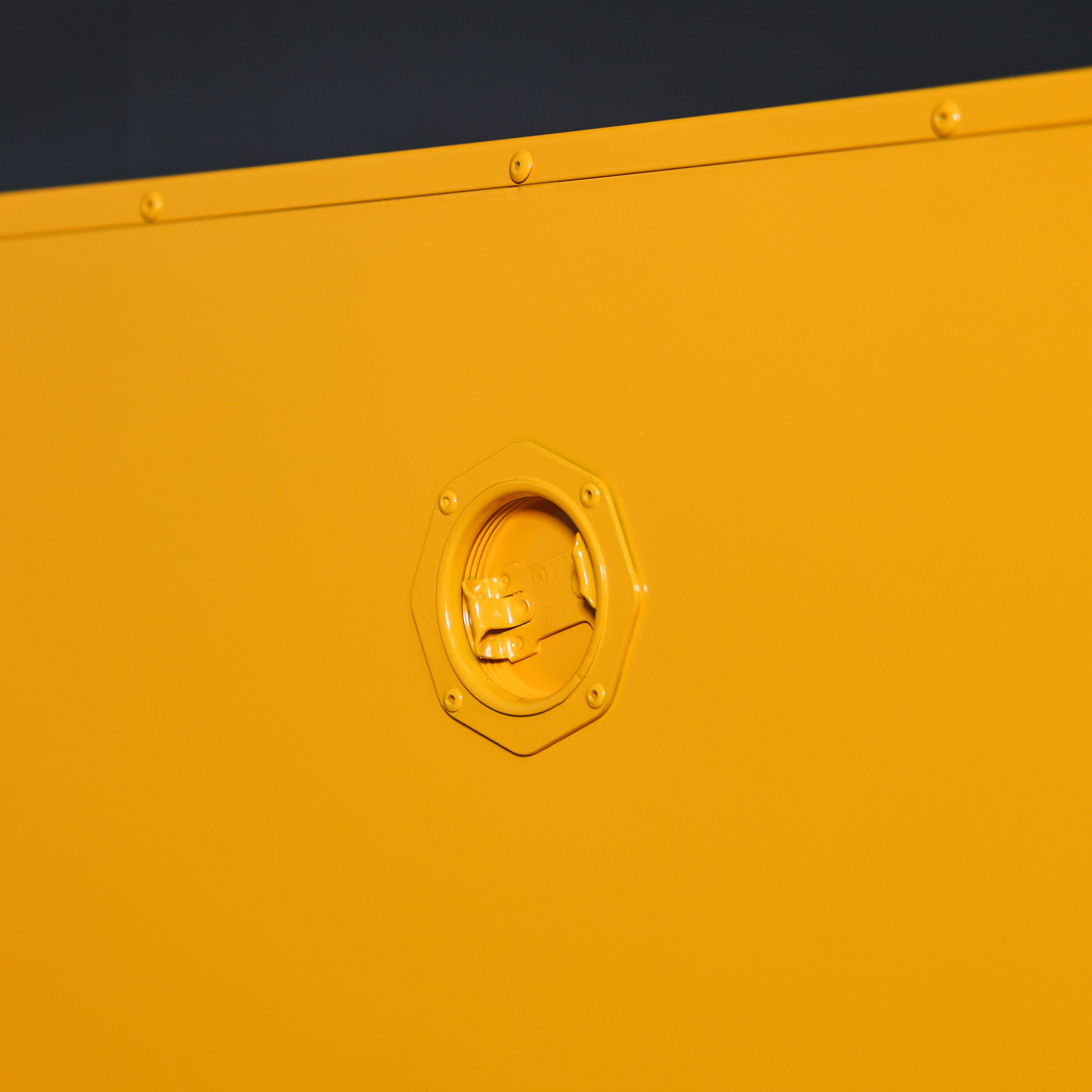

  • Built in flash arrestors and vent openings [for mechanical ventilation systems]

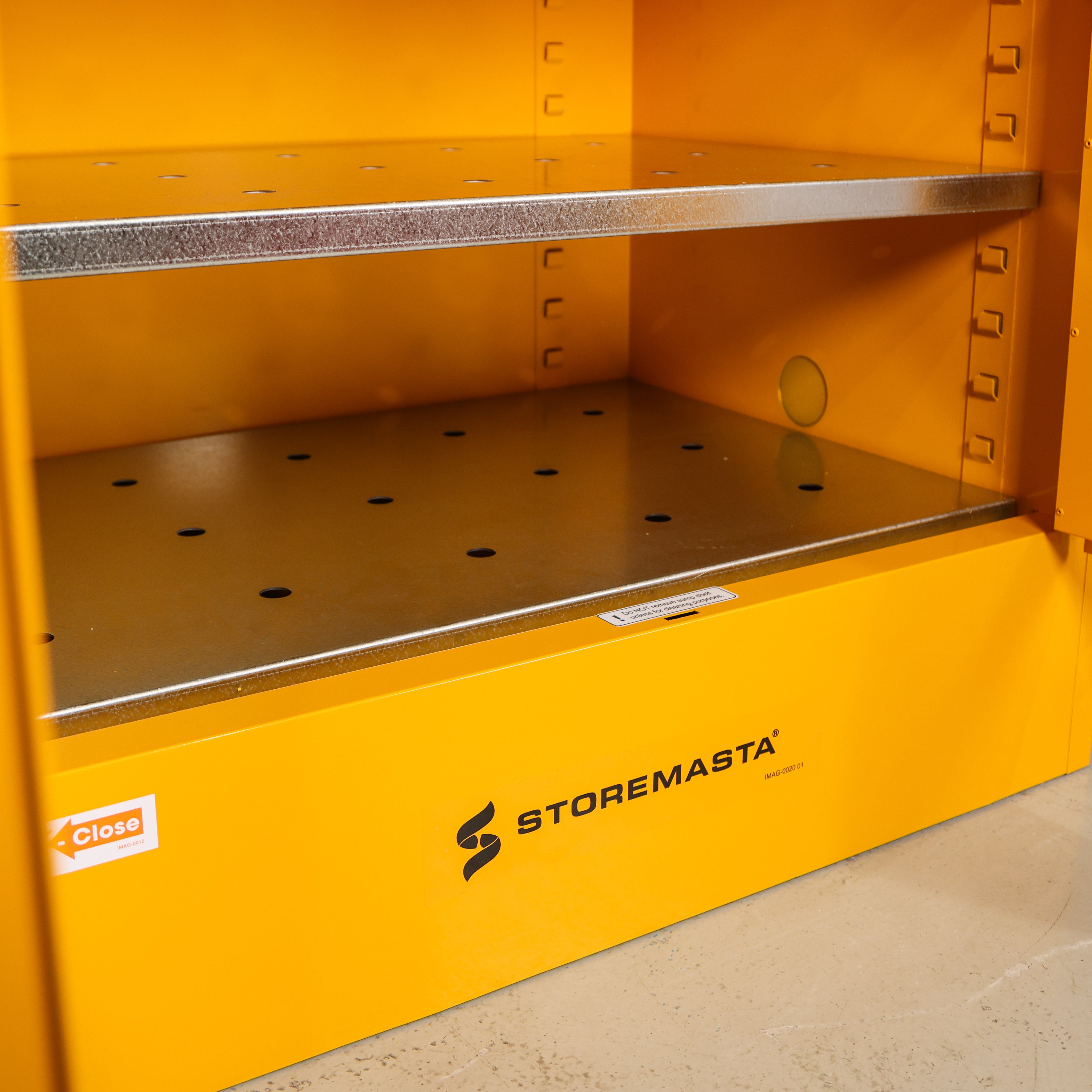

  • Strong fully adjustable shelving perforated for free air movement, 100mm adjustment increments
  • Sequential door closing system
  • Stainless steel pin with continuous hinging for strength and reliability
  • State of the art powder coat finish for high durability and performance

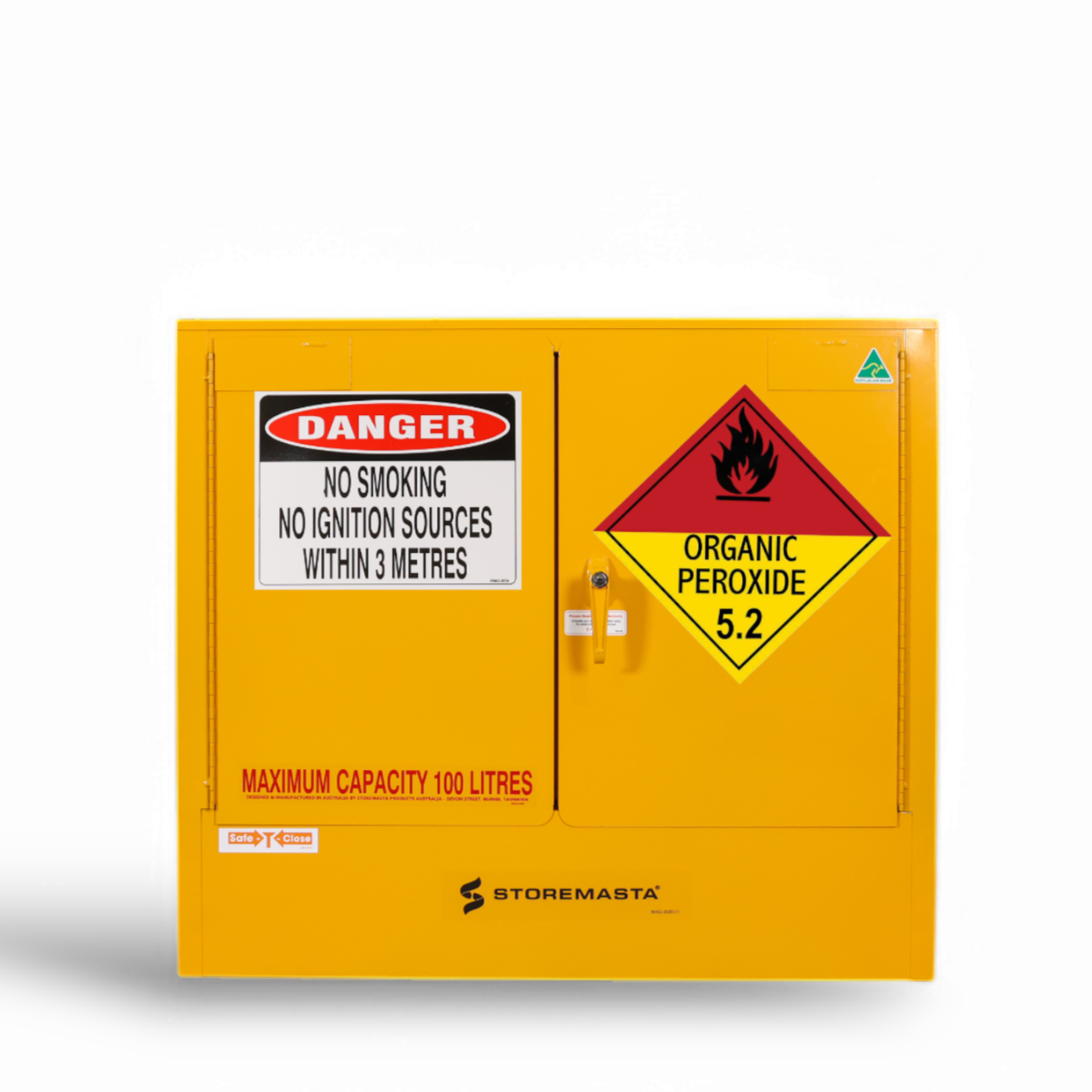

  • Distinct safety signs and directions that comply with AS 1216 and AS 1319
  • Designed and manufactured in full conformance to AS 2714:2008 - The storage and handling of organic peroxides

Dimensions (mm)

ExternalH 800W 920D 615
InternalH 553W 838D 535

Storage Capacity

Max Capacity 100L Maximum capacity of the cabinet is subject to the packing group of the chemical stored. Please refer to the relevant Australian Standard for further details.
Winchester Size0.5L2.5L 5L
Capacity96188
Drum Size4L20L60L205L
Capacity164--
Calculations based on these package size

Dangerous Goods Compliance Specifications

Complies with AS2714 - 2008
Sump Capacity 67L

Other Specifications

Weight 65.0 kg
Shelf Levels 2
Storage Levels 2
Shelf Thickness (mm) 28
Shelf spacing (mm) 50
No. of Shelf Lugs 11
