• Class 5.1 - Oxidizing Agents

Class 5.1 Oxidising Agent Storage Oxidising Agent Storage Cabinet - 100L

sc100a

Download the product spec sheet by filling the form below.

Description

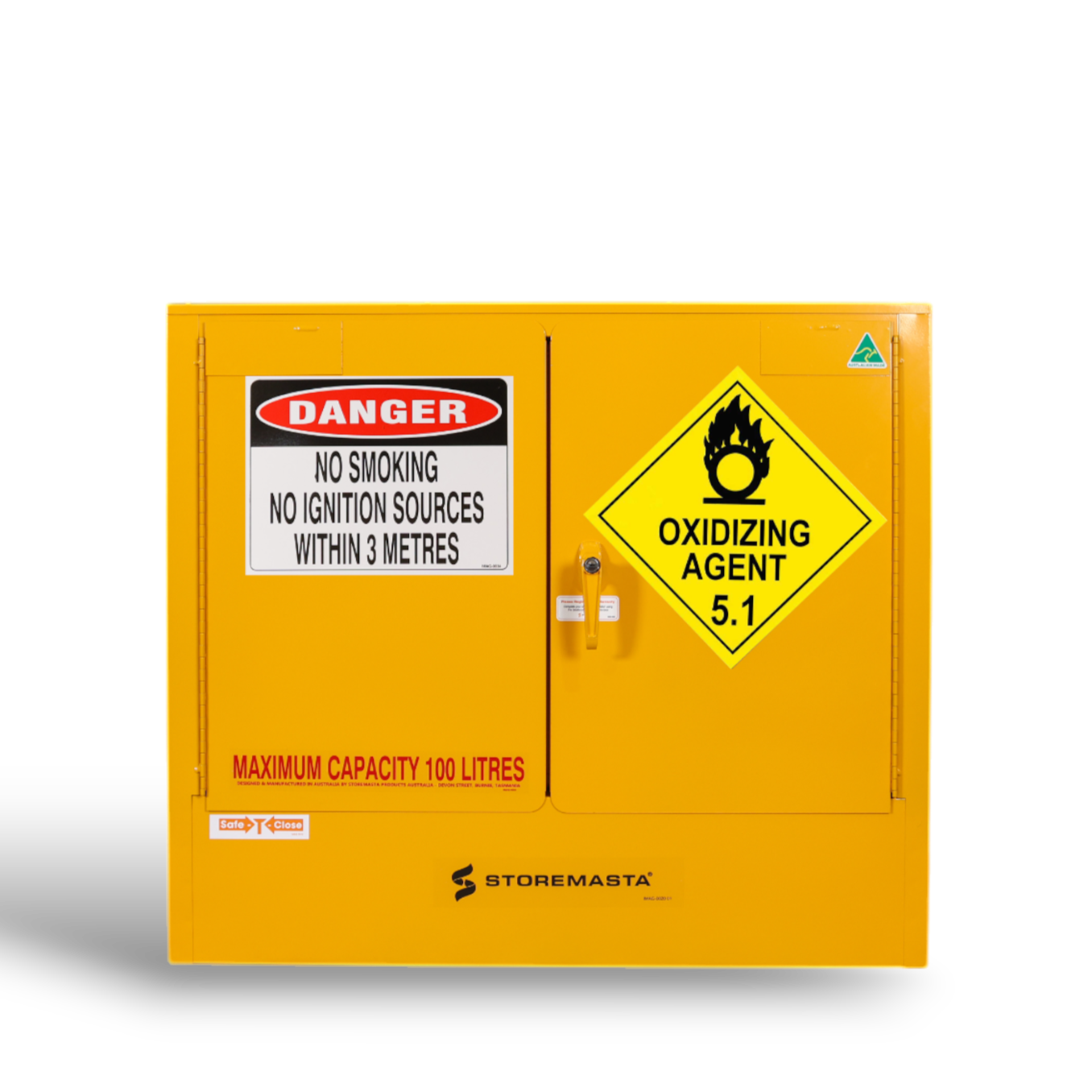

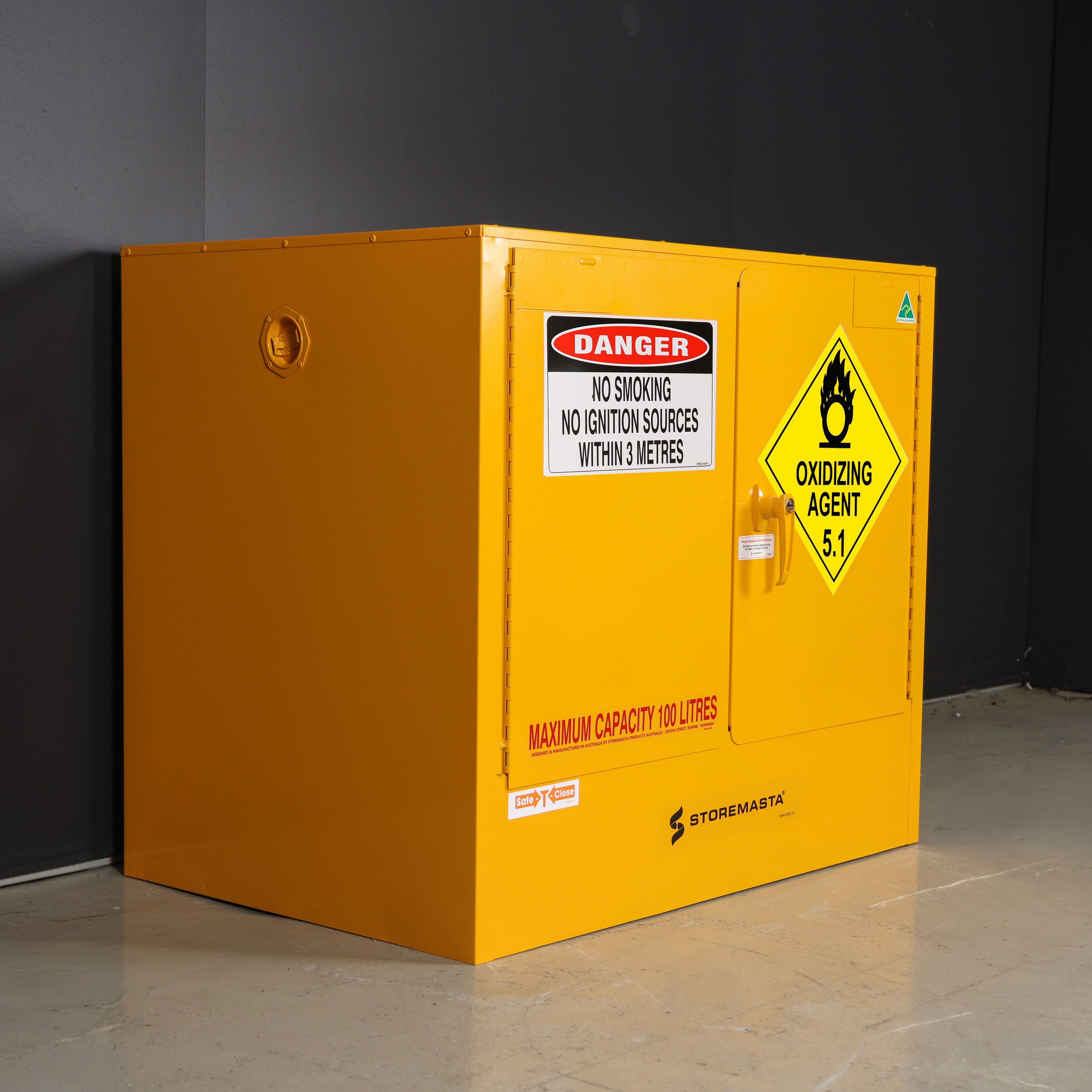

The SC100A is an indoor chemical cabinet specifically designed for Class 5.1 Oxidising Agents (100 litre capacity). Now you can safely isolate your oxid
Show more +

Features
  • Double walled sheet steel construction with a 40mm thermic air barrier

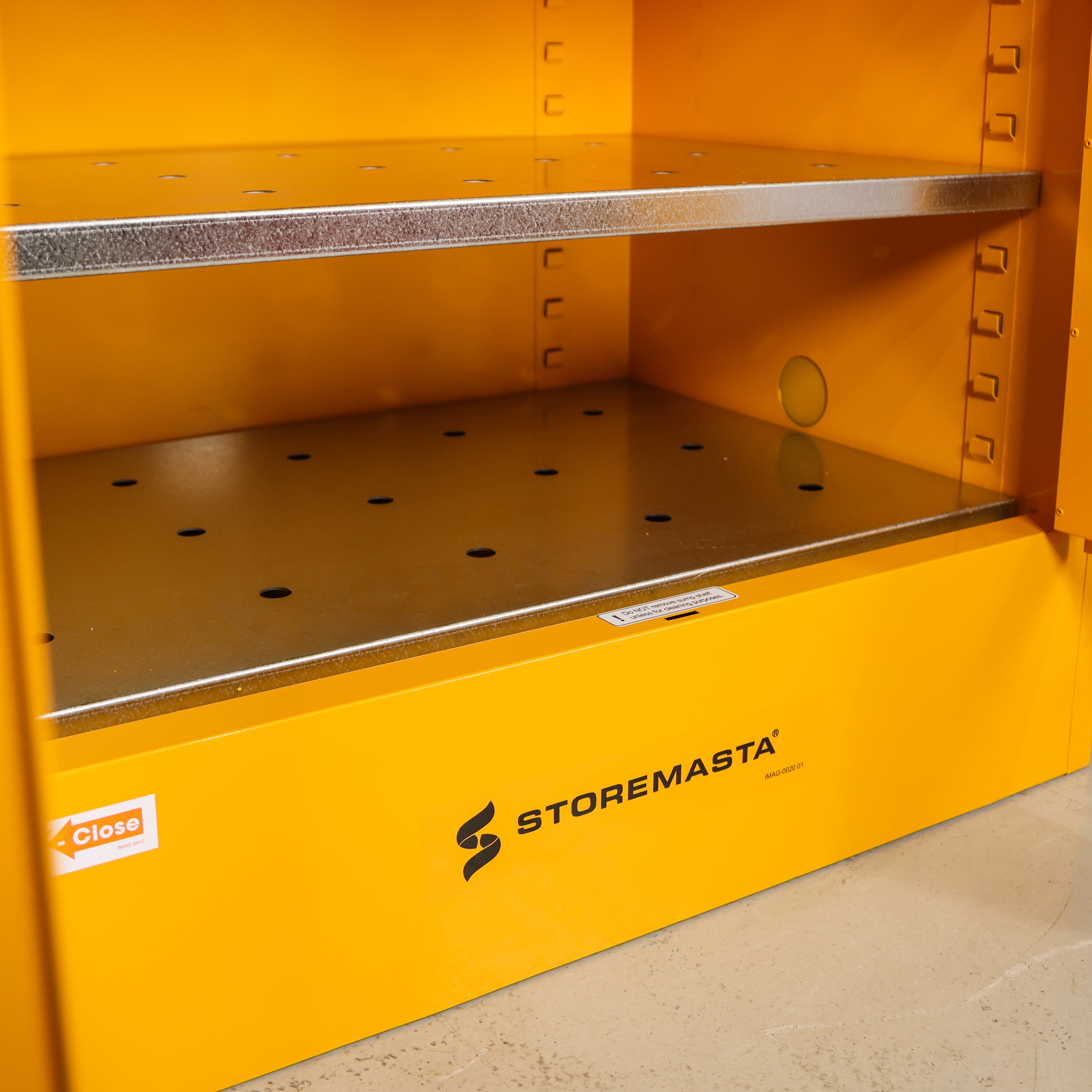

  • High capacity liquid tight sump to contain spills - 150mm deep

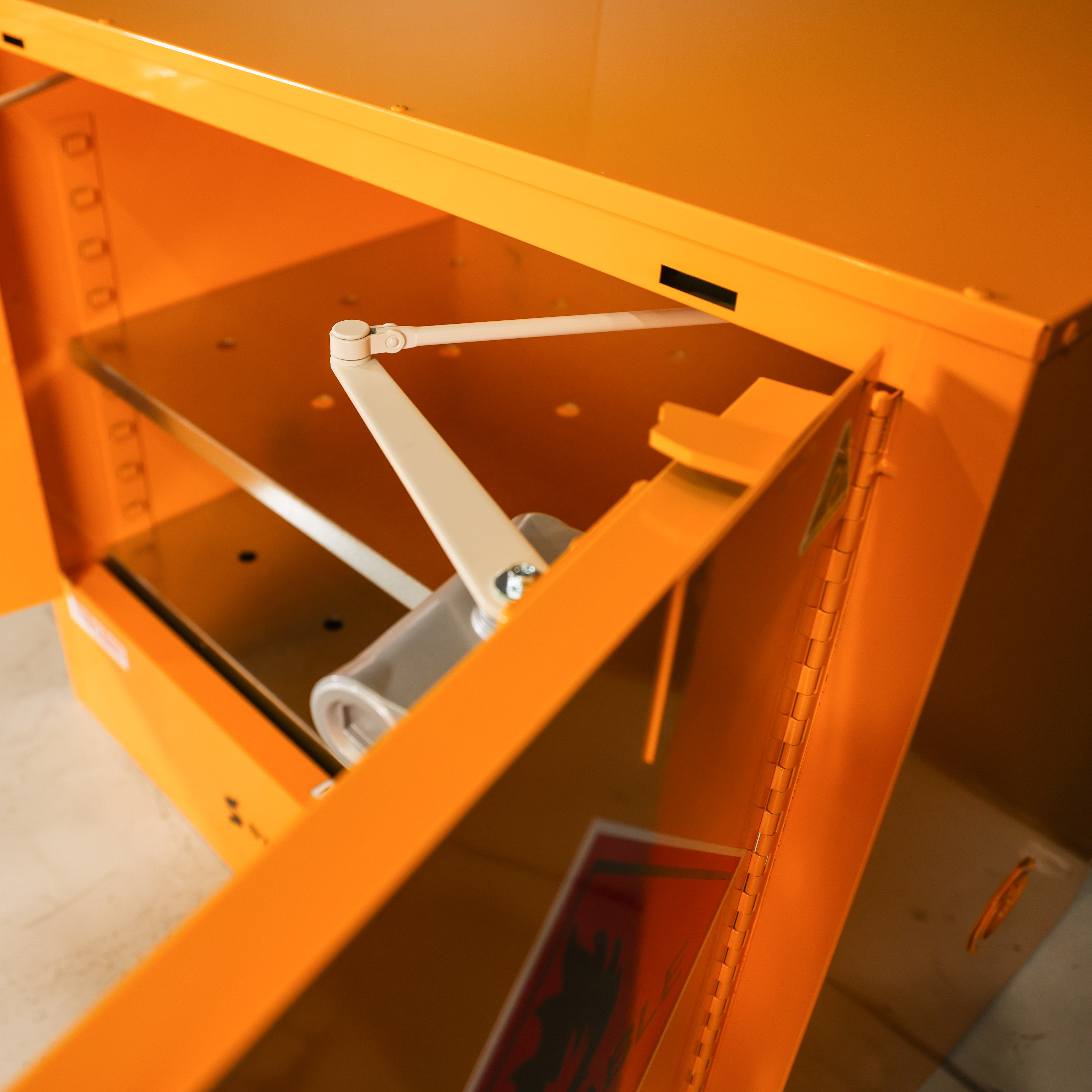

  • Self-closing, close fitting doors that automatically release in the event of a build-up of pressure within the cabinet

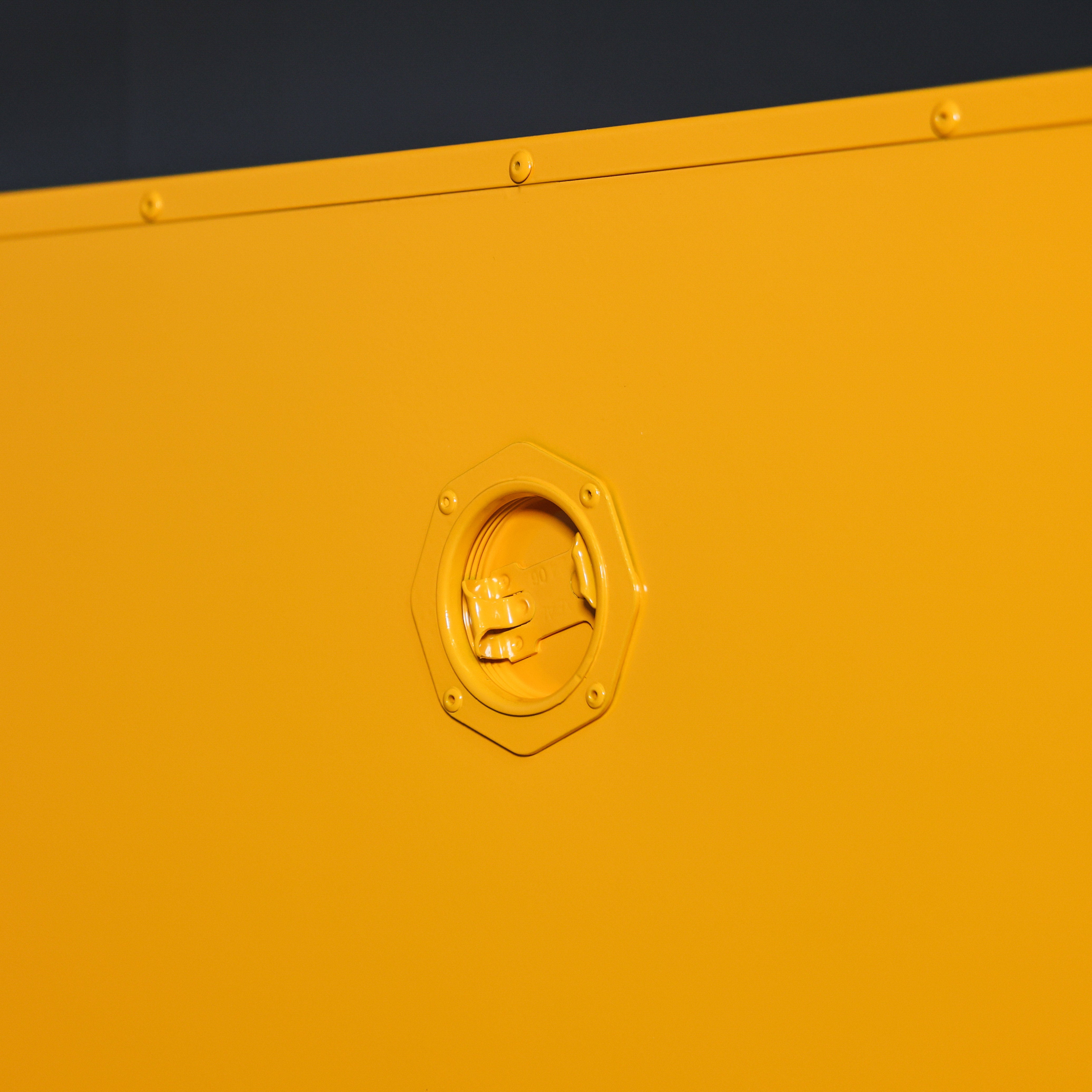

  • Built in flash arrestors and vent openings [for mechanical ventilation systems]

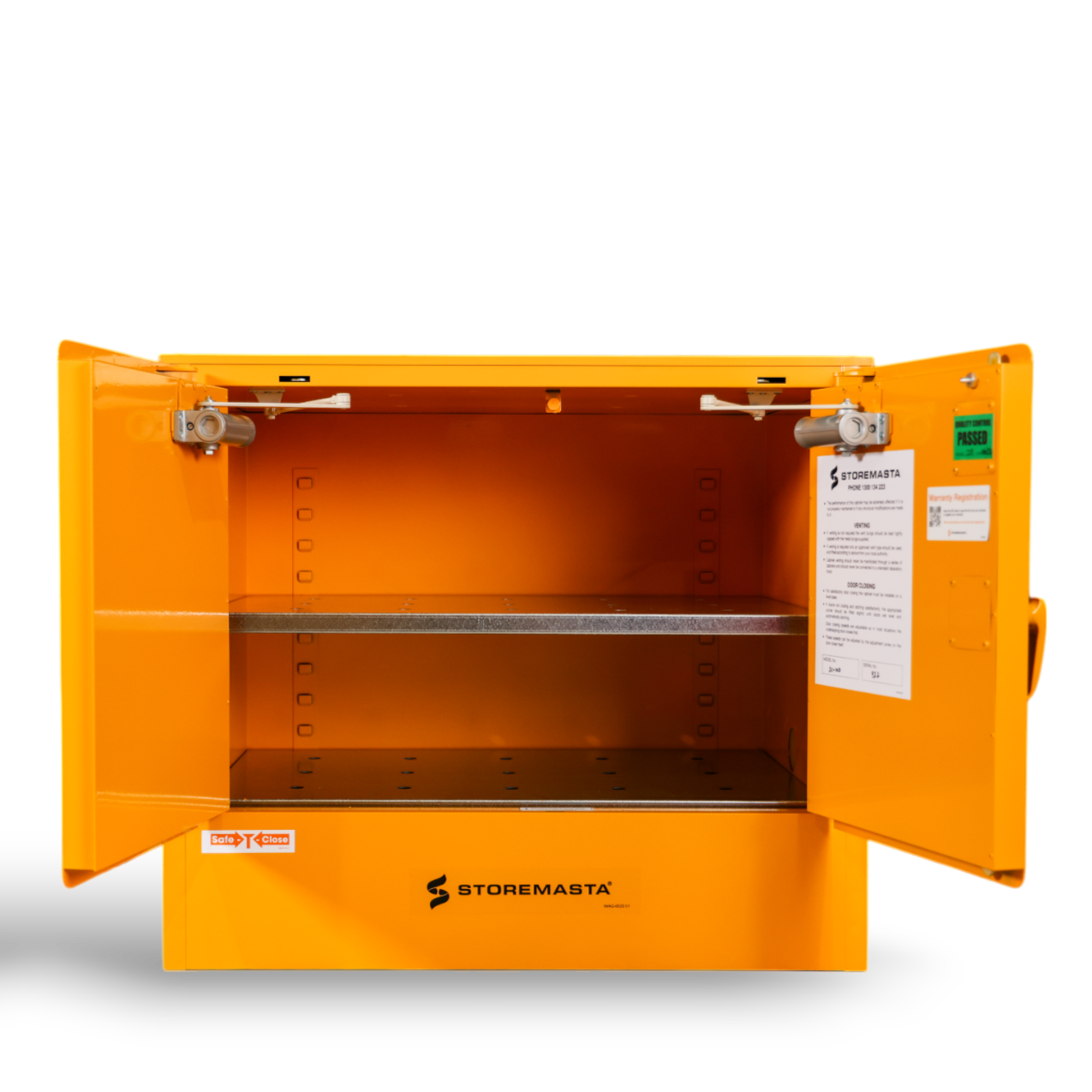

  • Strong fully adjustable shelving perforated for free air movement, 100mm adjustment increments
  • Sequential door closing system
  • Stainless steel pin with continuous hinging for strength and reliability
  • State of the art powder coat finish for high durability and performance
  • Distinct safety signs and directions that comply with AS 1216 and AS 1319
  • Designed and manufactured in full conformance to AS 4326:2008 - The storage and handling of oxidising agents.
Dimensions (mm)
External H 800 W 920 D 615
Internal H 553 W 838 D 535
Storage Capacity
Max Capacity 100L
Winchester Size 0.5L 2.5L 5L
Capacity 96 18 8
Drum Size 4L 20L 60L 205L
Capacity 16 4 - -
Calculations based on these package size
Dangerous Goods Compliance Specifications
Complies with AS4326 - 2008
Sump Capacity 67L
Other Specifications
Weight 65.0 kg
Shelf Levels 2
Storage Levels 2
Shelf Thickness (mm) 28
Shelf spacing (mm) 50
No. of Shelf Lugs 11
