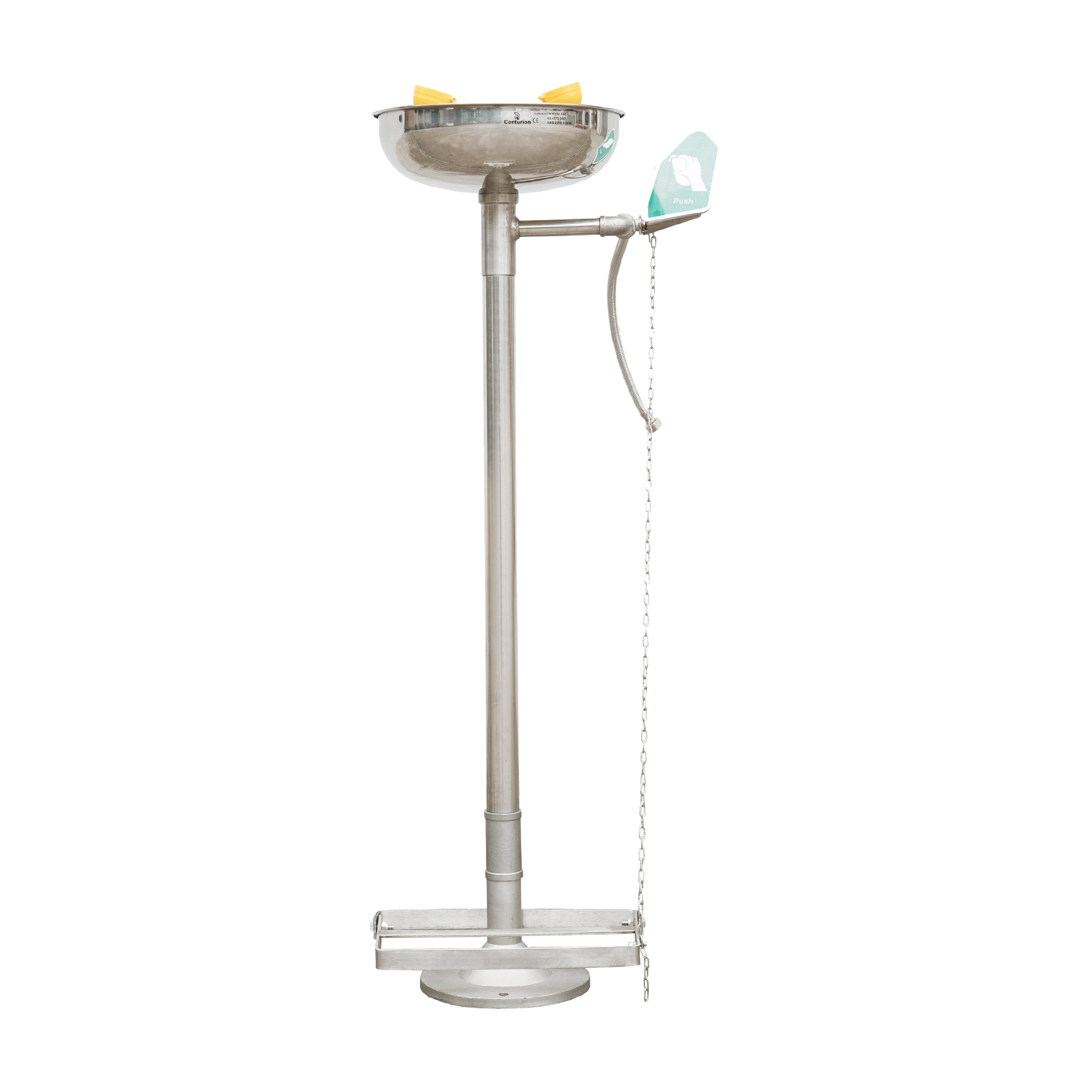

Free Standing Eye Wash Hand/Foot Operated - Yellow

PSRSH004
Description

The PSRSH004 is a floor mounted eyewash station made from stainless steel and suitable for outdoor work areas. This hard-wearing eyewash station has twin spray heads designed in accordance with both Australian and American Safety Standards.

This Free Standing Eye Wash Hand/Foot Operated - Yellow model offers the convenience of being by a hand or foot pedal. The Eye Wash delivers a safe and consistent flow of water to both eyes — the spray heads have filters to protect users from particles in the water.

Finished in a high-vis yellow protective coat, the Emergency Eye Wash is easily seen on a busy worksite, so workers can quickly seek decontamination from chemical exposure.

Features

  • Stainless steel construction coated with high visibility protective coating
  • Constructed from 1/4" stainless steel pipe
  • Fitted with automatic pressure compensating valve to ensure steady flow
  • Complies with Australian Standards AS 4775-2007
  • Supplied with signage the complies with the Australian Standard
  • 280mm stainless steel bowl for long lasting use
  • Suitable for outdoor installations

Dimensions (mm)

ExternalH 1060W 320D 280

Technical Information

MountBase Plate Size 150 x 150 mm (5 9/10” x 5 9/10”) with 4 Bolt Holes 11 mm (7/16”)
Inlet Connection 15 mm (1/2” BSP)
Water Supply Line Size Must be hydraulically sized to meet requirements.
Minimum Performance Requirement 210 kPaCaution should be taken when pressure exceeds 550 kPa (80 psi)
Minimum Flow
Requirement
Shower: 17 lpm (4.5 US gpm)
Eyewash:
Waste Water Outlet Size 38 mm (1 ½”) OD

Dangerous Goods Compliance Specifications

Complies with AS4775 - 2007

Spare Parts

Spare Part Code Description
PSRSH142 Eye and Eye/Face Wash Frame Only
PSRSH145 Push Handle to suit Eye and Eye/Face Washes
PSRSH012 Stainless Steel Shower Bowl
PSRSH149 Eye Wash Aerator and Washer
PSRSH150 Eye wash outlet includes dustcovers & aerators (pair)
PSRSH141 Foot operation conversion kit for Eye & Eye/Face Wash

Other Specifications

Weight 9.0 kg
