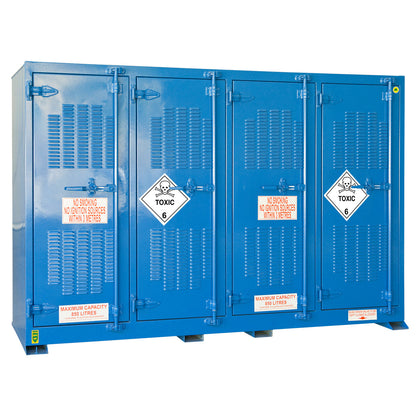

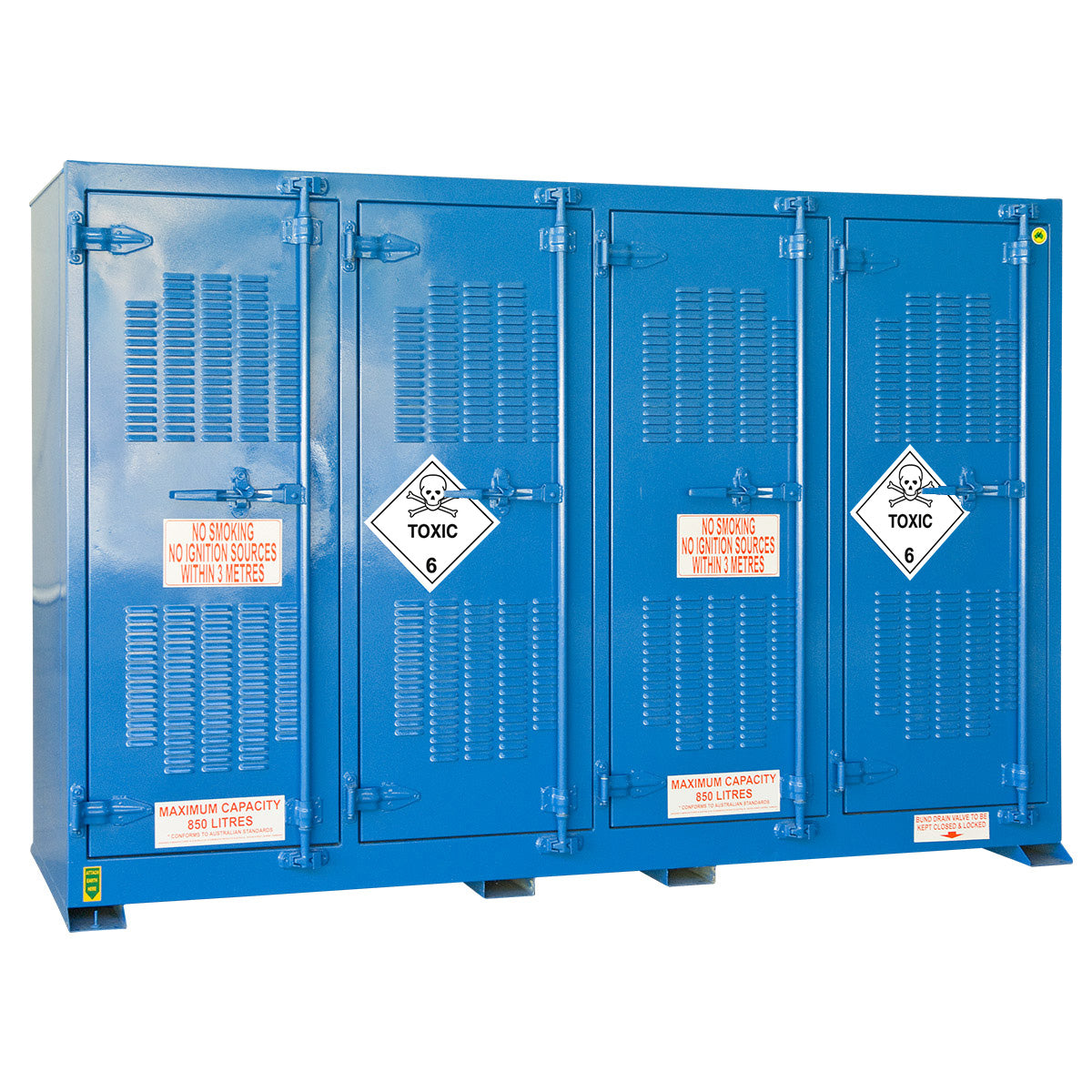

850L - Small Outdoor Toxic Substance Store
PR850-6
Description
Fully compliant with Australian Standards for storing flammable liquids outdoors, this self contained, relocatable STOREMASTA® Miniseries Dangerous Goods Cabinet has a capacity of up to 850 Litres.
STOREMASTA® Relocatable Outdoor Dangerous Goods Cabinets are new to the Australian industry. They are a safe, compliant replacement for the use of internal cabinets in outdoor environments.
Features
- Doors with 270° hinging to provide easy access
- ISO locking bars for high security
- Natural ventilation that complies with AS/NZS 4452:1997
- Forklift channels for easy relocation

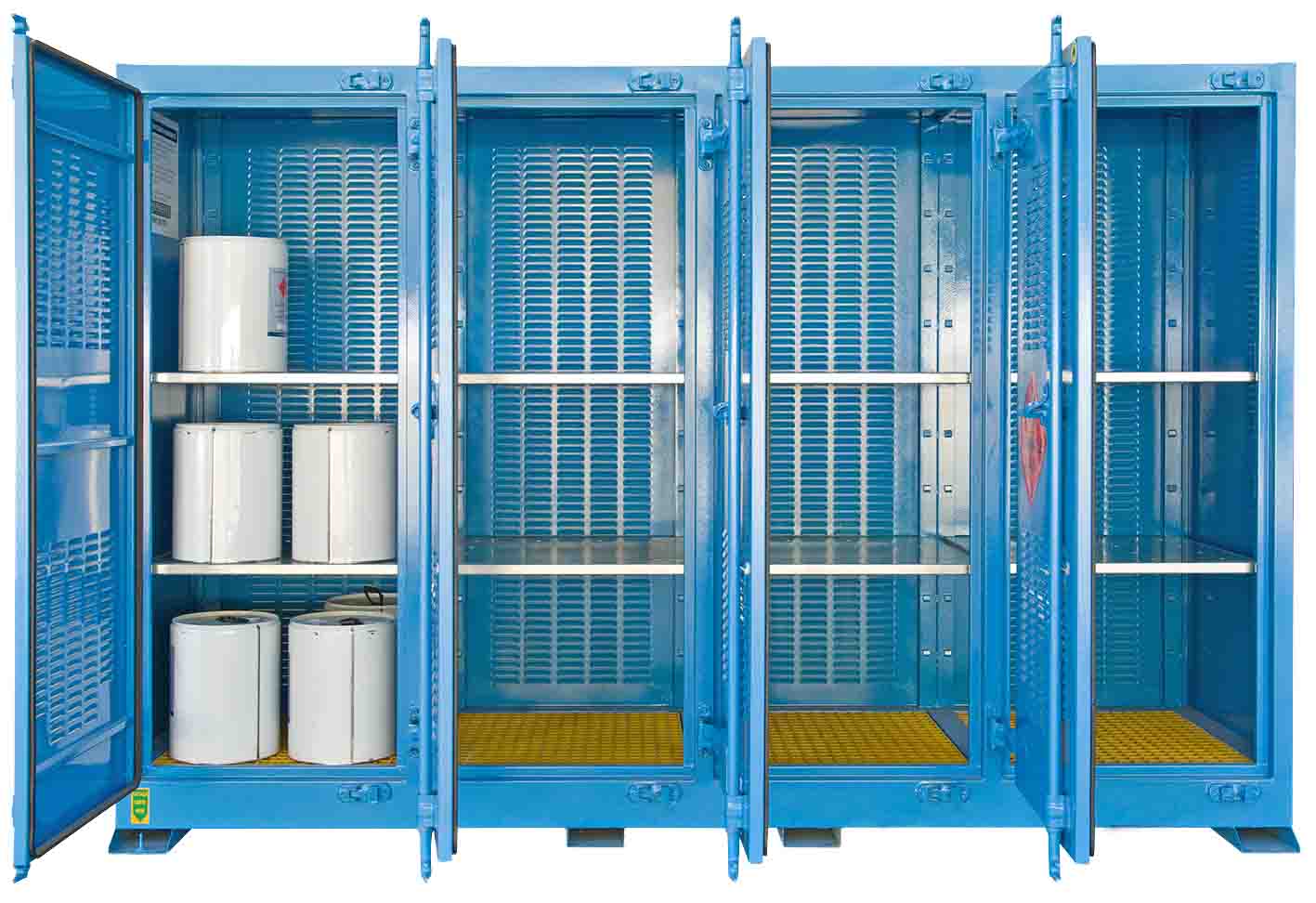

- Heavy duty adjustable perforated shelving
- Cambered roof for rainwater run off
- Earthing stake and mounting
- Appropriate safety signage that complies with AS 1216 and AS 1319
- Designed and manufactured in full conformance to AS/NZS 4452:1997 - The storage and handling of toxic substances
Dimensions (mm)
Dimensions (mm)
| External | H 1995 | W 2990 | D 900 |
| Internal | H 1690 | W 2825 | D 755 |
Storage Capacity
Storage Capacity
| Max Capacity | 850L |
| Drum Size | 0.5L | 2.5L | 5L | 4L |
| Capacity | 2000***** | 500***** | 108 | 180***** |
| Drum Size | 20L | 60L | 205L |
| Capacity | 48 | 8 | 4 |
Calculations based on these package size
Dangerous Goods Compliance Specifications
Dangerous Goods Compliance Specifications
| Complies with | AS/NZS - 4452 - 1997 |
| Sump Capacity | 340.8L |
Other Specifications
Other Specifications
| Weight | 513.8 kg |
| Shelf Levels | 2 |
| Storage Levels | 3 |
| Shelf Thickness (mm) | 28 |
| Shelf spacing (mm) | 165 |
| No. of Shelf Lugs | 10 |
