• Class 5.2 - Organic Peroxide

850L - Small Outdoor Organic Peroxide Store


Download the product spec sheet by filling the form below.

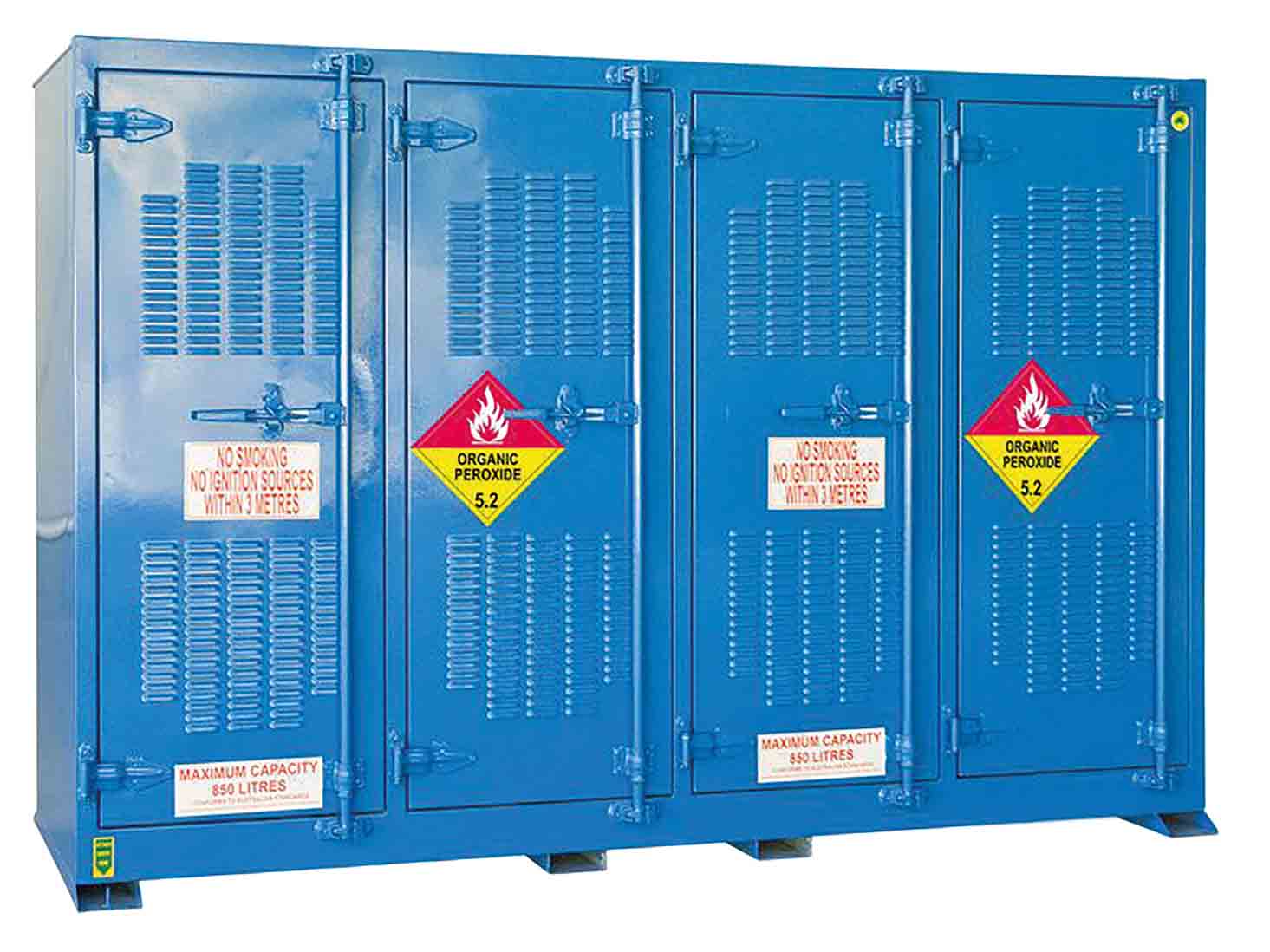

The PR850-52 is an outdoor chemical store specifically designed for safely storing up to 850 litres of Class 5.2 Organic Peroxides. This safety cabinet
Show more +

  • Doors with 270° hinging to provide easy access
  • ISO locking bars for high security
  • Natural ventilation that complies with AS 2714:2008
  • Forklift channels for easy relocation

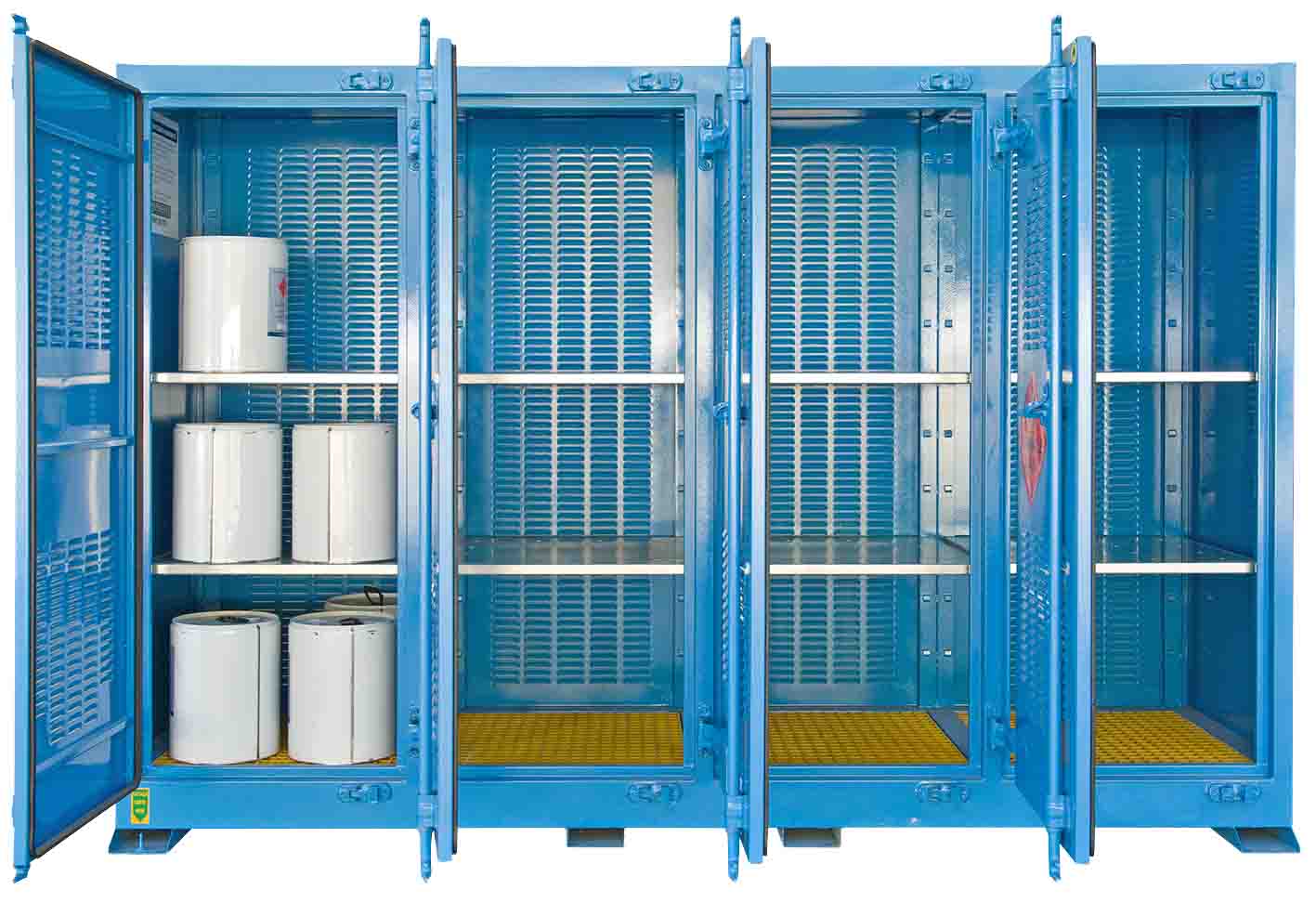

  • Heavy duty adjustable perforated shelving
  • Cambered roof for rainwater run off
  • Earthing steak and mounting
  • Appropriate safety signage that complies with AS 1216 and AS 1319
  • Designed and manufactured in full conformance to AS 2714:2008 - The storage and handling of organic peroxides
Dimensions (mm)
External H 1995 W 2990 D 900
Internal H 1690 W 2825 D 755
Storage Capacity
Max Capacity 850L
Drum Size 0.5L 2.5L 5L 4L
Capacity 2000***** 500***** 108 180*****
Drum Size 20L 60L 205L
Capacity 48 8 4
*****5 Storage levels
Calculations based on these package size
Dangerous Goods Compliance Specifications
Complies with AS2714 - 2008
Sump Capacity 340.8L
Other Specifications
Weight 513.8 kg
Shelf Levels 2
Storage Levels 3
Shelf Thickness (mm) 28
Shelf spacing (mm) 165
No. of Shelf Lugs 10
