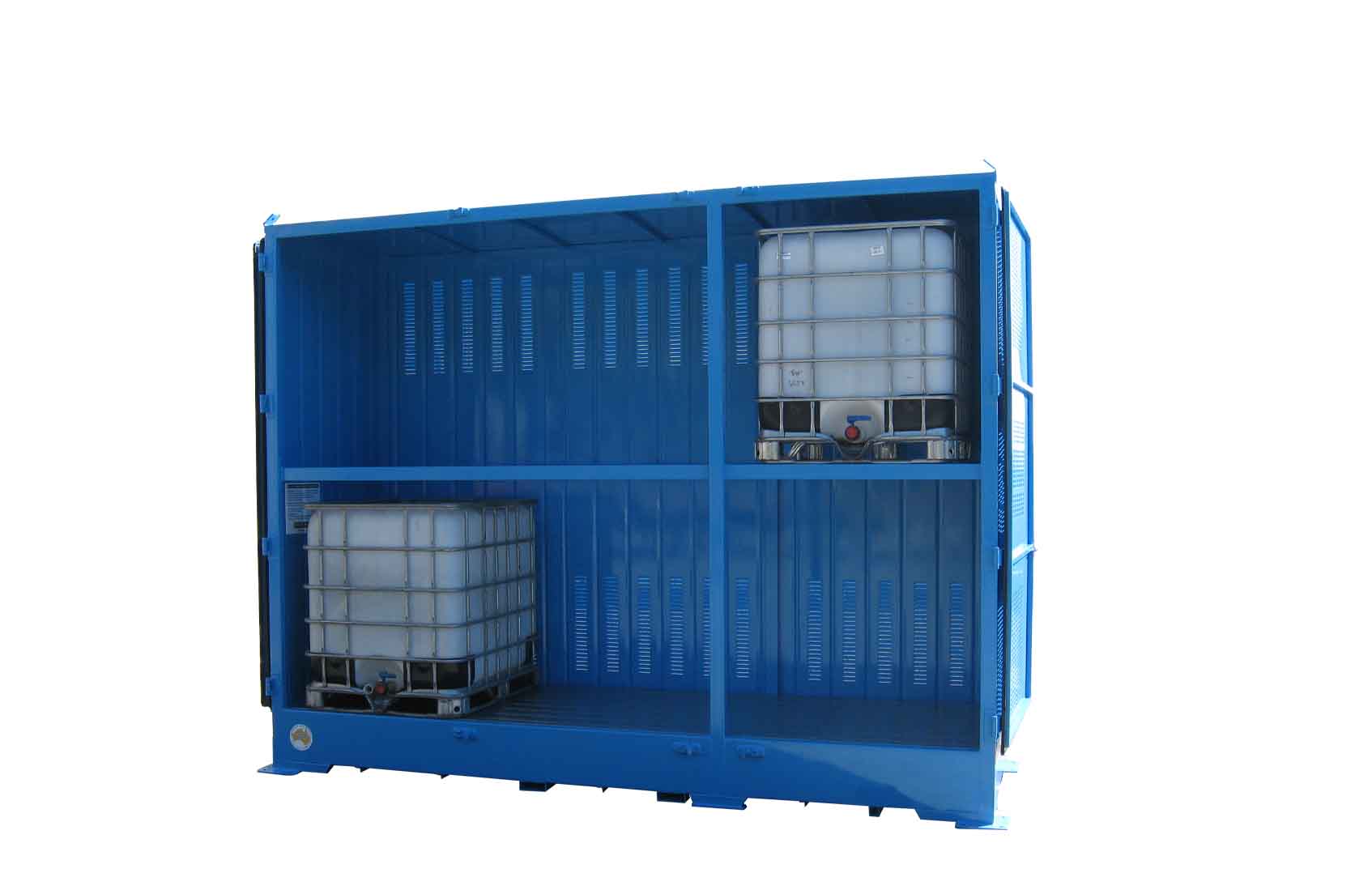

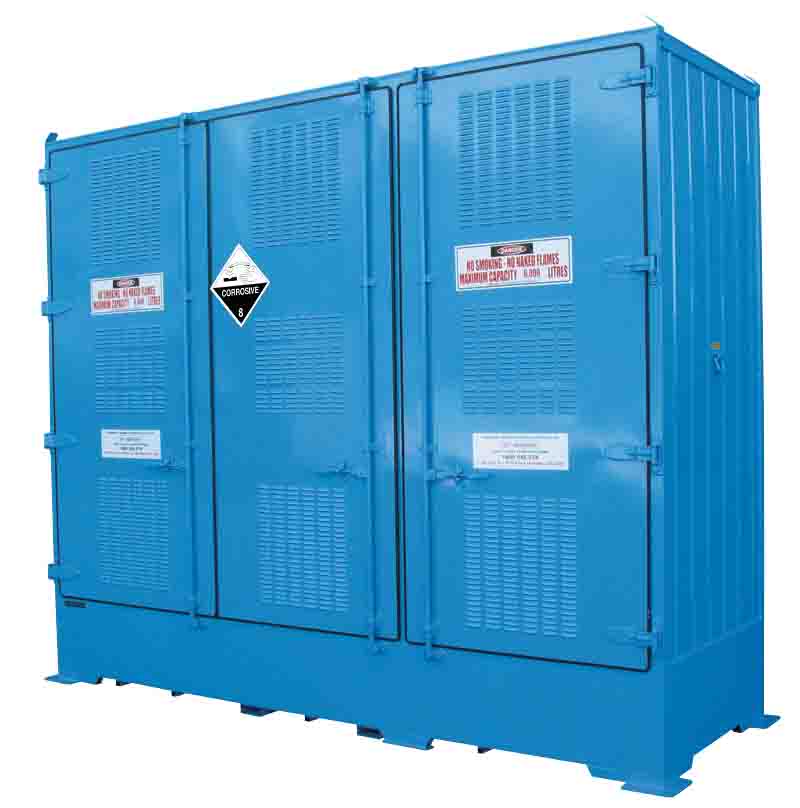

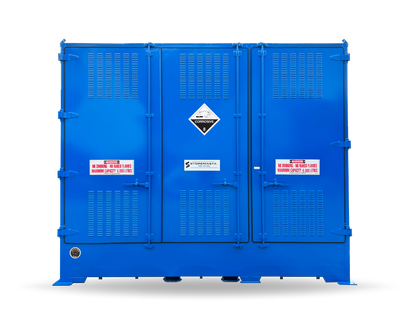

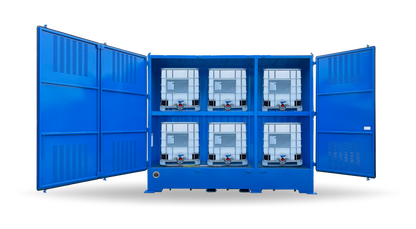

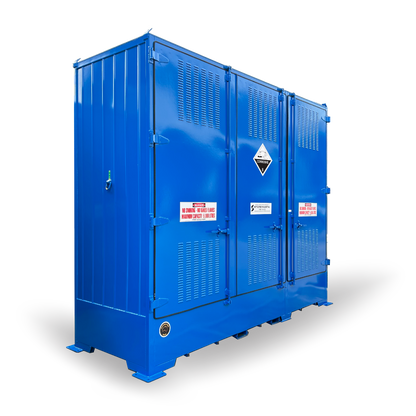

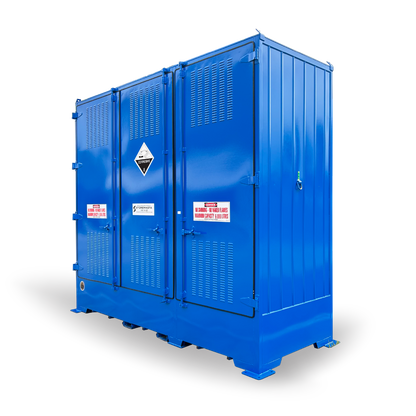

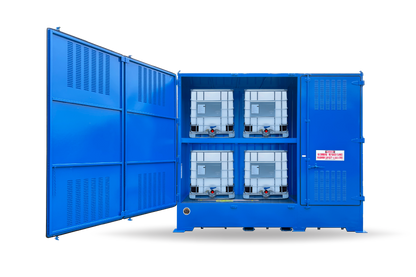

Single Depth Corrosive Substance Store - 6 IBC

pr06bb-8

Download the product spec sheet by filling the form below.

Description

STOREMASTA® Relocatable Bulk Dangerous Goods Stores are an ideal solution for immediate, safe, approved and efficient storage of large quantities of dangerous goods - without the prob
Show more +

Features

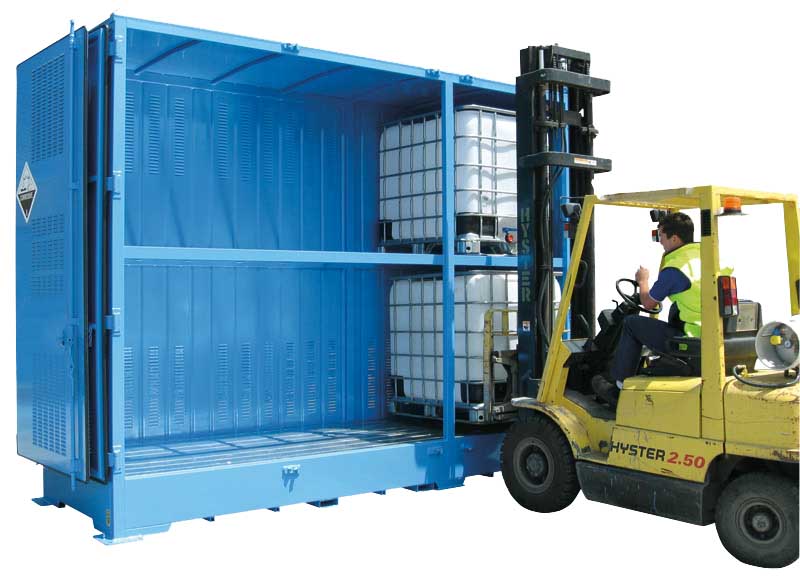

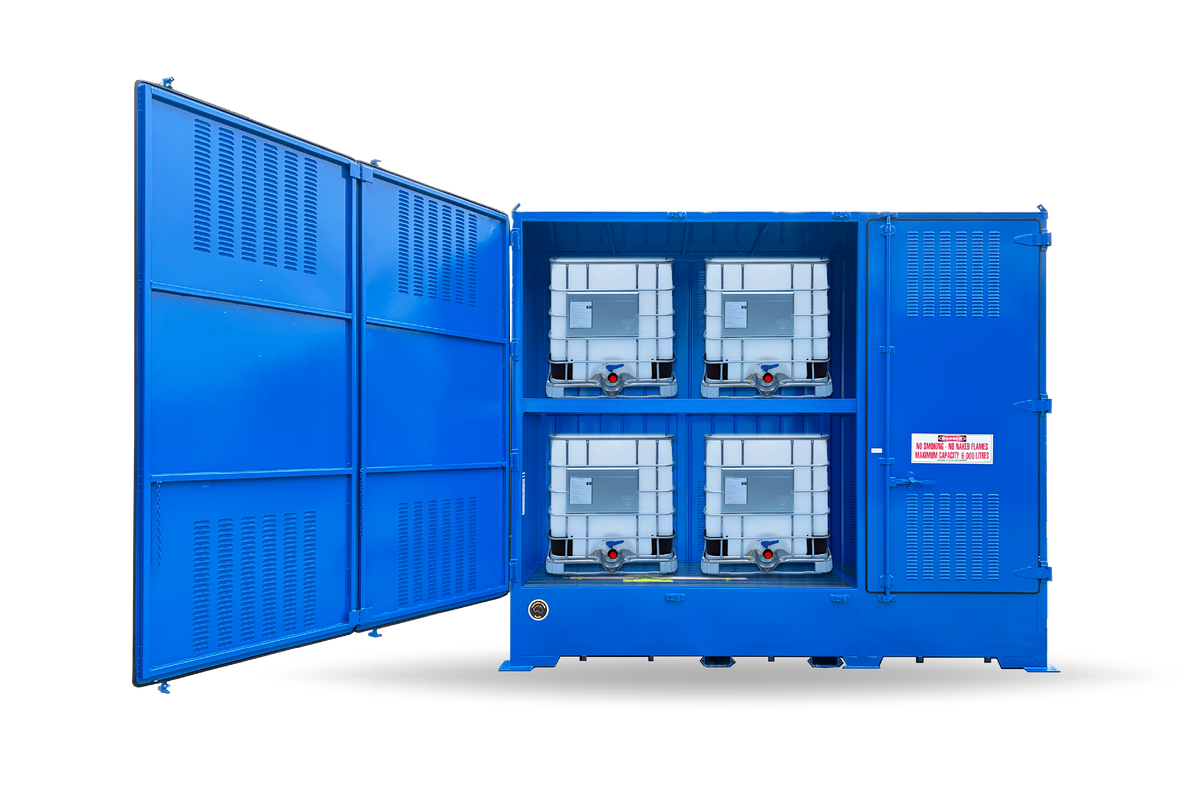

  • Doors which fold back 270° for ease of access when loading and unloading IBC’s with a forklift
  • Easy access: each IBC accessible via forklift
  • ISO locking bars for high security
  • Natural ventilation that complies with AS 3780:2008
  • Lifting lugs, forklift channels and locating plates
  • Finished in high build 2 pak polyurethane primer and high gloss topcoat, total build thickness minimum of 120 microns
  • Cyclonic proof construction
  • Earth stake and mounting
  • Cambered roof for rainwater run off
  • Liquid tight spill containment sump with compliant capacity
  • Engineered footing details available
  • Suitable for storage of IBC’s and pallets
  • Fiberglass flooring and polyethylene sump liner for corrosion protection
  • Appropriate warning and safety signage that complies with AS 1216 and AS 1319
  • Designed and manufactured in full conformance to AS 3780:2008 - The storage and handling of corrosive substances
Dimensions (mm)
External H 3350 W 4115 D 1440
Internal H 2 x 1275 (2650) W 1 x 2500, 1 x 1250 D 1225
Storage Capacity
Max Capacity 6000L
IBC 6
Calculations based on these package size
Dangerous Goods Compliance Specifications
Complies with AS3780 - 2008
Sump Capacity 1500L
Other Specifications
Weight 1140.6 kg
Storage Levels 2
