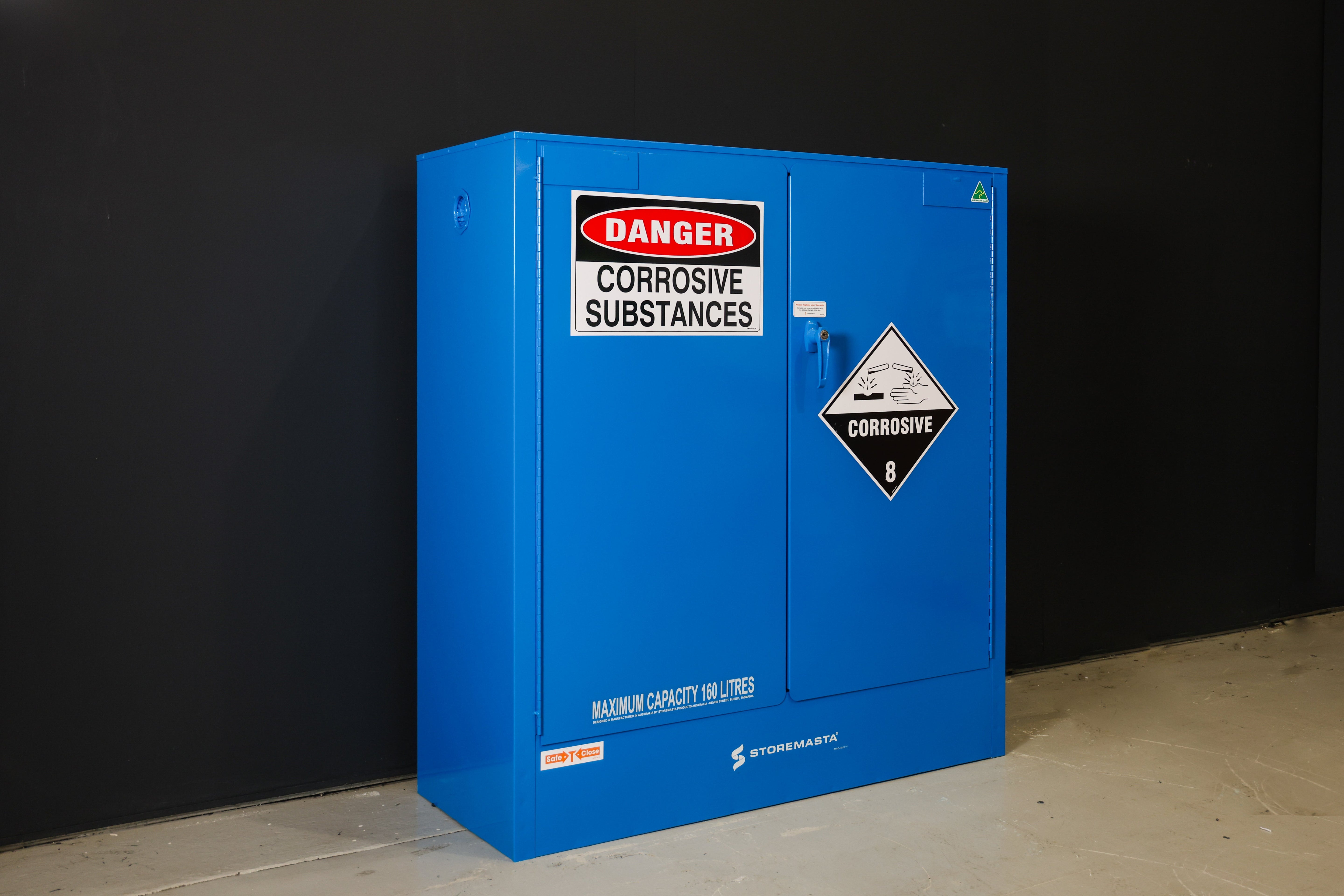

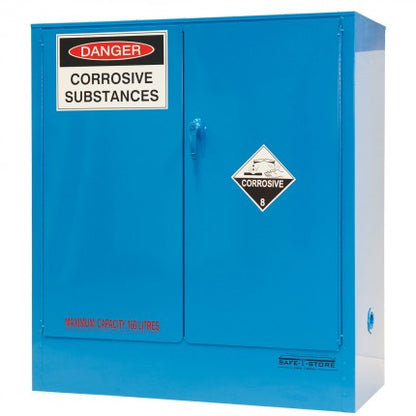

160L - Corrosive Substance Storage Cabinet

SC1608
Description

For the indoor storage of Class 8 Corrosive Substances, choose our Australian-made Corrosive Safety Cabinets.

This 160L Corrosive Substance Storage Cabinet features Storemasta's patented SAFE-T-CLOSE® sequential closing system, as well as a liquid-tight spill containment sump, PVC spill trays on shelving, lockable doors and compliant dangerous goods signage.

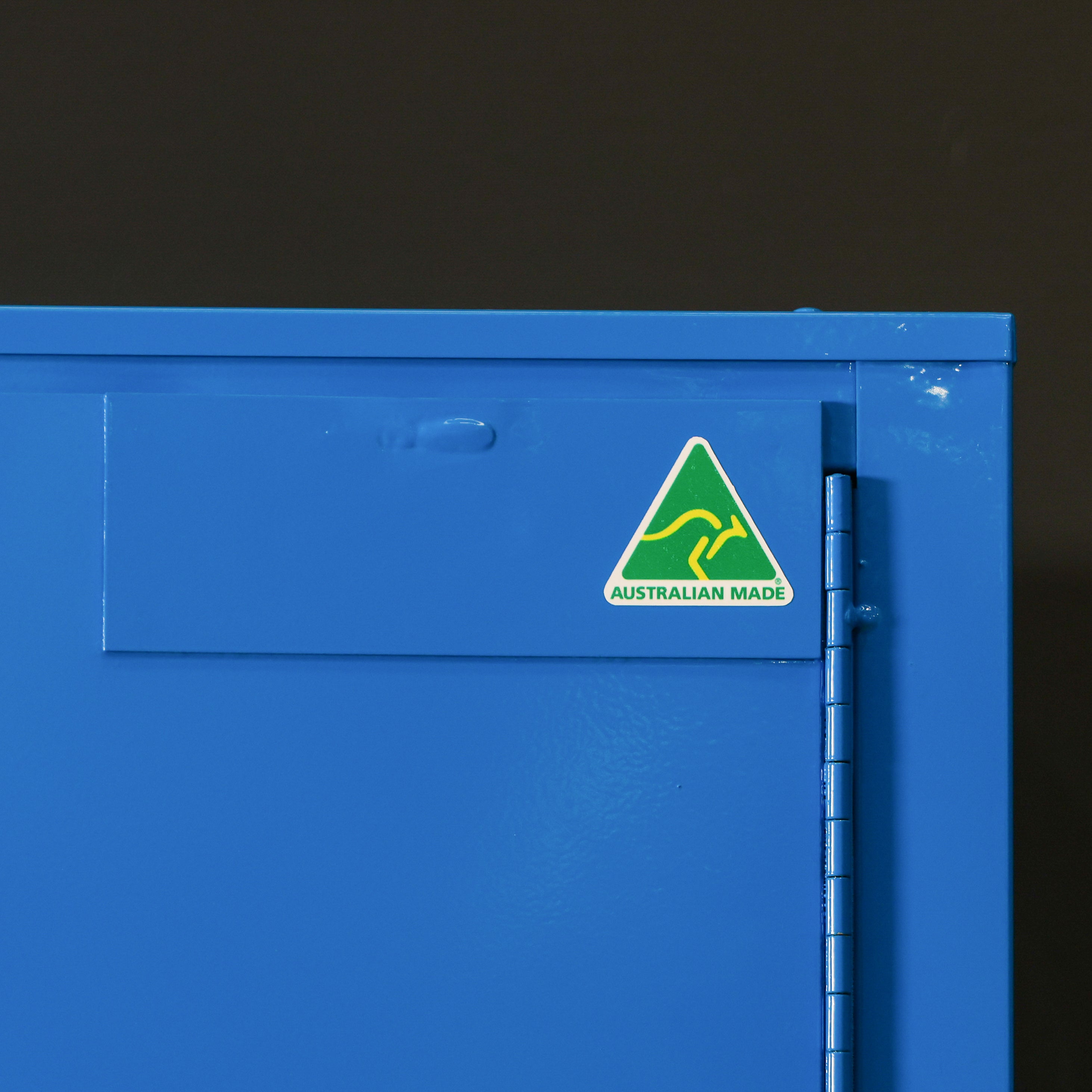

Designed and manufactured in Tasmania, our range of Corrosive Safety Cabinets are made in full conformance with Australian Standards.

Features

  • Double walled sheet steel construction with a 40mm thermic air barrier
  • High capacity liquid tight sump to contain spills - 150mm deep
  • Self-closing, close fitting doors held shut by catches at 2 points. The doors do not open inwards and are capable of being opened from within the cabinet
  • Built in flash arrestors and vent openings [for mechanical ventilation systems]

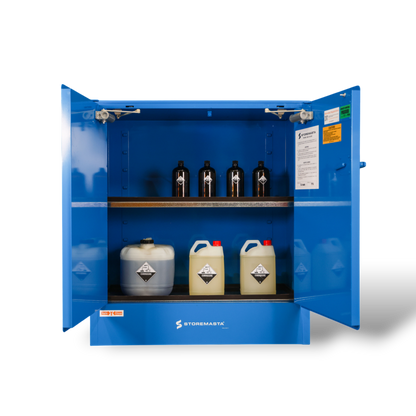

  • Strong fully adjustable shelving perforated for free air movement, 100mm adjustment increments
  • Sequential door closing system
  • Stainless steel pin with continuous hinging for strength and reliability
  • State of the art powder coat finish for high durability and performance
  • PVC spill trays on shelves for corrosion protection
  • Distinct safety signs and directions that comply with AS 1216 and AS 1319
  • Designed and manufactured in full conformance to AS 3780:2023 - The storage and handling of corrosive substances

Dimensions (mm)

ExternalH 1220W 1100D 450
InternalH 973W 1018D 370

Storage Capacity

Max Capacity 160L
Winchester Size0.5L2.5L 5L
Capacity225*** 2810
Drum Size4L20L60L205L
Capacity30***6--
***3 Storage levels
Calculations based on these package size

Dangerous Goods Compliance Specifications

Complies with AS3780 - 2023
Sump Capacity 56L

Other Specifications

Weight 78.0 kg
Shelf Levels 2
Storage Levels 2
Shelf Thickness (mm) 28
Shelf spacing (mm) 100
No. of Shelf Lugs 10
