Combination Emergency Shower Eye Face Hand/Foot Operated - Yellow

psrsh001

Download the product spec sheet by filling the form below.

Select Quantity

Description

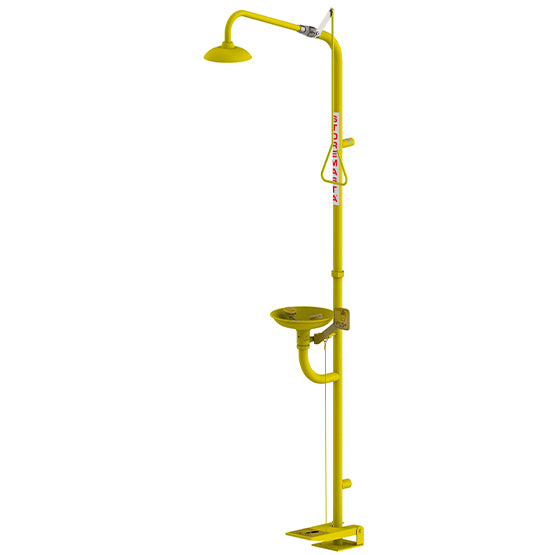

This SAFE-T-WASH^© unit combines an eyewash and drench shower station to provide emergency flushing of contaminants due to exposure. Constructed from stainless steel and coated in a durable HIVIS p
Show more +

Features

Stainless steel construction coated with high visibility protective coating
Constructed from 1/4" stainless steel pipe
Fitted with automatic pressure compensating valve to ensure steady flow
Complies with Australian Standards AS 4775-2007
Supplied with signage the complies with the Australian Standard

Dimensions (mm)

External

H 1160

W 300

D 250

Technical Information

MountBase Plate Size

150 x 150 mm (5 9/10” x 5 9/10”) with 4 Bolt Holes 11 mm (7/16”)

Inlet Connection

25 mm (1”) BSP

Water Supply Line Size

Must be hydraulically sized to meet requirements.

Minimum Performance Requirement

210 kPaCaution should be taken when pressure exceeds 550 kPa (80 psi)

Minimum Flow
Requirement

Shower: 76 lpm (20 US gpm)

Eyewash: 27 lpm (6.9 US gpm)

Waste Water Outlet Size

38 mm (1 ½”) OD

Dangerous Goods Compliance Specifications

Complies with

AS4775 - 2007

Spare Parts

Spare Part Code	Description
PSRSH138	Eye and Eye/Face Wash Frame Only
PSRSH145	Push Handle to suit Eye and Eye/Face Washes
PSRSH144	Pull handle to activate shower
PSRSH143	Shower arm and rose
PSRSH012	Stainless Steel Shower Bowl
PSRSH141	Foot operation conversion kit for Eye & Eye/Face Wash
PSRSH146	Eye/Face Wash Outlet (each)
PSRSH147	Aerator to Suit Eye/Face Wash

Other Specifications

Weight

12.7 kg
